Accessory Caddy/Caster Foot/Caster Assembly - Craftsman 113.170660 Owner's Manual

Accessory Caddy/Caster Foot/Caster Assembly --

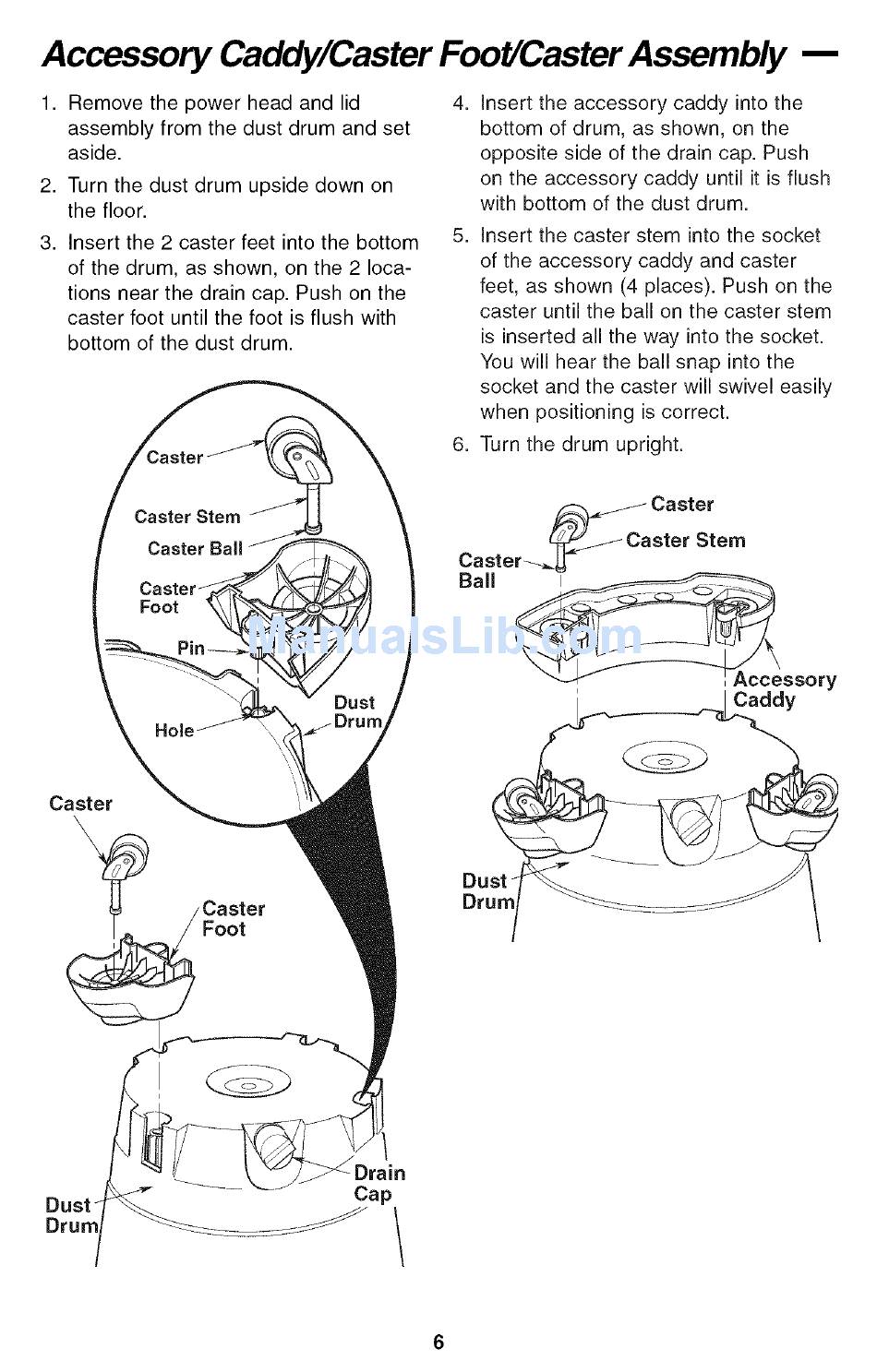

1. Remove the power head and lid
assembly from the dust drum and set
aside.
2. Turn the dust drum upside down on
the floor.
3. Insert the 2 caster feet into the bottom
of the drum, as shown, on the 2 loca-
tions near the drain cap. Push on the
caster foot until the foot is flush with
bottom of the dust drum.
4.
5.
Insert the accessory caddy into the
bottom of drum, as shown, on the
opposite side of the drain cap. Push
on the accessory caddy until it is flush
with bottom of the dust drum.
Insert the caster stem into the socket
of the accessory caddy and caster
feet, as shown (4 places). Push on the
caster until the ball on the caster stem
is inserted all the way into the socket.
You will hear the ball snap into the
socket and the caster will swivel easily
when positioning is correct.
6. Turn the drum upright.
Caster
Foot
Drum
Dust
Drain
Cap
/
