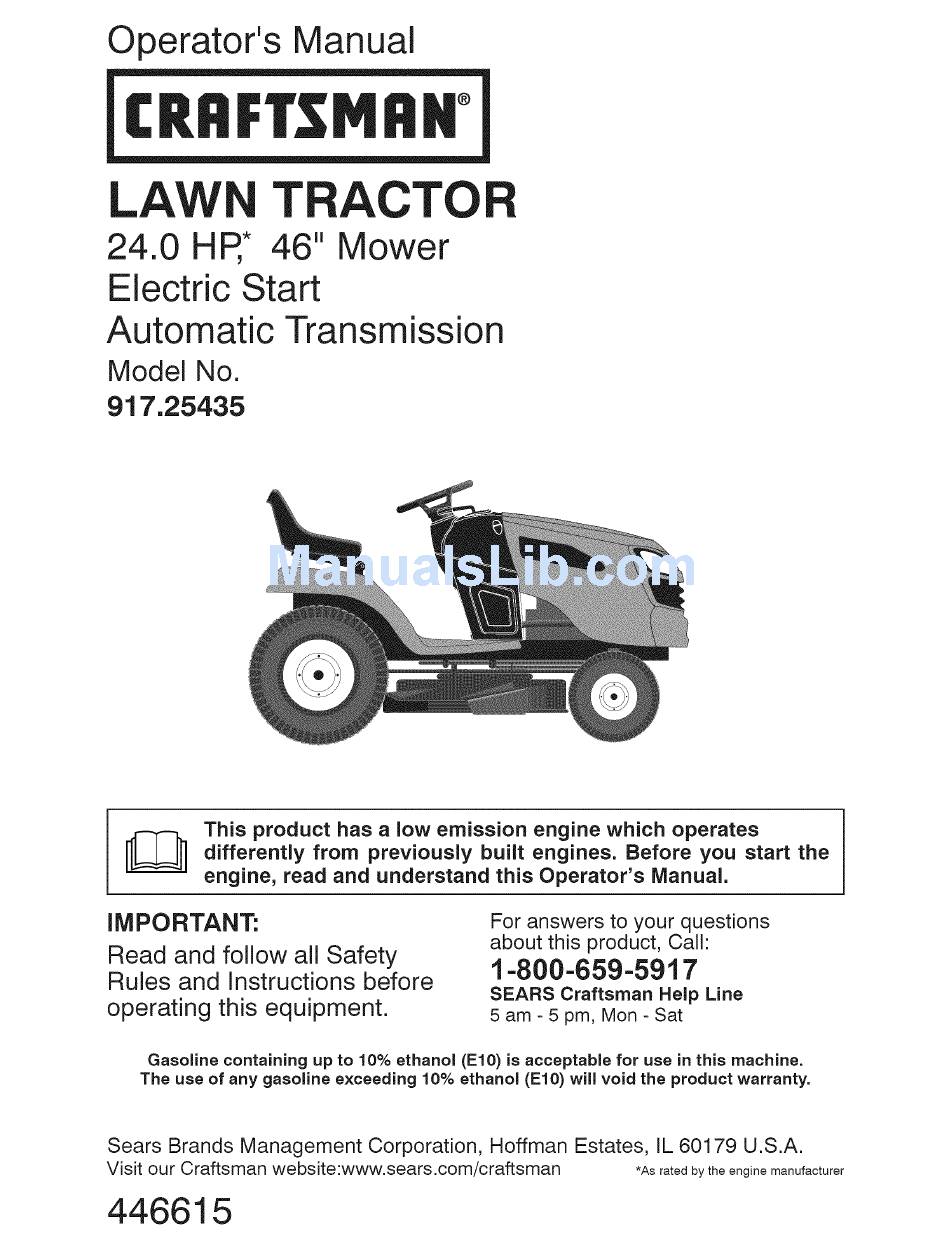

Operator's
Manual
1
®
LAW
24.0 HR*
TRACTO
46" Mower
Electric Start
Automatic
Transmission
Model No.
917.25435
This product has a low emission
engine
which
operates
differently
from
previously
built
engines.
Before
you start the
engine,
read and understand
this Operator's
Manual.
IMPORTANT:
Read and follow all Safety
Rules and Instructions
before
operating
this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
SEARS Craftsman Help Line
5 am - 5 pm, Mon- Sat
Gasoline
containing
up to 10% ethanol
(EIO) is acceptable
for use in this machine.
The use of any gasoline exceeding
10% ethanol
(EIO) will void the product warranty.
Sears
Brands
Management
Corporation,
Hoffman
Estates,
IL 60179
U.S.A.
Visit our Craftsman
website:www.sears.com/craftsman
*As rated
by the engine
manufacturer
446615
Advertisement
Table of Contents
Related Manuals for Craftsman 917.25435
Summary of Contents for Craftsman 917.25435
- Page 1 IMPORTANT: For answers to your questions about this product, Call: Read and follow all Safety 1-800-659-5917 Rules and Instructions before SEARS Craftsman Help Line operating this equipment. 5 am - 5 pm, Mon- Sat Gasoline containing up to 10% ethanol (EIO) is acceptable for use in this machine.
- Page 2 Troubleshooting ........Sears Service ......Back Cover Operation ..........Maintenance Schedule ......CRAFTSMAN PROFESSIONAL LIMITED WARRANTY TWO YEARS ON TRACTOR This warranty applies for only one year from the date of purchase if this tractor is ever used for commercial or rental purposes.
-
Page 3: General Operation
,_DANGER: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. _,WARNING: In order to prevent acciden- • Never direct discharged materialtoward tal starting when setting up, transporting, anyone. -
Page 4: Slope Operation
li. SLOPE OPERATION • Keep children out of the mowing area and in the watchful care of a responsible Slopes are a major factor related to loss of adult other than the operator. control and tip-over accidents, which • Be alert and turn machine off if a child... - Page 5 • Remove gas-powered equipment from • Nevertamperwithsafetydevices. Check the truck or trailer and refuel it on the their proper operation regularly. ground. Ifthis is not possible, then refuel • Keep machine free of grass, leaves, such equipment with a portable container, other debris...
-
Page 6: Product Specifications
60 Oz./1,77 REPAIR PROTECTION AGREEMENTS Spark Plug: Champion QC12YC (Gap: .040"/1.02 Congratulations on making a smart pur- chase. Your Craftsman® product Ground Speed Forward: 0 - 5.2/8,4 (Mph/Kph): Reverse: 0 - 2.9/4,7 designed manufactured years dependable operation. But like all products,... -
Page 7: Tools Required
Slope Sheet Keys (2) Keys Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. TOOLS REQUIRED ASSEMBLY A socket wrench set will make assembly easier. Standard wrench sizes are listed. (1) 1/2"... - Page 8 ,/CHECKLIST NOTE: You may now roll your tractor off the Before operate your tractor, skid. Followthe appropriate instruction below wish to assure that receive best to remove the tractor from the skid. performance satisfaction from this Quality Product. _l_ WARNING: Before starting, read,...
- Page 9 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. I',,I @ REVERSE NEUTRAL HIGH CHOKE FAST SLOW IGNITION SWITCH (@) -@ MOWER LIFT ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER...
- Page 10 KNOW YOUR TRACTOR READ THIS MANUAL SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations various controls and adjustments. Save this manual for future reference. 03108 Our tractors conform to the applicable safety standards of the...
- Page 11 The operation of any tractor result in foreign objects thrown into I the eyes, which can result in severe eye damage. Always wear safety ! glasses or eye shields while operating your tractor or performing any ! adjustments or repairs. We recommend standard safety glasses or a_...
- Page 12 TO USE CRUISE CONTROL NOTE: Adjust gauge wheels with tractor The cruise control feature can be used for a flat level surface. forward travel only. 1. Adjust mower to desired cutting height SYSTEM CHARACTERISTICS (See "TO ADJUST MOWER CUTTING cruise control should only...
- Page 13 TO TRANSPORT REVERSE OPERATION SYSTEM (ROS) Your tractor is equipped with a Reverse When pushing or towing your tractor, Operation System (ROS). attempt sure to disengage transmission by placing the operator to travel in the reverse direction freewheel control in freewheeling position.
-
Page 14: To Start Engine
BEFORE STARTING THE ENGINE Sit on seat in operating position, depress brake pedal and set parking brake. CHECK ENGINE OIL LEVEL Move attachment clutch to disengaged The engine in your tractor has been shipped, position. from the factory, already filled with summer Move throttle control... -
Page 15: Mowing Tips
PURGE TRANSMISSION MOWING TiPS • Tire chains cannot be used when _CAUTION: Never engage or disengage freewheel lever while the engine is running. mower housing is attached to tractor. To ensure proper operation and performance, • Mower should be properly leveled it is recommended that the transmission... - Page 16 MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE SCHEDULE EACH SEASON STORAGE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners ChecWReplace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals...
- Page 17 TRACTOR CHECK REVERSE OPERATION (ROS) SYSTEM Always observe safety rubs when per- forming any maintenance. • When the engine is running with the BRAKE OPERATION ignition switch in the engine "ON" posi- tion and the attachment clutch engaged, if tractor requires more than five (5) feet to any attempt...
-
Page 18: Engine Oil
TO CLEAN BATTERYAND TERMINALS NOTE: Although multi-viscosity oils Corrosionand dirt on the battery and termi- (5W30, 10W30 etc.) improve starting nals can causethe batteryto "leak" power. cold weather, they will result in increased 1. DisconnectBLACK battery cable first oil consumption when used above then RED battery cable and remove... - Page 19 ENGINE OIL FILTER CLEAN AIR INTAKE/COOLING AREAS To insure proper cooling, make sure the Replace the engine oil filter every season grass screen, cooling fins, and other exter- every other oil change if the tractor is used nal surfaces of the engine are kept clean more than 100 hours in one year.
- Page 20 CLEANING • Clean engine, battery, seat, finish, etc. Nozzle _/Hose of all foreign matter. Adapter _ Washout Port • Clean debris from steering plate. Debris can restrict clutch/brake pedal shaft movement, causing belt slip and loss of drive. _i, CAUTION: Avoid all pinch points and movable parts...
- Page 21 WARNING: VICE OR ADJUSTMENTS: TO AVOID SERIOUS INJURY, BEFORE PERFORMING SER= Depress brake pedal fully and set parking brake. Place attachment clutch in "DISENGAGED" position. Turn ignition key to "STOP" and remove key. Make sure the blades and all moving parts have completely stopped.
- Page 22 ATTACH MOWER SIDE SUSPENSION Insert of link (E) into hole in front ARMS (A) TO CHASSIS - Position hole mower bracket secure with in arm over pin (B) on outside of tractor washer and retainer spring (J). chassis and secure with retainer spring.
- Page 23 FRONT=TO=BACK ADJUSTMENT TO LEVEL MOWER Make sure tires are properly inflated to the IMPORTANT: Deck must be level side- PSI shown on tires. Iftires are over or under to-side. inflated, it may affect the appearance of your lawn and lead you to think the mower is not To obtain the best cutting results, the mower...
- Page 24 TO REPLACE MOWER BLADE DRIVE BELT INSTALLATION BELT Install new belt from tractor rear to front, The mower blade drive belt may be replaced over steering plate (F) and above without tools. Park the tractor on level sur- clutch brake pedal shaft (G).
- Page 25 TO CHECK BRAKE TO START ENGINE WITH A WEAK BAT- TERY If tractor requires more than five (5) feet to stop at highest speed in highest gear on a _IbWARNING: Lead-acid batteries generate level, dry concrete or paved surface, then explosive gases.
-
Page 26: Interlocks And Relays
REPLACING BATTERY TO REMOVE HOOD GRILL SEMBLY _,WARNING: Do not short battery termi- Raise hood. nals by allowing a wrench or any other object Unsnap headlight wire connector. to contact both terminals at the same time. Stand in front of tractor. Grasp hood at Before... - Page 27 Immediately prepare your tractor for storage • Empty the fuel tank by starting the engine at the end of the season or if the tractor will and letting it run until the fuel lines carburetor are empty. not be used for 30 days or more, _WARNING: Never store the tractor with •...
-
Page 28: Troubleshooting
TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center. PROBLEM CAUSE CORRECTION Will not start Out of fuel. Fill fuel tank. See "TO START ENGINE" Engine not "CHOKED" properly. Operation section. Wait several minutes before Engine flooded. attempting to start. - Page 29 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center. CAUSE PROBLEM CORRECTION Cutting too much grass/too fast. Raise cutting height/reducespeed Loss of power Throttle in "CHOKE" position. Adjust throttle control. Clean underside of mower Build-up of grass, leaves and trash under mower.
- Page 30 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center. PROBLEM CAUSE CORRECTION Mower blades will Obstruction in clutch mechanism. Remove obstruction. not rotate Worn/damaged mower drive belt. Replace mower drive belt. Frozen idler pulley. Replace idler pulley. Frozen blade mandrel.
- Page 31 TROUBLESHOOTING CHART: See appropriate section in manual unless directed to Sears service center. PROBLEM CAUSE CORRECTION Loss of drive Place freewheel control in Freewheel control in "ENGAGED" position. "DISENGAGED" position. See "CLEANING" in the Debris on steering plate (if maintenance section.
- Page 32 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION I/v_ ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. down the face of slopes, never across the face. Do not mow ARNING: To avoid serious injury, operate your tractor up and slopes greater than 15 degrees.
- Page 36 09.28.11 SR Printed in the U.S.A.
