Summary of Contents for VocoPro CDG-8800 PRO

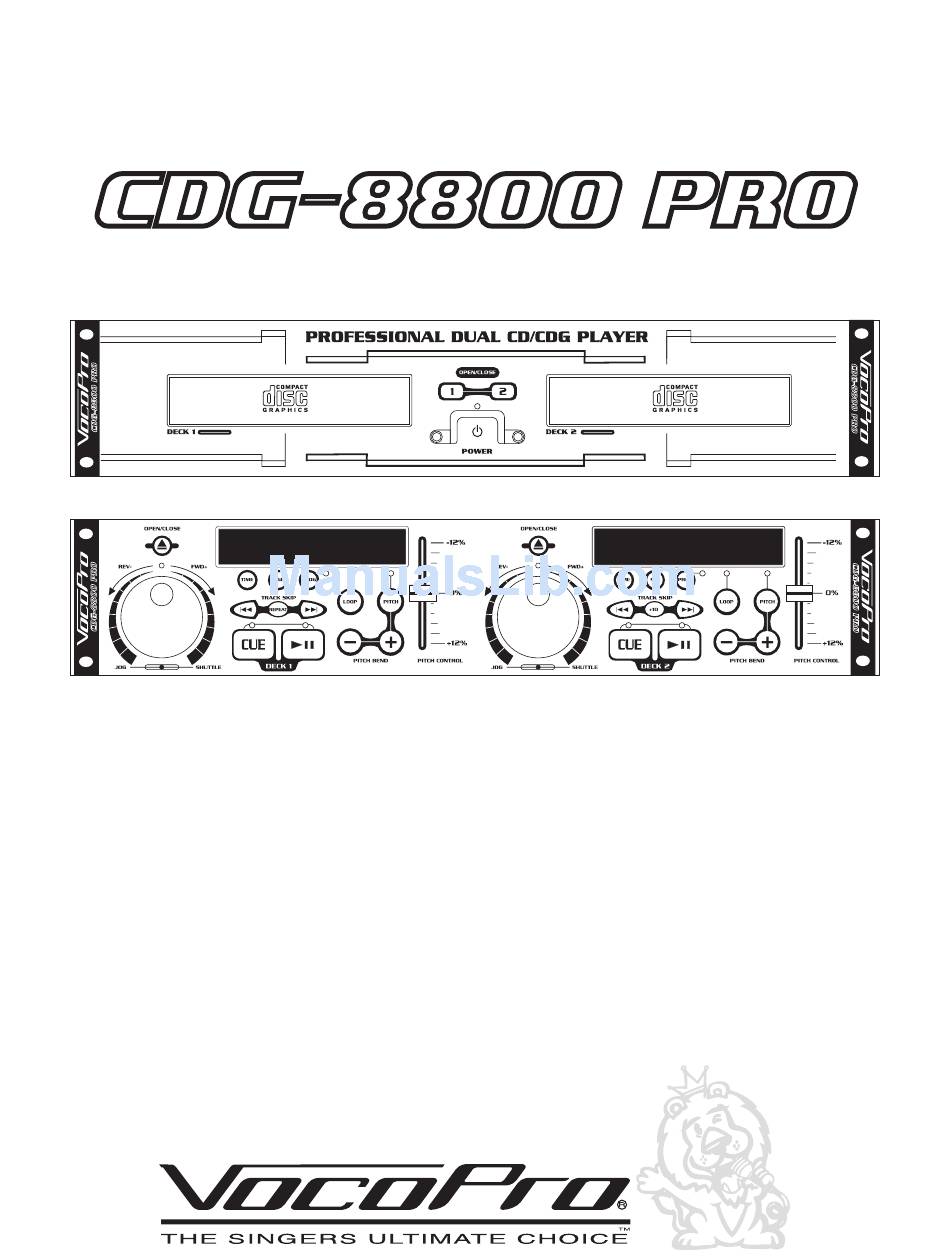

- Page 1 CDG-8800 PRO Professional Dual-Deck CD/CD+G Player O WNE R ’ S M AN UA L...
- Page 2 And while you’re there don’t forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.
-
Page 3: Table Of Contents
Table of Contents Introduction Safety Instructions ......................FCC Information ........................Listening for a Lifetime ....................... Specifications and Features ..................... Mounting ............................Getting Connected ........................Controls and Functions Player Unit Front Panel ........................... Rear Panel ..........................Controller Unit Front Panel ........................... Rear Panel .......................... -
Page 4: Safety Instructions
Safety Instructions 8. Ventilation - The appliance should be situated so its CAUTION location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the RISK OF SHOCK ventilation slots. -
Page 5: Fcc Information
FCC requirements. Modifications not expressly approved by 1. To ensure the finest performance, please read this Vocopro may void your authority, granted by the FCC, manual carefully. Keep it in a safe place for future reference. to use this product. -
Page 6: Listening For A Lifetime
Now it s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Specifications And Features
Specifi cations and Features Features Technical Specifi cations • Independent dual CD/CD+G players Linear Quantification 24 Bits • “Continue” feature automatically skips to the next Sampling Frequency 44.1 KHz disc tray and begins playing a paused disc when one is Oversampling finished D/A Converter... -
Page 8: Mounting
Mounting the CDG-8800 PRO Installing the unit in a rackcase Mount the CDG-8800 PRO into a console or rack with 19” rack rails. It can be mounted using 4 screws. Make sure the holes are aligned evenly and screw them in using an alternating “X” rotation to ensure even tension and align- ment. -
Page 9: Getting Connected
Getting Connected Connecting the external controller to the player Using the included remote cables connect Remote 1 on the remote to Main Unit 1 on the player and connect Remote 2 to Main Unit 2. Connecting to an Audio System (Mixer, Amp, etc.) Using L/R RCA cables, connect the AUDIO OUT on each CDG-8800 PRO deck to the AUDIO IN on a mixer or amp. -
Page 10: Controls And Functions Player Unit
Controls and Functions - Player Unit Front Panel DISC TRAY — Insert discs here and press the OPEN/CLOSE button to open and close the disc tray. OPEN/CLOSE — Opens and closes the corresponding disk tray. Pressing “1” will open and close Disk Tray 1 and pressing “2”... -
Page 11: Front Panel
Controls and Functions - Controller Unit Front Panel JOG DIAL — When the dial is turned while the CD is paused, the point at which the sound is paused moves by a number of frames corresponding to the number of clicks. Clockwise moves the point forward and counterclock- wise moves the point backward. -
Page 12: Rear Panel
Controls and Functions - Controller Unit Rear Panel CONNECT TO MAIN UNIT jacks — Connect this jack to the REMOTE CONTROL jack on the player unit using the included control cord. -
Page 13: Operations
Operations Opening and Closing the Disc Tray Starting Playback • Turn the unit power on. Press the OPEN/CLOSE button • Press the PLAY/PAUSE button dur- to open the disc tray. OPEN/CLOSE buttons are pro- ing the pause or cue condition to vided on both the main unit and control unit. -
Page 14: Frame Search
Operations Auto-Cue Title Screen Using the Cue button while in SINGLE mode allows you to cue a track to pause while showing the song’s title screen on the TV or monitor. • Make sure the CDG-8800 is in SINGLE mode. •... -
Page 15: Troubleshooting
Troubleshooting There is no power • Make sure the power cord is firmly connected to the power outlet. • If using a power strip/surge-protector, make sure that it is plugged in and switched on. There is no sound • Make sure everything is connected firmly and properly. •... -
Page 16: For Your Records
AUDIO OUT AUDIOI OUT REMOTE CONTROL 1 REMOTE CONTROL 2 We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. KJM-8000+/KJM-7900+ NOTE: When using this feature with the VocoPro , you will need a ¼” to 1/8” adapter (not included). - Page 17 CDG 8800 PRO Manual V 1.1 ©VocoPro 2005 www.vocopro.com...
