VocoPro CDG-9000 Owner's Manual

VocoPro CDG-9000 Owner's Manual

Professional dual cd/cdg player with key control
Hide thumbs
Table of Contents

Advertisement

Quick Links

THE SINGER'S ULTIMATE CHOICE
FEATURES:
• Dual CD/CD+G deck player with separate CD+G decoders
• Individual 12-step Digital Key Control for each deck
• Easy track programmability from the front panel
• +/- 12 Pitch Control that does not scramble lyrics when
adjusted
• Loop function allows you to create segments for
continuous play on the fly
• Professional Shuttle Dial and Jog Wheel for precision
cueing and frame searching
• Rugged, rackmountable design for the professional KJ and
DJ
• Switchable NTSC/PAL video output
• Choose between Single Track or Continuous Play modes

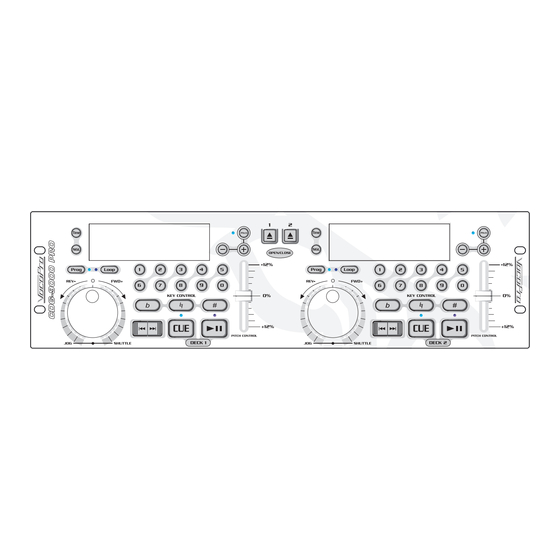

CDG-9000PRO
Professional Dual CD/CDG Player with Key Control

Advertisement

Table of Contents
loading

Related Manuals for VocoPro CDG-9000

Summary of Contents for VocoPro CDG-9000

  • Page 1 THE SINGER'S ULTIMATE CHOICE FEATURES: • Dual CD/CD+G deck player with separate CD+G decoders • Individual 12-step Digital Key Control for each deck • Easy track programmability from the front panel • +/- 12 Pitch Control that does not scramble lyrics when adjusted •...

  • Page 2: Table Of Contents

    CDG-9000PRO CONTENTS Safety Instructions ... 3 FCC Information ... 4 Welcome ... 5 Listening for a Lifetime ... 6 Before Getting Started ... 7 Installing and Getting Connected ... 8 Descriptions and Functions ... 9-12 Operations ... 13-16 Specifications ... 17 Professional Dual CD/CDG Player with Key Control...

  • Page 3: Safety Instructions

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.

  • Page 4: Fcc Information

    UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.

  • Page 5: Welcome

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.

  • Page 6: Listening For A Lifetime

    Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.

  • Page 7: Before Getting Started

    Before getting started It is very important to read the follwing instructions prior to first use of your CDG-9000. Doing so will en- sure proper operation and may save you some time as well. We recommend that you retain the packaging materials and box for our CDG-9000 in the event that you need to store it or ship it.

  • Page 8: Installing And Getting Connected

    Installing the unit in a rackcase Mount the CDG-9000 into a console or rack with 19” rack rails. It can be mounted using 4 screws. Make sure the holes are aligned evenly. Use an alternating “X” rotation to ensure even tension and alignment.

  • Page 9: Descriptions And Functions

    9. AC INPUT - Connect the AC Power cord here and plug the other end into an electrical outlet. VIDEO SYSTEM NTSC LAVERNE, C ALIFORNIA U.S.A. www.vocopro.com VIDEO OUT AC INPUT NTSC FOR U.S. TV SYSTEMS RISK OF ELECTRIC SHOCK...
  • Page 10 Descriptions and functions Controller Unit 1. TIME The TIME button switches between Elapsed playing time, Remaining time in a selection and Total remaining time of the disc. 2. SGL Press this button to switch between the single and continuous play modes. The SINGLE mode is indicated by the SINGLE indicator on the LCD.
  • Page 11 Names and functions Continued... Front Panel Rear Panel 10. PITCH SLIDER Use the slider to adjust the CD pitch. Slide up to decrease the pitch or down to increase the pitch. 11. OPEN/CLOSE Press it to open and close the disc tray. The main unit also includes OPEN/CLOSE buttons. The disc tray cannot be opened during playback, so stop playback before pressing the button.

  • Page 12: Descriptions And Functions

    Descriptions and Functions Continued... 18. LCD This Liquid Crystal Display screen displays track and disc info. a. PAUSE INDICATOR The PAUSE indicator lights during pause or cue mode. b. PLAY INDICATOR The PLAY indicator lights during playback. c. CUE INDICATOR Appears when the CUE BUTTON is pushed.

  • Page 13: Operations

    Operations 1. Opening and Closing the Disc Tray • Turn the unit power on. Press the OPEN/CLOSE button to open the disc tray. OPEN/CLOSE buttons are provided on both the main unit and control unit. • The disc tray cannot be opened during playback in order to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally.
  • Page 14 Operations Continued... 5. Stopping Playback • There are two ways to stop playback. • Press the PLAY/PAUSE button during playback to pause at that point. • Press the CUE button during playback to return to the cue point. This will cause the music to pause.
  • Page 15 Operations Continued... 9. Scanning (Fast forward/Fast backward) • Scanning is a function for moving quickly forward or backward when the SHUTTLE is rotated. • This unit supports 4 different speeds according to the rotating angle of the SHUTTLE. • Turn the shuttle dial to begin scanning. The disc moves rapidly forward or backward and the sound is output.
  • Page 16 Operations Continued... 12. Program play • Press the PROGRAM button, the player will enter the program mode and the CD will stop rotating. • Select the desired track by pressing the SKIP button, then press the PROGRAM button again. The selected track will be added to the program sequence.

  • Page 17: Specifications

    Specifications GENERAL Dimensions: CD/CDG Player Unit: 482(W) x 88.8(H) x 251 (D) mm Controller Unit: 482(W) x 132(H) x 74(D) mm Weight: Main Unit Control Unit Power Supply: AC 115/230V, 50/60Hz Power Consumption: 19 W DIGITAL KEY CONTROL 12 steps in half-step increments CHARACTERISTICS (TEST DISC: TCD-782, LOAD=47K OHM) Item Output level...
  • Page 18 Vocopro 2004 V 1.0 WWW.VOCOPRO.COM...

This manual is also suitable for:

Cdg-9000pro
