Goodman GPH 13 M Series Technical Manual

Gph 13 m series multi position package heat pump units with r410a
Hide thumbs Also See for GPH 13 M Series:

Advertisement

Table of Contents

TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU

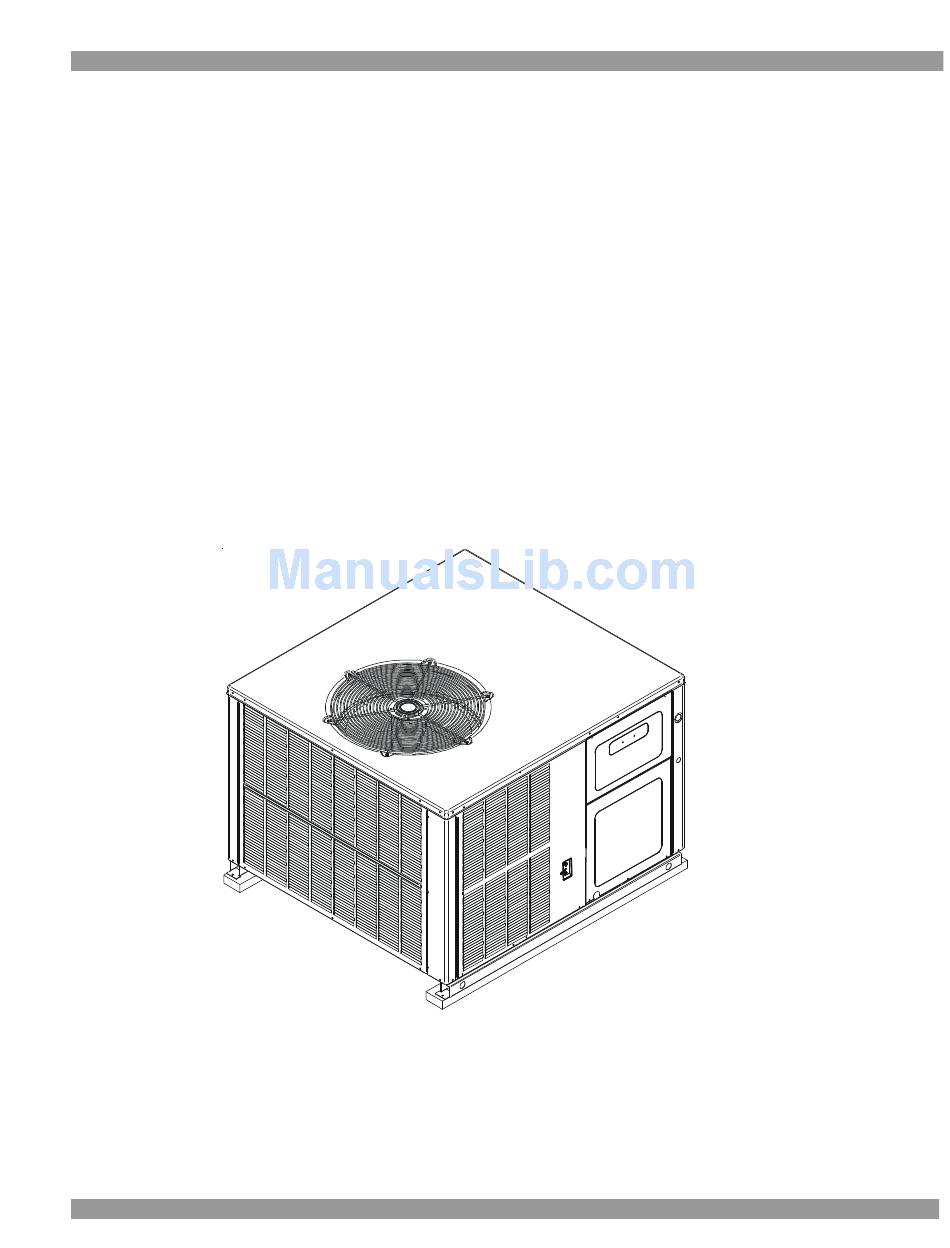

GPH 13 M Series Multi Position
Package Heat Pump Units
•
Refer to Service Manual RS6300008 for installation, operation, and troubleshooting information.
•
All safety information must be followed as provided in the Service Manual.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodman does not assume any responsibility for property damage or personal injury due to
improper service procedures or services performed by an unqualified person.
with R410A
Copyright © 2010 Goodman Manufacturing Company, L.P.
AL
AL
AL
AL
RT6332013r1
November 2010

Advertisement

Table of Contents
loading

Related Manuals for Goodman GPH 13 M Series

Summary of Contents for Goodman GPH 13 M Series

  • Page 1 TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU GPH 13 M Series Multi Position Package Heat Pump Units with R410A • Refer to Service Manual RS6300008 for installation, operation, and troubleshooting information. • All safety information must be followed as provided in the Service Manual. •...
  • Page 2 PRODUCT IDENTIFICATION The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please use these numbers when requesting service or parts information. BRAND: MINOR REVISION: ® G: Goodman A: Initial Release PRODUCT Brand FAMILY: ®...
  • Page 3 PRODUCT IDENTIFICATION The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please use these numbers when requesting service or parts information. GPH1324M41AB GPH1330M41AB GPH1336M41AB GPH1342M41AB GPH1348M41AB GPH1360M41AB The United States Environmental Protection Agency (“EPA”) has issued various regulations re- WARNING WARNING garding the introduction and disposal of refrigerants introduced into this unit.

  • Page 4: Product Design

    PRODUCT DESIGN GPH13 (M Series) Package Units are designed for outdoor Air for condensing (cooling cycle) or evaporation (heating installations only in either residential or light commercial ap- cycle) is drawn through the outdoor coil by a propeller fan, plications and are available in 2, 2.5, 3, 3.5, 4 & 5 ton sizes. and is discharged vertically out the top of the unit.
  • Page 5 PRODUCT DESIGN In installations where the unit is installed above ground level and not serviceable from the ground (Example: roof top in- stallations) the installer must provide service platform for ser- vice person with rails or guards in accordance with local codes or ordinances, or, in their absence, with the latest edition of the Uniform Mechanical Code Section 305.
  • Page 6 PRODUCT DESIGN GPH13[24-60]M41* HKR ELECTRICAL DATA Circuit #1 Circuit #2 Maximum Maximum Actual Minimum Circuit Minimum Circuit kW & BTU Overcurrent Overcurrent Ampacity Ampacity at 240V Protection (amps) Protection (amps) at 208 / 240V at 208 / 240V at 208 / 240V at 208 / 240V GPH1324M41* HKR05A,CA...
  • Page 7 PRODUCT DIMENSIONS GPH13[24-60]M41* POWER WIRE ENTRANCE 4 1/8 2 1/8 1 3/8 5 ½ 6 ½ 2 34 RETURN SUCTION/LIQUID PRESSURE PORT SUPPLY CONDENSATE DRAIN CONTROL 18 7/8 CONNECTION WIRE 3/4” NPT FEMALE ENTRANCE BLOWER ACCESS PANEL MEDIUM CHASSIS GPH1324M41* GPH1330M41* GPH1336M41* GPH1342M41*...
  • Page 8 PACKAGE HEAT PUMP SPECIFICATIONS GPH13[24-36]M41AB GPH1324M41* GPH1330M41* GPH1336M41* COOLING COOLING CAPACITY, BTUH 24,000 29,000 34600 CAPACITY SEER / EER 13/11 13/10.8 13/10.9 HEATING BTU/h (47°) 23000 28800 34200 RATING BTU/h (17°) 12600 17000 19000 HSPF VOLTAGE (NAMEPLATE) 208/230-60-1 208/230-60-1 208/230-60-1 UNIT AMPS 15.8...
  • Page 9 PACKAGE HEAT PUMP SPECIFICATIONS GPH13[42-60]M41AB GPH1342M41* GPH1348M41* GPH1360M41* COOLING COOLING CAPACITY, BTUH 40000 46500 56000 CAPACITY SEER / EER 13/11 13/11 13/10.9 HEATING BTU/h (47°) 40000 45500 55500 RATING BTU/h (17°) 21000 26000 31200 HSPF UNIT VOLTAGE (NAMEPLATE) 208/230-60-1 208/230-60-1 208/230-60-1 AMPS 22.4...
  • Page 10 ACCESSORIES GPH13[24-60]M41* ACCESSORIES - GPC/GPH****M MODELS Part Number Description OT18-60A Outdoor Thermostat Kit w/Lockout Stat OT/EHR18-60 Emergency Heat Relay Kit Electric Heat Kit PGC101/102/103 Roof Curb PEHH101/102 Horizontal Economizer For Heat Pump, Small and Medium Chassis PEHH103 Horizontal Economizer For Heat Pump, Large Chassis PEHC101/102 Horizontal Economizer For A/C, Small and Medium Chassis PEHC103...

  • Page 11: Blower Performance Data

    GPH13[24-60]M41* BLOWER PERFORMANCE DATA Dry Coil Data E.S.P (In. of H Model Speed Volts -------- -------- -------- ----- --- ----- --- --- ----- WATTS -------- -------- -------- ----- --- ----- --- --- ----- ----- --- ----- --- --- ----- WATTS ----- --- ----- --- --- -----...
  • Page 12 BLOWER PERFORMANCE DATA RISE TEMPERATURE...
  • Page 13 COOLING PERFORMANCE DATA GPH1324M41*...
  • Page 14 COOLING PERFORMANCE DATA GPH1324M41*...
  • Page 15 COOLING PERFORMANCE DATA GPH1330M41*...
  • Page 16 COOLING PERFORMANCE DATA GPH1330M41*...
  • Page 17 COOLING PERFORMANCE DATA GPH1336M41*...
  • Page 18 COOLING PERFORMANCE DATA GPH1336M41*...
  • Page 19 COOLING PERFORMANCE DATA GPH1342M41*...
  • Page 20 COOLING PERFORMANCE DATA GPH1342M41*...
  • Page 21 COOLING PERFORMANCE DATA GPH1348M41*...
  • Page 22 COOLING PERFORMANCE DATA GPH1348M41*...
  • Page 23 COOLING PERFORMANCE DATA GPH1360M41*...
  • Page 24 COOLING PERFORMANCE DATA GPH1360M41*...
  • Page 25 HEATING PERFORMANCE DATA GPH13[24-42]M41* EXPANDED PERFORMANCE DATA MODEL: GPH1324M41* HEATING OPERATION Outdoor Ambient Temperature 28.9 27.4 25.8 24.1 23.0 22.3 20.7 19.1 16.7 15.4 14.2 13.4 12.9 11.6 10.3 Delta T 32.4 30.7 28.9 27.0 25.8 25.0 23.2 21.4 18.8 17.3 15.9 15.1...
  • Page 26 HEATING PERFORMANCE DATA GPH13[48-60]M41* EXPANDED PERFORMANCE DATA MODEL: GPH1348M41* HEATING OPERATION Outdoor Ambient Temperature 57.2 54.1 51.0 47.6 45.5 44.1 41.0 37.8 32.8 30.2 27.8 26.3 25.3 22.7 20.1 17.6 15.0 12.3 Delta T 30.8 29.1 27.4 25.6 24.5 23.7 22.0 20.3 17.6...

  • Page 27: Wiring Diagrams

    WIRING DIAGRAMS GPH13[24-42]M41AB SEE NOTE #8 SEE NOTE #7 YL/PK SEE NOTE 4 YL/PK EBTDR SEE NOTE XFMR-R SPEED C-RV BL/PK BL/PK R-PS1 O-RV LVJB LVDR HVDR R-DFT RCCF CONTROL SEE NOTE #5 SEE NOTE #3 (TRANS240V) (M1) RD (COM) BK HIGH 3 SPEED 2 SPEED...
  • Page 28 WIRING DIAGRAMS GPH13[48-60]M41AB SEE NOTE 8 SEE NOTE 3 SEE NOTE 7 YL/PK SEE NOTE 5 C-RV R-PS1 O-RV LVDR LVJB HVDR R-DFT RCCF SEE NOTE 4 CONTROL RD RD C L G N 1 2 3 COMP SEE NOTE 2 SUPPLY VOLTAGE 208-240/1/60 COMPONENT LEGEND...

This manual is also suitable for:

Gph1324m41abGph1330m41abGph1336m41abGph1342m41abGph1348m41abGph1360m41ab
