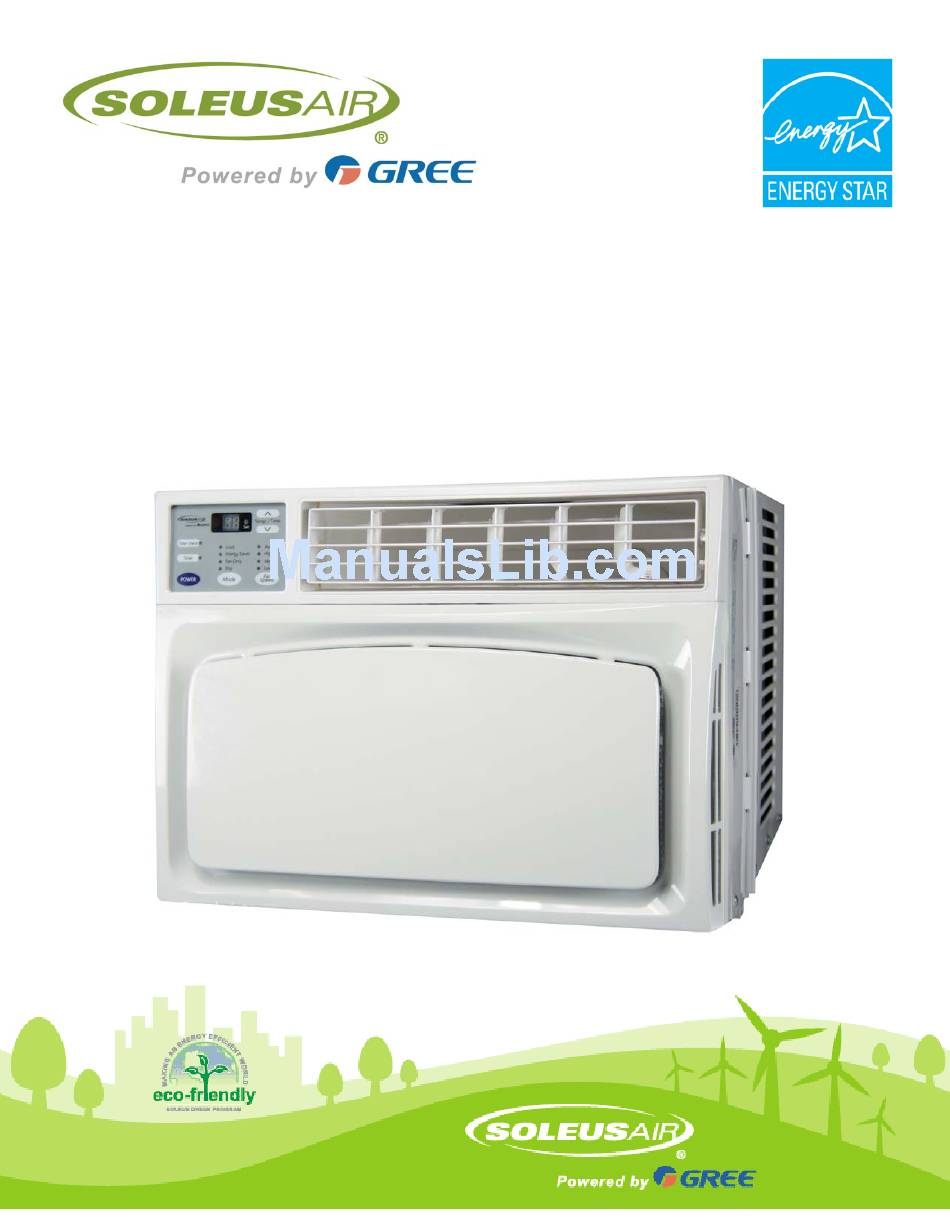

- Page 1 Models SG-WAC-10ESE-F SG-WAC-12ESE-F Electronic Window Air Conditioner Operating Instructions...
-
Page 2: Important Safety Instructions
Thank you for choosing a Soleus Air powered by Gree Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 3: Electrical Requirements
• A damaged power supply cord must be replaced with a new power supply cord from Soleus Air Powered by Gree. • The power supply cord contains new user serviceable parts. -
Page 4: Packing List
PACKING LIST Packing List: • • Sash Lock (1) Window Air Conditioner • • Window Sash Seal Remote Control • • 3/4” Screw for Window Locking Bracket & Accordion AAA Batteries (2) • Panels, and sash lock (6) Top Mounting Rail •... -
Page 5: Specifications
SPECIFICATIONS • Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode. • Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model SG-WAC-10ESE-F SG-WAC-12ESE-F... -
Page 6: Top Rail Installation
INSTALLATION & ASSEMBLY INSTRUCTIONS Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. 1. This air conditioner is designed to be installed in a FIG. 1 standard double-hung window with a window width between 23”... - Page 7 TOP RAIL INSTALLATION NOTE: Top Rail and the side Sliding Panels are offset to provide the proper pitch to the rear of (5/16”). This I necessary for proper condensation utilization and drainage. If you are not using the side panels, the rear pitch must still be main- tained.
- Page 8 ASSEMBLY & INSTALLATION (CONT.) Placing the Unit Inside a Normal Window Accordion Panel Installation 1. Place the air conditioner on the sill with the bottom Now that you have installed the top rail, you can now install mounting rail against its back edge. Center the air con- the accordion panels on each side.
- Page 9 ASSEMBLY & INSTALLATION (CONT.) 4. Drive 4/5” screws into the top of the accordion panel IF AC is Blocked by a Storm Window frame and the top rail to securely attach the window air A storm window frame will not allow the air conditioner to conditioner to the lower sash.
-
Page 10: Using Your Air Conditioner
USING YOUR AIR CONDITIONER 3. Temperature Set: Use these buttons on the con- trol panel and remote to increase or decrease the Electronic Control Panel & Remote Control Set Temperature (the desired room temperature) in cooling or energy saver mode. The SET light NOTE: This display always shows the room temperature will light up when setting the temperature except when setting the Set temperature or the Timer. -
Page 11: Operating Your Air Conditioner
OPERATING YOUR AIR CONDITIONER REMOTE CONTROL 5. FAN - Press the FAN button to turn change the FAN options. You can choose between four speeds and auto mode. The fourth fan option is only available in cooling and energy saver modes. 6. - Page 12 OPERATING YOUR AIR CONDITIONER REMOTE CONTROL 9. LOCK/UNLOCK- Press the “+” and “—” buttons simultaneously to lock and unlock the remote control. When the remote is locked, none of the functions or setting can be changed using the remote. 10. F° or C° - To switch between the F° or C° settings, press the MODE and “—” buttons a the same time. 11.
- Page 13 USING YOUR AIR CONDITIONER (Cont.) • Freezing Conditions: This is a cooling only air • Fan Only Mode: Use Fan Only mode at Low, conditioner. It is not designed for freezing outdoor Med, or High fan speed to provide air circulation conditions.
-
Page 14: Care And Cleaning
Cabinet Cleaning CARE AND CLEANING To clean the air conditioner cabinet: Clean your air conditioner to keep it looking new and to minimize dust build up. Unplug the air conditioner to prevent shock or • a fire hazard. The cabinet and front panel of the air conditioner may be dusted with an oil- Air Filter Cleaning The air filter should be checked at least once... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The air conditioner is unplugged • Make sure the air conditioner is The Air Conditioner will not start plug is pushed completely into the outlet • Check the house fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 16 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Hot and Humid weather. • This is normal Water is dripping outside The air conditioner is not correctly • For proper water drainage, make Water is dripping inside the room tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 17: Warranty
One Year Limited Warranty Soleus International, Inc. warrants the accompanying Soleus Air Powered by Gree Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
