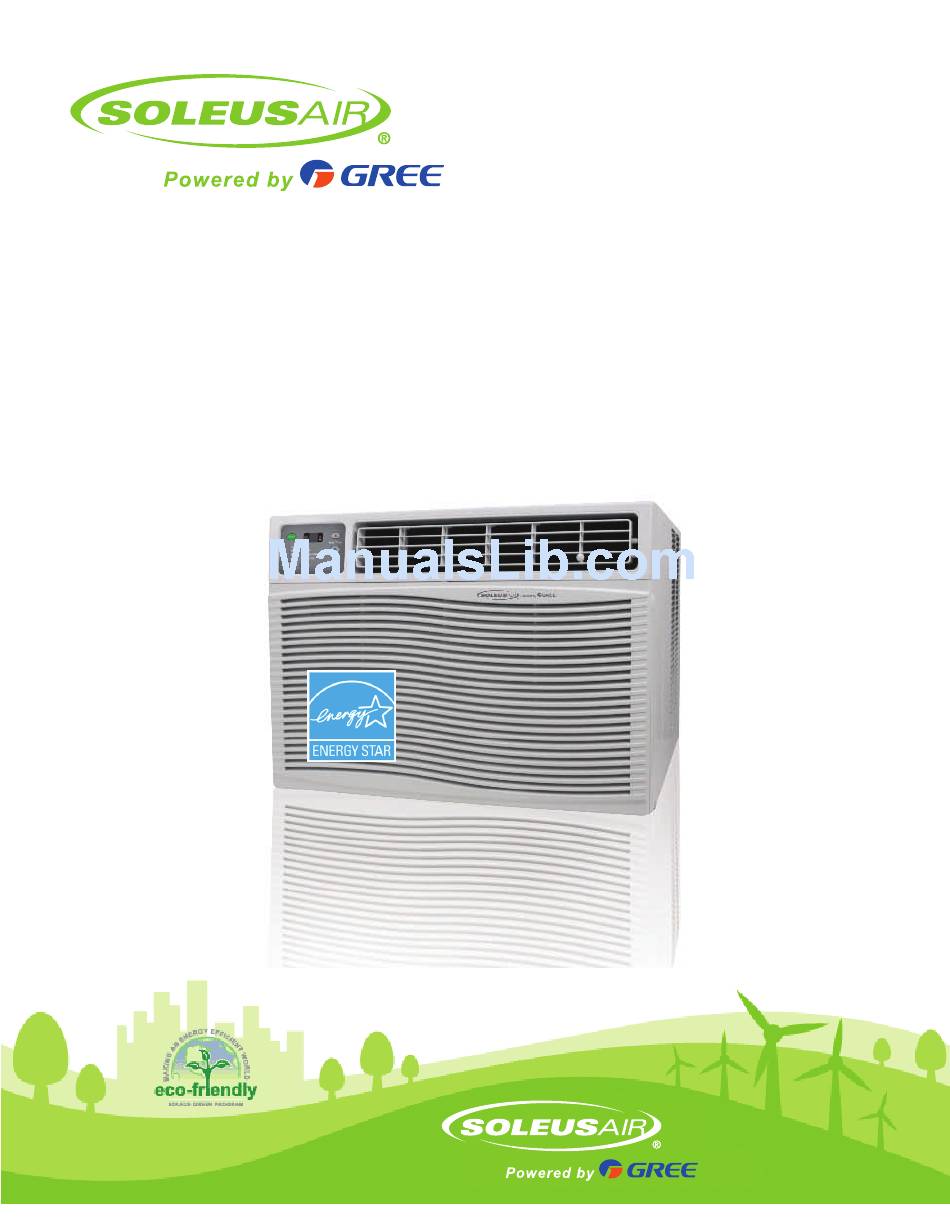

- Page 1 Models SG-WAC-15ESE SG-WAC-18ESE SG-WAC-25ESE Electronic Window Air Conditioner Operating Instructions...
-
Page 3: Important Safety Instructions
Thank you for choosing a Soleus Air powered by Gree Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 4: Electrical Requirements
Recommended Ground Method For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3 prong power supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3 prong outlet and grounded in accordance with all local codes and ordinances. -
Page 5: Parts List
25ESE models FRAME ASSEMBLY (LEFT) SIDE RETAINER SEAL-BOTTOM RAIL TO UNIT Non-Hardware Packing List • Window Air Conditioner • AAA Batteries (2) & Remote Control • Top Mounting Rail • Foam Top Mounting Rail Seal Strip • Accordion Panels (2) •... -
Page 6: Specifications
Rated Current Heating (Amperage) EER/C.O.P Noise Level db (A) Indoor/Outdoor Design Pressure (PSIG) (H/L) Dimensions (W” x H” x D”) Package Dimensions (W” x H” x D”) Net/Gross Weight (Lbs) Refrigerant Charge (Oz) SG-WAC-15ESE SG-WAC-18ESE 1/115/60Hz 1/230-208/60Hz 91.2 15,000 1400 10.8 58/64 23.63 x 17.78 x 25.44... -
Page 7: Window Preparation
Storm Window Requirements A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. To adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”. -
Page 8: Remove Chassis
3. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air con- ditioner (FIG. 2 above) 4. After removing the screws, gently pull away the faceplate from the air conditioner cabinet (FIG. 3 & 4). FIG. 3 5. -
Page 9: Top View
ASSEMBLY & INSTALLATION (CONT.) Top Angle Rail and Side Bracket Installation 1. Place the air conditioner on a hard flat surface. 2. Locate the foam gasket and top angle rail 3. Attach the foam gasket to the top angle rail. -
Page 10: Install Support Brackets
ASSEMBLY & INSTALLATION (CONT.) Install Support Brackets 1. Hold each support bracket flush against the outside of the window sill. Tighten each bracket to the bottom of the cabinet as shown below. Mark the brackets at top lever of the window sill and then remove. Mark Left Locknut... -
Page 11: Thru-The-Wall Installation
THRU-THE-WALL INSTALLATION NOTE: Consult local building codes prior to installation and/or a qualified carpenter. Select the Wall Location This air conditioner has a slide-out chassis, so that it can be installed through an outside wall as specified below: Model SG-WAC-25ESE Max Wall 12”... - Page 12 NOTE: If wall thickness is 8-12” or more, add aluminum flashing over the bottom of the frame opening to assure water is unable to enter the area between the inner and outer wall. SG-WAC-15ESE / SG-WAC-18ESE 18” (45.7 cm) 23 7/8” (60.6 cm) FIG.
-
Page 13: Masonry Construction
ASSEMBLY & INSTALLATION - THRU-THE-WALL (CONT.) Refer to the SUPPORT BRACKET ASSEMBLY in the WINDOW MOUNTING section to assemble the support brackets. A wooden strip nailed to the outside wall should be used in conjunction with the angled sill support brack- ets. -
Page 14: Using Your Air Conditioner
Increase Fan Speed Saver, and Fan only. Power Button 7. Auto-on Timer: When the air conditioner is off, it can be set to automatically turn on in 1-24 hours at the previous set mode and fan setting. To set the Auto-on Timer, press the DELAY button on the unit or remote control. - Page 15 Mode to Cool and the Fan to Low with the temperature set in the middle. NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.
-
Page 16: Care And Cleaning
Winter Storage To store the air conditioner when it is not in use for an extended period of time, remove it care- fully from the window according to the installation... -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM The Air Conditioner will not start The Air Conditioner does not cool as it should The Air Conditioner is freezing up The Remote Control is not working POSSIBLE CAUSES The air conditioner is unplugged The fuse is blown/circuit breaker is tripped. - Page 18 Water collects in the base pan The Air Conditioner Display reads “EP” POSSIBLE CAUSES Hot and Humid weather. The air conditioner is not correctly tilted outside. Moisture removed from the air is draining into the base pan. A Sensor has failed in the air...
-
Page 19: Warranty
One Year Limited Warranty Soleus International, Inc. warrants the accompanying Soleus Air Powered by Gree Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States. - Page 20 66129903756...
