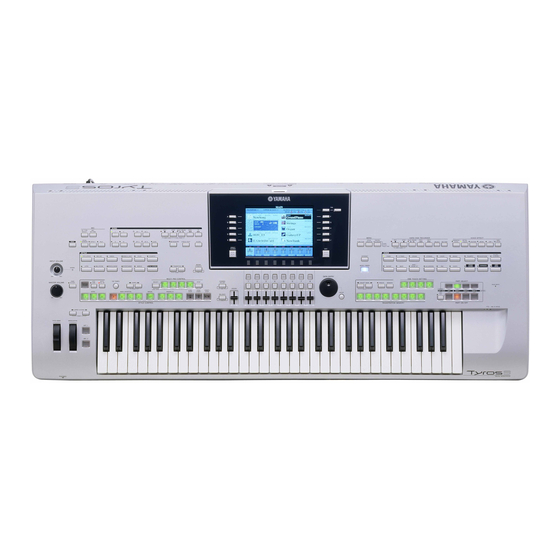

Yamaha Tyros3 Data List

Data list
Hide thumbs Also See for Tyros3:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Owner's Manual
Data List / Daten-Liste / Liste des données
................................................. 2
........................................ 12
............................................. 24
U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation
© 2008 Yamaha Corporation
812PO-C0
.............................. 26
....................................... 27
............. 29
...................................... 30
Contents
. 17
............................... 36
................ 47
.......................... 49
.................................... 50
.................................. 59
................. 78
.... 79
................................. 80

Advertisement

Table of Contents
loading

Related Manuals for Yamaha Tyros3

Summary of Contents for Yamaha Tyros3

  • Page 1: Table Of Contents

    Liste des messages exclusifs au système de morceaux Effect Type List MIDI Implementation Chart Liste der Effekttypen MIDI-Implementationstabelle ........30 ......... 80 Liste des types d’effet MIDI Implementation Chart U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation © 2008 Yamaha Corporation 812PO-C0...

  • Page 2: Voice List Voice-Liste Liste Des Voix

    Cool! OctaveBrass Live! TwoChannels Cool! OberBrass FullRocker Cool! ThinthBrass EuroOrgan BrassProfit MellowDraw SlowPWMBrass Trumpet 8 FastPWMBrass Kinura 8 SoftVeloBrass Tpt&Kinura 80'sBrass Trumpet 16&8 AnalogBrass Strings ConcertStrings S.Articulation! SoftAnalog StudioStrings S.Articulation! FunkyAnalog Spiccato Live! TechnoBrass Pizzicato Live! OberHorns Tyros3 Data List...
  • Page 3 ClubBass SemiAcoustic S.Articulation! FatPulse SteelGuitar S.Articulation! WazzoSaw FlamencoGtr S.Articulation! DeepPoint PedalSteel S.Articulation! TightBass SingleCoilClean S.Articulation! Competitor JazzClean S.Articulation! 1o1Sub CrunchGtr S.Articulation! LittleBassSynth RockLegend S.Articulation! TeknoBass GuitarHero S.Articulation! PercPunch WarmSolid S.Articulation! SquareBass CleanSolid S.Articulation! TranceBass 70'sSolidGtr S.Articulation! SubCutBass Tyros3 Data List...
  • Page 4 TangoAccordion SoftR&B Cassotto EarlyLead FullRegister LektroCodes Steirisch SimpleComp Cajun BalladComp Harmonica Sweet! HeavenBell Clari8'&4' BrightPadBell Bandoneon SoftSquare MasterBass WildPWM MusetteBass DetunedVintage AccordionBass PWMLead TangoBass BrassyLead FullRegBass PunchLead CajunBass FlangeFilter CrossPhase MouthLead GalaxyPad ResonantClavi NightMotion ResonanceComp MorningDew TrancePerc Tyros3 Data List...
  • Page 5 ClariBars OrganFlutes Marcato JazzSquabble OrganFlutes StringQuartet Harp Hackbrett2 Banjo2 Sitar2 Choir Voices Choir AirChoir VoxHumana Brass BrassShake2 S.Articulation! SoftBrass Sforzando SmallBrass BrassSection HybridComp NaturalBrass BrightBrass Hybrihorn HighBrass BigBandBrass PopBrass BrassCombo BreathBrass BigBrass MellowBrass Hybripad FullHorns SmoothTrombone TrumpetEns Tyros3 Data List...
  • Page 6 Perc&Drum StandardKit1 Live!Drums StandardKit2 Live!Drums RockKit Drums ArabicKit SFX Kit Accordion Accordion SmallAccordion ModernHarp BluesHarp BallroomAcc SoftAccordion TuttiAccordion Musette PsychoPad FarEast Disclosure Mystery Sirius S&H Groove VeloAshrami EveningStars AngelVibes GlassPad DX Pad Symbiont DarkMoon Ionosphere Millennium Atmosphere Tyros3 Data List...
  • Page 7 70sDrawOrg2 Hammer CheezyOrgan SynthBass2 DrawbarOrg3 MellowSyBass Perc.Organ SequenceBass ClickSynBass 70sPercOrg1 DetPercOrgan SynBass2Dark LightOrgan SmoothSyBass Perc.Organ2 ModulrSyBass RockOrgan DXBass RotaryOrgan XWireBass SlowRotary Strings Violin FastRotary SlwAtkViolin ChurchOrgan Viola ChurchOrgan3 Cello ChurchOrgan2 Contrabass NotreDame Trem.Strings OrganFlute SlwAtTremStr Trem.OrganFl SuspenseStr Tyros3 Data List...
  • Page 8 Rain Reed SopranoSax ClaviPad AltoSax HarmoRain SaxSection AfricanWind HyperAltoSax Carib TenorSax SoundTrack BreathyTenor Prologue SoftTenorSax Ancestral TenorSax2 Crystal BaritoneSax SynthDr.Comp Oboe Popcorn EnglishHorn TinyBells Bassoon RoundGlocken Clarinet GlockenChime Pipe Piccolo ClearBells Flute ChorusBells Recorder SynthMallet PanFlute SoftCrystal Tyros3 Data List...
  • Page 9 Kalimba Bagpipe Fiddle Shanai Shanai2 Pungi Hichiriki Percussive TinkleBell Bonang Altair GamelanGongs StereoGamlan RamaCymbal AsianBells Agogo SteelDrums GlassPerc. ThaiBells Woodblock Castanets TaikoDrum GranCassa MelodicTom MelodicTom2 RealTom RockTom SynthDrum AnalogTom ElectroPerc. Rev.Cymbal Sound Effect GtrFretNoise BreathNoise Seashore BirdTweet Tyros3 Data List...
  • Page 10 SquareLead2 Overdriven SineLead GuitarPinch SawtoothLead Distortion SawtoothLd2 SawPulseLead FeedbackGtr DstRhythmGtr DoublSawLead GtrHarmonics Seq.Analog GtrFeedback CalliopeLead Bass AcousticBass ChiffLead FingerBass CharangLead FingerSlap WireLead PickBass VoiceLead FretlessBass FifthsLead SlapBass1 Bass&Lead SlapBass2 SoftWhirl SynthBass1 Synth.Pad NewAgePad WarmSyBass WarmPad ResoSynhBass SinePad Tyros3 Data List...
  • Page 11 BirdTweet2 TelephonRing TelRing2 DoorCreaking Door Scratch WindChime Helicopter CarEngine CarStop CarPass CarCrash Siren Train Jetplane Starship BurstNoise Applause Laughing Screaming Punch HeartBeat Footsteps Gunshot MachineGun Lasergun Explosion StandardSet Drums RoomSet Drums PowerSet Drums ElectroSet Drums AnalogSet Drums Tyros3 Data List...

  • Page 12: Megavoice Map Sound-Zuordnungen Der Megavoices Carte Des Voix Mega

    Key On Strum Strum Strum Strum Velocity Fret Noise Fret Noise Fret Noise Fret Noise Noise Noise Noise Noise Value Open Hard Open Hard Soft Soft Soft Open Open Medium Medium Open Soft Open Soft : No Sound Tyros3 Data List...
  • Page 13 Velocity Fret Noise Fret Noise Fret Noise Fret Noise Noise Noise Noise Noise Value Slap Slap Open Hard Open Hard Open Open Open Hard Open Hard Medium Medium Open Open Soft Open Soft Open Soft Open Soft Tyros3 Data List...
  • Page 14 Pick Harmonics Slap Harmonics Harmonics Slide Dead Dead Hammer Mute Dead Hard Open Hard Open Hard Dead Soft Key On Strum Velocity Fret Noise Noise Value Open Hard Open Medium Open Soft Open Soft Open Open Soft Tyros3 Data List...
  • Page 15 C6 above C8 below B5 above C6 above C8 Harmonics Harmonics Harmonics Harmonics Harmonics Dead Dead Dead Dead Dead Open Hard Open Hard Key On Velocity Value Mute Mute Open Open Soft Open Soft Open Open Tyros3 Data List...
  • Page 16 Spicato ff Spicato ff Shake Straight Growl Spicato f Spicato f Scoops Legato Legato Attack Legato Legato Valve Noise (C6–B6 Key On Valve Breath Key On Breath Velocity Noise Noise Noise, Noise Value C7–B7 Key Off Noise) Tyros3 Data List...

  • Page 17: Drum/Key Assignment List Liste Der Tastenzuordnungen Der Schlaginstrumente Liste D'assignation Instrument De Batterie/Touche Du Clavier

    • Key Off: Keys marked “●” stop sounding the instant they are released. • Alternate Group: Playing any instrument within a numbered group will immediately stop the sound of any other instrument in the same group of the same number. Same as Standard Kit 1 No Sound Tyros3 Data List...
  • Page 18 • Key Off: Keys marked “●” stop sounding the instant they are released. • Alternate Group: Playing any instrument within a numbered group will immediately stop the sound of any other instrument in the same group of the same number. Same as Standard Kit 1 No Sound Tyros3 Data List...
  • Page 19 • Key Off: Keys marked “●” stop sounding the instant they are released. • Alternate Group: Playing any instrument within a numbered group will immediately stop the sound of any other instrument in the same group of the same number. Same as Standard Kit 1 No Sound Tyros3 Data List...
  • Page 20 • Key Off: Keys marked “●” stop sounding the instant they are released. • Alternate Group: Playing any instrument within a numbered group will immediately stop the sound of any other instrument in the same group of the same number. Same as Standard Kit 1 No Sound Tyros3 Data List...
  • Page 21 Firework (E6) (F6) (F#6) Ghost (G6) Maou * Actual Keyboard Notes of the SFX Kit 1 and 2 are one octave lower than the ones described in the above list. Same as Standard Kit 1 No Sound Tyros3 Data List...
  • Page 22 Hi Wood Block Low Wood Block Mute Cuica Open Cuica Mute Triangle Open Triangle Shaker Jingle Bell Bell Tree (C#6) Castanets (D6) Mute Surdo (D#6) Open Surdo (E6) (F6) (F#6) (G6) Same as Standard Kit 1 No Sound Tyros3 Data List...
  • Page 23 Car-Stop Car-Pass Car-Crash Siren Train Jetplane Helicopter Starship Gun Shot Machine Gun Lasergun Explosion Horse-Gallop Birds Rain Thunder Wind Seashore Stream Bubble (C#6) (D6) (D#6) (E6) Applause (F6) (F#6) (G6) Same as Standard Kit 1 No Sound Tyros3 Data List...

  • Page 24: Style List Liste Der Styles Liste Des Styles

    CountryRockBld PopWaltz BigBandFast1 CountryBallad ContempPopBld BigBandMed1 Country2-4 80'sMovieBallad JazzClub CountryTwoStep 6-8SlowRock1 OrchestraSwing1 CountryBrothers 16BeatPop OrchestraSwing2 CountrySwing1 6-8SlowRock2 BigBandFast2 CountryPop 6-8Modern BigBandMed2 CountryRock 6-8Orchestral JazzWaltzSlow ModernCntryPop 12-8Ballad JazzWaltzMed FolkPop OrganBallad JazzWaltzFast CountrySwing2 PianoBallad Swingin'BigBand SingerSongWriter RomanticBallad 30'sBigBand FingerPickin Tyros3 Data List...
  • Page 25 AnimationBld Zouk RomanticBallet Casatchock GreenFantasia Hawaiian BaroqueConcerto GermanWaltz BaroqueAir OberPolka1 ClassicalMenuet OberWalzer1 ClassicalSerenad MexicanDance Sci-fiMarch ItalianPolka SecretService ItalianTango 70'sTVTheme Strathspey WildWest Reel MovieSwing1 MovieSwing2 GayGordons MovieBallad Tarantella MovieDisco ScandHambo SaturdayNight ScandSchottis OrchestralBolero USMarch OrchestralMarch 6-8March OrchestralPolka BrassBand Tyros3 Data List...

  • Page 26: Multi Pad Bank List Multi-Pad-Bankliste Liste Des Banques Multi-Pads

    BigBandSwing2 PowerKit1 BigBandSwing3 PowerKit2 JazzGtrSwing DanceKit Brass8Beat LatinKit1 BrassChords1 LatinKit2 BrassChords2 LatinKit3 BrassChords3 Conga&Bongo2 Falls DanceMix1 SynthBrassSlide DanceMix2 OrchestraHit BreakBeatz Classical DJ-BasicSet Comedy DJ-SFX AttentionDuo HipHop1 Fanfare HipHop2 PianoGlissando HeavyShuffle Gong&Chime NewR&B DrumEndings ScratchBank Breathing ArabicPerc1 ArabicPerc2 Tyros3 Data List...

  • Page 27: Direct Access Chart Tabelle Direktzugriff Feuille D'accès Direct

    MASTER TUNE / SCALE TUNE MASTER TUNE DIGITAL RECORDING FUNCTION MASTER TUNE / SCALE TUNE SCALE TUNE MIXING CONSOLE MIXING CONSOLE VOL/VOICE (PANEL) VOICE BALANCE BALANCE PAGE 2/2 CHANNEL ON/OFF CHANNEL STYLE SETTING INTERNET FUNCTION UTILITY OWNER EXIT MAIN Tyros3 Data List...
  • Page 28 MIXING CONSOLE TUNE PITCHBEND RANGE ASSIGN SLIDER FUNCTION CONTROLLER ASSIGN SLIDER * The cursor position differs depending on the current keyboard part. ** The cursor position differs depending on the current function assigned to the TRANSPOSE buttons. Tyros3 Data List...

  • Page 29: Chord Types Recognized In The Fingered Mode Im Fingered-Modus Erkannte Akkordarten Types D'accords Reconnus En Mode Fingered

    C7(b9) Seventh add flatted thirteenth [7(b13)] 1+3+5+b6+ C7(b13) C7(#9) Seventh sharp ninth [7( 2+3+(5)+ Suspended fourth [sus4] 1+4+5 Csus4 One plus two plus five [sus2] 1+2+5 Csus2 cancel 1+b2+2 Cancel * Notes in parentheses can be omitted. Tyros3 Data List...

  • Page 30: Effect Type List Liste Der Effekttypen Liste Des Types D'effet

    ROOM S ROOM M ROOM L STAGE1 STAGE2 Reverb suitable for a solo instrument. STAGE3 STAGE4 PLATE1 PLATE2 Reverb simulating a plate reverb unit. PLATE3 GM PLATE DELAY TEMPO DELAY1 Tempo-synchronized delay. TEMPO DELAY2 TEMPO ECHO Tempo-synchronized echo. Tyros3 Data List...
  • Page 31 AUTO PAN1 AUTO PAN2 AUTO PAN3 Several panning effects that automatically shift the sound position (left, right, front, back). EP AUTOPAN T_AUTO PAN1 (Tempo Auto Pan 1) T_AUTO PAN2 (Tempo Auto Pan 2) NO EFFECT – No effect. Tyros3 Data List...
  • Page 32 Conventional chorus program with rich, warm chorusing. CHORUS6 CHORUS7 CHORUS8 CHORUS FAST CHORUS LITE GM CHORUS1 GM CHORUS2 GM CHORUS3 Conventional chorus program with rich, warm chorusing. GM CHORUS4 FB CHORUS CELESTE1 A 3-phase LFO adds modulation and spaciousness to the sound. CELESTE2 Tyros3 Data List...
  • Page 33 CMP+OD+TDLY3 (Compressor + Overdrive + Tempo Delay 3) Compressor, Overdrive and Tempo Delay are connected in series. CMP+OD+TDLY4 (Compressor + Overdrive + Tempo Delay 4) CMP+OD+TDLY5 (Compressor + Overdrive + Tempo Delay 5) CMP+OD+TDLY6 (Compressor + Overdrive + Tempo Delay 6) Tyros3 Data List...
  • Page 34 ROTARY SP7 (Rotary Speaker 7) 2WAY ROT SP (2-way Rotary Speaker) DST+ROT SP (Distortion + Rotary Speaker) Distortion and rotary speaker connected in series. DST+2ROT SP (Distortion + 2-way Rotary Speaker) Distortion and 2-way rotary speaker connected in series. Tyros3 Data List...
  • Page 35 An effect that modifies the pitch by applying amplitude modulation to the frequency of RING MOD the input. ISOLATOR Controls the level of a specified frequency band of the input signal. NO EFFECT – No effect. THRU – Bypass without applying an effect. Tyros3 Data List...

  • Page 36: Effect Parameter List Liste Der Effektparameter Liste Des Paramètres D'effets

    12 Density 0 – 3 0 – 3 15 EQ High Frequency 500Hz – 16.0kHz 28 – 58 table#3 13 High Damp 0.1 – 1.0 1 – 10 16 EQ High Gain -12 – +12dB 52 – 76 Tyros3 Data List...
  • Page 37 Feedback Level -63 – +63 1 – 127 table#16 Feedback High Dump 0.1 – 1.0 1 – 10 L/R Diffusion 1(-63ms) – 64(0ms) – 127(63ms) 1 – 127 1(-63ms) – 64(0ms) – 127(63ms) 1 – 127 Tyros3 Data List...
  • Page 38 1 – 127 table#15 15 LPF Cutoff 1kHz – Thru 34 – 60 table#3 16 Output Level 0 – 127 0 – 127 table#18 11 Stage 4 – 22 4 – 22 12 Diffusion mono/stereo 0 – 1 Tyros3 Data List...
  • Page 39 EQ Mid Frequency 100Hz – 10.0kHz 14 – 54 table#3 EQ Mid Gain -12 – +12dB 52 – 76 EQ Mid Width 0.1 – 12.0 1 – 120 10 Dry/Wet D63>W – D=W – D<W63 1 – 127 table#15 Tyros3 Data List...
  • Page 40 0 – 127 12 EQ Low Gain (distortion) -12 – +12dB 52 – 76 ● 13 EQ Mid Gain (distortion) -12 – +12dB 52 – 76 10 Dry/Wet D63>W – D=W – D<W63 1 – 127 table#15 Tyros3 Data List...
  • Page 41 COMPRESSOR, COMP MED, COMP HEAVY MSB = 83 (All the DSP blocks) Parameter Display Value See Table Control Attack 1 – 40ms 0 – 19 table#8 Release 10 – 680ms 0 – 15 table#9 Threshold -48 – -6dB 79 – 121 Tyros3 Data List...
  • Page 42 11 Comp. Attack 1ms – 40ms 0 – 19 table#8 12 Comp. Release 10ms – 680ms 0 – 15 table#9 13 Comp. Threshold -48dB – -6dB 79 – 121 14 Comp. Ratio 1.0 – 20.0 0 – 7 table#10 Tyros3 Data List...
  • Page 43 0 – 127 Slow-Fast Time of H 0 – 127 0 – 127 Drive Low 0 – 127 0 – 127 Drive High 0 – 127 0 – 127 Low/High Balance L63>H – L=H – L<H=63 1 – 127 Tyros3 Data List...
  • Page 44 -12 – +12[dB] 52 – 76 EQ High Frequency 500[Hz] – 16.0[kHz] 28 – 58 table#3 EQ High Gain -12 – +12[dB] 52 – 76 ● 10 Dry/Wet D63>W – D=W – D<W63 1 – 127 table#15 Tyros3 Data List...
  • Page 45 Mid Level 0 – 127 0 – 127 High Level 0 – 127 0 – 127 Low Mute Off, On 0 – 1 Mid Mute Off, On 0 – 1 High Mute Off, On 0 – 1 Tyros3 Data List...
  • Page 46 12 EQ Low Gain(distortion) -12 – +12dB 52 – 76 13 EQ Mid Gain(distortion) -12 – +12dB 52 – 76 14 LPF Cutoff 1.0kHz – Thru 34 – 60 table#3 15 Output Level 0 – 127 0 – 127 table#18 Tyros3 Data List...

  • Page 47: Effect Data Assign Table Effektdaten-Zuordnungstabelle Tableau D'assignation Des Données D'effets

    25.5 4thX13 4thX45 18.0k 14.4 19.4 16.2 25.8 4thX14 4thX46 60 THRU(20.0k) 14.5 19.5 16.5 26.1 4thX15 4thX47 14.7 19.7 16.8 26.5 4thX16 4thX48 14.8 19.8 17.1 26.8 4thX17 4thX49 10.0 15.0 20.0 17.3 27.1 4thX18 4thX50 Tyros3 Data List...
  • Page 48 125 4477.0 29 22.66 61 47.85 93 73.05 98.24 22.9 62 135.9 94 801.5 126 4732.1 30 23.44 62 48.63 94 73.83 99.02 24.2 63 143.3 95 847.2 127 5002.6 31 24.22 63 49.41 95 74.61 127 100.00 Tyros3 Data List...

  • Page 49: Vocal Harmony Type List Liste Der Vocal-Harmony-Effekttypen Liste Des Types D'harmonie Vocale

    Vocoder Mode Lower VocodModeL Chordal/Vocorder Vocoder Girl Upper VocodGirlU Chordal/Vocorder Vocoder Girl Lower VocodGirlL Chordal/Vocorder Vocoder Pitch Upper VocodPichU Chordal/Vocorder Vocoder Pitch Lower VocodPichL Chordal/Vocorder ChromaticXG ChromatXG Chromatic Voice&Inst Voice&Inst Chordal/Vocorder Pop Vocal Pop Vocal Chordal/Vocorder Thru Thru Tyros3 Data List...

  • Page 50: Parameter Chart Parametertabelle Tableau Des Paramètres

    Text Sw Text Size Score Sw Left on/off Score Setting Right on/off Score Setting Lyric on/off Score Setting Chord on/off Score Setting NoteName on/off Score Setting Size Score Setting Left ch. Score Setting Right ch. Score Setting Tyros3 Data List...
  • Page 51 Channel Source Top Source Last Destination Channel > Bar Clear Channel Source Top Source Last Channel > Remove Event Channel Event Parameter Channel Source Root Source Chord NTT BASS High Key Note Limit Low Note Limit High Tyros3 Data List...
  • Page 52 Style MW LFO FMOD Depth (Right1) Voice Keyboard Voice Voice MW LFO FMOD Depth (Right2) Voice Keyboard Voice Voice MW LFO FMOD Depth (Right3) Voice Keyboard Voice Voice MW LFO FMOD Depth (Left) Voice Keyboard Voice Style Tyros3 Data List...
  • Page 53 Keyboard Voice Voice Organ FlutesType (Left) Keyboard Voice Style Organ Vib On/Off (Right1) Keyboard Voice Voice Organ Vib On/Off (Right2) Keyboard Voice Voice Organ Vib On/Off (Right3) Keyboard Voice Voice Organ Vib On/Off (Left) Keyboard Voice Style Tyros3 Data List...
  • Page 54 Volume Mic Mic. Setting Mic.Setting Volume Left Keyboard Voice Style Volume Right1 Keyboard Voice Voice Volume Right2 Keyboard Voice Voice Volume Right3 Keyboard Voice Voice Part Volume Song Volume Part Volume Style Style Keyboard Volume Voice HDR Volume Tyros3 Data List...
  • Page 55 EQ High Gain Right1 Keyboard Voice Voice EQ High Gain Right2 Keyboard Voice Voice EQ High Gain Right3 Keyboard Voice Voice EQ High Gain Left Keyboard Voice Style EQ High Gain Style (Offset) Style EQ High Gain Song (Offset) Tyros3 Data List...
  • Page 56 Preset Template Name Menu > Function > MIDI System Local Control Clock Transmit Clock Receive Transpose Receive Start/Stop SysEx Transmit SysEx Receive Chord SysEx Transmit Chord SysEx Receive Transmit Part Select Ch (for each part) Filter (for each part) Tyros3 Data List...
  • Page 57 Cannot be reset with Factory Reset. Menu > Function > Utility Configration1 FadeInTime FadeOutTIme FadeOutHoldTime MetronomeVolume MetronomeSound TimeSignature ParameterLock TapCountPercussion Keyboard Voice Style TapCountVelocity Keyboard Voice Style Configration2 DisplayVoiceNumber Speaker Aux Out/Loop Send VoiceCategory Button Options Display Style Tempo Popup Display Time Tyros3 Data List...
  • Page 58 Wave Import (Normal Voice) Wave Element Start Key End Key Add Wave Fixed Pitch Center Key Start Key Wave Import (Drum Kit) Volume Reverb Change DrumSetup Reverb Send Level. Receive Note Off Change DrumSetup Receive Note Off. Tyros3 Data List...

  • Page 59: Midi Data Format Midi-Datenformat Format Des Données Midi

    (1-16). 240/F0H/1111 0000 denotes the start of a Sys-tem Exclusive Message. 247/F7H/1111 0111 denotes the end of a System Exclusive Message. • aaH (hexidecimal)/0aaaaaaa (binary) denotes the data address. The address contains High, Mid, and Low. • bbH/0bbbbbbb denotes the byte count. • ccH/0ccccccc denotes the check sum. • ddH/0ddddddd denotes the data/value. Tyros3 Data List...
  • Page 60 127 : ON (SA/SA2 Voice Controller Only) (Articuration 2) ● (54H) Portamento 0-127 (00H...7FH) Key no. (0-127) Control ● : Transmitted via panel operations and keyboard/controller performances. O : Available [GM1]...GM Required Parameter [GM2]...GM Level2 Required Parameter Tyros3 Data List...
  • Page 61 Harmony Channel/Melody Channel: The relevant parameters are received by the song part designated by the Effect's Harmony Channel Parameter or Melody Channel Parameter. A/D Part Receive Channel: The relevant parameters are received by the song part designated by the AD Part Receive Channel of the XG format. [GM1]...GM Required Parameter [GM2]...GM Level2 Required Parameter Tyros3 Data List...
  • Page 62 : 1CH-3AH (500...16.0[Hz]) ● : Transmitted via panel operations and keyboard/controller performances. O : Available NRPN MSB: 14H-35H (for drums) message is accepted as long as the channel is set with a drum voice. Data Entry LSB: Ignored. Tyros3 Data List...
  • Page 63 ● : Transmitted via panel operations and keyboard/controller performances. O : Available About Mic/Vocal Harmony column: The relevant parameters are received by the song part designated by the Effect's Harmony Channel Parameter or Melody Channel Parameter. [GM1]...GM Required Parameter [GM2]...GM Level2 Required Parameter Tyros3 Data List...
  • Page 64 00-7F REVERB PARAMETER 15 Refer to Effect Parameter List Depends on Reverb Type ● 00-7F REVERB PARAMETER 16 Refer to Effect Parameter List Depends on Reverb Type TOTAL SIZE ● : Transmitted via panel operations O : Available Tyros3 Data List...
  • Page 65 Transmission : Part1...16(0...15) AD(64) OFF(127) 00-7F MW VARIATION -64...0...+63 CONTROL DEPTH 00-7F BEND VARIATION -64...0...+63 CONTROL DEPTH 00-7F CAT VARIATION -64...0...+63 CONTROL DEPTH 00-7F AC1 VARIATION -64...0...+63 CONTROL DEPTH 00-7F AC2 VARIATION -64...0...+63 CONTROL DEPTH TOTAL SIZE Tyros3 Data List...
  • Page 66 Transmission : Part1...16(0...15) AD(64) OFF(127) 00-7F MW INSERTION -64...0...+63 CONTROL DEPTH 00-7F BEND INSERTION -64...0...+63 CONTROL DEPTH 00-7F CAT INSERTION -64...0...+63 CONTROL DEPTH 00-7F AC1 INSERTION -64...0...+63 CONTROL DEPTH 00-7F AC2 INSERTION -64...0...+63 CONTROL DEPTH TOTAL SIZE Tyros3 Data List...
  • Page 67 PARAMETER 3 Female(3) Lead Gender Type ● 00-7F INSERTION EFFECT -64...0...+63(0...127) PARAMETER 4 Lead Gender Depth ● 00-7F INSERTION EFFECT Free(0), Correct(1) PARAMETER 5 Lead Pitch Correction ● 00-7F INSERTION EFFECT 0...12(0...12) PARAMETER 6 Auto Upper Gender Threshold Tyros3 Data List...
  • Page 68 00-7F VIBRATO DEPTH -64...0...+63 00-7F VIBRATO DELAY -64...0...+63 00-7F FILTER CUTOFF -64...0...+63 FREQUENCY 00-7F FILTER RESONANCE -64...0...+63 00-7F EG ATTACK TIME -64...0...+63 00-7F EG DECAY TIME -64...0...+63 00-7F EG RELEASE TIME -64...0...+63 28-58 MW PITCH CONTROL -24...0...+24[semitones] Tyros3 Data List...
  • Page 69 0...127 00-7F PITCH EG INITIAL LEVEL -64...0...+63 00-7F PITCH EG ATTACK TIME -64...0...+63 00-7F PITCH EG RELEASE -64...0...+63 LEVEL 00-7F PITCH EG RELEASE TIME -64...0...+63 01-7F VELOCITY LIMIT LOW 1...127 01-7F VELOCITY LIMIT HIGH 1...127 TOTAL SIZE Tyros3 Data List...
  • Page 70 ● 00-7F DRY LEVEL 0...127 ● 00-7F CHORUS SEND 0...127 ● 00-7F REVERB SEND 0...127 ● 00-7F VARIATION SEND 0...127 TOTAL SIZE ● : Transmitted via panel operations O : Available n : A/D Part Number (0) Tyros3 Data List...
  • Page 71 When a part to which a Drum Setup is assigned receives a program change, the assigned Drum Setup will be initialized. If the same Drum Setup is assigned to two or more parts, changes in Drum Setup parameters (including program changes) will apply to all parts to which it is assigned. Tyros3 Data List...
  • Page 72 Value(vv) Display ------------------------------------------------------------------------ pp=0 Chorus Type 0...5 0:GM Chorus1 1:GM Chorus2 2:GM Chorus3 (default) 3:GM Chorus4 4:FB Chorus 5:GM Flanger pp=1 Mod Rate 0...127 0...15.5Hz pp=2 Mod Depth 0...127 pp=3 Feedback 0...127 pp=4 Send to Reverb 0...127 Tyros3 Data List...
  • Page 73 Make sure to set both the controlled number and the value. Control Number(CC) Value(VV) Description Default Value ---------------------------------------------------------------------------------------------------- CC=07H Volume 00H-7FH -100...0...+100% CC=0AH Pan 00H-7FH L63...C...R63 (Preset value) (absolute) CC=5BH Reverb Send Level 00H-7FH 0...Max (Preset value) (absolute) CC=5DH Chorus Send Level 00H-7FH 0...Max (Preset value) (absolute) Tyros3 Data List...
  • Page 74 0mmmmmmm MM= Channel byte2 - bits0 to 6 = channel 1 to 7 0sssssss SS = 12byte tuning offset of 12 semitones from C to B 00H means -64cent 40H means 0cent 7FH means +63cent 11110111 F7 = End of Exclusive Tyros3 Data List...
  • Page 75 Left Left ● Section F0 43 7E 00 ss dd F7 Control 11110000 F0 = Exclusive status 01000011 43 = YAMAHA ID 01111110 7E = Style 00000000 00 = 0sssssss ss = Switch No. INTRO A INTRO B INTRO C...
  • Page 76 * Refer to XG Parameter Change Table. * Refer to XG Parameter Change Changes Table. Table. 01000011 43 = YAMAHA ID 0001nnnn 1n = Device Number n=always 0(when transmit), n=0-F(when recieve) 01001100 4C = Model ID 0hhhhhhh hh = Address High 0mmmmmmm mm= Address Mid...
  • Page 77 F0 43 73 01 11 0n 50 00 dd F7 Harmony 11110000 F0 = Exclusive status Pitch to Note 01000011 43 = YAMAHA ID ON/OFF 01110011 73 = Tyros ID 00000001 01 = Model ID 00010001 11 = Special Operators 0000nnnn 0n = Channel No.

  • Page 78: Song Meta Event List Liste Der Meta-Events Der Songs Liste Des Méta-Événements Des Morceaux

    Voice settings for the RIGHT1-3 and LEFT Entered to the song from the [SONG CREATOR]->CHANNEL ->SETUP display. YAMAHA XF META EVENT FF 7F 07 43 7B 01 cr ct bn bt Chord Name Refer to “Chord Control” in the MIDI Data Format (System Entered when recording.

  • Page 79: Song System Exclusive Message List Liste Der System-Exclusive-Meldungen Der Songs Liste Des Messages Exclusifs Au Système De Morceaux

    F0 43 73 01 50 19 00 00 dd F7 Hard Disk Recorder Control Controls start/pause/stop of the audio song, but this is not Edited from the [SONG CREATOR]->SYS->EX display. synchronized with the MIDI song. 00H:Start, 01H:Stop.02H:Pause Tyros3 Data List...

  • Page 80: Midi Implementation Chart Midi-Implementationstabelle Midi Implementation Chart

    MIDI Implementation Chart / MIDI-Implementationstabelle / MIDI Implementation Chart YAMAHA [ Digital Workstation ] Date:17-Apr-2008 Model TYROS3 MIDI Implementation Chart Version : 1.0 Transmitted Recognized Remarks Function... Basic Default 1 - 16 1 - 16 Channel Changed 1 - 16...
