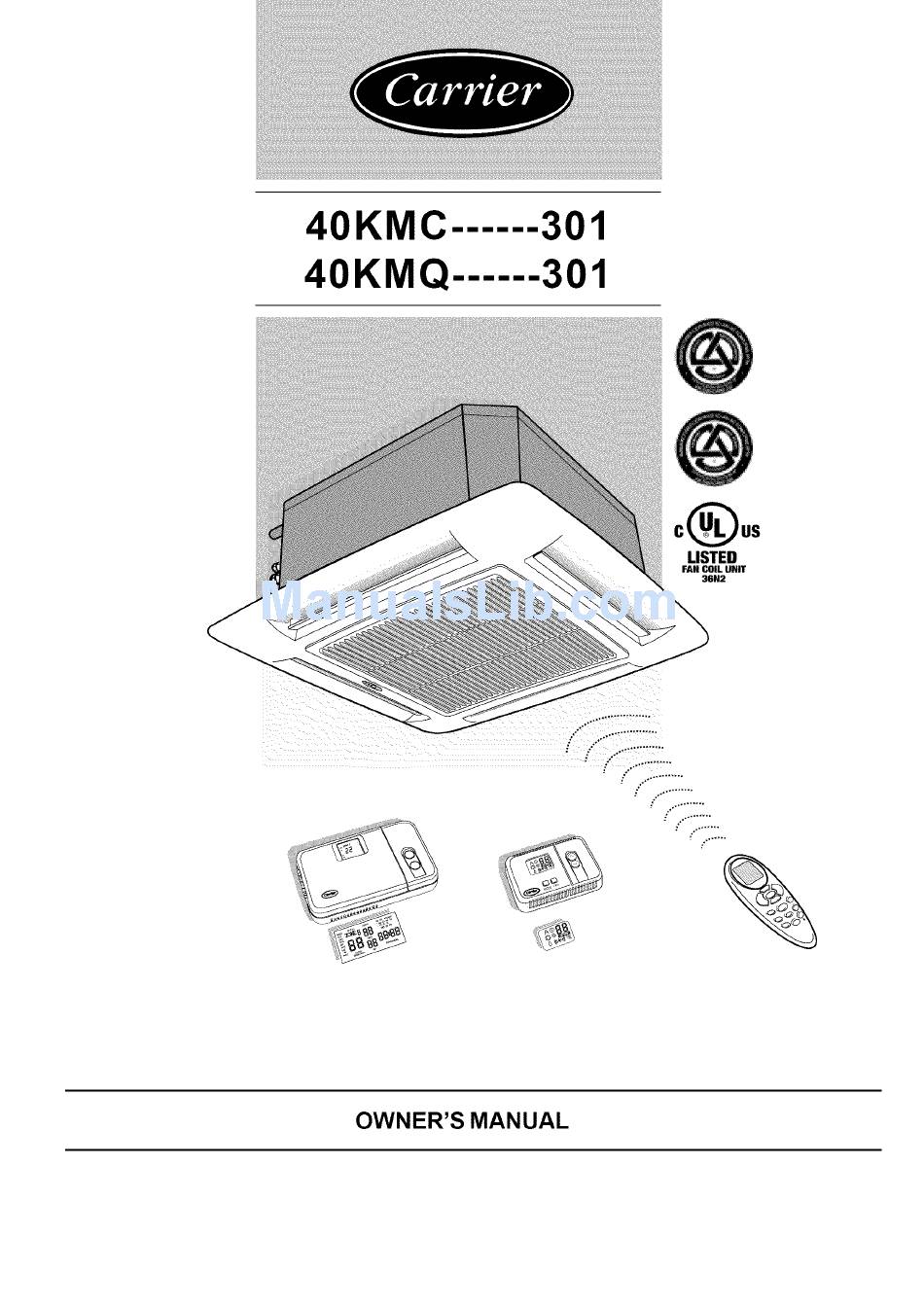

- Page 1 40KMC 40KMQ-- LISTED COIL UNIT 36N2 OWNER'S MANUAL...
- Page 2 ..310 Split system "Global cassette" indoor unit IR Remote Control "Room Controller" "Zone Manager" The unit can be used with infrared Remote Control, with the Carrier "Room Controller" or "Zone Manager" remote control. Carrier "Room controller" control instructions are contained in the present manual.
- Page 3 40KMC 310/40KMQ General information Unit operation and maintenance smell of burning) and call Carrier Service for further instructions. • A routine maintenance should be carried out on the unit to check the Read this instruction manual thoroughly before using the unit.
- Page 4 40KMC 310/40KMQ ..310 Unit warning lights and controls - Fault code EN(;LISH P : Green LED Q : Red LED R : Yellow LED S : Remote control signal receiver Indoor unit LEDs Fault code Once a failure occurs with the indoor unit in operation, the green Information...
- Page 5 40KMC 310/40KMQ ..310 Optimum comfort,,, - Correct cleaning - Before a long shutdown period Correct cleaning Optimum comfort and minimum power consumption • Turn the unit OFF and switch the main supply OFF. Keep room temperature at a comfortable level.
- Page 6 40KMC 310/40KMQ "Room controller" general information and characteristics ENGLISH Characteristics Single unit operation: Ability to control one unit only. Grouping: Ability to control 2 to 6 units with one Room Controller. Operating modes: Off, Heat, Cool, Dry, Auto, and Fan only. A = Display readout Fan speeds:...
- Page 7 40KMC 310/40KMQ ..310 "Room controller" wired control AUTO, HEAT, COOL and DRY Modes: Power All segments of the LCD should be energized for five seconds. ICONS Energized: The mode, fan, louver, desired temperature and configuration • Operation Mode ICON. information should be read from the EEPROM.
- Page 8 40KMC 310/40KMQ "Room controller" wired control ENGLISH ONLY Mode: Auto mode setting will be displayed by blinking the fan Medium speed and High speed icons in order (Med then Hi then repeat). ICONS Energized: • Room Temperature if configured for Room Thermistor Override |_l_'l (operated...
- Page 9 40KMC 310/40KMQ ..310 Troubleshooting No Room controller LCD display: service, please refer to the installation instructions. • Mis-wiring of the 12 volt power to Room Controller control; Restart air conditioner after having corrected the faults. verify that + 12 V and Ground are connected to the proper terrminals...
