2.7

Connectors

2.7.1

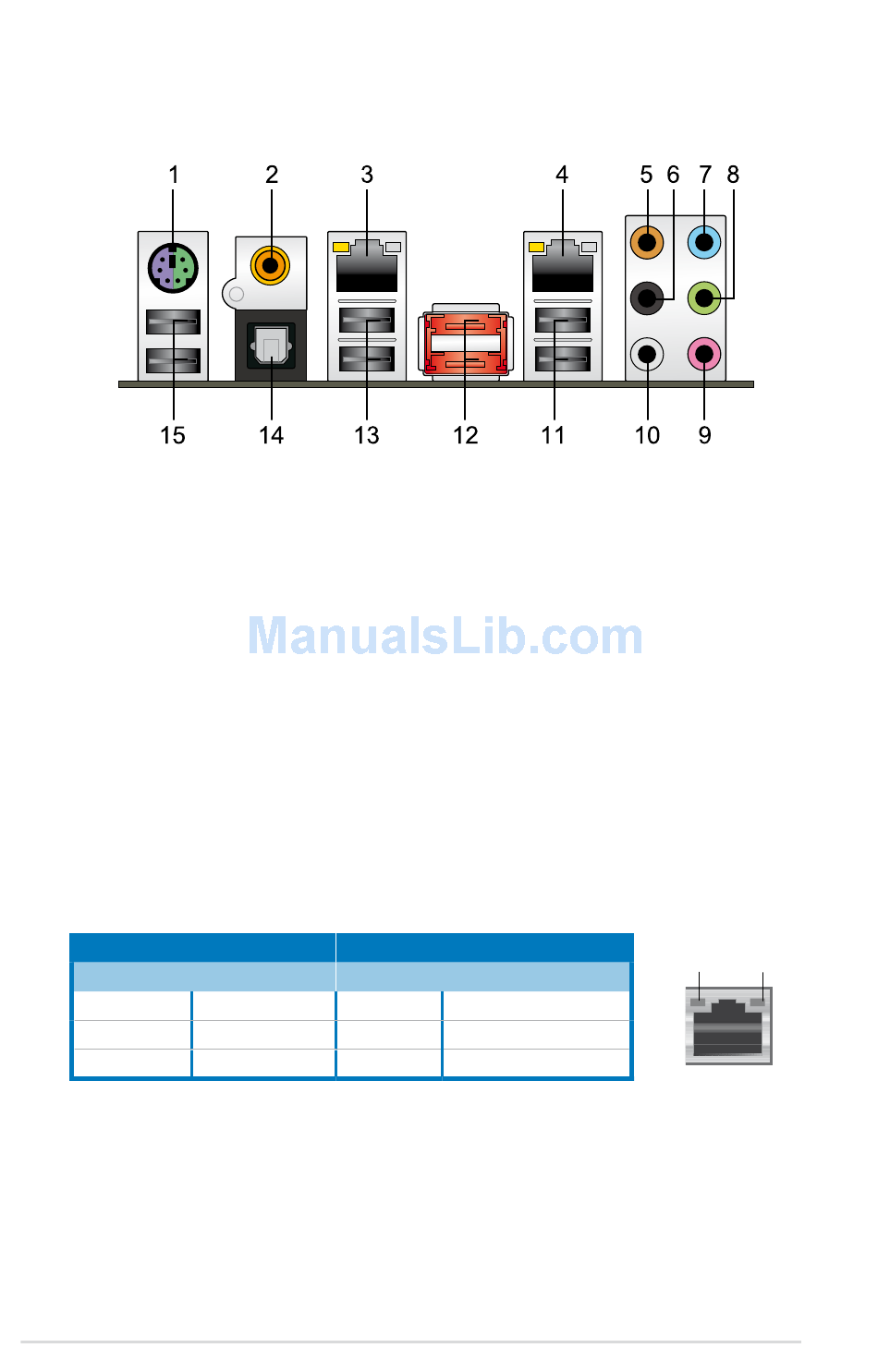

Rear panel connectors

1. PS/2 keyboard / mouse combo port. This port is for a PS/2 keyboard or a
PS/2 mouse.
2. Coaxial S/PDIF Out port. This port connects an external audio output device
via a coaxial S/PDIF cable.
3. LAN 2 (RJ-45) port. This Marvell
Local Area Network (LAN) through a network hub. Refer to the table below
for the LAN port LED indications.
4. LAN 1 (RJ-45) port. This Marvell
Local Area Network (LAN) through a network hub. Refer to the table below
for the LAN port LED indications.
*To compliant with Energy Star 4.0, LAN 1 and LAN 2 ports do not support
WOL (Wake on LAN) function.
5. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
LAN port LED indications
Activity Link LED
Status
OFF
ORANGE
BLINKING
6. Rear Speaker Out port (black). This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio configuration..
7. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
2-22
Speed LED
Description Status
No link OFF
Linked ORANGE
Data activity GREEN
LAN port allows Gigabit connection to a
®
LAN port allows Gigabit connection to a
®
Description
10 Mbps connection
100 Mbps connection
1 Gbps connection
Chapter 2: Hardware information
ACT/LINK SPEED
LED LED
LAN port
