Directed Electronics ProSecurity RK20 Installation Manual page 19

H1/4 WHITE/BLUE
This input comes from the factory set to 2 activation pulse. This means that it is
necessary to have a two consecutive ground pulses on the white/blue wire for
the remote start to activate or to deactivate. The same holds true for the remote
control activation when set to a two pulse setting it is necessary to press the
button twice for the remote start to activate or deactivate.
:
Note
The number of activation inputs can be programmed to 1, 2 or 3 pulses.
This setting affects both the input wire and the remote control when operating
the remote starter.
H1/5 BROWN
This wire is a low current output (200mA) and can be hooked to the horn honk
wire in the vehicle. It can be programmed to sound only during full trigger or
to be used like a siren output with arm/disarm chirps. Refer to System Features
Menu#1, Feature 1 for more information.
H1/6 ORANGE
This wire supplies a (-)500 mA ground as long as the system is locked. This
output ceases as soon as the system is unlocked using the remote control. The
GWL can be hooked up to a window control module, a voice module or any
accessory that requires a ground when locked.
© 2008 Directed Electronics. All rights reserved.

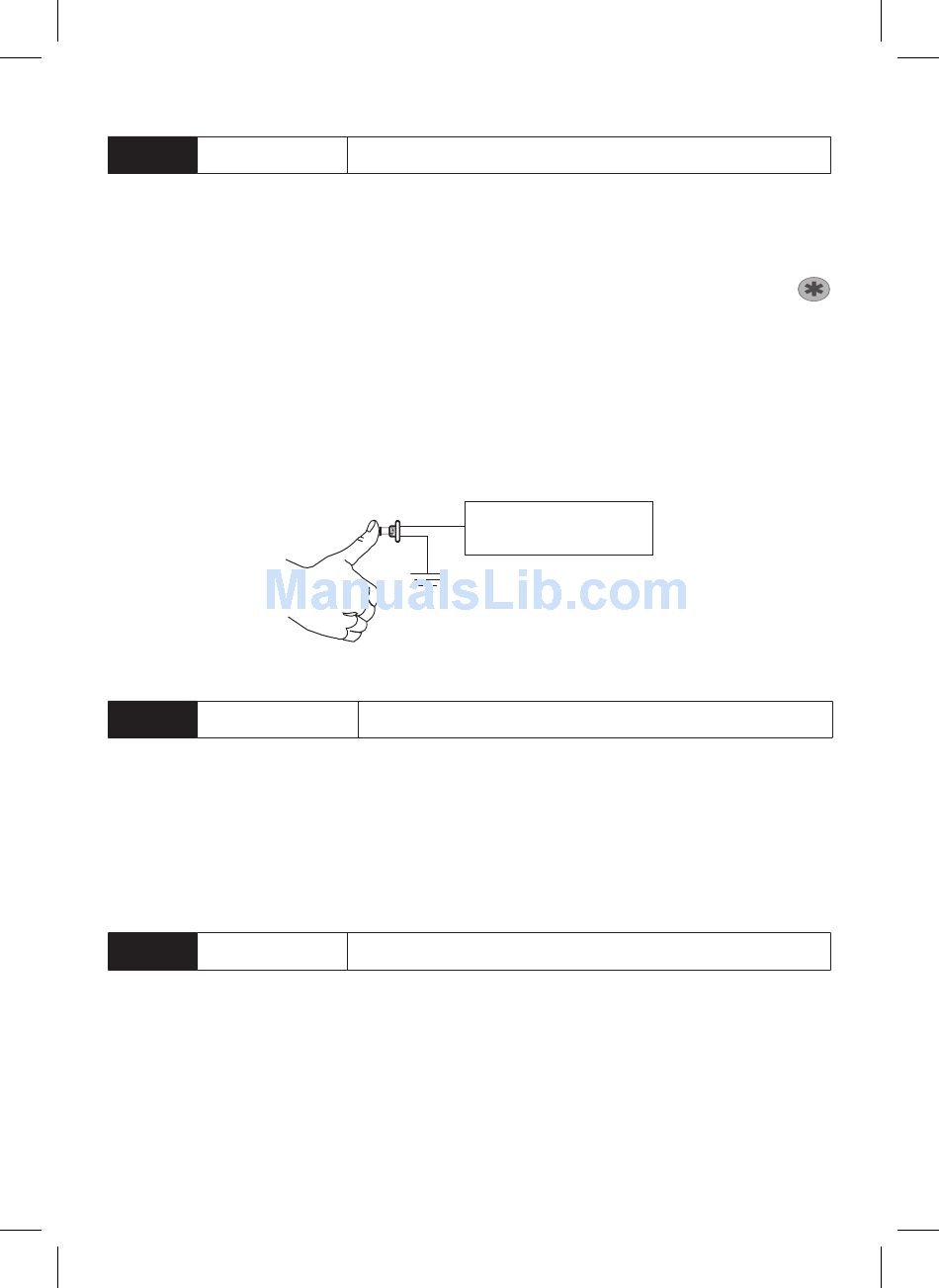

REMOTE START (-) ACTIVATION INPUT
To white/blue activation
input on system
200mA (-) HORN OUTPUT
(-) GROUND-WHEN-LOCKED OUTPUT (GLW)
19
