INSTALLATION MANUAL
10
1
Power In Connector and LED
2
ID-NET Connector and LED
3
Trigger Connector and LED
4
I/O Connector and LED
5
Ethernet Port 1 Connector and LED
QLM500
9
2
1
821002130
8
4
3

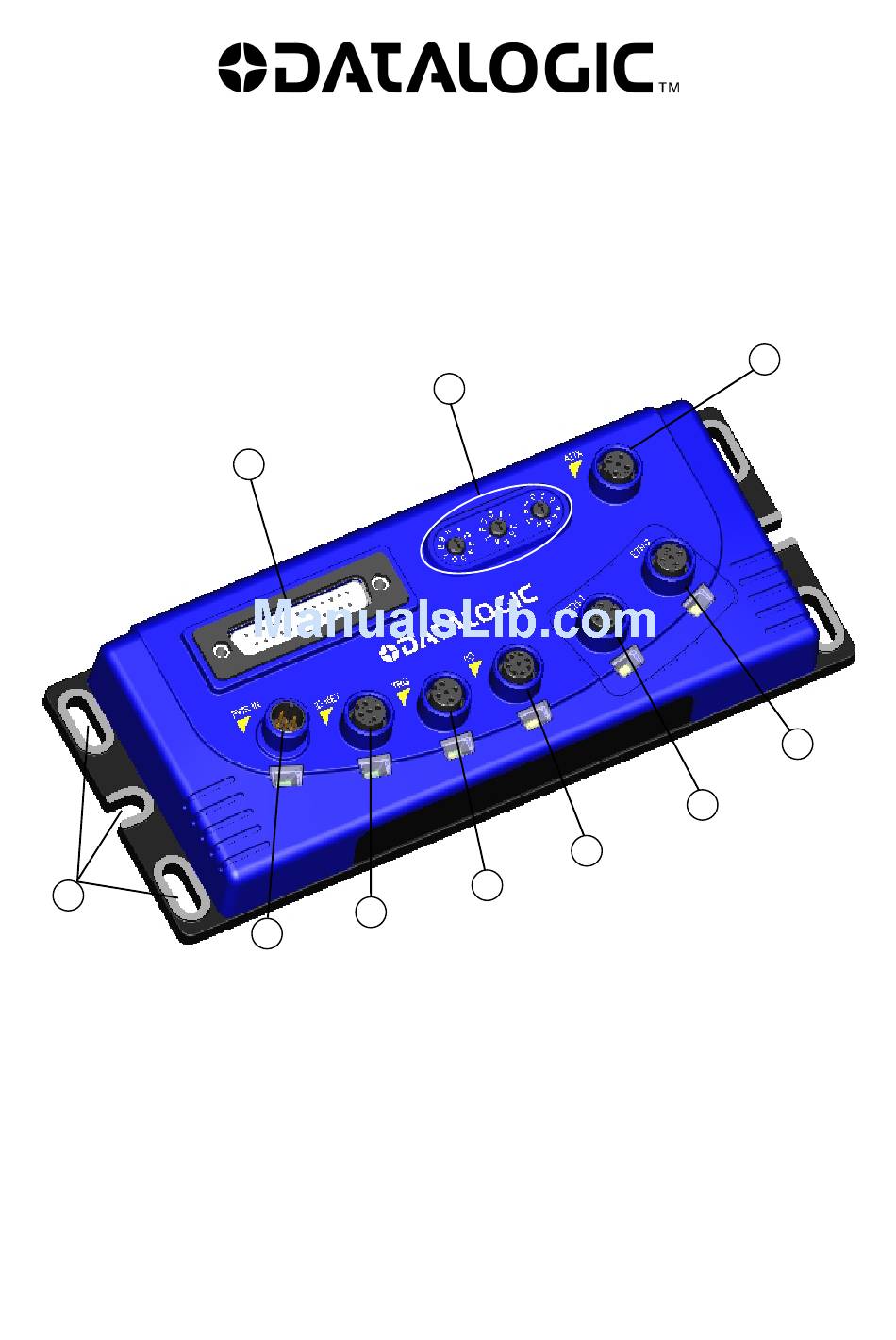

Figure A
6
Ethernet Port 2 Connector and LED
7
Auxiliary Port Connector
8
IP Address Selectors (last octet)
9
Reading Device Connector
10
Mounting slots (6)
7
6
5

Advertisement

Table of Contents
loading

Related Manuals for Datalogic QLM500

Summary of Contents for Datalogic QLM500

  • Page 1 QLM500 INSTALLATION MANUAL Figure A Power In Connector and LED Ethernet Port 2 Connector and LED ID-NET Connector and LED Auxiliary Port Connector Trigger Connector and LED IP Address Selectors (last octet) I/O Connector and LED Reading Device Connector Ethernet Port 1 Connector and LED...

  • Page 2: Services And Support

    - Material Return Authorization LEGAL NOTICES © 2012 Datalogic Automation S.r.l.  ALL RIGHTS RESERVED.  Protected to the fullest extent under U.S. and international laws. Copying, or altering of this document is prohibited without express written consent from Datalogic Automation S.r.l.
  • Page 3 QLM500 INSTALLATION MANUAL DESCRIPTION The QLM500 EtherNet/IP Gateway is an active connection module which can be used in Standalone or ID-NET™ Master Multidata, or Master Synchronized layouts. It provides a fast and efficient way to cable both an EtherNet/IP network and an ID-NET™ network using standard cables.

  • Page 4: Package Contents

    QLM500 INSTALLATION MANUAL PACKAGE CONTENTS Verify that the QLM500 and all the parts supplied with the equipment are present and intact when opening the packaging; the list of parts includes:  QLM500 Gateway  This Installation Manual  Mounting screws and washers (2) ...

  • Page 5: Mechanical Installation

    M5 threaded holes.  QLM500 can also be mounted to a Bosch Frame using the two M5x20 screws included in the package, plus two specific commercial T-nuts (for example the Bosch Rexroth T-nut 10 M5, cod. 3 842 530 283).

  • Page 6: Electrical Connections

    QLM500 INSTALLATION MANUAL ELECTRICAL CONNECTIONS CONNECTORS PWR-IN (Power In) ID-NET (Out) M12 5P Male M12 5P Female (A-coded) (A-coded) Function Function Shield TRG (Trigger) M12 4P Female M12 8P Female (A-coded) (A-coded) Function Function +V (I/O) +V (I/O) -V (I/O)
  • Page 7 PWR-IN is a 5-pin Male A-Coded M12 connector. Input power must only be supplied to the QLM500 at the PWR-IN connector; from there it is internally distributed to the connected reading device, the ID-NET™ network and all the I/O devices.
  • Page 8 QLM500 INSTALLATION MANUAL Pins 2 and 3 on the ID-NET connector carry the same power supply lines present on pins 1 and 3 of the PWR-IN connector; however power must only be supplied to the QLM500 through the PWR-IN connector.

  • Page 9: Aux Connector

    QLM500 INSTALLATION MANUAL ETH1 CONNECTOR ETH1 is a 4-pin Female D-Coded M12 connector. It is used to connect the QLM500 to an EtherNet/IP network in either Daisy-Chain, Ring or Star topologies. ETH2 CONNECTOR ETH2 is a 4-pin Female D-Coded M12 connector. It is used to connect the QLM500 to an EtherNet/IP network in either Daisy-Chain, Ring or Star topologies.
  • Page 10 QLM500 INSTALLATION MANUAL 10) Preset the Node Address of the QLM500, as shown in the EtherNet/IP Network Address Selectors paragraph. 11) Switch on the power supply; after a while (the system needs some seconds to boot), and if the EtherNet/IP Host is ready and has correctly recognized the QLM500, the green Network Status and Module Status LEDs below both ETH1 and ETH2 M12 connectors should be turned on.

  • Page 11: Indicator Leds

    PWR-IN / ID-NET The Power LEDs are blue when power is correctly applied to the QLM500. These LEDs are red if power polarity is incorrect. In this case the QLM500 and the connected reading device are protected. If external I/O devices are powered through QLM500 (connected to +V I/O and -V I/O), they are not protected from polarity inversion.

  • Page 12: Typical Layouts

    The dotted lines in the figure refer to optional hardware configurations. The general system layout allows the QLM500 EtherNet/IP Gateway to connect one of the compatible serial reading devices (2KN, 4K Scanner), collect its information and send it to an EtherNet/IP Host.
  • Page 13 DS2100N Matrix 410™ DS4800 protection to next EtherNet/IP CBL-1480-xx CBL-1480-xx node EtherNet/IP PLC (Host) ID-NET™ Multidata Network - DS4800 Master with QLM500 + mixed Slaves with QL300s QL100 Configuration PC CBL-1490 CBL-1480-xx EtherNet/IP Node ID-NET™ Slaves ID-NET™ Master READY GOOD...

  • Page 14: Technical Features

    0.3 - 0.2 A Maximum Distributed Current Allowed  ID-NET™ 4.0 A max Limited Current Consumption  QLM500 + reading device 1.85 A max  Trigger + I/O device 0.75 A max (see related device manuals) Inputs: Input1 (TRG), Input 2...

  • Page 15: Power Supply

    LPS power source. Total power consumption is given by adding the QLM500 power consumption to that of all the devices powered through the QLM500 (reading device, P.S., I/O). Refer to the manual of the connected devices for details about CAUTION minimum/maximum supply voltage and power consumption.

  • Page 16: Declaration Of Conformity

    EC-128 DECLARATION OF CONFORMITY Rev.: 2 Pag.: 1 di 1 Datalogic Automation S.r.l. Via Lavino 265 40050 Monte San Pietro Bologna - Italy www.automation.datalogic.com declares that the QLxxx and QLMxxx; Connection module and all its models are in conformity with the requirements of the European Council Directives listed below:...
