System Connection Example - Eclipse AVN2454 Installation Manual

System connection e
System connection e
•
Never cut the insulation on the power cable or use it to power any other equipment. If the rated current
capacity of the power cable is exceeded, fire and electric shocks may result.
•
The cables should be secured with tape or similar item so it will not cause an obstruction while driving.
If they get wound around components such as the steering wheel, shifting lever or brake pedal,
accidents may result.
Tip
• Install and connect all of the peripheral units before connecting them to the main unit.
• Do not remove the caps of pin jacks unless in use.
• Be sure to wrap the connection cables with plastic tape to insulate them.

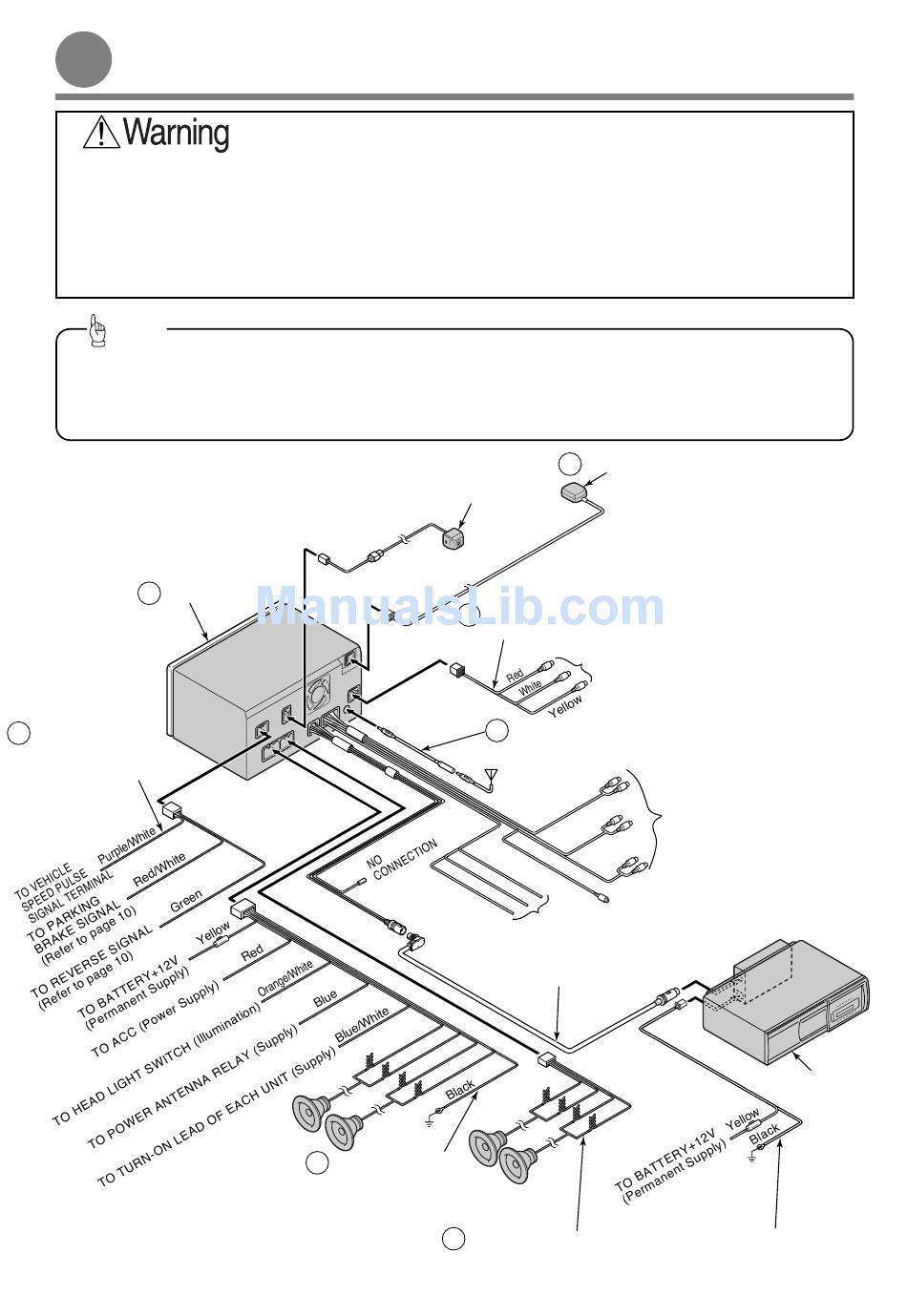

MAIN UNIT
1
INTERCONNECTING
4
CABLE
(Speed pulse parking brake
and reverse signal connector)
5P
4P
10P
FRONT
TO GROUND
SPEAKERS
INTERCONNECTING
2
CABLE
(Power and front
speaker connector)
xample
xample
BEC104
(sold separately)
1P
INTERCONNECTING CABLE
5
(Video input connector)
6P
ANTENNA EXTENSION CABLE
6
Be sure to use when connecting the
radio antenna to the vehicle.
ANTENNA
PLUG
TO STEERING REMOTE
CONTROL
13P
DIN CABLE
(Supplied with CD changer)
6P
REAR
SPEAKERS
INTERCONNECTING CABLE
3
(Rear speaker connector)
- 12 -
GPS ANTENNA
11
TO EXTERNAL VIDEO EQUIPMENT
FRONT
REAR
NON FADER
(do not remove cap)
TO MONITOR
13P
2P
TO GROUND
POWER CONNECTOR CABLE
(Supplied with CD changer)
CH3083
(sold separately)
