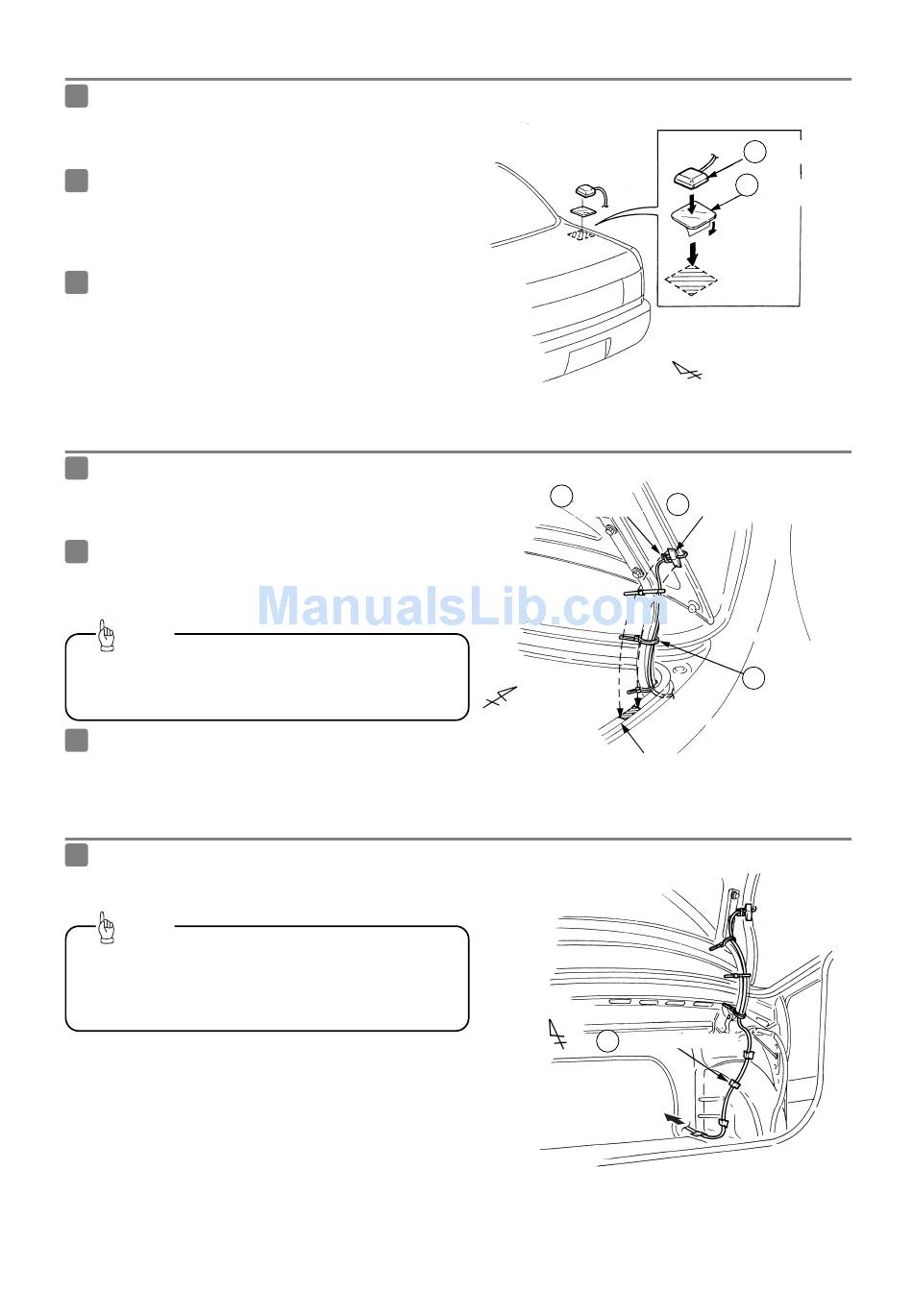

- Installation outside the vehicle (example) -
1
Choose an installation location where the GPS
antenna can be attached securely.
2
Remove the backing paper from the body
protective sheet and attach the sheet to the
vehicle.
3
Install the GPS antenna on top of the body
protective sheet.
4
Route the GPS antenna cable inside the vehicle's
trunk and secure it with clamps.
5
Attach the waterproof cushion so that the GPS
antenna cable is flat against the weatherstrip
when the trunk lid is closed.
Tip
Apply plain water or soapy water to the
waterproof cushion when moving it.
6
Route the GPS antenna cable while securing it
with cable ties.
7
Route the GPS antenna cable to the main unit
while securing it with harness fixing tape.
Tip
Cut the harness fixing tape into usable lengths
with scissors. Do the same for the rest of the
installation.
Clamp
15
(metal)
Front of vehicle
Front of vehicle
17
Route to
main unit
- 15 -
11 GPS antenna
Body protective
14
sheet (clear)
Front of vehicle
Waterproof cushion
12
16
Cable tie
(long)
Weatherstrip
Harness fixing tape
