Front Panel Components

Drive configuration may vary by model.

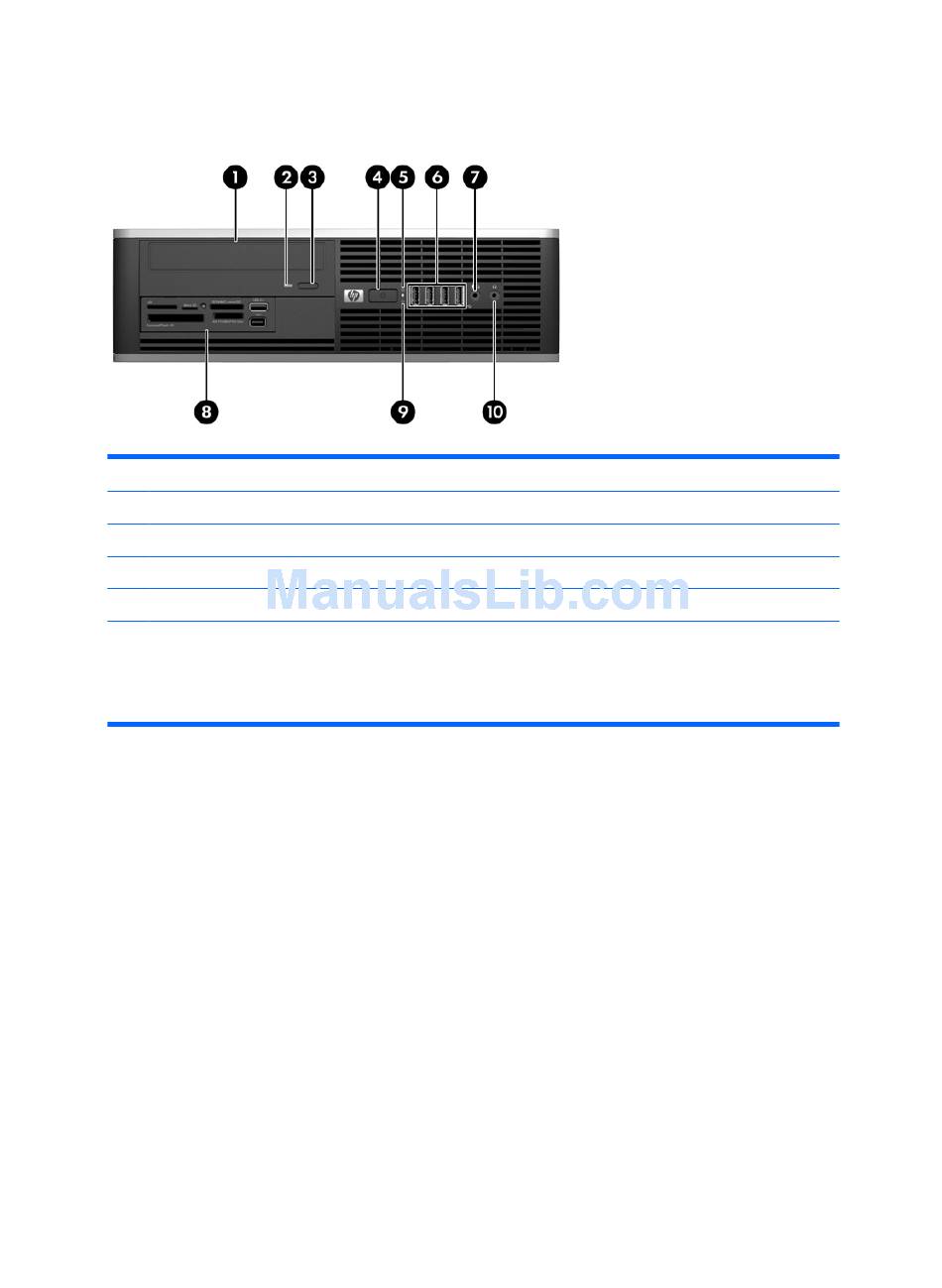

Figure 1-2
Table 1-1
1 5.25-inch Optical Drive
2 Optical Drive Activity Light
3 Optical Drive Eject Button
4 Dual-State Power Button
5 Power On Light
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you
want to use the connector for a microphone line Line-In device or a headphone.
The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the computer
and it is displaying a diagnostic code. Refer to the Troubleshooting Guide to interpret the code.
Some models are configured with a 5.25-inch bezel blank covering this bay.
1
2 Some models are configured with a 3.5-inch bezel blank covering this bay.
2 Chapter 1 Product Features
Front Panel Components
Front Panel Components
1 6 USB (Universal Serial Bus) Ports
7 Microphone/Headphone Connector
8 3.5-inch Media Card Reader (optional)
9 Hard Drive Activity Light
10 Headphone Connector
2
