11. Configuring the Digiface

11.1 Settings Dialog

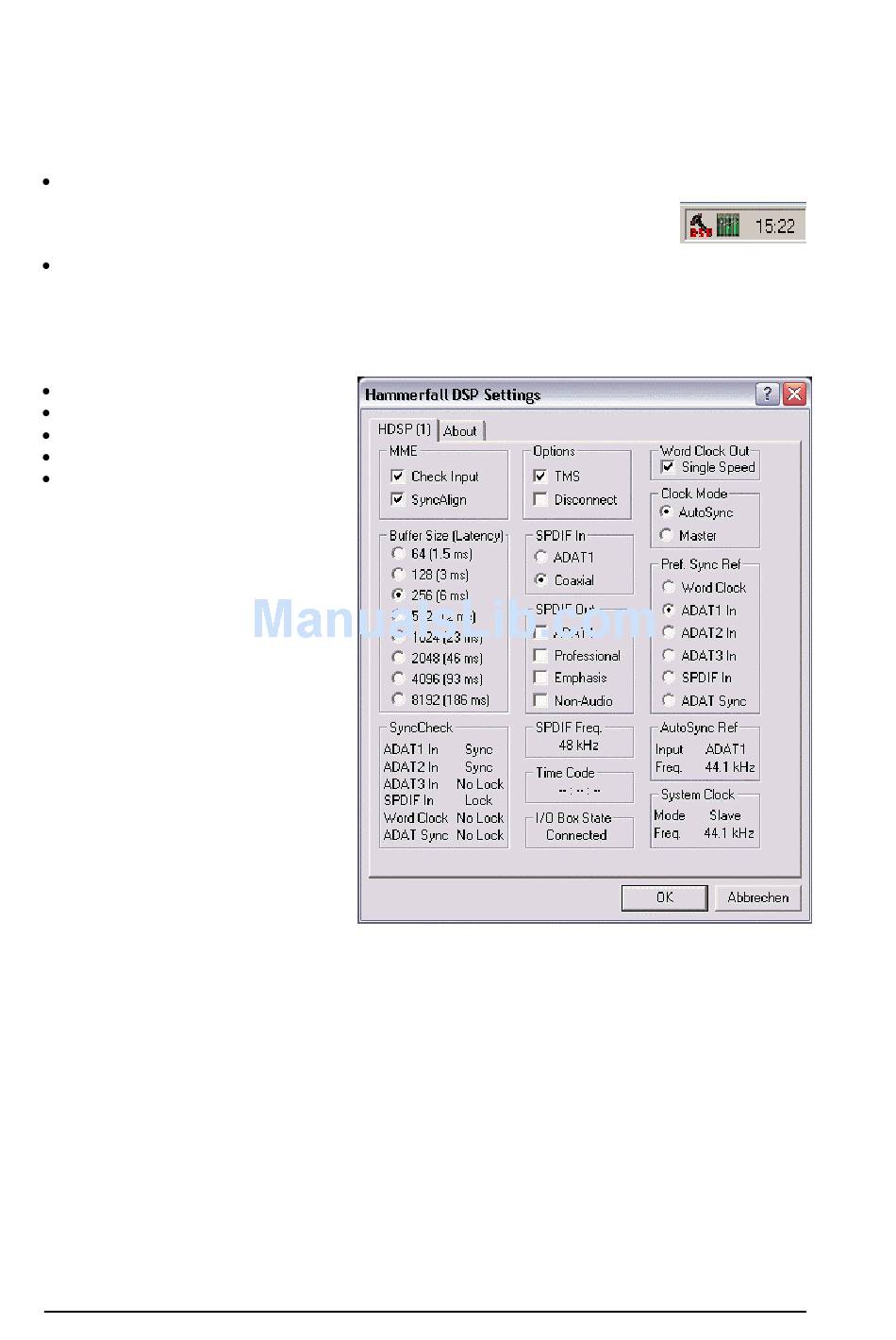

Configuration of the HDSP system Digiface is done via its own settings dialog. The panel 'Set-
tings' can be opened:
by clicking on the hammer symbol in the Task Bar's system tray
The mixer of the Hammerfall DSP system (TotalMix) can be opened:
by clicking on the mixer icon in the Task Bar's system tray
The hardware of the HDSP system offers a number of helpful, well thought-of practical func-
tions and options which affect how the card operates - it can be configured to suit many differ-
ent requirements. The following is available in the 'Settings' dialog:
Input selection
Configuration of digital I/Os
Output status
Synchronization behaviour
State of input and output
Any changes made in the Settings
dialog are applied immediately -
confirmation (e.g. by clicking on OK
or exiting the dialog) is not required.
However, settings should not be
changed during playback or record if
it can be avoided, as this can cause
unwanted noises. Also, please note
that even in 'Stop' mode, several
programs keep the recording and
playback devices open, which means
that any new settings might not be
applied immediately.
The status displays at the bottom of
the dialog box give the user precise
information about the current status
of the system, and the status of all
digital signals.
SyncCheck indicates whether there is a valid signal (Lock, No Lock) for each input (Word
Clock, ADAT1-3, SPDIF, ADAT Sync), or if there is a valid and synchronous signal (Sync). The
AutoSync Ref(erence) display shows the input and frequency of the current sync source.
