Fostex PD204 Owner's Manual Supplement page 2

Version 1.01 supplement

Hide thumbs Also See for PD204:

Model PD204 Owner's manual <Version1.01 supplement>

The limiter parameter setting function has been enhanced and you can now make limiter pa-

rameter setting for the input channels and stereo output busses individually.

With the earlier version, the "Limiter parameter" menu item in the "SYS SETUP" menu of the

MENU mode is provided to make limiter parameter setting for both the input channels and

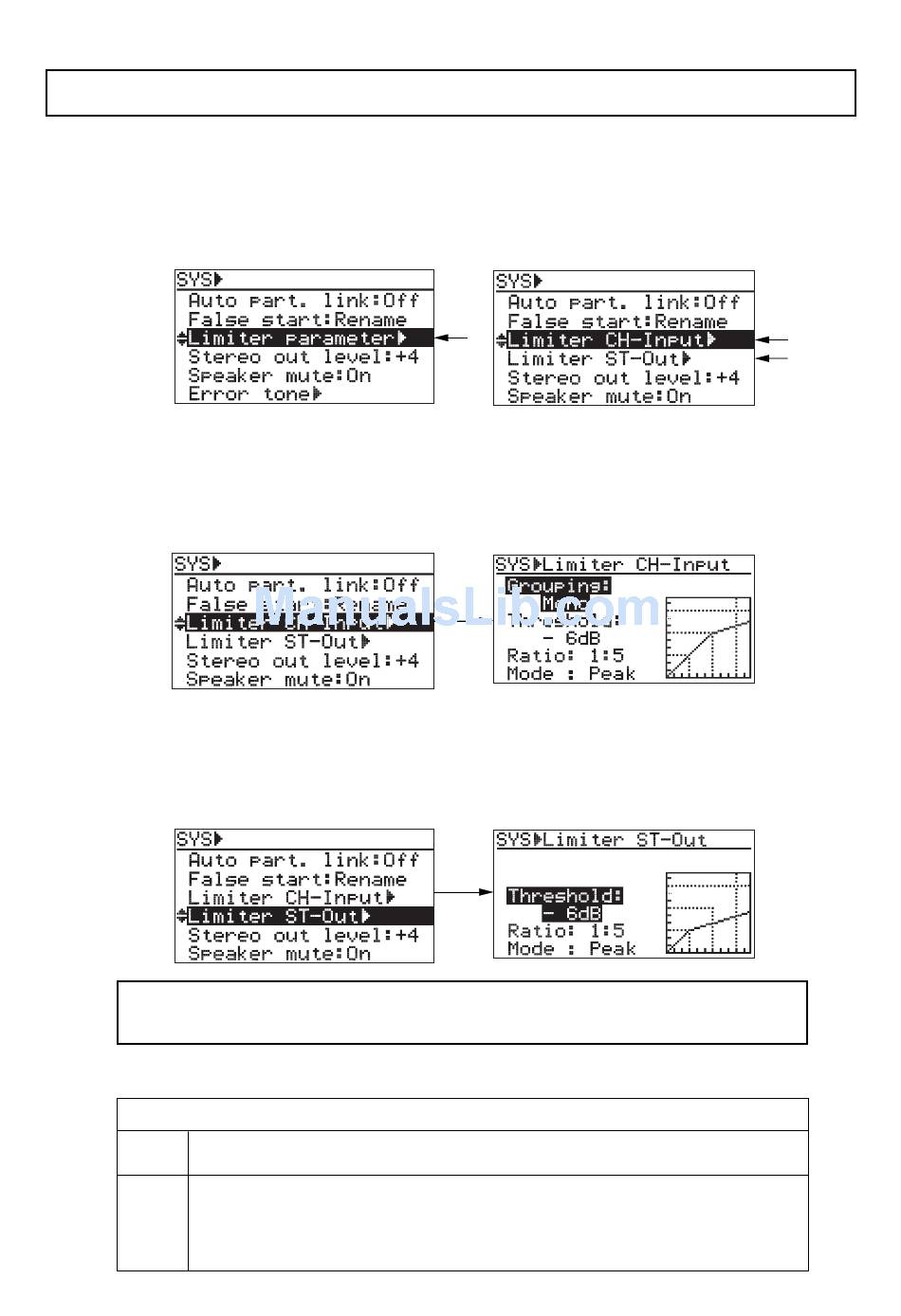

stereo output busses simultaneously. With version 1.01, the "Limiter CH-Input" and "Limiter ST-

Out" menu items are provided instead of the "Limiter parameter" item.

• Limiter parameter setting for input channels 1 through 4 (Limiter CH-Input)

Highlight "Limiter CH-Input" in the SYS SETUP menu and press the [ENTER/YES] key.

The display now shows the screen for setting limiter parameters of the input chan-

nels, including grouping, threshold, ratio and level detection mode.

• Limiter parameter setting for stereo output busses (Limiter ST-Out)

Highlight "Limiter ST-Out" in the SYS SETUP menu and press the [ENTER/YES] key.

The display now shows the screen for setting limiter parameters of the stereo output

busses, including threshold, ratio and level detection mode.

<Note>:

The limiters for stereo output busses L and R are always linked (grouped) so

there is no "Grouping" setting item.

Grouping setting (available only for "Limiter CH-Input")

Mono

Each input channel limiter works independently according to each input signal level.

The limiters for channels 1 through 4 are grouped. All the channel limiters work together ac-

cording to the highest input level among channels 1 through 4. Therefore, when the limiters

1-4

work, all signals are compressed at the same ratio and the stereo position of each signal is

maintained.

Limiter parameter setting

You can select "Mono" or "1-4". (The default is "Mono".)
