To wall mount the unit:
1 Drill two holes that are 142 mm (5.6 in) apart and insert the rawl
plugs. Refer to
template

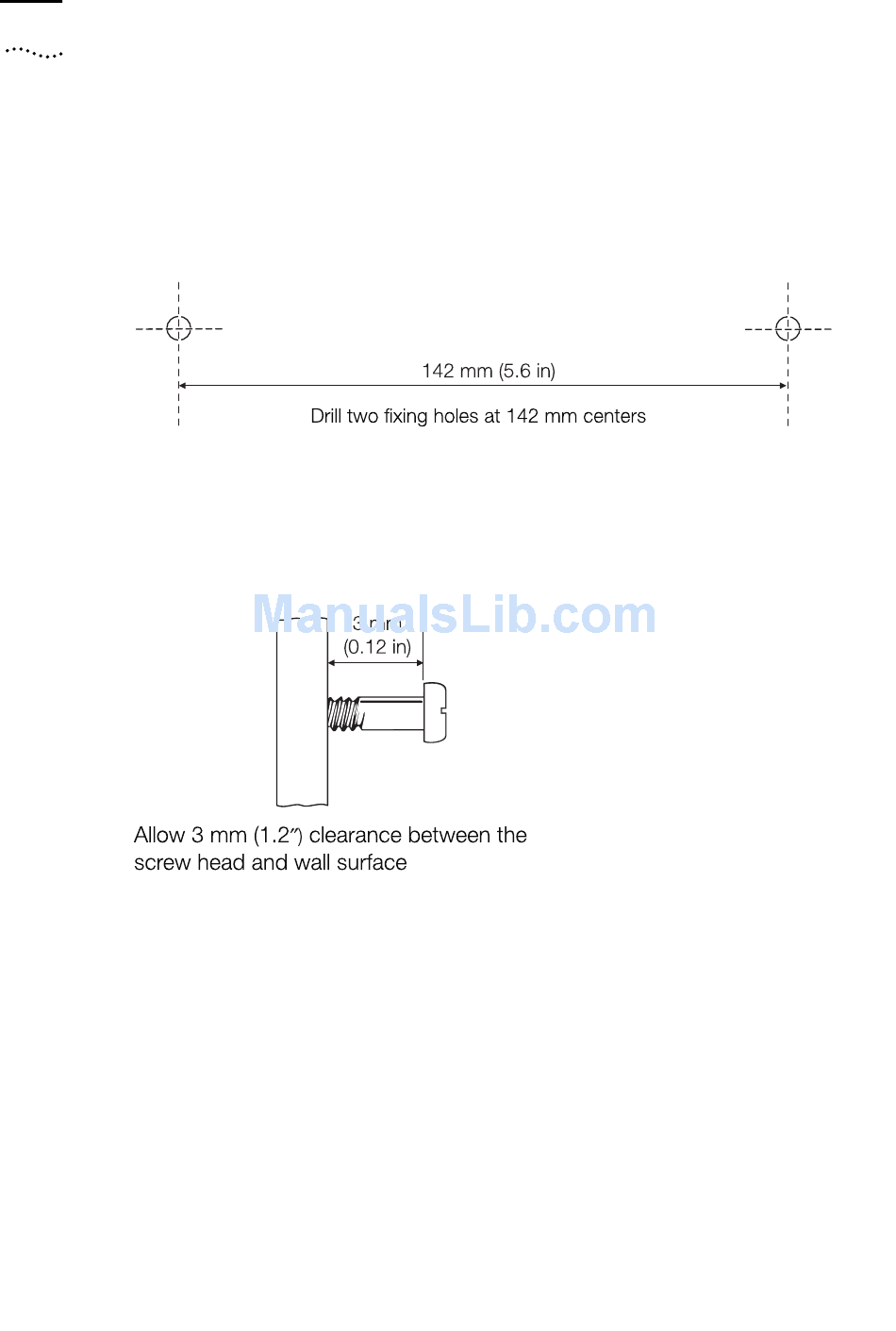

Figure 2-8 Wall Fixing Template
2 Fix the screws into the wall, leaving their heads 3 mm (0.12 in) clear
of the wall surface
Figure 2-9 Screw Clearance
3 Remove any connections to the unit and locate it over the screw
heads. When in line, gently push the OfficeConnect Remote onto the
wall and move it downwards to secure
connections, be careful not to push the unit up and off the wall.
NSTALLATION
page A-11
(Figure 2-8).
(Figure
for a full size version of the wall fixing
2-9).
(Figure 2-10). When making
