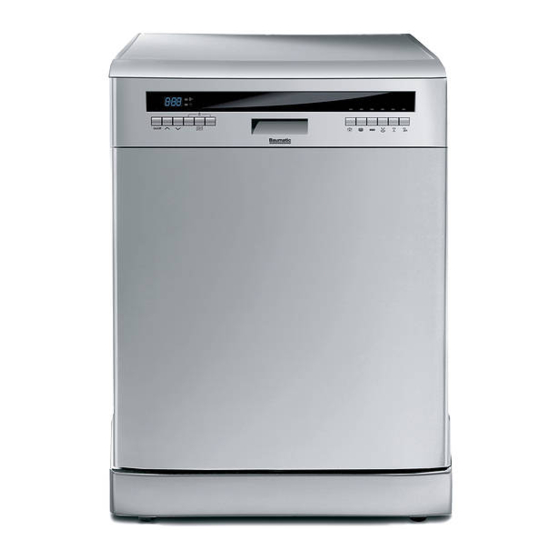

- Page 1 BDF682SL 60 cm Freestanding dishwasher...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BDF682SL 60 cm Freestanding full height electronic dishwasher NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Environmental note Important safety information 5 – 7 Specifications 8 - 9 Product and aperture dimensions Product specifications Energy efficiency details Electrical details Description of the appliance 9 - 10 Control panel Using your dishwasher 10 - 20 Before first use Filling with dishwasher salt 11 –... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your dishwasher. - Page 6 This appliance is only designed to wash normal domestic washloads. If you use your dishwasher in any other way or it is incorrectly used, then Baumatic accepts no liability for any damage that might be caused and any guarantee will be void.
-
Page 7: Declaration Of Conformity
Child Safety o Your dishwasher should only be used by adults. You should not allow children in the area of the machine unsupervised. You should not let them touch the controls or play with the appliance. o It could be possible for a child or pet to gain access to the dishwasher if the door is left open. -
Page 8: Specifications
Specifications Product dimensions Height: 850 mm Width: 600 mm Depth: 600 mm Product specifications o 14 Place settings o 7 functions: Normal Intensive Economy Rinse Glass Rapid 3 in 1 o 4 Wash temperatures: 40°C, 45°C, 50°C, 60°C o 3 Rinse temperatures: 45°C, 60°C, 70°C o Delay timer o Anti-flood device o LCD display... -
Page 9: Energy Efficiency Details
Energy efficiency details Energy efficiency class: Washing performance class: A Drying performance class: Electrical details Rated voltage: 230 Vac 50 Hz Supply connection: 13 A (double pole switched fused outlet with 3 mm contact gap) Description of the appliance Upper basket Spray arms Lower basket Water softener... -
Page 10: Control Panel
Control panel ON/OFF button Delay start buttons Child safety lock buttons LCD display Salt indicator neon Rinse aid indicator neon Program buttons Using your dishwasher Before first use o Install the appliance as per the installation instructions contained within this booklet. o Fill the water softener with 1 litre of tap water and then fill with specialist dishwasher salt. -
Page 11: Filling With Dishwasher Salt
Filling with dishwasher salt IMPORTANT: You should only use salt that is specially designed for use in a dishwasher. If any other type of salt is used in the appliance (in particular table salt), it will damage the water softener. o Ideally you should fill the water softener with salt, just before you are about to run a wash program. -
Page 12: Setting The Water Softener Level
o IMPORTANT: You do not need to pour 1 litre of water into the container when you subsequently fill the water softener with salt. Setting the water softener level It is possible to regulate the amount of salt that the water softener will release during a wash cycle. -
Page 13: Filling With Rinse Aid
Filling with rinse aid The rinse aid is released during the final rinse and it helps to prevent water from forming droplets on your dishes. These droplets will lead to spots and streaks being left on items after the wash program has completed. o Your dishwasher is designed to utilise liquid rinse aid. -
Page 14: Filling With Dishwasher Detergent
o You should continue to adjust the rinse aid level upwards until you get no water spots. o If you get cloudiness or streaking on your dishes, the rinse aid level is set too high and it is causing foaming during the wash cycle. -
Page 15: Loading The Upper Basket
Loading the upper basket The upper basket is most suited to washing delicate and light dishware, such as glasses, coffee & tea cups, saucers, plates, bowls and shallow pans (that are not heavily soiled). Cups Small serving bowl Large serving bowl Glasses Saucers Dish... -
Page 16: Adjusting The Upper Basket
Adjusting the upper basket Your dishwasher has an adjustable upper basket which you can alter to the most suitable position for the items you are going to wash in the upper basket. The height of the upper basket can be adjusted by pulling the handle on either side of the basket upwards until it clips into place. -
Page 17: Loading The Lower Basket
IMPORTANT: Care should be taken to make sure that the spray arms can move freely when items have been loaded into the baskets. Loading the lower basket The lower basket is most suited to washing larger and more heavily soiled items, such as saucepans, saucepan lids and serving dishes. You can also load bowls and a variety of plates into the lower basket. -
Page 18: The Cutlery Basket
The cutlery basket Cutlery should be placed inside of the cutlery basket. The cutlery basket should then be placed in the appropriate position in the lower basket. o For the best washing performance, cutlery should be placed through the slots in the top of the cutlery basket. -
Page 19: Loading Dishes And Cutlery
IMPORTANT: Do not allow items of cutlery to fall through the bottom of the cutlery basket, as this may cause damage to the spray arm and/or the cutlery. If the bottom of the basket begins to deteriorate and allows items to fall through, you should replace the cutlery basket. - Page 20 The following items are NOT suitable for washing inside a dishwasher:- o Cutlery with a handle of mother-of-pearl, wood, horn or china. o Plastic items that are not resistant to heat. o Cutlery that consists of glued parts that are not resistant to heat. o Cutlery items or crockery that are bonded.
-
Page 21: Program Table
Program table Program Wash Wash program Description Detergent program information of cycle (pre/main) 3 in 1 For normally soiled Pre-wash loads, such as pots, (50°C) plates, glasses and Pre-wash lightly soiled pans. Wash (45°C) Standard daily cycle. Rinse Rinse (70°C) Drying Normal For normally soiled... -
Page 22: Changing A Wash Program
o Add detergent o Turn the appliance on by using the ON/OFF button; the ON/OFF light will come on. o IMPORTANT: Wait for 5 seconds before pressing the program selection button, otherwise the appliance may not function correctly. o Press the relevant program selection button to choose an appropriate wash program for the load that you are washing. -
Page 23: At The End Of A Wash Program
At the end of a wash program o At the end of a wash program, an audible signal will sound for a period of time. o Use the ON/OFF button to switch the dishwasher off. o IMPORTANT: You should leave the appliance for 15 minutes BEFORE opening the door. -
Page 24: Setting A Delay Start
o Check that the 3 in 1 tablet container is not going to foul the upper spray arm, by rotating the spray arm around slowly. If it does hit the 3 in 1 tablet container, you should move it. o Put a 3 in 1 tablet inside the 3 in 1 tablet container. Load the appliance as normal and select the 3 in 1 wash program by pressing the button marked “3 in 1”. -
Page 25: Child Safety Lock
o You can delay the start of the wash cycle by a maximum of 24 hours. Each time you press a button, the delay start time will adjust by one hour. o Close the door firmly, so that you hear the door lock click shut. o Once the period of time that you set has passed, the dishwasher will start the wash program that you selected. -
Page 26: Cleaning And Maintenance
Cleaning and maintenance IMPORTANT: The appliance should be disconnected from your mains supply before commencing any cleaning process. The filter system Your appliance is fitted with three levels of filtering; these are located in the base of the dishwasher for ease of access. Main filter Coarse filter Fine filter... -
Page 27: Cleaning The Filters
Cleaning the filters For best performance and results, the entire filter assembly should be thoroughly cleaned regularly (ideally after each wash cycle). 1. Turn the coarse filter anti-clockwise and then lift it upwards. Rinse out this section under a tap to remove any food debris that remains in it. -
Page 28: Cleaning The Spray Arms
Cleaning the spray arms The spray arms should be cleaned regularly, to prevent hard water deposits from clogging the spray arm jets and bearings. o To remove the spray arm, unscrew the nut and take out the washer that sits on top of the spray arm. o Gently pull upwards to remove the spray arm. -
Page 29: Cleaning The Door
Cleaning the door o To clean the edge around the outside of the door, you should use a soft, damp cloth only. o To prevent water from penetrating the door lock or electrical components, DO NOT use a spray cleaner of any kind. o DO NOT use any abrasive cleaner or scouring pads on the inner or outer surfaces, as they may cause damage to them. - Page 30 o The machine has sensed water in the base. Check that the outlet hose is not kinked or crushed. Check that there are no blockages in the drain hose or the drainage system that the appliance is connected to. The drain pipe may be placed in too high a position or incorrectly. Check the installation instructions and ensure that the installation is correct.
-
Page 31: General Troubleshooting
Utensils are not Ensure that everything is loaded as secure in the baskets per Baumatic’s loading instructions. or something small has dropped into the basket Motor hums If the dishwasher is not going to be... - Page 32 Stained tub Detergent with Use a detergent without colourant. interior colourant was used Dishes are not Rinse aid dispenser is Make sure that the rinse aid fully dried empty dispenser is filled with rinse aid. Dishes and Improper program Select a more intense wash pans are not program.
-
Page 33: Installation
Installation IMPORTANT: THIS INSTALLATION MUST BE COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION THE INSTALLATION GIVEN IN THIS INSTRUCTION MANUAL. YOU SHOULD DISPOSE OF ALL PACKAGING IN AN ENVIRONMENTALLY FRIENDLY MANNER. Positioning and levelling the appliance Remove all packaging... -
Page 34: Connecting To The Mains Water Supply
IMPORTANT: When the dishwasher is positioned in the location where it will be used. Make sure that all four feet are resting firmly on the floor, by pressing down on each corner and checking that the appliance stands still. Connecting to the mains water supply IMPORTANT: Do not connect the appliance to your mains water supply using an old or an existing water inlet hose. -
Page 35: Connecting To The Water Outlet
Connecting to the water outlet Secure the drain hose, so that it cannot move whilst the dishwasher is in use. Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. IMPORTANT: Do not insert the drain hose too deeply into the pipe, as this may cause siphoning. -
Page 36: Before First Use
Consult the rating plate, located on the right hand side of the drop down door BEFORE making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the rating plate. DO NOT REMOVE THE RATING PLATE AS THE INFORMATION ON IT IS IMPORTANT. - Page 37 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...
-
Page 38: Contact Details
United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Amperova 495 6 Bennet Road, 46215, Librec Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 800 185 263 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax Slovak Republic (0118) 931 0035 Baumatic Slovakia, s.r.o.
