787
Users Manual
No. Element
mA, DC, mV, AC,
M or k , kHz
Auto
400100030
16

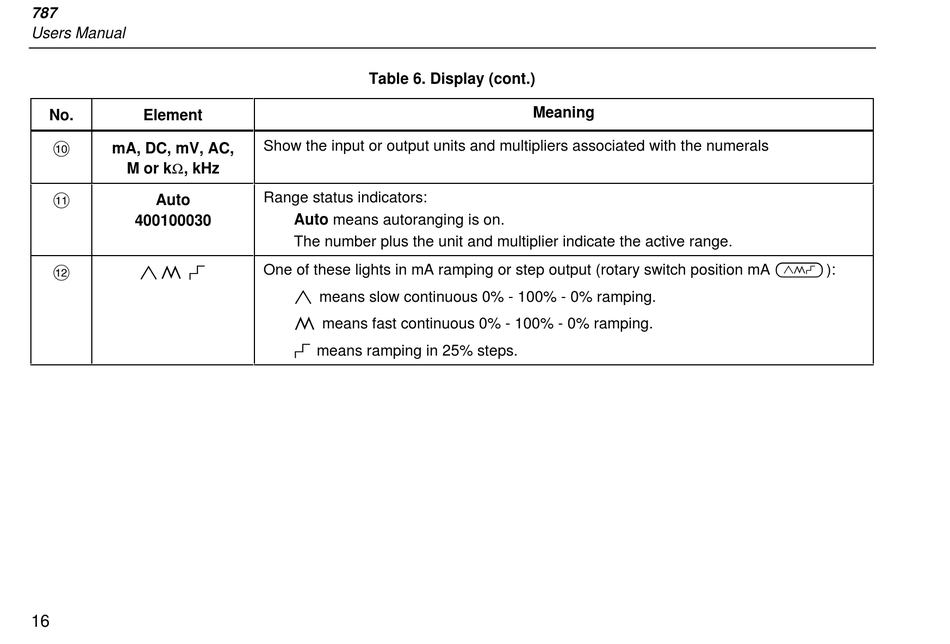

Table 6. Display (cont.)
Show the input or output units and multipliers associated with the numerals
Range status indicators:
Auto means autoranging is on.
The number plus the unit and multiplier indicate the active range.
One of these lights in mA ramping or step output (rotary switch position mA
means slow continuous 0% - 100% - 0% ramping.
means fast continuous 0% - 100% - 0% ramping.
means ramping in 25% steps.
Meaning
):
