- Page 1 CABINET PARTS REFRIGERATOR For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) 4−09 Litho In U.S.A. (mat) (eeb) Part No. W10247066 Rev. B...
-

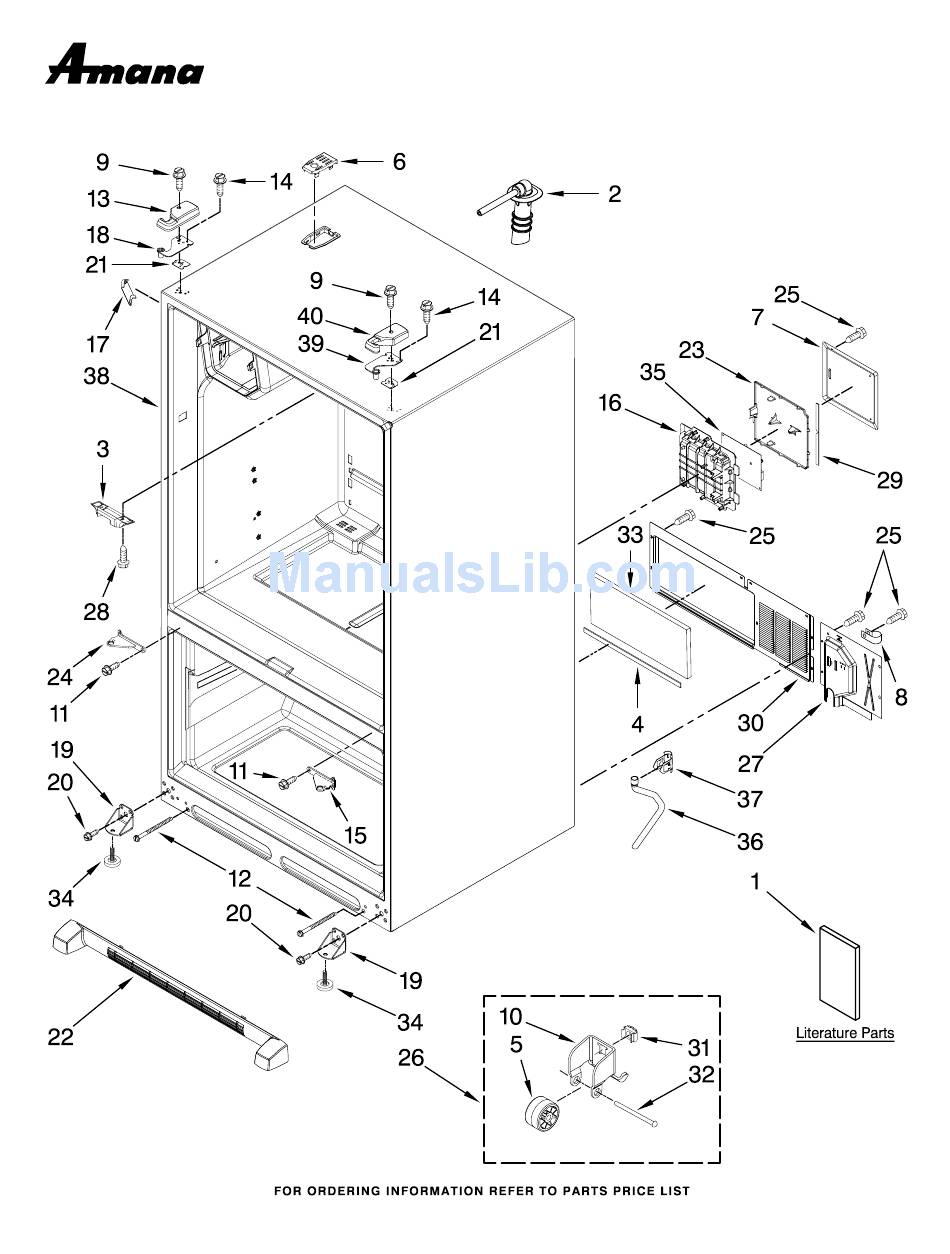

Page 2: Cabinet Parts
CABINET PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006303 Screw, Top Hinge 23 12957701SP Lid, HV Control Literature Parts Hinge, Center (RT) Hinge, Center (LT) W10141352 Tech Sheet 67006379 White 13000001WD White W10164066 Use &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 4 REFRIGERATOR LINER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67006328 Module, Light 67006326 Foil, Light 67006327 Cover, Light 67006316 Grille, Air 12466103 Switch, Light 67006318 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light Y12570701 Socket, Light...
-
Page 5: Shelf Parts
SHELF PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 6 SHELF PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION 67002761 Glass, Pantry 67006287 Screw 67006412 Shelf, Mini (Stationary) 67006010 Support, Pantry(2) 67002330 Brace, Pantry (2) 67001719 Track, Pantry 10423131 Bin, Utility 10436404 Lid, Utility 67002329 Gasket, Pantry 67005625 Housing, Control 67006411 Shelf, Glide (3)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION 67006349 Ice Bin Assembly (Includes Auger) 2 W10121282 Inlet, Blower 3 W10121281 Scroll, Blower 4 W10162697 Motor, Fan 5 W10123444 Wheel, Blower 67006338 Clip, Fan Motor 67006339 Grommet, Fan Motor 8 W10187860 Divider, Ice Box...
-
Page 9: Icemaker Parts
ICEMAKER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 10 ICEMAKER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION 1 W10122527 Mold & Heater Assembly (Also Order 542638 Grease) 2 W10175514 Arm, Shutoff 628515 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2194712 Support, Housing 2315522 Retainer, Thermostat 627985 Thermostat...
-
Page 11: Freezer Liner Parts
FREEZER LINER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 12 FREEZER LINER PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 67004430 Gear (Left) 67003924 Cover, Thermistor 67004017 Shaft, Rack Y12570701 Socket, Light 67004429 Gear, (Right) 67006473 Screw, Bracket A0282812 Bulb, Light 67001035 Housing, Light...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 14 REFRIGERATOR DOOR PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006113 Mount, Handle 67006314 Frame, Chiller Door, Left 12962106 Waterline, Door (Front) 67007124 White 67005954 Bushing, Door 67006404 Bin, Shelf 67007078 Black (Large)
-
Page 15: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Sump, Dispenser Housing, Dispenser 67006303 Screw (4) 67006394 White (Not Serviced) 67006295 Ring, Target 67006399 Black Facade, Dispenser Dispenser Keyboard 67006440 Bisque 67006396 White... -
Page 16: Freezer Door Parts
FREEZER DOOR PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 10 W10163002 Adapter, Bin Freezer Door Gasket, Door W10164158 White (Inner) W10162897 White 67006372 Bracket/Glide W10164157 Black W10162895 Black Assembly W10164156 Bisque... -
Page 17: Unit Parts
UNIT PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) W10247066... - Page 18 UNIT PARTS For Models: AFI2538AEW3, AFI2538AEB3, AFI2538AEQ3, AFI2538AES3 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 12225403WD Tray, Drip 67006433 Screw 67007110 Screw 2 W10162928 Blade, Fan 22 W10162998 Evaporator Following Parts Not Illustrated 12457108 Base Support−EV 67006425 Screw...
- Page 19 OPTIONAL PARTS (NOT INCLUDED) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and 1117510 Torx Key Optional Parts (Not Included) 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl Customer Touch−Up Material (3/4 x 108") 876370 Kit, Insulation 350942 Primer, White (2 Pcs.
