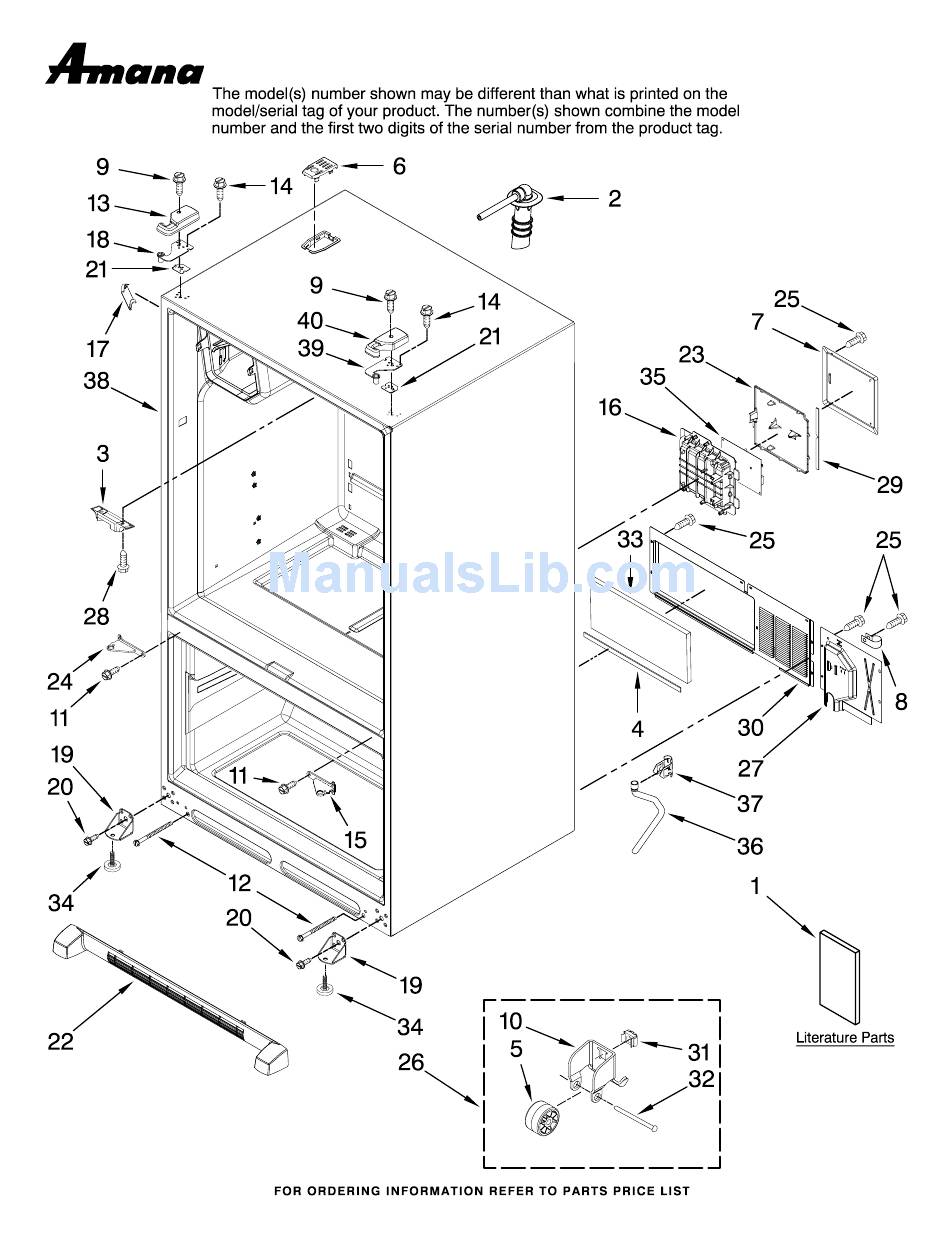

- Page 1 CABINET PARTS REFRIGERATOR For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) 9−07 Litho In U.S.A. (cjj) Part No. W10164063 Rev. A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006303 Screw, Top Hinge 67006425 Screw, Cover Literature Parts Hinge, Center (RT) 67002227 Roller Bracket W10164064 Tech Sheet 67006379 White 67006426 Cover, Water Valve W10164066 Use &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) W10164063... - Page 4 REFRIGERATOR LINER PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67006328 Module, Light 67006326 Foil, Light 67006327 Cover, Light 67006316 Grille, Air 12466103 Switch, Light 67006318 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light Y12570701 Socket, Light...
-
Page 5: Shelf Parts
SHELF PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) W10164063... - Page 6 SHELF PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION 67002761 Glass, Pantry 67006287 Screw 67006412 Shelf, Mini (Stationary) 67006010 Support, Pantry(2) 67002330 Brace, Pantry (2) 67001719 Track, Pantry 10423131 Bin, Utility 10436404 Lid, Utility 67002329 Gasket, Pantry 67005625 Housing, Control 67006411 Shelf, Glide (3)
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) W10164063... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION 1 W10149456 Icemaker (Includes Fill Tube Cup, Wire Harness & Sensor Arm 67006334 Impinger Assembly 67006335 Shroud, Ice Box Fan 4 W10162697 Motor, Fan 67006337 Blade, Fan 67006338 Clip, Fan Motor 67006339 Grommet, Fan Motor...
-
Page 9: Freezer Liner Parts
FREEZER LINER PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) W10164063... - Page 10 FREEZER LINER PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 67004430 Gear (Left) 67003924 Cover, Thermistor 67004017 Shaft, Rack Y12570701 Socket, Light 67004429 Gear, (Right) 67006473 Screw, Bracket A0282812 Bulb, Light 67001035 Housing, Light...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) W10164063... - Page 12 REFRIGERATOR DOOR PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Door, Left 67006113 Mount, Handle 67006314 Frame, Chiller 67007124 White 12962106 Waterline, Door (Front) 67007078 Black 67006404 Bin, Shelf 67005954 Bushing, Door 67007101 Bisque (Left Door)
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 67006303 Screw (4) Sump, Dispenser (Not Serviced) 67006295 Ring, Target 67006394 White Dispenser Keyboard Facade, Dispenser 67006399 Black 67006957 White 67006396 White... -
Page 14: Freezer Door Parts
FREEZER DOOR PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 10 W10163002 Adapter, Bin Freezer Door Gasket, Door (Inner) W10164158 White W10162897 White 67006372 Bracket/Glide W10164157 Black W10162895 Black Assembly W10164156 Bisque... -
Page 15: Unit Parts
UNIT PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) W10164063... - Page 16 UNIT PARTS For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 67002490 Tray, Drip 2 W10162928 Blade, Fan 67007110 Screw Following Parts Not Illustrated 67005889 Base 22 W10162998 Evaporator 67006425 Screw Support−EV and Optional Parts Not Included...
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Models: AFI2538AEW12, AFI2538AEB12, AFI2538AEQ12, AFI2538AES12 (White) (Black) (Bisque) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION TORX SCREW WRENCH Miscellaneous Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) Customer Touch−Up Material 479502 Tape, Vinyl...
