- Page 1 CABINET PARTS REFRIGERATOR For Models: AFD2535FES12 (Stainless Steel) 12−08 Litho In U.S.A. (mat) (psw) Part No. W10242315 Rev.A...
-

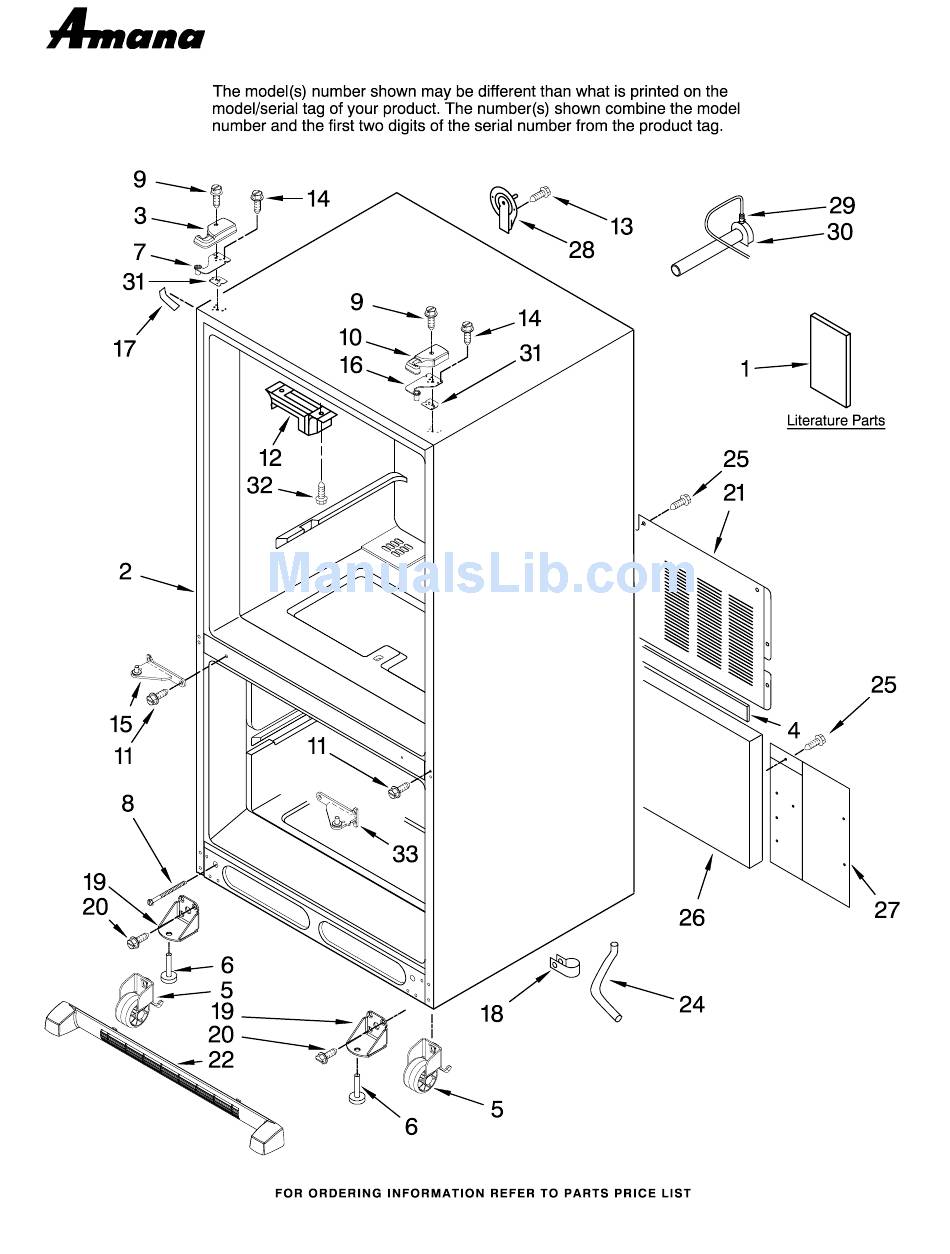

Page 2: Cabinet Parts
CABINET PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10137539 Use & Care Guide W10123476 Energy Guide 12827952 Tech Sheet Cabinet (Not a Servicable Part) Cover, Left Hinge 12684201B Black B5759649 Gasket 67006118 Roller Assy. (2) 67003868 Foot, Brake 7 12566605ED Hinge, Left Top 67006611 Bolt, Adjusting (Front Roller) -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: AFD2535FES12 (Stainless Steel) W10242315... - Page 4 FREEZER LINER PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 67005874 Guide, Fill Tube 67003905 Cover, Light 67003636 Motor, Evaporator Y12570701 Socket, Light 12002355 Thermistor 67003924 Cover, Thermistor A0282812 Bulb, Light 67001035 Housing, Light 67005873 Cover, Evaporator 67006425 Screw...
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: AFD2535FES12 (Stainless Steel) W10242315... - Page 6 REFRIGERATOR LINER PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67004078 Module, Light 67004695 Overlay 67004005 Module, Control 5 W10165748 Board, Control (Incl Instr Sheet) C3680310 Switch, Light (2) 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2) 67003900 Insert,...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: AFD2535FES12 (Stainless Steel) W10242315... - Page 8 REFRIGERATOR DOOR PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION Door, Left 13024038SQ Stainless Steel Door, Right 13024037SQ Stainless Steel 67003637 Door, Dairy 67001279 Tray, Dairy Bucket, Door 67003770 Medium (3) 12699207 Gallon (2) Mullion, Door 67003264 Black 67006786 Screw Gasket, Door 12723206B Black Handle, Door...
-
Page 9: Unit Parts
UNIT PARTS For Models: AFD2535FES12 (Stainless Steel) W10242315... - Page 10 UNIT PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002041 Evaporator Kit 67006433 Screw (Incl. Evaporator 2 W10162928 Blade, Fan Following Parts Not Illustrated #67003720, Heat 67005889 Basepan and Optional Parts Not Included Shield &...
-
Page 11: Shelf Parts
SHELF PARTS For Models: AFD2535FES12 (Stainless Steel) W10242315... - Page 12 SHELF PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION 67004514 Rail, Center Crisper 67004636 Trim, Crisper 67006608 Screw 67004987 Basket, Freezer (Upper) 67006025 Basket, Freezer (Lower) 67004637 Shelf (4) 67006360 Screw 67005864 Slide, Humidity Control (2) 67004127 Divider, Basket (Upper) 67006644 Divider, Basket (Lower)
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: AFD2535FES12 (Stainless Steel) W10242315... - Page 14 ICEMAKER PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION 2256086 Bracket, Icemaker 67003729 Tube, Plastic 67003932 Clamp 489276 Screw 67003753 Valve, Inlet 67004028 Arm, Shutoff 67004710 Cover, Front A3223101 Insert, Tube 9 W10122527 Mold & Heater Assembly (Also Order 542638) 628515 Cup, Water Fill 627843 Ejector 2182124 Ice Stripper...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part DESCRIPTION Door, Freezer 13092213SQ Stainless Steel Handle, Door W10136873 Stainless Steel Gasket, Door W10131754 Black 67002935 Screw, Handle 67006113 Mount, Handle W10242315... -
Page 16: Optional Parts
OPTIONAL PARTS For Models: AFD2535FES12 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH 1117510 Torx Key 72017 White 212643 Sealer, Gum 72032 Black (4 Feet) 479502 Tape, Vinyl ACCESSORIES (3/4 x 108") PAINT, PRESSURIZED SPRAY 505587 Sealer, Mastic 31462 Cleaner, 10 oz.
