Summary of Contents for ClearSounds ClearDigital AC100

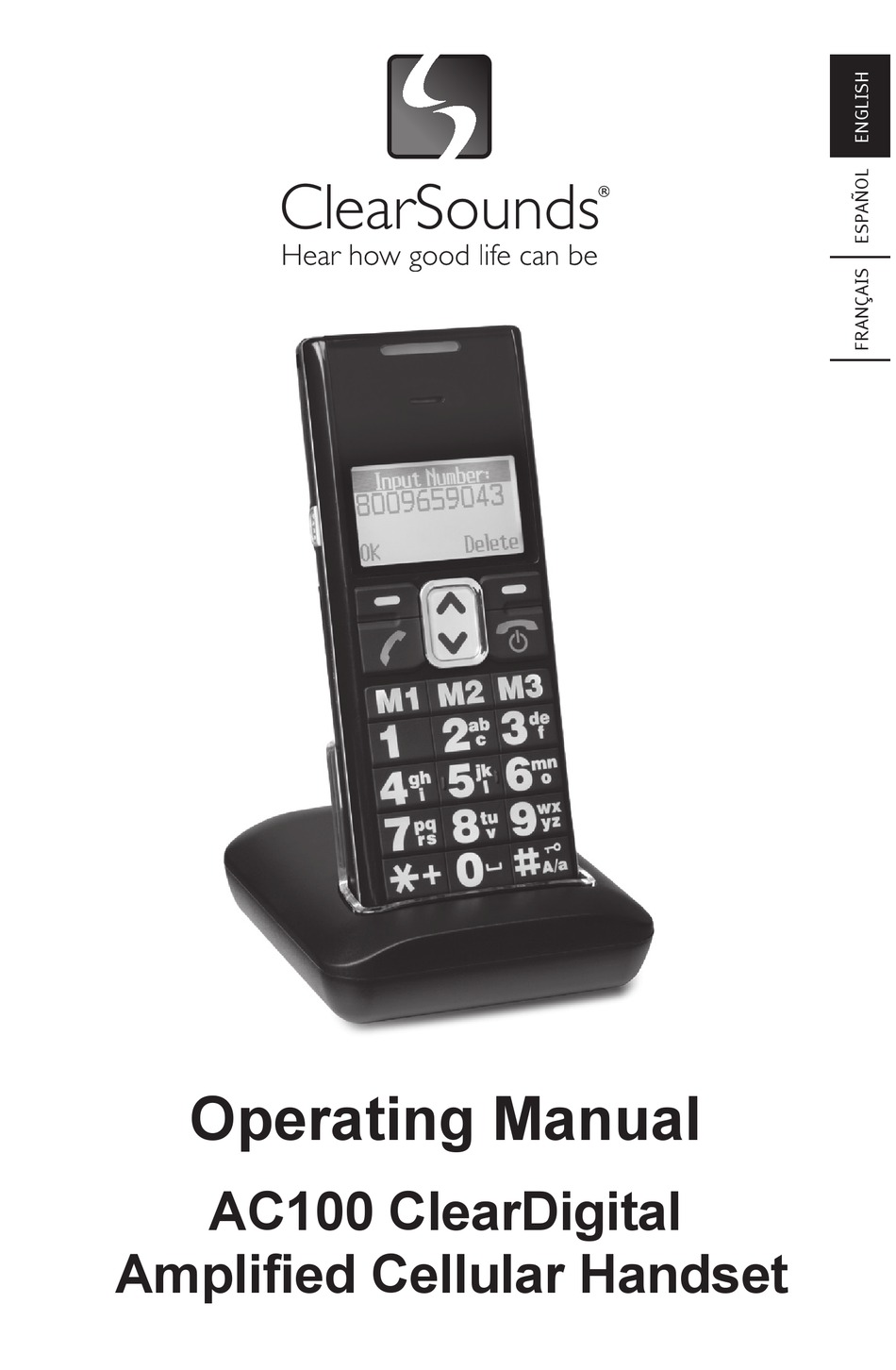

- Page 1 CSC48 Operating Manual AC100 ClearDigital V508 Amplified Cellular Handset 1 – ENGLISH 1 – ENGLISH...
-
Page 2: Greetings
Greetings! Thank you for purchasing the ClearSounds AC100 mobile tele- phone. We hope that you enjoy using these friendly features of your new phone. • Utilizes the GSM-850 MHz and GSM-1900 MHz bands • Sound amplification up to 25 dB gain •... -
Page 3: Important Safety Precautions
Important safety precautions To reduce the risk of bodily injury, fire, electric shock or damage to the equipment or other property, carefully read and observe the warnings and cautions in this manual and on the equipment. Warnings Warnings must be observed to prevent bodily injury. Use the phone only in the described manner to avoid bodily injury or damage to the equipment. -
Page 4: Contents
Greetings! Important safety precautions Do not burn exhausted batteries. Burning lithium polymer batteries can explode and release toxic and corrosive fumes and gases. Do not dispose of batteries with house- hold waste. Recycle or dispose of batteries according to regulations of your local municipality. Do not use or store the phone in temperatures that ex- ceed 104 degrees F (40 degrees C), as the phone might become hot. - Page 5 To protect the integrity of the phone, use only a damp cloth to clean it. Do not use liquid or aerosol cleaners. Do not drop, knock or shake the phone. Rough handling can break internal circuit boards. Do not use or store the phone in an extremely cold environment.
-
Page 6: Table Of Contents
Contents Greetings!................2 Contact information ...............2 Important safety precautions ............3 Contents ..................4 Setup ..................10 Unpack ..................10 Insert the SIM card and battery pack ..........10 What is a SIM card? ..............10 Insert the SIM card and the battery pack .........11 Charge or recharge the battery .............11 Turn on or turn off the phone ............13 Buttons, keys, menus and icons..........13 Display icons .................14... - Page 7 What is a phone code? ............22 To change your phone code ............22 Your personal phonebook ..............23 Store an entry ................23 Save speed-dial numbers ............23 Edit an entry ..................24 Delete one or more entries ............24 Move entries to or from the SIM card ........25 Check the number of stored entries ........25 Set up SOS calling and messaging ..........27 Specify recipients of your SOS calls ........27...
- Page 8 Contents Calling ..................38 Make a call ..................38 Call using the keypad ..............38 Call using the outgoing call list ..........38 Call using your phonebook (search or scroll) ......38 Call using Speed Dial ..............39 Call using Auto Redial .............39 Answer a call .................39 End a call ..................39 Send out an SOS for Help .............40 During a call ................41...
- Page 9 Text messages ...............47 Set up text messaging ..............47 Activate the text messaging .............47 Activate or cancel delivery reports for sent messages ....47 Reverse usage charges for reply messages ......47 Set a validity period for unsuccessfully sent messages ..48 Store messages on the SIM card first ........48 Send a message ................49 Read messages ................50 Read a new message ..............50...
-
Page 10: Setup
Unpack Ensure that all of these parts are included in your packing box. If any parts are missing or damaged, please contact your vendor or ClearSounds. User’s Manual Mobile phone Power adapter... -
Page 11: Insert The Sim Card And The Battery Pack
Insert the SIM card and the battery pack 1. Turn off the phone. 2. Slide out the battery cover. 3. Remove the battery pack. 4. Without touching the metal area of the SIM card, face the gold connectors of the card toward the phone, and carefully push the card into the slot. -
Page 12: Turn On Or Turn Off The Phone
Setup Charge the battery Charge or recharge the battery Take one of these steps: Place the telephone on the charging station, insert the power adapter into the power connector on the charging station, and then connect the power adapter to AC power. Insert the power adapter into the power connector on the telephone, and then connect the power adapter to AC power. -
Page 13: Buttons, Keys, Menus And Icons
Your new phone! Light to indicate ringing, a sent SOS (flashes) or amplifier adjustment Earphone Display Select Keys Alphanumeric Keys SOS button Headset connector 13 – ENGLISH... -
Page 14: Display Icons
Your new phone! Display icons Display icons appear here Signal Strength: The greater the number of bars, the stronger the signal Battery Stength: = Fully charged = Low, = Very low Unread Text There are unread messages in your mailbox. Messages: Ringer Off: The audio ringer is... -
Page 15: Keys And Buttons
Keys and buttons Tone Flashlight Amplifiy (AMP) Select Select: Press one of these keys to select the function that is displayed above the key. Scroll or Volume Scroll: Press an arrow to scroll and highlight list items on the display. or Shortcuts Volume: Press an arrow to increase or decrease speaker and earphone volume... -
Page 16: Menus
Your new phone! Keys and buttons Text/Symbol Text/Symbol: Press to change between characters and symbols while entering text messages or phonebook entries. Speed Dial Speed Dial: Press one of these three keys and then select OK to let the phone quickly dial numbers that you have specified. -
Page 17: Menu Map
Menu map Main Menu Submenu I Submenu II Message Write Message Inbox Outbox Sent Fail Box Draftbox Settings Storage status Delete all Voice Mail Phonebook Search Add New Copy All Delete All Storage Status Call Log Incoming Call Outgoing Call Missed Call Call Duration Set M1/M2/M3... -
Page 18: Personal Settings
Personal settings Please familiarize yourself with all of the features and settings that your new phone has to offer. Take a little time to choose the personal settings that work for you. Displays Note: Your phone battery must be charged to show displays. Change the language of messages You can select from English, Dutch, French, German, Portuguese, Russian, Spanish and Swedish. -
Page 19: Adjust The Backlight
Adjust the backlight By default, the display backlight illuminates when you touch a key, place the phone on the charging station or remove the phone from the charging station. You can adjust whether the backlight illuminates and the length of time that it remains illuminated (including always on). -
Page 20: Change The Date Or Time
Personal settings Adjust the date or time format 4. Press to highlight Date Format or Time Format, and then select OK. 5. Press to highlight the format that you prefer, and then select OK. Set the date or time You must set the date and time. The phone does not automatically set or adjust date and time. -
Page 21: Select A Profile Or Customize
Select a notification profile or customize your notification settings You can customize your notification settings, or you can select from the preset profiles for your phone. You can customize these settings: • Ringtone: The tone for the phone ringer • SMS Alert Tone: The tone for incoming text message (Short Message Service) alerts •... -
Page 22: Your Phone Code
Personal settings Your phone code What is a phone code? A phone code is required in these circumstances: • If you want your phone to be unlocked by a PIN number each time that you turn it on, you must use your phone code to activate the locking feature. -
Page 23: Your Personal Phonebook
Your personal phonebook Store an entry You can save your phonebook entries on the SIM card, or you can save the entries in the phone memory. When you access your phonebook list, the numbers are retrieved from either location. After you make your choice, you can always choose to copy them to the other location. -
Page 24: Edit An Entry
Personal settings Your personal phonebook Edit an entry to select Menu. 1. Press 2. Press to highlight Phonebook, and then select OK. 3. Press to select Search. 4. Press to highlight the entry that you wish to edit, and then select OK. -
Page 25: Move Entries To Or From The Sim Card
• To delete all entries: Press to highlight Delete All, and then select OK. Press to highlight Delete all ME (to delete all entries from the phone memory) or Delete All SIM (to delete all entries from the SIM card memory), and then select OK. - Page 26 Personal settings Specify Speed Dial numbers Specify Speed Dial numbers You can save up to three frequently called numbers, and then call each of them by pressing just two keys. 1. Press to select Menu. 2. Press to highlight Set M1/M2/M3, and then select OK. to select the desired key (M1, M2, or M3), and then 3.
-
Page 27: Set Up Sos Calling And Messaging
Set up SOS calling and messaging You can specify six recipients for SOS calls and one recipient for an SOS message. When you send out an SOS for help by pressing the back of your phone, the following occurs: • The phone sounds a warning tone and the SOS light flashes. -
Page 28: Specify Sos Text Message And Recipient
Personal settings Set up SOS calling and messaging Specify the dialing duration for each recipient number You can select the number of minutes for which the phone dials each recipient’s number. You can choose from one minute per number to five minutes per number. If you choose Off, the phone dials each number once and then dials the next number until the circuit of specified numbers is completed. -
Page 29: Activate Or Deactivate The Automatic Redialing Function
past an incorrect character, and then press select Delete. 6. Press to select Save. Done! appears on the display. Specify an SOS text message recipient You can specify one recipient of your SOS text message. Before you begin, ensure that the recipient is listed in your cell phone phonebook. -
Page 30: Activate The Any Key Answer Function
Personal settings Quick keyboard functions Activate the Any Key Answer function To answer an incoming call, you press . If you activate the Any Key Answer function, you can press any key to answer a call. 1. Press to select Menu. 2. -
Page 31: Set Or Deactivate An Alarm
• To turn on or off your alarm clock: Highlight Alarm 6. Press to select OK. When you press , your shortcut menu appears. Set or deactivate the alarm clock You can set an alarm to occur once or once a week on the same day at the same time. -
Page 32: Keypad Locking
Personal settings Keypad locking Activate locking after a period of non-use If you would like your keypad to always lock after 30 or 60 sec- onds of non-use, you can activate the keypad locking function. to select Menu. 2. Press 3. -
Page 33: Activate Or Deactivate Sim Card Password
Activate or deactivate the PIN requirement 1. Press to select Menu. 2. Press to highlight Settings, and then select OK. 3. Press to select Phone Settings. 4. Press to highlight Security Settings, and then select OK. 5. Press alphanumeric keys to enter the current phone code, and then select OK. -
Page 34: Restore The Factory Defaults
Personal settings Calling line identification restriction • To turn off restriction of your caller ID: Highlight Off, and then select OK. 6. Press to select OK. Restore the factory defaults You can restore all of your personal settings back to the factory default settings. -
Page 35: Activate Or Deactivate Call Forwarding
Activate or deactivate Call Forwarding This service forwards your calls to another phone number under certain conditions. For example, if you are away for an extended period of time, whenever your phone line is busy, or if your phone is turned off or unreachable. 1. -
Page 36: Activate Or Deactivate Call Barring
Personal settings Network service settings Activate or deactivate Call Barring This service bars certain types of outgoing or incoming calls from your phone. You can specify which types of calls to bar. To activate this requirement, you must enter the SIM card PIN that was provided with the SIM card. -
Page 37: Choose A Network For Travel
Choose a network for travel While you are traveling internationally, your network service provider lists the available communication networks that your phone can utilize. You can prepare your phone to prompt you to select your choice, or you can specify that your phone select the network automatically. -
Page 38: Calling
Calling Place a call To place a call, a SIM card must be installed in your phone. However you may place a call to an emergency number without a SIM card. Use the keypad 1. Press numeric keys to enter a phone number. If you make a mistake, press to select Delete, letter- by-letter. -
Page 39: Call Using Speed Dial
Use Speed Dial If you have specified one or more Speed Dial numbers, you can call each number by pressing just two keys. If you would like to set speed dial numbers, see “Specify Speed Dial numbers.” 1. Press the appropriate Speed Dial key ( 2. -
Page 40: Send Out An Sos For Help
Calling Send out an SOS for Help If you have set up the SOS calling feature, you can take these steps to send an SOS text message and automatic phone call to your specified recipients. If you would like to specify SOS recipients, see “Set up SOS calling and messaging.”... -
Page 41: During A Call
During a phone call Adjust sound Change speaker and earphone volume 1. Press to increase or decrease volume. Turn on or off the earphone amplifier Although you can set volume to a high level by pressing you can amplify the earphone volume to an additional level by pressing the AMP button. -
Page 42: Mute Or Unmute The Microphone
During a phone call Adjust sound Mute or unmute the microphone You can mute the microphone so that the caller cannot hear you or any sounds on your side of the line. 1. During a conversation, press to select Option. 2. -
Page 43: Respond To An Incoming Call
Respond to an incoming call If you have enabled the Call Waiting feature, you can respond to incoming calls during a phone call. To ignore the call: to highlight Reject. • To simply ignore the call: Press • To silence the ringer and ignore the call: Press highlight Options and Ring Off. -
Page 44: Voice Messages
Voice messages Enable your phone to receive voice messages Before you can receive voice messages, you must set your mailbox number. 1. Press to select Menu. 2. Press to select Message. 3. Press to select Voice Mail, and then select OK. 4. -
Page 45: Check A Record Of Recent Calls Made
Check the call memory 1. Press to select Menu. 2. Press to highlight Call Log, and then select OK. 3. Press to highlight Missed Call, and then select OK. 4. Press to highlight a call, and then choose Select. 5. Press to select Option. -
Page 46: Check A Record Of Received Calls
Voice messages Check the call memory • To show the number of the caller: Highlight Show Number. 7. Press to select OK. Check received calls 1. Press to select Menu. 2. Press to highlight Call Log, and then select OK. 3. -
Page 47: Text Messages
Text messages Using the Short Message Service (SMS), you can send and receive short text messages. Set up text messaging Activate messaging Before you take these steps to activate the Short Message Service (SMS), you must contact your service provider to obtain the service center number. -
Page 48: Set A Validity Period For Unsuccessfully Sent Messages
Text messages Set up text messaging Reverse usage charges for reply messages to highlight Reply Path, and then select OK. 4. Press 5. Press to highlight On or Off, and then select OK. Specify a validity period for unsuccessfully sent messages You can specify a time period after which your phone no longer attempts to send a text message. -
Page 49: Send A Message
Send a message 1. Press to select Menu. 2. Press to select Message. 3. Press to select Write Message. 4. Press the alphanumeric keys to enter up to 160 characters. Repeatedly press a key until you see the letter you prefer. Letters cycle in the order that they appear on the key. -
Page 50: Read Messages
Text messages Read messages Read a new message When your phone receives a new text message, 1 New Message appears on the display. 1. Press to choose Select. The message appears on the display. Read stored messages Note: If Inbox is one of your Shortcut settings, simply press and go to Step 4. -
Page 51: Delete All Messages
5. Press to scroll the list and highlight a message, and then select OK. 6. If you wish to process the message, press select Option, and then press to highlight Delete, Forward, Edit, Dial Back (to call) or Extract (to move the number to your phonebook). -
Page 52: Technical Specifications
Battery Removable, rechargeable lithium polymer (LiP) pack FCC and IC Regulations The ClearSounds AC100 mobile telephone is compliant with the following regulations. United States Federal Communication Commission (FCC) 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier of [US: CLSTE12B]. - Page 53 Clearsounds Communications, Inc. or by an authorized agent. It is the responsibility of users requiring service to report the need for service to Clearsounds Communications, Inc. or to one of our authorized agents. Service can be facilitated through our office at the following address : ClearSounds Communications, Inc.
-
Page 54: Industry Canada (Ic)
Technical specifications Industry Canada (IC) This product meets the applicable Industry Canada technical specification. This is confirmed by the registration number. The abbreviation, IC before the registration number signifies that reg- istration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. -
Page 55: Registration And Warranty
(freight prepaid) with proof of purchase (sales receipt or packing slip, no exceptions) to ClearSounds Communications. ClearSounds Communications will either repair or replace the unit (with a refurbished unit or unit of equal condi- tion) and return it you (using UPS/USPS ground shipping) at no cost to you. - Page 56 IMPORTANT: YOUR RECEIPT IS PART OF YOUR WARRANTY AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A WARRANTY CLAIM. Service in United States and Canada, contact: ClearSounds Communications Attention: Repair Center 1743 Quincy Avenue, Suite 155 Naperville, IL 60540 800-965-9043...
