Aiphone GH-1KD Specification

DESCRIPTION:

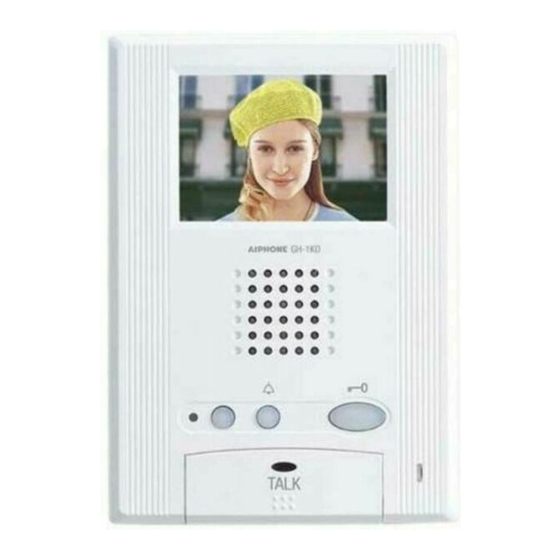

The GH-1KD is an audio/video tenant station
for the GH series Multi-Unit entry system. It is
equipped with a Talk, Door Release, and
optional service button. When a visitor calls,
the tenant stations rings and video is present.
The call is answered by one touch of the Talk
button.
The GH-1KD also has the capability of calling
the Concierge/Security Guard stations(s),
turning on a light while speaking with a visitor at
the entrance, receiving an emergency tone from
a panic call station, and releasing a door.
The GH-1KD is designed to be surface
mounted and has a slim, streamlined design.
Up to four units can be used in the same tenant
location (2 audio/video and 2 audio only).
Communication is hands-free at the entrance
station when a tenant answers the call, and is
either VOX hands-free or push-to-talk at the
tenant station when speaking with the visitor.
GH-1KD Spec Sheet
0910 Pg. 1
Audio/Video Tenant Station for the GH Series
GH-1KD
FEATURES:
Hands-free audio communication
Door release to the door where communication is
established
Call to Security Guard / Concierge station
Optional individual doorbell rings unique tone,
notifying resident that someone is at their door.
Optional activation of outside light while talking to
entrance station
Optional connection of panic call station (GFK-
PS), alerting with tone and call to Concierge
Entrance monitoring
Separate volume controls for call tone and
communication
Optional handset for privacy (GH-HS)
Simple 2 separate pair common bus wiring
(2 conductor for audio, 2 conductor for video)
Surface mounts to wall on 1-gang box or ring
ABS plastic construction
GH-1KD
