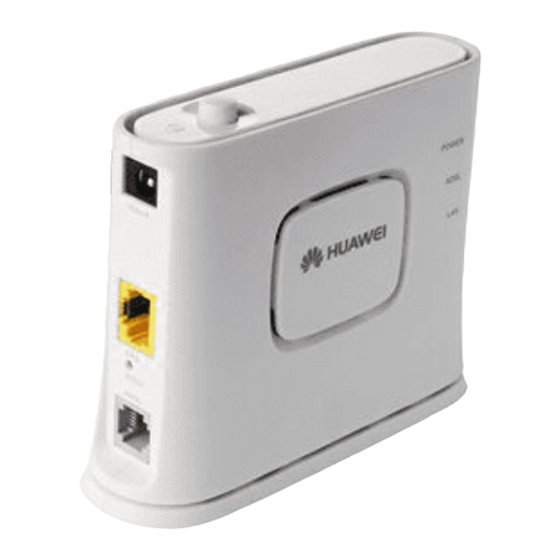

- Page 1 SmartAX MT880a ADSL CPE User Guide HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 SmartAX MT880a ADSL CPE V100R001 User Guide Issue Date 2009-01-04 Part Number 103123...
- Page 3 Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. Trademarks and Permissions and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
-
Page 4: Table Of Contents
MT880a .......................7 3.2 Accessing the Network Through the PPP Dial-Up Software on the Computer ..........................8 4 Configuring the MT880a ................9 4.1 Changing the Administrator Password Used for Logging In to the Web Configuration Page ....................9 4.2 Changing the IP Address................9 4.3 Restoring Default Settings................10... - Page 5 6.3 Default Settings..................14 6.4 Technical Specifications................14...
-
Page 6: Safety Precautions
1 Safety Precautions Thank you for purchasing SmartAX MT880a ADSL CPE (hereinafter referred to as the MT880a). For safety purposes, carefully read through these safety precautions and observe them during operation. Basic Requirements Keep the device dry during storage, transportation, and operation of the device. -
Page 7: Operation Requirements
Operation Requirements Do not allow children to play with the device or accessories.Swallowing the accessories may be fatal. Use the accessories such as the power adaptor provided or authorized only by the manufacturer. Make sure that the device does not get wet. If water gets into the device, disconnect the power supply immediately and unplug all the cables connected to the device. - Page 8 After the MT880a is used for a certain period of time, the cover will be heated, which will not affect the function of the MT880a.
-
Page 9: Connecting The Cables And Getting Started
2 Connecting the Cables and Getting Started 2.1 Simple Connection If your telephone line is used for the broadband network access only and you do not need to use a telephone, take the following figure as a reference for connecting the cables. -
Page 10: Connecting One Telephone
2.2 Connecting One Telephone If your telephone line is used for both the broadband network access and a telephone connection, take the following figure as a reference for connecting the cables. POWER # # # # # # # # # # # # RESET ADSL... -
Page 11: Connecting Multiple Telephones
8 Power adapter 2.4 Getting Started Press the power button on the top of the MT880a to power on the MT880a. After you power on the MT880a, the ADSL indicator blinks (for less than three minutes), indicating that the MT880a is being activated. Later, the ADSL indicator... -
Page 12: Setting The Network-Access Parameters
3.1 Accessing the Network Through the Embedded PPP Dial-Up Software of the MT880a If you select this method for accessing the network, the MT880a starts to set up dial-up connection automatically after the startup. You can access the network after you power on the computer. -
Page 13: Accessing The Network Through The Ppp Dial-Up Software On The Computer
For details, refer to the procedure for enabling the embedded dial-up function described in Step 2 in section 3.1 "Accessing the Network Through the Embedded PPP Dial-Up Software of the MT880a." Select Bridge from the Mode drop-down combo box. Step 2 Install and configure the PPP dial-up software on the computer. -
Page 14: Configuring The Mt880A
OK. If you cannot remember the user name and password that have been changed, you can restore the default settings of the MT880a by pressing the RESET button on the panel. In this way, the user name and the password used for logging in to the Web configuration page are restored to default values. -
Page 15: Restoring Default Settings
Ensure that the IP address of the computer is in the same network segment as that of the IP address of the MT880a so that the computer can access the Web configuration page. 4.3 Restoring Default Settings To restore default settings, log in to the Web configuration page, and then do as... - Page 16 If the LAN indicator is off, perform further checks as follows: 1. Ensure that the network adapter of the computer is enabled. 2. Ensure that the network cable between the terminal and the computer is properly connected. 3. Remove and then insert the network cable or replace the network cable. If the LAN indicator is still off, contact an authorized maintenance center.
- Page 17 Settings dialog box, ensure that Use a proxy server for your LAN (These settings will not apply to dial-up or VPN connections). check box is not selected. Step 8 Try to access multiple other Web sites to check whether the terminal can access.
-
Page 18: Appendix
Therefore, use this function with caution. ADSL It is used to connect to the MODEM interface on the splitter. It is the power button on top of the MT880a and is used to power on or power off the MT880a. -
Page 19: Default Settings
