Hunter 24852 Parts Manual

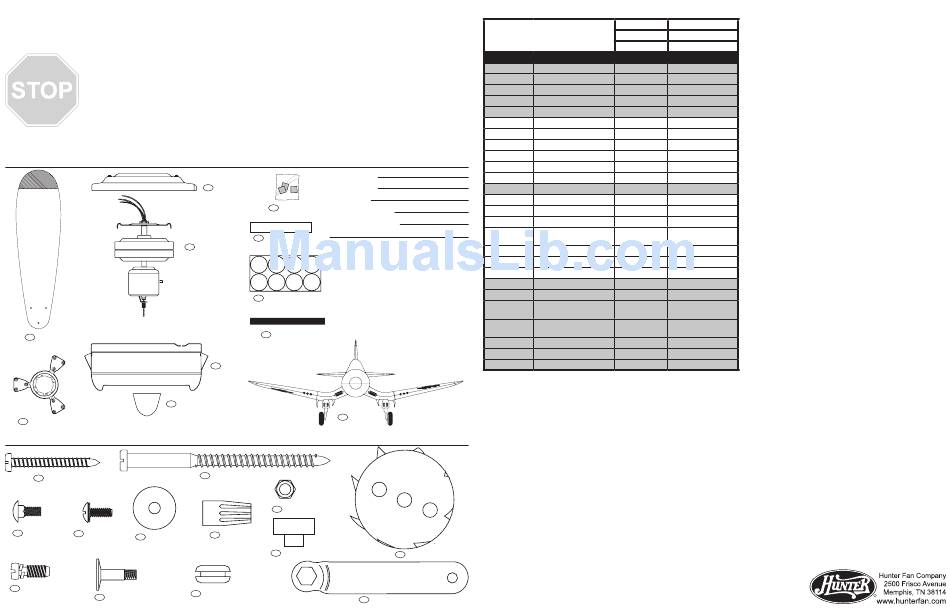

PARTS GUIDE
PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box
If parts are missing or damaged call 1-888-830-1326
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Before installing your fan, record the following information for you records and warranty assistance.
Fan Parts
(Not Drawn to Scale)
20
46 Blade Set
207 Nosecone
42 Blade Ring
Hardware
65
Wood Screw
67 Blade 114 #8-32 x 1/2"
68 Flat Washer
Assembly Screw
Machine Screw
47 Screw, Blade Iron
Armature
97 Screw, Shoulder
Model Name
Catalog No.
213 Ceiling Plate
Serial No.
75 Balancing Kit Date Purchased
Where Purchased
211
Pressure Sensative
Missing / Broken Parts:
Rectangle Tape
Motor Assembly
Call 1-888-830-1326
Fan does not work:
1. Reference the Trouble Shooting guide in you
instruction Manual.
2. Call you Local Service Center.
3. Call Technical Support at 901-248-2222.
208
Pressure Sensative
For additional information on:
Round Tape
Hunter Products • Trouble Shooting
Dealer Location • Service Center Locator
Call 1-800-448-6837
www.hunterfan.com
209 Black Decal Tape
9 Motor Housing
95
Ceiling Decal
(Drawn to Scale)
64 Wood Screw
159 Hex Nut
70 Wire Nut
71
Mounting Isolator
66 Blade Grommet
210 Wrench, Hex Nut
Parts List
Item # Item Name
213 Ceiling Plate
20 Motor Assembly
42 Blade Ring
46 Blade Set
Hardware Kit
71 Mounting Isolator
66 Blade Grommet
64 Wood Screw
65 Wood Screw
68 Flat Washer
70 Wire Nuts
Hardware Kit
210 Wrench, Hex Nut
159 Hex Nut
67 Blade Assembly Screw
47 Screw, Blade
Iron Armature
75 Balancing Kit
95 Ceiling Decal
97 Screw, Shoulder
114 Screw, Machine #8-32
207 Nosecone
208 Pressure Sensative
Round Tape
211 Pressure Sensative
Square Tape
209 Black Decal Tape
212 Metal Disk
9 Motor Housing
212 Metal Disk
98000-01-302
9/29/06
Model # 24852
Asm. Dwg. # 92472-01
Finish Blue
Qnty Part #
1 84138-01-000
1
1 92474-01-119
1 74002-26-000
84244-01-102
3 63731-01-000
3 63923-01-000
2 06512-01-000
2 03144-03-000
4 06301-01-000
4 05172-01-000
84244-03-160
1 64066-01-000
10 64895-01-000
10 63922-01-0000
5 63755-05-133
1 07570-01-0000
1 92473-01-0000
3 63685-01-0000
4 74508-04-232
1 83779-01-0000
1 55582-01-000
1 55583-01-000
2 65731-01-000
8 73957-01-000
1 92470-01-173
R
