Clearing Password Check and BIOS Recovery

This section provides procedures for:

Clearing the BIOS passwords



Performing a BIOS recovery


Clearing the BIOS Passwords
To clear a lost BIOS password (user or supervisor password), you need to short the clear
password hardware gap (G2201) located on the mainboard.

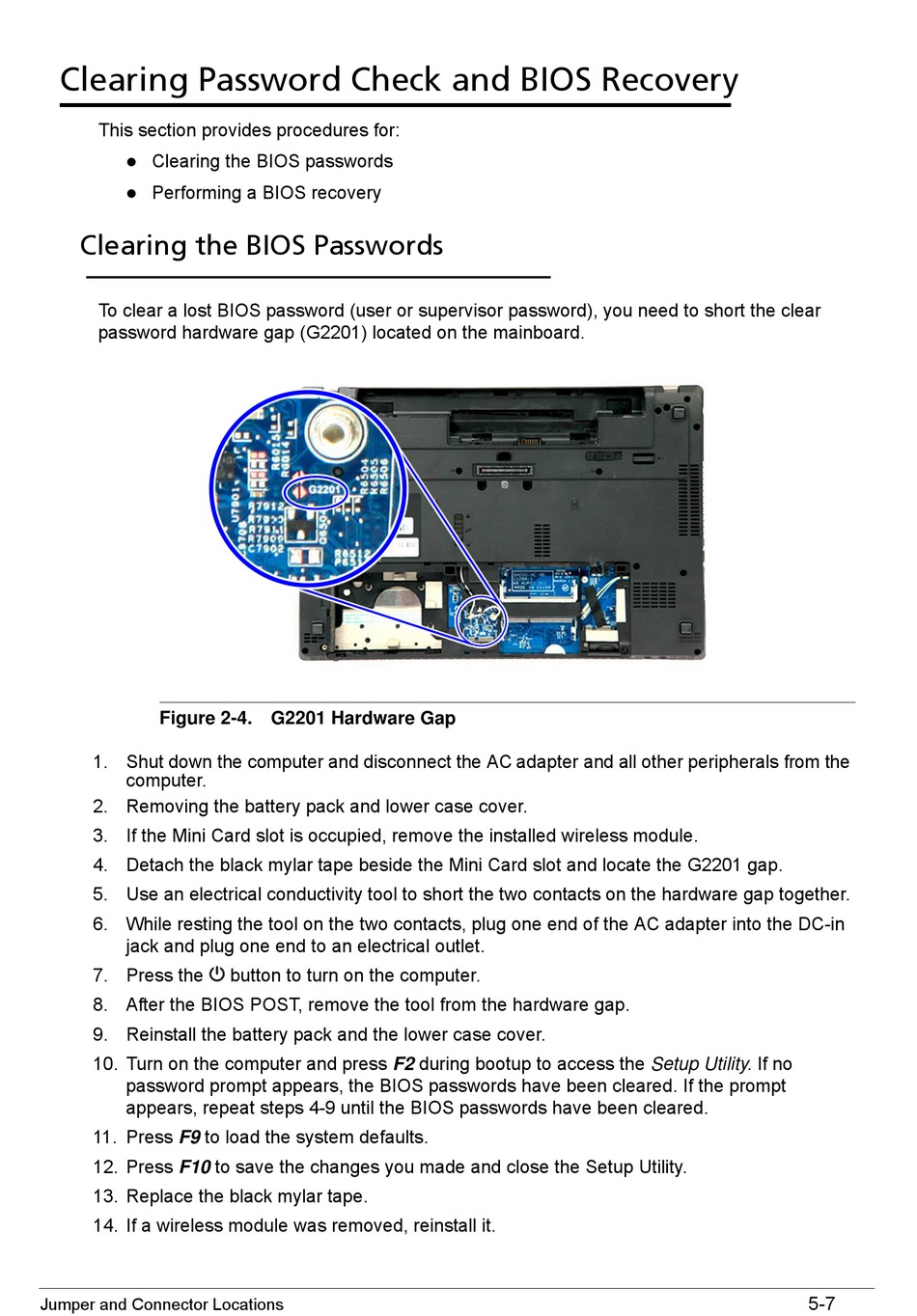

Figure 2-4. G2201 Hardware Gap
1. Shut down the computer and disconnect the AC adapter and all other peripherals from the
computer.
2. Removing the battery pack and lower case cover.
3. If the Mini Card slot is occupied, remove the installed wireless module.
4. Detach the black mylar tape beside the Mini Card slot and locate the G2201 gap.
5. Use an electrical conductivity tool to short the two contacts on the hardware gap together.
6. While resting the tool on the two contacts, plug one end of the AC adapter into the DC-in
jack and plug one end to an electrical outlet.
7. Press the
8. After the BIOS POST, remove the tool from the hardware gap.
9. Reinstall the battery pack and the lower case cover.
10. Turn on the computer and press F2 during bootup to access the Setup Utility. If no
password prompt appears, the BIOS passwords have been cleared. If the prompt
appears, repeat steps 4-9 until the BIOS passwords have been cleared.
11. Press F9 to load the system defaults.
12. Press F10 to save the changes you made and close the Setup Utility.
13. Replace the black mylar tape.
14. If a wireless module was removed, reinstall it.
Jumper and Connector Locations
button to turn on the computer.
