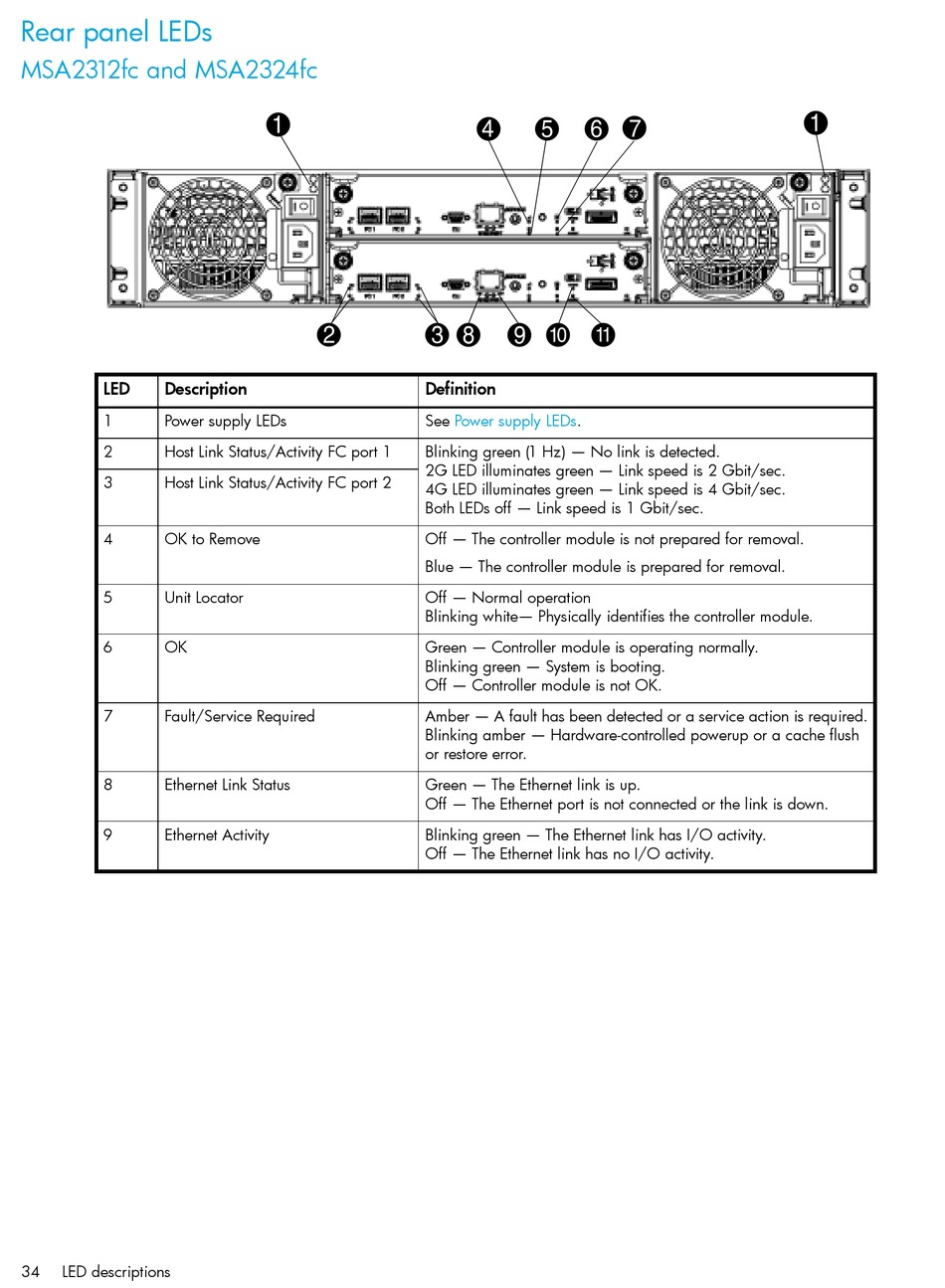

Rear panel LEDs

MSA2312fc and MSA2324fc

LED Description
1 Power supply LEDs
2 Host Link Status/Activity FC port 1
3 Host Link Status/Activity FC port 2
4 OK to Remove
5 Unit Locator
6 OK
7 Fault/Service Required
8 Ethernet Link Status
9 Ethernet Activity
34 LED descriptions
1
2 3
Definition
See
Blinking green (1 Hz) — No link is detected.
2G LED illuminates green — Link speed is 2 Gbit/sec.
4G LED illuminates green — Link speed is 4 Gbit/sec.
Both LEDs off — Link speed is 1 Gbit/sec.
Off — The controller module is not prepared for removal.
Blue — The controller module is prepared for removal.
Off — Normal operation
Blinking white— Physically identifies the controller module.
Green — Controller module is operating normally.
Blinking green — System is booting.
Off — Controller module is not OK.
Amber — A fault has been detected or a service action is required.
Blinking amber — Hardware-controlled powerup or a cache flush
or restore error.
Green — The Ethernet link is up.
Off — The Ethernet port is not connected or the link is down.
Blinking green — The Ethernet link has I/O activity.
Off — The Ethernet link has no I/O activity.
5 6 7
4
8 9 : ;
Power supply LEDs.
1
