Intel D875PBZ - Desktop Board Motherboard Product Manual

Desktop board
Hide thumbs Also See for D875PBZ - Desktop Board Motherboard:
Table of Contents

Advertisement

Quick Links

See also: Technical Product Specification
®
Intel
Desktop Board
D875PBZ Product Guide
C24494-001
Order Number:

Advertisement

Table of Contents
loading

Related Manuals for Intel D875PBZ - Desktop Board Motherboard

Summary of Contents for Intel D875PBZ - Desktop Board Motherboard

  • Page 1 ® Intel Desktop Board D875PBZ Product Guide C24494-001 Order Number:...

  • Page 2: Revision History

    Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.

  • Page 3: Intended Audience

    Preface This Product Guide gives information about board layout, component installation, BIOS Setup ® menus, and regulatory requirements for Intel Desktop Board D875PBZ. Intended Audience The Product Guide is intended for technically qualified personnel. It is not intended for general audiences.

  • Page 4: Box Contents

    Intel Desktop Board D875PBZ Product Guide Terminology The table below gives descriptions to some common terms used in the product guide. Term Description Gigabyte (1,073,741,824 bytes) Gigahertz (one billion hertz) Kilobyte (1024 bytes) Megabyte (1,048,576 bytes) Mbit Megabit (1,048,576 bits)

  • Page 5: Table Of Contents

    ACPI...........................22 APM ...........................22 Suspend to RAM (Instantly Available PC Technology)..........22 Power Connectors ......................23 Fan Connectors ......................23 ® Fan Speed Control (Intel Precision Cooling Technology) ..........23 Chassis Intrusion ......................24 Resume on Ring......................24 Wake from USB......................24 Wake from PS/2 Keyboard/Mouse................24 PME# Wakeup Support ....................24 Speaker..........................25...
  • Page 6 Connecting the Serial ATA Cable ..................40 ® Configuring the System for Intel RAID Technology for Serial ATA ........41 Configuring the BIOS for Intel RAID Technology for Serial ATA .........41 Creating, Deleting, and Resetting RAID Sets..............41 ® Loading the Intel Application Accelerator 3.0 RAID Edition Driver......42 Configuring an Intel RAID Ready System ..............42...
  • Page 7 Contents Video Configuration Submenu ..................70 USB Configuration Submenu..................71 Chipset Configuration Submenu .................72 Fan Control Submenu....................74 Hardware Monitoring Submenu ..................75 Security Menu ........................76 Power Menu ........................77 APM Submenu ......................78 ACPI Submenu......................80 Boot Menu...........................81 Boot Device Priority Submenu ..................82 Hard Disk Drives Submenu..................83 Removable Devices Submenu..................84 ATAPI CD-ROM Drives ....................85 Exit Menu ..........................86...
  • Page 8 Intel Desktop Board D875PBZ Product Guide Figures Desktop Board Components ....................14 Location of the Standby Power Indicator ................23 I/O Shield ...........................30 Location of the Desktop Board Mounting Screw Holes............31 Installing a Processor......................32 Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector....33 Installing DIMMs.........................34...
  • Page 9 Contents 29. Boot Device Priority Submenu....................82 30. Hard Disk Drives Submenu ....................83 31. Removable Devices Submenu ...................84 32. ATAPI CD-ROM Drives Submenu..................85 33. Exit Menu...........................86 34. System Memory Map ......................90 35. DMA Channels........................90 36. Interrupts..........................91 37. Beep Codes ........................93 38. BIOS Error Messages ......................94 39.
  • Page 10 Intel Desktop Board D875PBZ Product Guide...

  • Page 11: Desktop Board Features

    3 GB. This may result in less than 4 GB of memory being available to the operating system and applications. For more information about the latest list of tested memory, refer to the Intel World Wide Web site at: http://support.intel.com/support/motherboards/desktop...
  • Page 12 • Voltage sensing to detect out of range values Related Links: For more information about Intel Desktop Board D875PBZ, including the Technical Product Specification (TPS), BIOS updates, and device drivers, go to: http://support.intel.com/support/motherboards/desktop/...

  • Page 13: Supported Operating Systems

    Desktop Board Features Supported Operating Systems The desktop board supports the following operating systems: • Microsoft Windows 2000 • Microsoft Windows XP • Microsoft Windows Me • Microsoft Windows 98 SE...

  • Page 14: Desktop Board Components

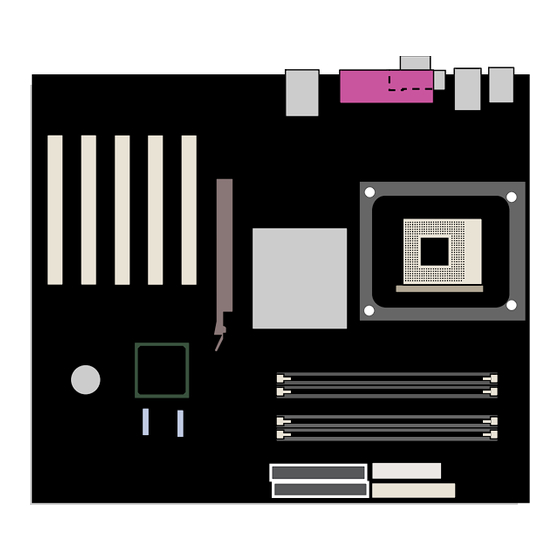

    Intel Desktop Board D875PBZ Product Guide Desktop Board Components Figure 1 shows the approximate location of the major components on Desktop Board D875PBZ. USB 2.0 Devices USB 2.0 RJ45 Devices OM15673 Figure 1. Desktop Board Components...
  • Page 15 Chassis intrusion header Battery Intel 82801ER (ICH5R) PCI bus add-in card connectors Related Links: Go to the following links for more information about: • http://www.intel.com/design/motherbd Intel Desktop Board D875PBZ http://support.intel.com/support/motherboards/desktop • http://support.intel.com/support/motherboards/desktop supported processors • http://www.intel.com/design/motherbd audio software and utilities •...

  • Page 16: Processor

    Desktop Board D875PBZ requires an ATX12V compliant power supply to function according to desktop board specifications. The board has two ATX12V compliant power supply connectors that are needed to provide extra power to the Intel 875P chipset and Intel Pentium 4 processor. Related Links: Go to the following links or pages for more information about: •...

  • Page 17: Main Memory

    Main Memory NOTE ® To be fully compliant with all applicable Intel SDRAM memory specifications, the board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up.

  • Page 18: Intel ® 875P Chipset

    • Intel 82875P Memory Controller Hub (MCH) with AHA bus • Intel 82801ER I/O Controller Hub (ICH5R) with AHA bus supporting Intel RAID Technology • Firmware Hub (FWH) Performance Acceleration Technology (PAT) provides optimum memory pathways to enhance memory performance;...

  • Page 19: Rj-45 Lan Connector Leds

    Desktop Board Features RJ-45 LAN Connector LEDs Two LEDs are built into the RJ-45 LAN connector. Table 3 describes the LED states when the board is powered up and the 10/100/1000 Gigabit Ethernet LAN subsystem is operating. Table 3. RJ-45 10/100/1000 Gigabit Ethernet LAN Connector LEDs LED Color LED State Indicates...

  • Page 20: Ide Support

    Intel Desktop Board D875PBZ Product Guide IDE Support Enhanced IDE Interface The ICH5R’s IDE interface handles the exchange of information between the processor and peripheral devices like hard disks, CD-ROM drives, and Iomega Zip drives. The interface supports: • Up to four IDE devices (such as hard drives) •...

  • Page 21: Pci Auto Configuration

    Desktop Board Features PCI Auto Configuration If you install a PCI add-in card in your computer, the PCI auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI add-in card. IDE Auto Configuration If you install an IDE device (such as a hard drive) in your computer, the IDE auto-configuration utility in the BIOS automatically detects and configures the device for your computer.

  • Page 22: Power Management Features

    Intel Desktop Board D875PBZ Product Guide Power Management Features Power management is implemented at several levels, including: • Software support through Advanced Configuration and Power Interface (ACPI) and Advanced Power Management (APM) • Hardware support:  Suspend to RAM (Instantly Available PC technology) ...

  • Page 23: Power Connectors

    Go to page 46 for the location of the fan headers. Fan Speed Control (Intel ® Precision Cooling Technology) Intel Precision Cooling Technology automatically adjusts the chassis fan speeds depending on the system’s temperature. This feature reduces system fan noise by decreasing the speed of the chassis...

  • Page 24: Chassis Intrusion

    Intel Desktop Board D875PBZ Product Guide fans connected to the front and rear chassis fan connectors. The processor fan connector is not controlled. The fan speed control feature can be disabled in the BIOS, resulting in the chassis fans always operating at full speed.

  • Page 25: Speaker

    Desktop Board Features Speaker A speaker is mounted on the desktop board. The speaker provides audible error code (beep code) information during the Power-On Self-Test (POST). Battery A battery on the desktop board keeps the values in CMOS RAM and the clock current when the computer is turned off.
  • Page 26 Intel Desktop Board D875PBZ Product Guide...

  • Page 27: Installing And Replacing Desktop Board Components

    Install and remove a processor and memory • Install and remove an AGP card • Connect the IDE and Serial ATA cables • Configure Intel RAID Technology • Connect internal headers • Connect fans and power cables • Set the BIOS configuration jumper •...

  • Page 28: Installation Precautions

    Intel Desktop Board D875PBZ Product Guide Installation Precautions When you install and test the Intel desktop board, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: • Sharp pins on connectors • Sharp pins on printed circuit assemblies •...

  • Page 29: Chassis And Component Certifications

    Installing and Replacing Desktop Board Components Chassis and Component Certifications Ensure that the chassis and certain components; such as the power supply, peripheral drives, wiring, and cables; are components certified for the country or market where used. Agency certification marks on the product are proof of certification. Typical product certifications include: •...

  • Page 30: Use Only For Intended Applications

    Intel Desktop Board D875PBZ Product Guide Use Only for Intended Applications All Intel Desktop Boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other applications or environments, such as medical, industrial, alarm systems, test equipment, etc.

  • Page 31: Installing And Removing The Desktop Board

    Installing and Replacing Desktop Board Components Installing and Removing the Desktop Board WARNING Only qualified technical personnel should do this procedure. Disconnect the computer from its power source before performing the procedures described here. Failure to disconnect the power before you open the computer can result in personal injury or equipment damage. Read the safety instruction in “Before You Begin”...

  • Page 32: Installing And Removing A Processor

    Desktop Board D875PBZ has an integrated processor fan heat sink retention mechanism (RM). For instructions on how to attach the processor fan heat sink to the integrated processor fan heat sink RM, refer to the boxed processor manual or the Intel World Wide Web site at: http://support.intel.com/support/processors/pentium4/intnotes478.htm...

  • Page 33: Connecting The Processor Fan Heat Sink Cable

    Figure 6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector Removing the Processor Go to the following link or refer to the processor installation manual for instruction on how to remove the processor fan heat sink and processor: http://support.intel.com/support/processors/pentium4/intnotes478.htm...

  • Page 34: Installing And Removing Memory

    Intel Desktop Board D875PBZ Product Guide Installing and Removing Memory CAUTION To be fully compliant with all applicable Intel SDRAM memory specifications, the board requires DIMMs that support the Serial Presence Detect (SPD) data structure. You can access the PC Serial Presence Detect Specification at: http://www.intel.com/technology/memory/pcsdram/spec/...

  • Page 35: Installing Dimms

    Installing and Replacing Desktop Board Components Installing DIMMs Before installing DIMMs, read and follow these guidelines for dual channel configuration. NOTE Performance Acceleration Technology (PAT) requires a processor with an 800 MHz FSB and DDR400 memory. Install a matched pair of DIMMs equal in speed, density, and technology (see Figure 8) in DIMM 0 in both channels A and B.

  • Page 36: Removing Dimms

    Intel Desktop Board D875PBZ Product Guide CAUTION Install memory in the DIMM sockets prior to installing the AGP video card to avoid interference with the memory retention mechanism. To install DIMMs, follow these steps: 1. Observe the precautions in “Before You Begin” on page 27.

  • Page 37: Installing And Removing An Agp Card

    Installing and Replacing Desktop Board Components Installing and Removing an AGP Card CAUTION When installing any AGP card on the desktop board, ensure that it is fully seated in the AGP connector before you power on the system. If the card is not fully seated in the AGP connector, an electrical short may result across the AGP connector pins.

  • Page 38: Removing The Agp Card

    Intel Desktop Board D875PBZ Product Guide Removing the AGP Card Follow these instructions to remove the AGP card from the RM: 1. Observe the precautions in "Before You Begin" on page 27. 2. Remove the screw (B) that secures the card’s metal bracket (A) to the chassis back panel.

  • Page 39: Connecting The Ide Cable

    • Observe the precautions in "Before You Begin" on page 27. • Attach the cable end with the single connector to the Intel desktop board. • Attach the cable end with the two closely spaced connectors to the drives. OM15675...

  • Page 40: Connecting The Serial Ata Cable

    SATA/IDE devices. This mode can be changed in BIOS under Advanced€Drive Configuration€ ATA/IDE Configuration. The Intel boxed desktop board package includes two Serial ATA (SATA) cables. The cables (4-conductor) support the Serial ATA protocol and connect a single drive to the desktop board.

  • Page 41: Configuring The System For Intel Raid Technology For Serial Ata

    Serial ATA NOTE Intel RAID Technology for Serial ATA is supported with Microsoft Windows XP only. Configuring the BIOS for Intel RAID Technology for Serial ATA The SoftRAID option must be enabled in BIOS before the system can load the option ROM code for Intel RAID.

  • Page 42: Loading The Intel ® Application Accelerator 3.0 Raid Edition Driver

    ATA drive. Refer to section “Configuring the BIOS for Intel RAID Technology for Serial ATA” to properly configure the BIOS. 2. Install the Intel RAID driver during Window Setup. Refer to section “Loading the Intel Application Accelerator 3.0 RAID Edition Driver” to install the driver during Windows Setup.

  • Page 43: Upgrading To Serial Ata Raid 0 Configuration From A Single Drive Configuration

    2. Start the system and boot into Windows XP. 3. Launch the Intel Application Accelerator from the Start Menu (Start ´ All Programs ´ Intel Application Accelerator RAID Edition ´ Intel Application Accelerator). 4. From the Integrated RAID tab, right-click on “RAID Volume” and select “Create from Existing Disk.”...

  • Page 44: Connecting Internal Headers

    Intel Desktop Board D875PBZ Product Guide Connecting Internal Headers Before connecting cables to the internal headers, observe the precautions in “Before You Begin” on page 27. J9J1 J8J1 J8J3 OM15681 Item Description Alternate power/sleep LED Front panel USB 2.0 Figure 13. Location of Internal Headers Connecting the Front Panel Header Before connecting the front panel header, observe the precautions in “Before You Begin”...

  • Page 45: Connecting The Usb 2.0 Header

    Installing and Replacing Desktop Board Components Connecting the USB 2.0 Header Before connecting the USB 2.0 header, observe the precautions in “Before You Begin” on page 27. Figure 13 shows the location of the USB 2.0 header. Table 5 shows the pin assignments for the USB 2.0 header.

  • Page 46: Connecting Hardware Control And Power Cables

    Intel Desktop Board D875PBZ Product Guide Connecting Hardware Control and Power Cables Figure 14 shows the location of the hardware control (fans and chassis intrusion) headers and power supply connectors. 12 V Chassis Processor core rear fan voltage connector J5B1...

  • Page 47: Connecting Hardware Control Cables

    Installing and Replacing Desktop Board Components Connecting Hardware Control Cables Observe the precautions in “Before You Begin” on page 27. Connect the processor’s fan heat sink cable to the processor fan header on the board. Connect chassis fan cables to the board fan headers. Connect the chassis intrusion cable to its respective header on the board.

  • Page 48: Setting The Bios Configuration Jumper Block

    Intel Desktop Board D875PBZ Product Guide Setting the BIOS Configuration Jumper Block CAUTION Always turn off the power and unplug the power cord from the computer before changing the jumper. Moving the jumper with the power on may result in unreliable computer operation.

  • Page 49: Clearing Passwords

    Installing and Replacing Desktop Board Components Clearing Passwords This procedure assumes that the board is installed in the computer and the configuration jumper block is set to normal mode. 1. Observe the precautions in “Before You Begin” on page 27. 2.

  • Page 50: Replacing The Battery

    Intel Desktop Board D875PBZ Product Guide Replacing the Battery A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery.
  • Page 51 Installing and Replacing Desktop Board Components AVVERTIMENTO Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.

  • Page 52: Replacing The Battery

    Intel Desktop Board D875PBZ Product Guide To replace the battery, follow these steps: 1. Observe the precautions in “Before You Begin” on page 27. 2. Turn off all peripheral devices connected to the computer. Disconnect the computer’s power cord from the AC power source (wall outlet or power adapter).

  • Page 53: Updating The Bios

    3 Updating the BIOS This chapter tells you how to update the BIOS by either using the Intel Express BIOS Update utility or the MS-DOS* based Iflash BIOS update utility, and how to recover the BIOS if an update fails.

  • Page 54: Updating The Bios With The Iflash Update Utility

    • Iflash BIOS update utility You can obtain the BIOS update file through your computer supplier or by navigating to the Desktop Board D875PBZ page on the Intel World Wide Web site: http://support.intel.com/support/motherboards/desktop NOTE Review the instructions distributed with the update utility before attempting a BIOS update.

  • Page 55: Recovering The Bios

    Updating the BIOS Recovering the BIOS It is unlikely that anything will interrupt the BIOS update; however, if an interruption occurs, the BIOS could be damaged. The following steps explain how to recover the BIOS if an update fails. The following procedure uses recovery mode for the Setup program. See page 48 for more information on Setup modes.
  • Page 56 Intel Desktop Board D875PBZ Product Guide...

  • Page 57: Using The Bios Setup Program

    NOTE The BIOS Setup menus described in this section may not show the latest settings. For the latest BIOS settings, refer to the Intel Desktop Board D875PBZ Technical Product Specification or the Intel World Wide Web site: http://support.intel.com/support/motherboards/desktop NOTE For reference purposes, you should write down the current Setup settings.

  • Page 58: Maintenance Menu

    Clears the Wired for Management Boot Integrity Service • Cancel (BIS) credentials. CPU Stepping Signature No options Displays processor’s Stepping Signature. CPU Microcode Update Revision No options Displays processor’s Microcode Update Revision. * For information about the BIS, refer to the Intel Web site at: http://developer.intel.com/design/security/index1.htm...

  • Page 59: Main Menu

    Using the BIOS Setup Program Main Menu Main Advanced Security Power Boot Exit BIOS Version BZ87510A.86A.xxxx.xxx Processor Type Intel(R) Pentium(R) 4 Hyper-Threading Technology [Enabled] Processor Speed X.XX GHz System Bus Speed XXX MHz System Memory Speed XXX MHz Cache RAM XXX KB...

  • Page 60: Advanced Menu

    Intel Desktop Board D875PBZ Product Guide Advanced Menu Main Advanced Security Power Boot Exit Setup Warning: Setting items on this screen to incorrect values may cause your system to malfunction! ` PCI Configuration ` Boot Configuration ` Peripheral Configuration ` IDE Configuration...

  • Page 61: Pci Configuration Submenu

    Using the BIOS Setup Program PCI Configuration Submenu Main Advanced Security Power Boot Exit PCI Configuration PCI Slot 1 IRQ Priority [Auto] PCI Slot 2 IRQ Priority PCI Slot 3 IRQ Priority PCI Slot 4 IRQ Priority PCI Slot 5 IRQ Priority Select Screen Select Item Select ` Sub-Menu...

  • Page 62: Boot Configuration Submenu

    Intel Desktop Board D875PBZ Product Guide Boot Configuration Submenu Main Advanced Security Power Boot Exit Boot Configuration Plug & Play O/S [No] Numlock [On] Select Screen Select Item Select ` Sub-Menu Enter General Help Setup Defaults Save and Exit Exit The submenu shown in Table 13 is used to set the Plug &...

  • Page 63: Peripheral Configuration Submenu

    Using the BIOS Setup Program Peripheral Configuration Submenu Main Advanced Security Power Boot Exit Peripheral Configuration Serial Port A [Auto] Parallel Port [Auto] Mode [Bi-directional] LAN Device [Enabled] Select Screen Select Item Select ` Sub-Menu Enter General Help Setup Defaults Save and Exit Exit This submenu shown in Table 14 is used for configuring computer peripherals.
  • Page 64 Intel Desktop Board D875PBZ Product Guide Table 14. Peripheral Configuration Submenu (continued) Feature Options Description • Output only Mode Selects the mode for the parallel port. Not available if the parallel port is disabled. • Bi-directional (default) Output Only operates in AT*-compatible mode.

  • Page 65: Ide Configuration Submenu

    Using the BIOS Setup Program IDE Configuration Submenu Main Advanced Security Power Boot Exit IDE Configuration ATA/IDE Configuration [Enhanced] SATA OOB Workaround [Enabled] PCI IDE Bus Master [Enabled] Hard Disk Pre-Delay [Disabled] SoftRAID Support [Disabled] ` [SATA Port-0 xxxxxxx] ` [SATA Port-1 Not Detected] ` [PATA Primary Master xxxxxxx]...

  • Page 66: Sata And Pata Submenus

    Intel Desktop Board D875PBZ Product Guide SATA and PATA Submenus Main Advanced Security Power Boot Exit ` [SATA Port-0 Xxxxxxxxx Type [Auto] Maximum Capacity [Auto] Configuration Options Selected By BIOS LBA Mode [Supported] Block Mode : 16 Sectors PIO Mode...
  • Page 67 Using the BIOS Setup Program Table 16. Primary/Secondary IDE Master/Slave Submenus (continued) Feature Options Description • Auto (default) DMA Mode Specifies the Ultra DMA mode for the drive. • SWDMA 0 • SWDMA 1 • SWDMA 2 • MWDMA 0 •...

  • Page 68: Diskette Configuration Submenu

    Intel Desktop Board D875PBZ Product Guide Diskette Configuration Submenu Main Advanced Security Power Boot Exit Diskette Configuration Diskette Controller [Enabled] Floppy A [1.44/1.25MB 3½"] Diskette Write Protect [Disabled] Select Screen Select Item Select ` Sub-Menu Enter General Help Setup Defaults...

  • Page 69: Event Log Configuration Submenu

    Using the BIOS Setup Program Event Log Configuration Submenu Main Advanced Security Power Boot Exit Event Log Configuration Event Log [Space Available] View Event Log Clear Event Log Event Logging [Enabled] ECC Event Logging [Enabled] Mark Events As Read Select Screen Select Item Select ` Sub-Menu Enter...

  • Page 70: Video Configuration Submenu

    Intel Desktop Board D875PBZ Product Guide Video Configuration Submenu Main Advanced Security Power Boot Exit Video Configuration AGP Aperture Size [ 64MB] Primary Video Adapter [AGP] Select Screen Select Item Select ` Sub-Menu Enter General Help Setup Defaults Save and Exit Exit The submenu shown in Table 19 is used to configure video features.

  • Page 71: Usb Configuration Submenu

    Using the BIOS Setup Program USB Configuration Submenu Main Advanced Security Power Boot Exit USB Configuration High-Speed USB [Enabled] Legacy USB Support [Enabled] Select Screen Select Item Select ` Sub-Menu Enter General Help Setup Defaults Save and Exit Exit The submenu shown in Table 20 is used to configure USB features. Table 20.

  • Page 72: Chipset Configuration Submenu

    Intel Desktop Board D875PBZ Product Guide Chipset Configuration Submenu Main Advanced Security Power Boot Exit Chipset Configuration Setup Warning: Setting items on this screen to incorrect values may cause your system to malfunction! ISA Enable Bit [Enabled] PCI Latency Timer...
  • Page 73 Using the BIOS Setup Program Table 21. Chipset Configuration Submenu (continued) Feature Options Description • Default (default) Burn-In Mode Alters host and I/O clock frequencies. • -2.0% • -1.0% • +1.0% • +2.0% • +3.0% • +4.0% • Default (default) Extended Configuration Chooses the default or user defined settings for the extended configuration options.

  • Page 74: Fan Control Submenu

    Intel Desktop Board D875PBZ Product Guide Fan Control Submenu Main Advanced Security Power Boot Exit Fan Control Configuration Setup Warning: These options will not take effect until power has been completely removed from the system. After saving the BIOS settings and turning the system...

  • Page 75: Hardware Monitoring Submenu

    Using the BIOS Setup Program Hardware Monitoring Submenu Main Advanced Security Power Boot Exit Hardware Monitoring Note: These measurements are approximate and should not be used for validation purposes. Processor Zone Temperature C/111 System Zone 1 Temperature C/98 System Zone 2 Temperature C/95 Processor Fan Speed 2394 RPM...

  • Page 76: Security Menu

    Intel Desktop Board D875PBZ Product Guide Security Menu Main Advanced Security Power Boot Exit Supervisor Password Not Installed User Password Not Installed Set Supervisor Password Set User Password Chassis Intrusion [Disabled] Select Screen Select Item Select ` Sub-Menu Enter General Help...

  • Page 77: Power Menu

    Using the BIOS Setup Program Power Menu Main Advanced Security Power Boot Exit ACPI After Power Failure [Last State] The options below are not related to ACPI and may be ignored when shutting down using an ACPI OS. Wake on PCI PME [Stay Off] Select Screen Select Item...

  • Page 78: Apm Submenu

    Intel Desktop Board D875PBZ Product Guide APM Submenu Main Advanced Security Power Boot Exit [Enabled] Standby Time Out [Disabled] Suspend Power Saving Type [S1] Suspend Time Out [Disabled] Power Button Mode [On/Off] Video power Down Mode [Standby] Hard Disk Power Down Mode...
  • Page 79 Using the BIOS Setup Program Table 26. APM Submenu (continued) Feature Options Description • Disabled (default) Hard Disk Time Out Specifies the hard disk time out time. (Min) • 1 • 2 • 3 • 4 • 5 • 6 •...

  • Page 80: Acpi Submenu

    Intel Desktop Board D875PBZ Product Guide ACPI Submenu Main Advanced Security Power Boot Exit Advanced Configuration and Power Interface S1 is the safest mode but consumes more power. ACPI Suspend State [S1 State] consumes low power but Wake on LAN from S5...

  • Page 81: Boot Menu

    Using the BIOS Setup Program Boot Menu Main Advanced Security Power Boot Exit Silent BOOT [Enabled] Intel ® Rapid BIOS Boot [Enabled] Scan User Flash Area [Enabled] PXE Boot to LAN [Disabled] USB Boot [Enabled] ` Boot Device Priority ` Hard Disk Drives...

  • Page 82: Boot Device Priority Submenu

    Intel Desktop Board D875PBZ Product Guide Boot Device Priority Submenu Main Advanced Security Power Boot Exit Specifies the boot Boot Device FLOPPY DRIVE] sequence from the Boot Device [xxxxxxxxxxx] available devices. Boot Device [xxxxxxxxxxx] A device enclosed in parenthesis has been...

  • Page 83: Hard Disk Drives Submenu

    Using the BIOS Setup Program Hard Disk Drives Submenu Main Advanced Security Power Boot Exit Specifies the boot Drive [xxxxxxxxxxxxx] sequence from the Drive [xxxxxxxxxxxxx] available devices. Select Drive [xxxxxxxxxxxxx] the boot device with Drive [xxxxxxxxxxxxx] UpArrow or DownArrow key. Press Enter to set the selections as the intended boot device.

  • Page 84: Removable Devices Submenu

    Intel Desktop Board D875PBZ Product Guide Removable Devices Submenu Main Advanced Security Power Boot Exit Specifies the boot Drive FLOPPY DRIVE] sequence from the available devices. Select the boot device with UpArrow or DownArrow key. Press Enter to set the selections as the intended boot device.

  • Page 85: Atapi Cd-Rom Drives

    Using the BIOS Setup Program ATAPI CD-ROM Drives Main Advanced Security Power Boot Exit Specifies the boot 1st Drive [xxxxxxx] sequence from the Drive [xxxxxxx] available devices. Select the boot device with UpArrow or DownArrow key. Press Enter to set the selections as the intended boot device.

  • Page 86: Exit Menu

    Intel Desktop Board D875PBZ Product Guide Exit Menu Main Advanced Security Power Boot Exit Exit Saving Changes Exit Discarding Changes Load Optimal Defaults Load Custom Defaults Save Custom Defaults Discard Changes Select Screen Select Item Select ` Sub-Menu Enter General Help...

  • Page 87: Technical Reference

    5 Technical Reference This chapter shows the location of the: • Back panel connectors • Add-in board and peripheral interface connectors CAUTION Many of the midboard and front panel connectors provide operating voltage (+5 V dc and +12 V dc, for example) to devices inside the computer chassis, such as fans and internal peripherals.

  • Page 88: Back Panel Connectors

    Intel Desktop Board D875PBZ Product Guide Back Panel Connectors NOTE The line out connector, located on the back panel, is designed to power either headphones or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are connected to this output.

  • Page 89: Add-In Card And Peripheral Interface Connectors

    Technical Reference Add-In Card and Peripheral Interface Connectors Figure 18 shows the PCI bus add-in card and peripheral interface connectors for the desktop board. OM15680 Item Description Item Description PCI bus add-in card connector 5 PCI bus add-in card connector 4 Floppy drive PCI bus add-in card connector 3 Primary IDE...

  • Page 90: Desktop Board Resources

    Intel Desktop Board D875PBZ Product Guide Desktop Board Resources Memory Map Table 34. System Memory Map Address Range (decimal) Address Range (hex) Size Description 1024 K - 4194304 K 100000 - FFFFFFFF 4095 MB Extended Memory 960 K - 1024 K...

  • Page 91: Interrupts

    Technical Reference Interrupts Table 36. Interrupts System Resource I/O channel check Reserved, interval timer Reserved, keyboard buffer full Reserved, cascade interrupt from slave PIC COM2* COM1* LPT2 (Plug and Play option) / ** Floppy drive controller LPT1* Real time clock Onboard mouse port (if present, else user available) Reserved, math coprocessor Primary IDE (if present, else user available)
  • Page 92 Intel Desktop Board D875PBZ Product Guide...

  • Page 93: A Error Messages And Indicators

    A Error Messages and Indicators Desktop Board D875PBZ reports POST errors in two ways: • By sounding a beep code • By displaying an error message on the monitor BIOS Beep Codes The BIOS beep codes are listed in Table 37. The BIOS also issues a beep code (one long tone followed by two short tones) during POST if the video configuration fails (a faulty video card or no card installed) or if an external ROM module does not properly checksum to zero.

  • Page 94: Bios Error Messages

    Intel Desktop Board D875PBZ Product Guide BIOS Error Messages When a recoverable error occurs during the POST, the BIOS displays an error message describing the problem. Table 38. BIOS Error Messages Error Message Explanation GA20 Error An error occurred with Gate-A20 when switching to protected mode during the memory test.
  • Page 95 Error Messages and Indicators Table 38. BIOS Error Messages (continued) Error Message Explanation Memory Size Decreased Memory size has decreased since the last boot. If no memory was removed, then memory may be bad. Memory Size Increased Memory size has increased since the last boot. If no memory was added, there may be a problem with the system.
  • Page 96 Intel Desktop Board D875PBZ Product Guide...

  • Page 97: B Regulatory Compliance

    B Regulatory Compliance This appendix contains safety regulations, electromagnetic compatibility (EMC) regulations, and product certification markings for Desktop Board D875PBZ. Safety Regulations Desktop Board D875PBZ complies with the safety regulations stated in Table 39 when correctly installed in a compatible host system. Table 39.

  • Page 98: Product Certification Markings

    Desktop Board D875PBZ has the following product certification markings: • UL joint US/Canada Recognized Component mark: consists of small c followed by a stylized backward UR and followed by a small US. Includes adjacent UL file number for Intel desktop boards: E210882 (component side). •...
