Motherboard Layout; Layout Contents - Asus P5P43T User Manual

1.5.3

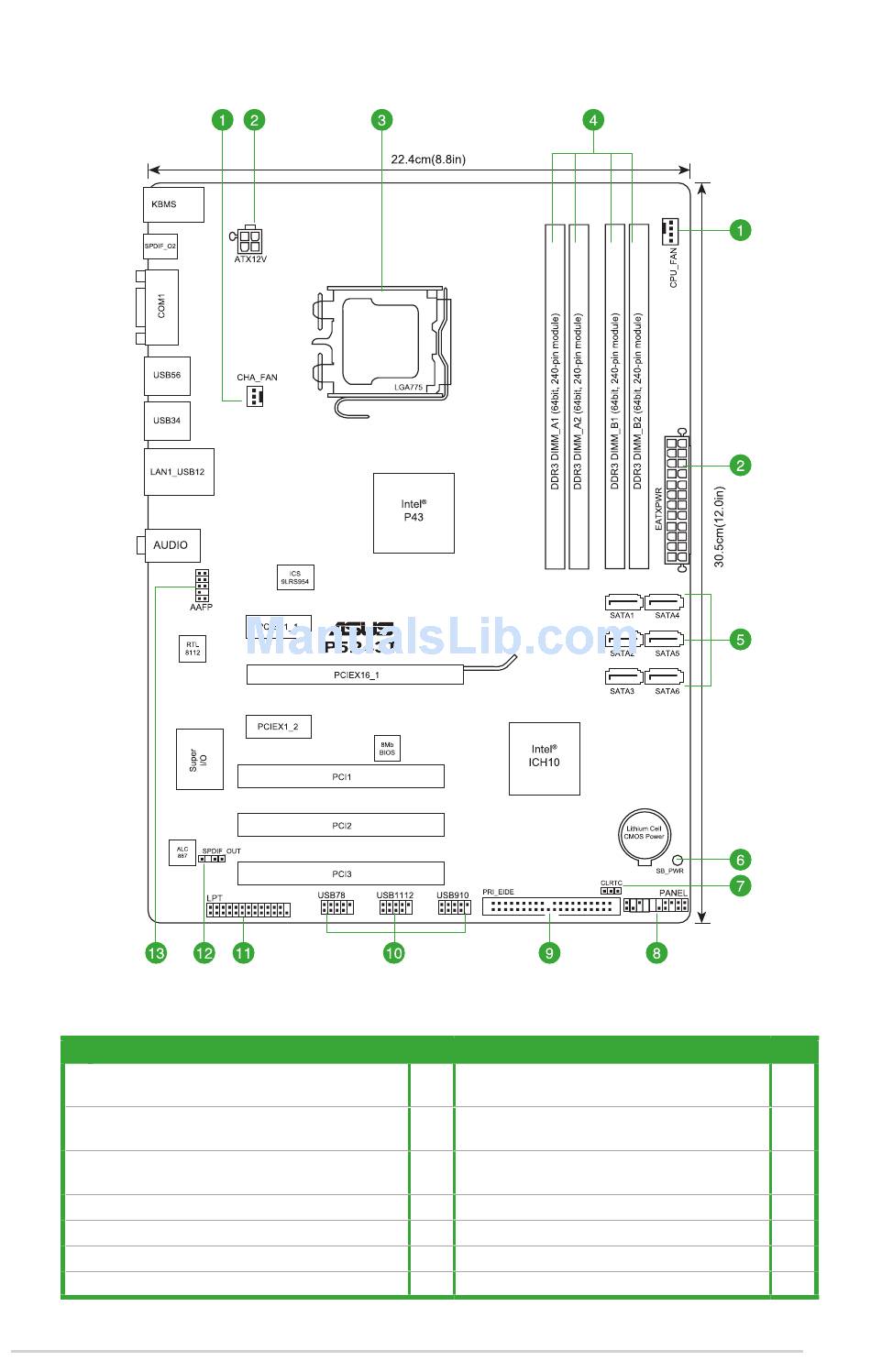

Motherboard layout

1.5.4

Layout contents

Connectors/Jumpers/Slots/LED
1. CPU and chassis fan connectors (4-pin CPU_FAN,
3-pin CHA_FAN)
2. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
3. LGA775 CPU socket
4. DDR3 DIMM slots
5. Serial ATA connectors (7-pin SATA1-6)
6. Onboard LED (SB_PWR)
7. Clear RTC RAM (3-pin CLRTC)
1-6
Page Connectors/Jumpers/Slots/LED
1-23 8. System panel connector (20-8 pin PANEL)
1-22 9. IDE connector (40-1 pin PRI_EIDE)
1-7 10. USB connectors (10-1 pin USB78, USB910,
USB1112)
1-12 11. LPT connector (26-1 pin LPT)
1-24 12. Digital audio connector (4-1 pin SPDIF_OUT) 1-4
1-20 13. Front panel audio connector (10-1 pin AAFP) 1-24
1-25
Chapter 1: Product introduction
Page
1-27
1-26
1-23
1-27
