Motherboard overview

1.2.1

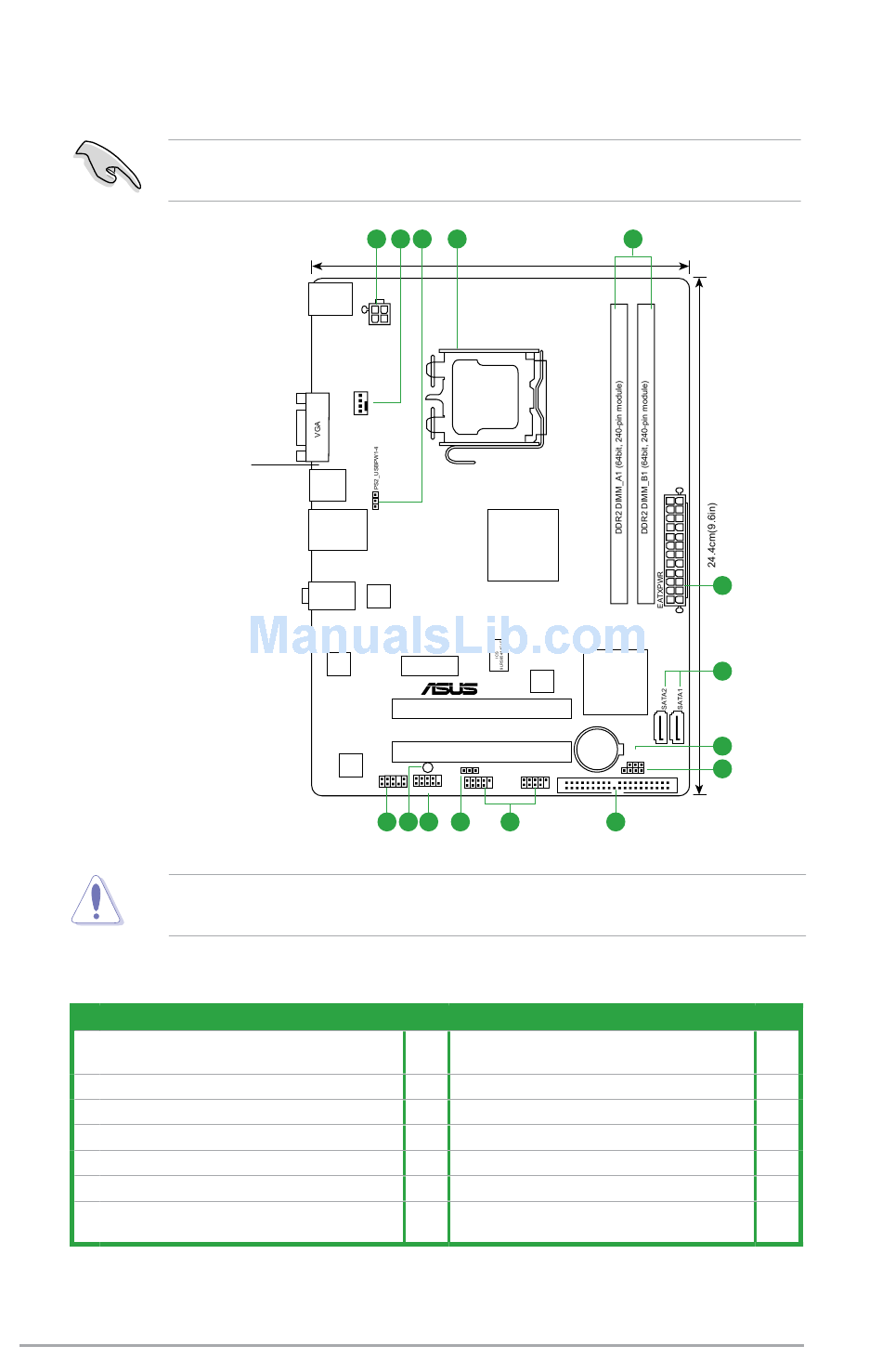

Motherboard layout

Ensure that you install the motherboard into the chassis in the correct orientation. The
edge with external ports goes to the rear part of the chassis.
Place this side towards
the rear of the chassis.
Place six screws into the holes indicated by circles to secure the motherboard to the
chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.
1.2.2

Layout contents

Connectors/Jumpers/Slots
1. ATX power connectors (24-pin EATXPWR, 4-pin
ATX12V)
2. CPU fan connector (4-pin CPU_FAN)
3. Keyboard/mouse power (3-pin PS2_USBPW1-4)
4. LGA775 CPU socket
5. DDR2 DIMM slots
6. Serial ATA connectors (7-pin SATA1-4)
7. Clear RTC RAM (3-pin CLRTC)
Chapter 1: Product introduction
1 2 3 4
17.8cm(7.0in)
KBMS
ATX12V
CPU_FAN
USB34
LAN1_USB12
ITE
AUDIO
IT8755E
RTL
PCIEX1_1
8131
PCI1
P5KPL-AM IN
PCI2
VIA
VT1705
SB_PWR
AAFP
F_PANEL
14 13 12 11
Page
1-13 8.
1-12 9.
1-9 10.
1-3 11.
1-3 12.
1-10 13.
1-8 14.
5
LGA775
Intel
®
G31 B0
Intel
®
8Mb
BIOS
ICH7
Lithium Cell
CMOS Power
CLRTC
SPEAKER
USB56
USBPW5-8
USB78
10 9
Connectors/Jumpers/Slots
Speaker connector (4-1 pin SPEAKER)
IDE connector (40-1 pin PRI_EIDE)
USB connectors (10-1 pin USB56 USB78)
USB device wake-up (3-pin USBPW5-8)
System panel connector (10-1 pin PANEL)
Onboard LED
Front panel audio connector (10-1 pin
AAFP)
1
6
7
8
PRI_IDE
Page
1-14
1-11
1-11
1-7
1-14
1-1
1-12
1-2
