1.10

Connectors

1.10.1

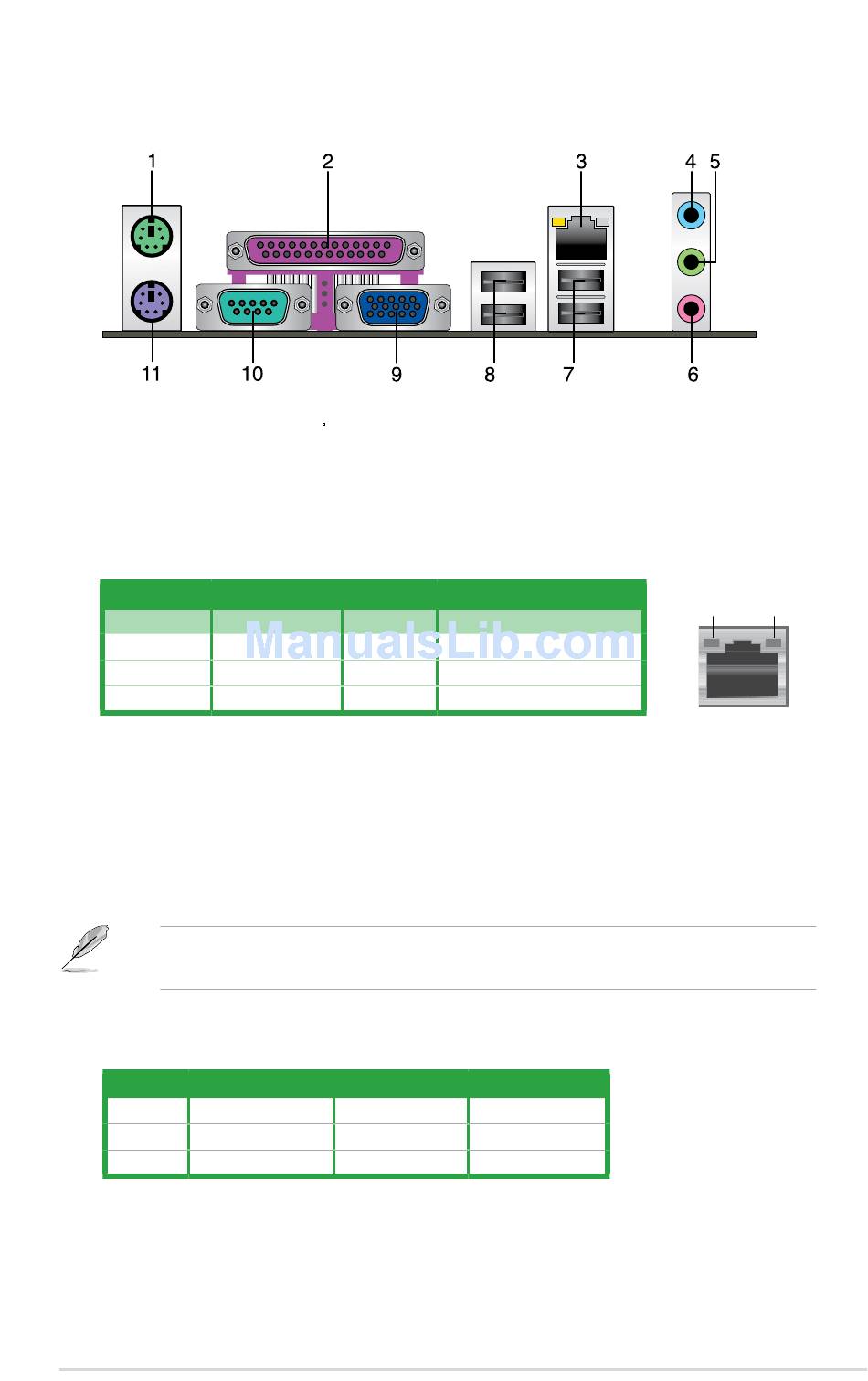

Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
ACT/LINK LED
Status Description
OFF No link
ORANGE Linked
BLINKING Data activity
4. Line In port (light blue). This port connects the tape, CD, DVD player, or other audio
sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel and
6-channel configurations, the function of this port becomes Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
Refer to the audio configuration table below for the function of the audio ports in 2, 4, or
6-channel configuration.
Audio 2, 4, or 6-channel configuration
Port Headset 2-channel
Light Blue Line In
Lime Line Out
Pink Mic In
ASUS P5KPL-AM EPU
SPEED LED
Status Description
OFF 10 Mbps connection
ORANGE 100 Mbps connection
GREEN 1 Gbps connection
4-channel 6-channel
Rear Speaker Out Rear Speaker Out
Front Speaker Out Front Speaker Out
Mic In Bass/Center
SPEED
ACT/LINK
LED
LED
LAN port
1-21
