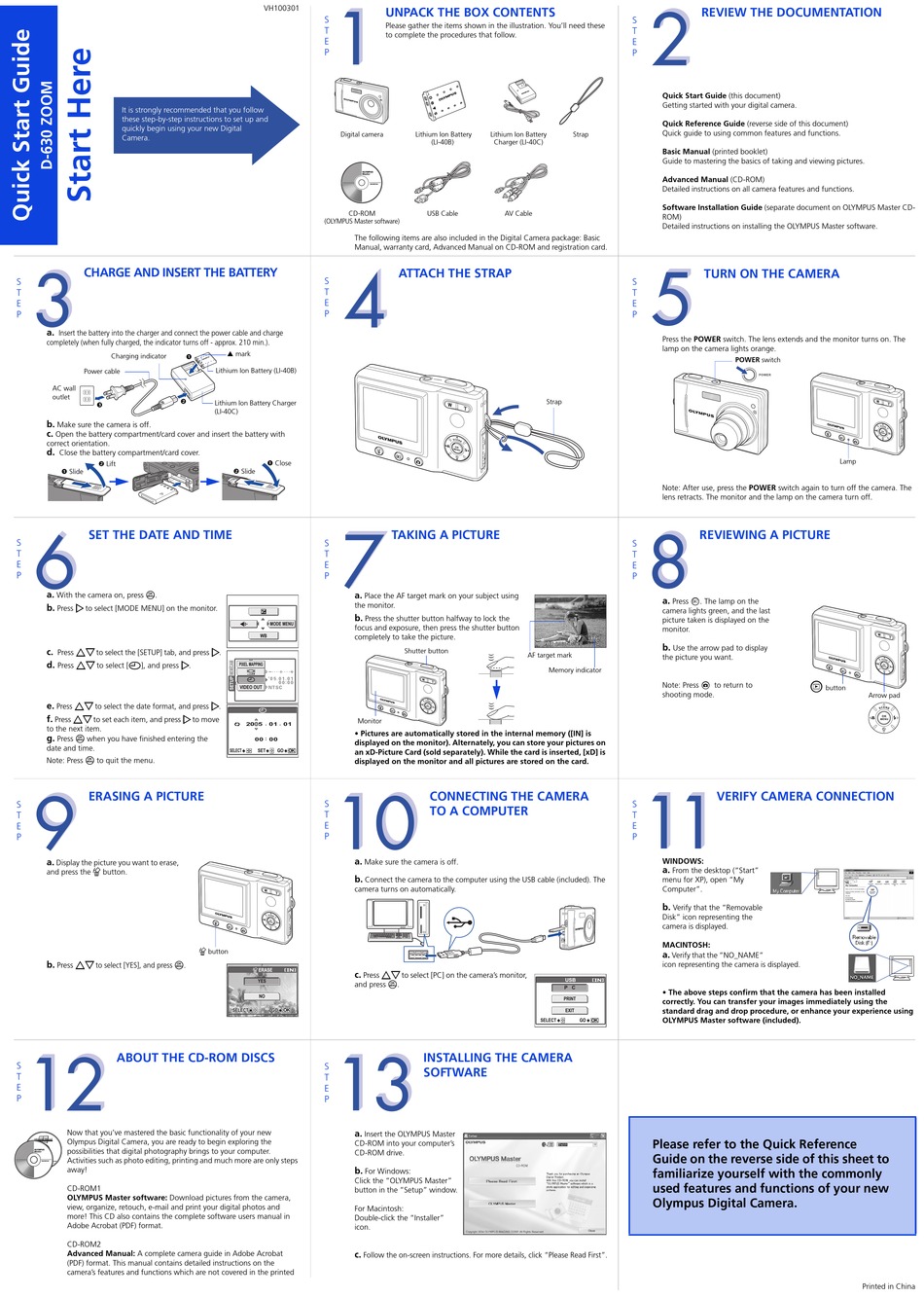

Olympus D630 - CAMEDIA D 630 Zoom Digital Camera Quick Start Manual

It is strongly recommended that you follow
these step-by-step instructions to set up and
quickly begin using your new Digital
Camera.
CHARGE AND INSERT THE BATTERY
S
T
E
P
a.
Insert the battery into the charger and connect the power cable and charge
completely (when fully charged, the indicator turns off - approx. 210 min.).
Charging indicator
Power cable
AC wall
outlet
b.
Make sure the camera is off.
c.
Open the battery compartment/card cover and insert the battery with
correct orientation.
d.
Close the battery compartment/card cover.
Lift
Slide
SET THE DATE AND TIME
S
T
E
P
a. With the camera on, press Z.
Press d to select [MODE MENU] on the monitor.
b.
Press ac to select the [SETUP] tab, and press d.
c.
Press ac to select [X], and press d.
d.
Press ac to select the date format, and press d.
e.
Press ac to set each item, and press d to move
f.
to the next item.
g. Press Z when you have finished entering the
date and time.
Note: Press Z to quit the menu.
ERASING A PICTURE
S
T
E
P
a.
Display the picture you want to erase,
and press the S button.
Press ac to select [YES], and press Z.
b.
ABOUT THE CD-ROM DISCS
S
T
E
P
Now that you've mastered the basic functionality of your new
Olympus Digital Camera, you are ready to begin exploring the
possibilities that digital photography brings to your computer.
Activities such as photo editing, printing and much more are only steps
away!
CD-ROM1
OLYMPUS Master software: Download pictures from the camera,
view, organize, retouch, e-mail and print your digital photos and
more! This CD also contains the complete software users manual in
Adobe Acrobat (PDF) format.
CD-ROM2
Advanced Manual: A complete camera guide in Adobe Acrobat
(PDF) format. This manual contains detailed instructions on the
camera's features and functions which are not covered in the printed
Basic Manual or Quick Start/Quick Reference Guides.
VH100301
S
T
E
P
Digital camera
CD-ROM
(OLYMPUS Master software)
The following items are also included in the Digital Camera package: Basic
Manual, warranty card, Advanced Manual on CD-ROM and registration card.
S
T
E
P
mark
Lithium Ion Battery (LI-40B)
Lithium Ion Battery Charger
(LI-40C)
Close
Slide
S
T
E
P
a.
Place the AF target mark on your subject using
the monitor.
F
b.
Press the shutter button halfway to lock the
MODE MENU
focus and exposure, then press the shutter button
WB
completely to take the picture.
PIXEL MAPPING
s
X
VIDEO OUT
X
Monitor
2005 . 01 . 01
• Pictures are automatically stored in the internal memory ([IN] is
:
00 00
displayed on the monitor). Alternately, you can store your pictures on
SELECT SET GO
OK
an xD-Picture Card (sold separately). While the card is inserted, [xD] is
displayed on the monitor and all pictures are stored on the card.
S
T
E
P
a.
Make sure the camera is off.
b.
Connect the camera to the computer using the USB cable (included). The
camera turns on automatically.
S button
ERASE
Press ac to select [PC] on the camera's monitor,
c.
YES
and press Z.
NO
SELECT SELECT SELECT GO GO GO OK OK OK
S
T
E
P
a.
Insert the OLYMPUS Master
CD-ROM into your computer's
CD-ROM drive.
b.
For Windows:
Click the "OLYMPUS Master"
button in the "Setup" window.
For Macintosh:
Double-click the "Installer"
icon.
c.
Follow the on-screen instructions. For more details, click "Please Read First".

UNPACK THE BOX CONTENTS

Please gather the items shown in the illustration. You'll need these
to complete the procedures that follow.
Lithium Ion Battery Lithium Ion Battery
(LI-40B) Charger (LI-40C)
USB Cable AV Cable
ATTACH THE STRAP
Strap
TAKING A PICTURE
P
2560 1920 2560
HQ HQ
Shutter button
AF target mark
Memory indicator
CONNECTING THE CAMERA
TO A COMPUTER
SELECT
INSTALLING THE CAMERA
SOFTWARE
REVIEW THE DOCUMENTATION
S
T
E
P
Quick Start Guide (this document)
Getting started with your digital camera.
Quick Reference Guide (reverse side of this document)
Quick guide to using common features and functions.
Strap
Basic Manual (printed booklet)
Guide to mastering the basics of taking and viewing pictures.
Advanced Manual (CD-ROM)
Detailed instructions on all camera features and functions.
Software Installation Guide (separate document on OLYMPUS Master CD-
ROM)
Detailed instructions on installing the OLYMPUS Master software.

TURN ON THE CAMERA

S
T
E
P
Press the POWER switch. The lens extends and the monitor turns on. The
lamp on the camera lights orange.
POWER switch
Note: After use, press the POWER switch again to turn off the camera. The
lens retracts. The monitor and the lamp on the camera turn off.

REVIEWING A PICTURE

S
T
E
P
Press $. The lamp on the
a.
camera lights green, and the last
picture taken is displayed on the
monitor.
5 5
1920
b.
Use the arrow pad to display
the picture you want.
Note: Press # to return to
shooting mode.
VERIFY CAMERA CONNECTION
S
T
E
P
WINDOWS:
a.
From the desktop ("Start"
menu for XP), open "My
Computer".
b.
Verify that the "Removable
Disk" icon representing the
camera is displayed.
MACINTOSH:
a.
Verify that the "NO_NAME"
icon representing the camera is displayed.
USB
P C
• The above steps confirm that the camera has been installed
PRINT
correctly. You can transfer your images immediately using the
EXIT
standard drag and drop procedure, or enhance your experience using
GO OLYMPUS Master software (included).
OK
Please refer to the Quick Reference
Guide on the reverse side of this sheet to
familiarize yourself with the commonly
used features and functions of your new
Olympus Digital Camera.
Lamp
$
button
Arrow pad
