Summary of Contents for Olympus Camedia D-630 Zoom
Page 1

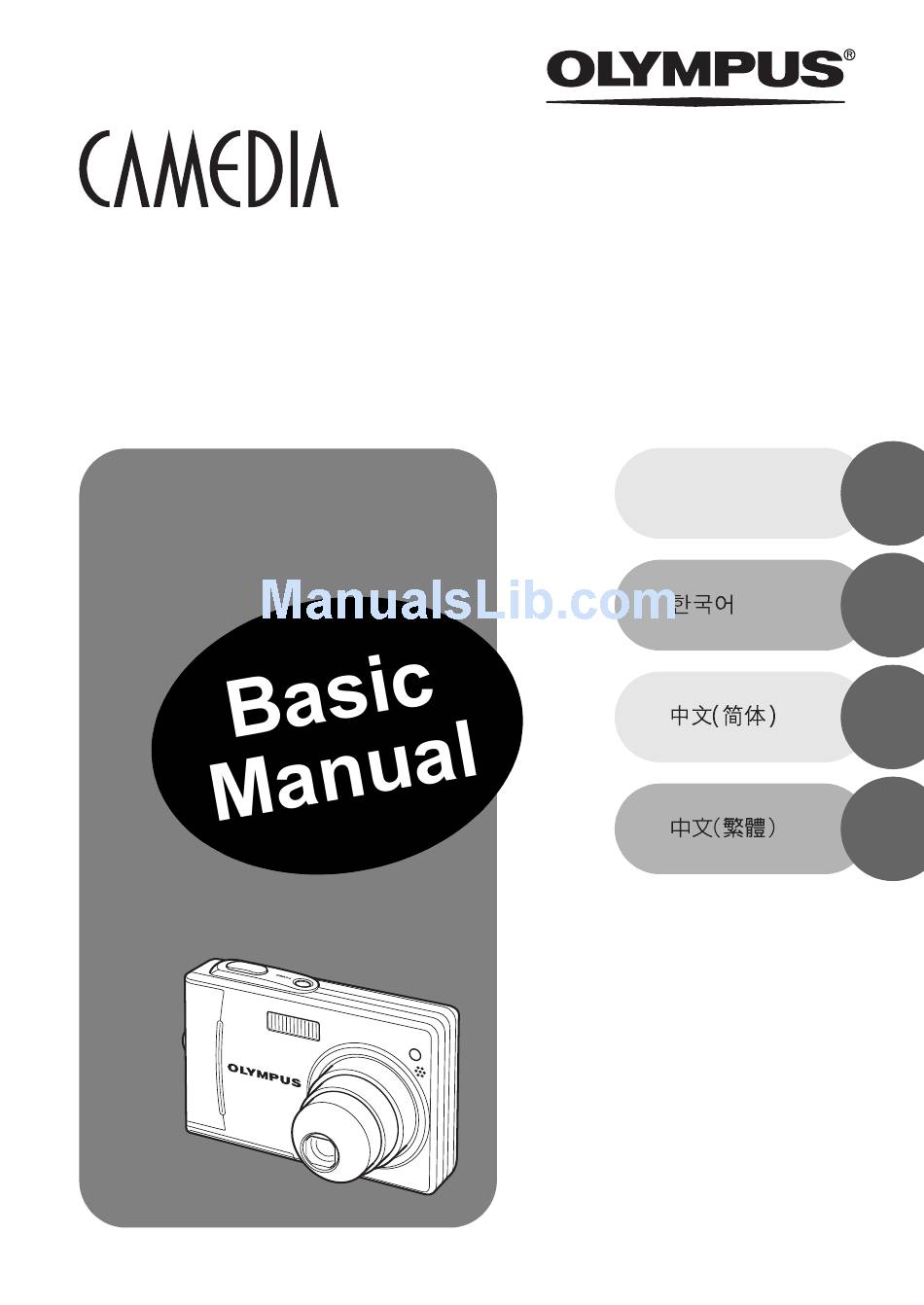

DIGITAL CAMERA D-630 ZOOM FE-5500 X-600 ENGLISH Shoot and Play!
Page 2
• Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. • This manual explains shooting and playback basics. For details on functions, read the advanced manual.
......15 TURNING THE CAMERA ON ........17 TAKING A PICTURE ........ 19 REVIEWING A PICTURE ......20 TURNING THE CAMERA OFF Enjoy the camera more..........21 Things you can do with this camera Installing OLYMPUS Master Software Specifications ............. 23...
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL. Lightning flash with an arrowhead, enclosed in a triangle, alerts you to the presence of uninsulated voltage points inside the product which could cause a serious electrical shock.
Page 5
Safety Precautions Power Sources — Connect this product only to the power source described on the product label. If you are not sure about the type of power supply in your home, consult your local power company. Refer to your operating instructions for information on using the product with a battery.
Page 6
Safety Precautions Replacement Parts — When replacement parts are required, make sure that the service center uses only parts with the same characteristics as the originals, as recommended by the manufacturer. Unauthorized substitution of parts could result in fire, electrical shock, or create other hazards. Safety Check —...
Page 7
Never remove the battery with bare hands, which may cause a fire or burn your hands. Contact the nearest Olympus service center immediately. ( Do not use the camera with wet hands.
Page 8
– and cause serious damage. ( Use only the AC adapter specified by Olympus. • Never use any AC adapter except one specified by Olympus. Using a different AC adapter may damage the camera or power source, or result in accidents or fire.
Page 9
• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera and consult your dealer or an authorized Olympus service center. Continued use may result in fire or electric shock.
Digital Camera Strap Lithium ion Battery (LI-40B) Lithium ion Battery USB Cable AV Cable Charger (LI-40C) OLYMPUS Master Basic Manual Advanced Manual CD-ROM (this manual) (CD-ROM) Warranty Card Registration Card Contents vary depending on the area where you purchased this camera.
Page 11
Be careful with the strap when you carry the camera, as it can easily catch on stray objects, causing injury or damage. Attach the strap correctly as shown above. Olympus is not responsible for any damages resulting from the strap coming loose due to incorrect attachment.
TIPS The LI-40B battery takes approximately 210 minutes to charge. Note This camera uses an Olympus LI-40B lithium ion battery. No other type of battery can be used. Use only the specified charger. Battery life varies depending on shooting conditions, etc.
LOADING THE BATTERY Make sure the camera is turned off. The lens is retracted. The monitor is off. The lamp is off. Battery compartment/card cover Open the battery compartment/card cover. Slide Lift Battery compartment/ card cover Insert the battery. Battery lock knob To remove the battery Slide the lock knob as...
Page 14
LOADING THE BATTERY Close the battery compartment/card cover. Close Slide Press down on the center of the cover when sliding. Note Be careful to catch finger in the battery compartment/card cover. The battery Note Power consumption by the camera varies depending on which functions are used.
TURNING THE CAMERA ON Press the POWER switch. POWER switch Lamp Battery check indicator Shooting mode The lens extends. The monitor turns on. The lamp on the camera lights orange. Number of storable still picture Note To save battery power, the camera automatically enters sleep mode and stops operating after about 3 minutes of non-operation.
Page 16
TURNING THE CAMERA ON When you first turn on the camera Setting the date and time The first time you use the camera, [Y/M/D] is displayed prompting you to set the date and time. See “Setting the date and time” in Chapter 6 of the Advanced Manual.
TAKING A PICTURE Compose your picture. Shutter button Lamp AF target mark Position the AF target mark on your subject using the monitor. [IN]: Indicates that pictures are recorded in the camera’s internal memory. Focus on your subject. Press the shutter button halfway and hold.
TAKING A PICTURE Take the picture. Press the shutter button fully. The camera takes the picture. The lamp on the camera blinks orange while the picture is recorded. Note Press the shutter button gently. If it is pressed forcefully, the camera may move causing the picture to blur.
REVIEWING A PICTURE Press $. Playback button Shooting button (#) Lamp The lamp on the camera lights green and playback mode is enabled. Last picture taken is displayed. Press # when you are ready to take another picture. Use the arrow pad to display the picture you want. 10 pictures back Previous picture Next picture...
Advanced Manual for additional camera features and applications. And to get the most out of your digital images, be sure to install the OLYMPUS Master software on the supplied CD-ROM for enhanced editing, storing, and sharing of your images.
Enjoy the camera more Things you can do with this camera Using the internal memory or card... Pictures taken with this camera are stored in the internal memory or on an xD-Picture Card. An xD-Picture Card lets you store many more pictures than the memory.
You can rotate images, trim them and change the size. User Registration After installing the OLYMPUS Master software, we recommend that you fill out the user registration for your camera. By making your registration, you will receive information on software and firmware updates from Olympus.
: 1/2.5" CCD solid-state image pickup, 5,360,000 pixels (gross) Lens : Olympus lens 5.8 to 17.4 mm, f2.8 to 4.8 (equivalent to 35 to 105 mm on a 35 mm camera) Photometric system : Center-weighted metering system, spot metering system Shutter speed : 2 to 1/2,000 sec.
Specifications Lithium ion Battery (LI-40B) Type : Lithium ion rechargeable battery Standard voltage : DC 3.7V Standard capacity : 660 mAh Battery life : Approx. 300 full recharges (varies on usage) Recommended : 0°C to 40°C/32°F to 104°F (charging) temperature 0°C to 60°C/32°F to 140°F (operation) -20°C to 35°C/-4°F to 95°F (storage) Dimensions...
Page 26
• 저희 올림푸스 디지털 카메라를 구입해 주신데 대해 감사드립니다. 카메라를 사용하 시기 전에 본 설명서를 잘 읽으시고 최적의 기능을 즐기면서 제품을 오랫동안 사용하 시기 바랍니다. • 본 설명서는 촬영과 재생의 기본에 관해서 설명합니다. 기능에 관한 상세한 내용은, 고 급편을 참조하십시오. 본 설명서를 안전한 곳에 보관하시고 계속해서 사용하시기 바 랍니다.
Page 27
배터리 충전 ..........37 배터리 넣기 ..........39 카메라 켜기 ............ 41 사진 촬영 ............ 43 사진 확인 ..........44 카메라 끄기 카메라 더 활용하기 ............45 이 카메라로 할 수 있는 것 OLYMPUS Master 소프트웨어 설치 제품 사양 ..............47...
는 축축한 천만 사용하십시오. 제품을 청소할 때는 용액, 분무식 클리너 또는 모 든 형태의 유기 용제를 절대 사용하지 마십시오. 부속물 — 고객의 안전과 제품 손상 방지를 위해 Olympus에서 권장하는 액세서리 만 사용하십시오. 물과 습기 — 이 제품은 물 근처(욕조, 부엌 싱크대, 세탁용 물통, 습기가 많은 지하...
Page 29
안전 주의 사항 전원 — 이 제품은 제품 라벨에 기술되어 있는 전원에만 연결하십시오. 집에서 사 용하는 전원의 종류를 잘 모를 경우 지역 전력 회사에 문의하십시오. 배터리를 이용한 제품 사용 방법에 대한 정보는 작동 지침들을 참조하십시오. 접지, 양극화 — 이 제품을 지정된 AC 어댑터와 함께 사용할 수 있다면 해당 어댑 터에는...
Page 30
안전 주의 사항 부품 교환 — 부품 교환이 필요한 경우 서비스 센터가 제조업체에서 권장하는 원래 의 부품과 동일한 특성을 가진 부품들만 사용하도록 하십시오. 승인되지 않은 부품 교체는 화재, 감전을 유발하거나 기타 상해를 발생시킬 수 있습니다. 안전 검사 — 서비스나 수리를 끝낸 뒤 엔지니어에게 제품이 제대로 작동하는지 확 인을...
Page 31
한 화재나 감전의 위험이 있습니다. ( 카메라 내부에 물이나 이물질이 들어가지 않도록 주의하십시오. • 카메라를 실수로 물에 빠뜨렸거나 카메라에 액체를 엎지른 경우, 사용을 중 지하고 건조시킨 다음 배터리를 제거하십시오. 가까운 Olympus 서비스 센터 에 수리를 의뢰하십시오. 주의 ( 이상한 냄새, 잡음 또는 연기가 나는 경우 카메라 사용을 즉시 중지하...
Page 32
다음은 배터리 누액, 과열, 연소, 폭발 또는 감전이나 화재를 방지하기 위한 중요한 지 침입니다. 위험 • 본 카메라에는 Olympus에서 지정한 리튬 이온 배터리를 사용합니다. 지정한 충 전기만 사용하여 충전하십시오. 다른 충전기는 사용하지 마십시오. • 배터리를 가열하거나 소각하지 마십시오. • 배터리를 운반하거나 보관할 때는 장신구, 핀, 단추 등의 금속 물질과 접촉하지...
Page 33
• 금이 가거나 깨진 배터리는 사용하지 마십시오. • 배터리에서 액이 흐르거나, 색이나 모양이 변형되거나, 사용 도중 이상 현상이 발 견되면 카메라의 사용을 중지하고 대리점이나 공인 Olympus 서비스 센터에 문 의하십시오. 계속 사용하면 화재나 감전의 위험이 있습니다. • 배터리 액이 옷이나 피부에 묻은 경우 즉시 옷을 벗고 액이 묻은 부분을 깨끗하...
상자 내용물 꺼내기 누락되었거나 손상된 내용물이 발견되면 판매점에 문의하십시오. 디지털 카메라 스트랩 리튬 이온 배터리 (LI-40B) USB 케이블 AV 케이블 리튬 이온 배터리 충전기 (LI-40C) OLYMPUS Master CD-ROM 기본편 (본 설명서) 고급편 (CD-ROM) 보증서 등록 카드 내용물은 이 카메라의 구입장소에 따라 다릅니다.
Page 35
스트랩이 느슨해지지 않도록 단단히 당기십시오. 참고 카메라를 스트랩에 끼워 소지할 때에는 스트랩이 튀어나온 물건에 걸려서 상 처나 손상을 입을 수 있으니 주의하시기 바랍니다. 그림과 같이 바르게 스트랩을 부착하십시오. Olympus는 바르지 못한 부착으 로 인해 스트랩이 풀어짐으로써 발생한 어떠한 손상에 대해서도 책임을 지지 않습니다.
완전 충전이 되면 표시등이 꺼집니다. 팁 LI-40B 배터리의 충전 소요 시간은 약 210분입니다. 참고 이 카메라는 Olympus LI-40B 리튬 이온 배터리를 사용합니다. 다른 종류의 배 터리는 사용할 수 없습니다. 지정된 충전기만 사용하십시오. 배터리 수명은 촬영 여건 등에 따라 달라집니다. 충전기는 AC100V ~ AC240V (50/60Hz) 범위내에서 사용할 수 있습니다. 충...
배터리 넣기 카메라가 꺼져 있는지 확인합니다. 렌즈가 들어가 있습니다. 모니터가 꺼져 있습 니다. 램프가 꺼져 있습니다. 배터리부/카드 커버 배터리부/카드 커버를 엽니다. 밉니다 들어 올립니다 배터리부/카드 커버 배터리를 삽입합니다. 배터리를 분리하려면 배터리 잠금장치 그림과 같이 잠금장치를 밉니 다. 배터리를 꺼낼 수 있도록 배터리가...
Page 38
배터리 넣기 배터리부/카드 커버를 닫으십시오. 닫습니다 밉니다 밀 때는 커버 한 가운데를 누르십시오. 참고 손가락이 배터리부/카드 커버에 끼지 않도록 주의 하십시오. 배터리 참고 전원 소비는 카메라를 어떤 기능에서 사용하는지에 따라 달라집니다. 전원은 아래 조건하에서는 전원이 계속 소비되므로 배터리의 소모가 빨라 집 니다.
카메라 켜기 POWER 스위치를 누르십시오. POWER 스위치 배터리 점검 표시 램프 촬영 모드 렌즈가 돌출합니다. 모니터가 켜집니다. 카메라 램프가 오렌지 색으로 켜집니 다. 저장 가능한 스틸 사진 수 참고 본 카메라는 배터리 전원 절약을 위해, 약 3분 동안 사용하지 않으면 자동으로 절전...
Page 40
카메라 켜기 처음으로 카메라를 켤 때 날짜와 시간 설정 카메라를 처음 사용하면 날짜와 시간을 설 정하도록 [Y/M/D]가 표시됩니다. “고급편” 의 제 6장 “날짜와 시간 설정” 을 참조해 주 십시오. 카메라는 이 설정을 하지 않아도 조 작을 할 수 있습니다. 카메라에서 사용할 수 있는 언어 사용할...
사진 촬영 사진 구도를 잡습니다. 셔터 버튼 램프 AF 타겟 표시 모니터를 사용해 피사체에 AF 타겟 표시를 맞추십시오. [IN]: 카메라의 내장 메모리에 저장된 사진 을 나타냅니다. 피사체에 초점을 맞추십시오. 셔터 버튼을 반누름한 상태로 유지합 니다. 녹색 램프 # 표시 초점과 노출이 고정되면 녹색 램프가 켜집니다.
Page 42
사진 촬영 사진을 촬영합니다. 셔터 버튼을 완전히 누릅니다. 사진이 촬영됩니다. 사진이 저장되 는 동안에는 카메라의 램프가 오렌지 색으로 깜박입니다. 참고 셔터 버튼을 부드럽게 누릅니다. 너무 세게 누르면 카메라가 흔들려 사진이 흐 릿하게 나올 수 있습니다. 카메라에 저장된 사진은 카메라 전원이 꺼지거나 배터리 교체 및 분리에 상관 없이...
사진 확인 $를 누릅니다. 재생 버튼 촬영 버튼 (#) 램프 카메라 램프가 녹색으로 깜빡이며 재 생 모드가 작동합니다. 마지막으로 찍은 사진이 표시됩니 다. 사진을 찍을 준비가 되었으면 #를 누릅니다. 원하는 사진을 표시하려면 십자 패드를 사용하십시오. 사진 10장 뒤로 이전 사진 다음...
POWER 스위치 와 모니터 카메라 램프가 꺼 집니다. 렌즈가 들어갑니다. 사진 촬영 및 재생을 마스터했으므로 고급편에서 다양한 기능과 응용 방법을 참조해 주십시오. 디지털 이미지를 최대한 활용하려면, CD-ROM에 제공된 OLYMPUS Master 소프트웨어를 설치하 여 고급 편집, 저장, 이미지 공유를 활용해 주십시 오.
카메라 더 활용하기 이 카메라로 할 수 있는 것 내장 메모리 또는 카드 사용... 이 카메라로 찍은 사진은 내장 메모 리나 xD-Picture Card에 저장됩니다. xD-Picture Card는 메모리 보다 더 많 은 사진을 저장할 수 있습니다. 카드 의 이미지에 관련 인쇄 예약 데이터 를...
서를 만들 수 있습니다. 로 이미지를 검색할 수 있습니다. 이미지 편집 이미지를 회전하고, 트리밍하고, 크기를 조절할 수 있습니다. 사용자 등록 OLYMPUS Master 소프트웨어를 설치한 다음, 카메라의 사용자 등록을 하실 것을 권 합니다. 등록을 하면 Olympus의 소프트웨어와 펌웨어 업데이트의 정보를 얻으실 수 있습니다.
유효 화소 수 : 1/2.5" CCD 고형 촬영 소자, 5,360,000 픽셀 (총) 촬영 소자 : Olympus 렌즈 5.8 ~ 17.4 mm, f2.8 ~ 4.8 렌즈 (35 mm 카메라의 35 mm ~ 105 mm 렌즈에 해당) : 중앙부 중점 측광, 스팟 측광 시스템...
Page 48
제품 사양 리튬 이온 배터리 (LI-40B) : 리튬 이온 충전 배터리 종류 : DC 3.7V 표준 전압 : 660 mAh 표준 용량 : 약 300회 완전 재충전 가능(사용 조건에 따라 달라짐) 배터리 수명 : 0°C ~ 40°C (충전시)/0°C ~ 60°C (작동시)/ 권장...
