Setting the BIOS Configuration Jumper

NOTE
Always turn off the power and unplug the power cord from the computer before
changing the jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 15 shows the location of the Desktop Board's BIOS configuration jumper block.
The three-pin BIOS configuration jumper block enables board operating modes.
Table 15 shows the jumper settings for each of the available modes.
42

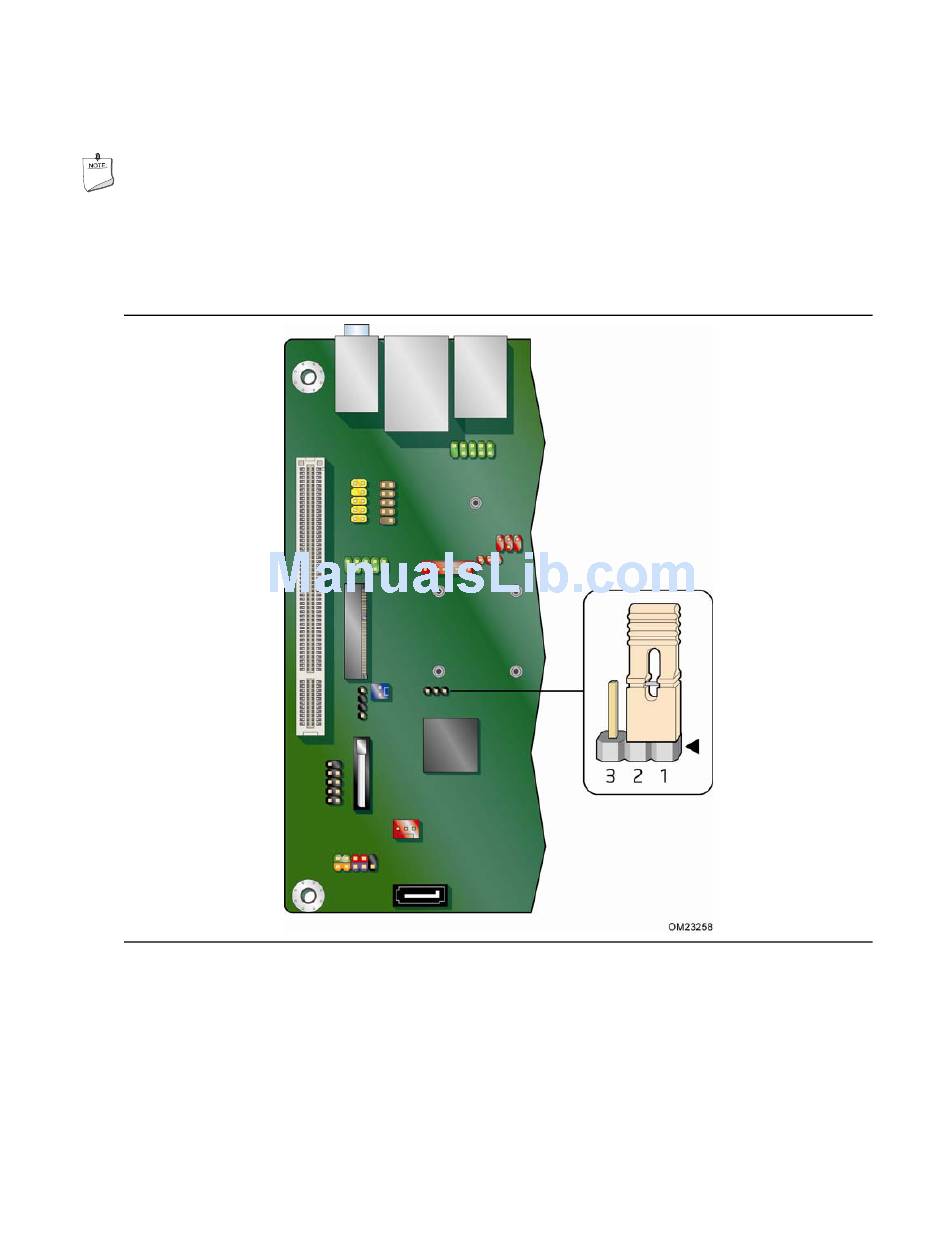

Figure 15. BIOS Configuration Jumper Block
