Page 21: Operation On Mac Os X
Operation on Mac OS X...
Page 22: System Requirements For The Printer Driver
System Requirements for the Printer Driver Before installing the printer driver, make sure that your system meets the fol- lowing system requirements. Computer Apple Macintosh computer installed with the following processor: – PowerPC G3 or later processor (Pow- erPC G4 or later is recommended) –...
Page 23: Installing The Printer Driver
Installing the Printer Driver You must have administrator privileges in order to install the printer driver. Before proceeding with the installation, be sure to exit all running applications. Installing the Printer Driver The procedure for installing the printer driver on Mac OS X 10.4 is described below.
Page 24 Click Continue. Check the Read Me information, and then click Continue. Installing the Printer Driver...
Page 25 Check the details of the license agreement, and then click Continue. Click Agree if you agree to the terms of the license. Installing the Printer Driver...
Page 26 In the Select Destination page, select the disk in which you wish to install the software, and then click Continue. Click Install. Installing the Printer Driver...
Page 27 Enter the administrator user name and password in the Authenticate dia- log box, and then click OK. The installer for the printer driver starts up. After the installation has been completed, click Close. This completes the installation of the printer driver. Installing the Printer Driver...
Page 28: Uninstalling The Printer Driver
KONICA MINOLTA mc7450PS.gz Delete the unnecessary files from Library - Printers. – Drag the KONICA MINOLTA mc7450 Color.plugin file, which is located in Library - Printers - PPD Plugins, to the Trash icon. – Drag the pstomc7450PS file, which is located in Library - Printers - KONICAMINOLTA - filter, to the Trash icon.
Page 29: For Mac Os X 10.5/10.6
The following procedure is not necessary; it is only for users who would like to delete unnecessary files. Drag the KONICA MINOLTA mc7450PS.gz file, which is located in Library - Printers - PPDs - Contents - Resources on the hard disk, to the Trash icon.
Page 30: Print Center Settings (Mac Os X 10.2)
Print Center Settings (Mac OS X 10.2) When Using a USB Connection Use a USB cable to connect the printer to your computer. Check that the printer is turned on, and then restart the computer. Open Print Center, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 31 If magicolor 7450 does not appear, check that the printer is turned on and the USB cable is connected, and then restart the computer. Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Model Name list. Print Center Settings (Mac OS X 10.2)
Page 32: When Using A Network Connection
Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. When Using a Network Connection The network connection settings can be specified in one of five ways: AppleTalk setting, Rendezvous setting, IP printing setting, IPP setting and Specifying Port 9100.
Page 33 Select AppleTalk from the pop-up menu. Select MC7450-xxxxxx. "XXXXXX" refers to the last six digits of the MAC address (in hexadec- imal). Select KONICA MINOLTA from the Printer Model pop-up menu. Print Center Settings (Mac OS X 10.2)
Page 34: Rendezvous Setting
Select KONICA MINOLTA mc7450 PPD in the Name list. Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. Rendezvous Setting Connect the printer to an Ethernet network.
Page 35 Select Rendezvous from the pop-up menu. Select KONICA MINOLTA magicolor 7450(xx:xx:xx). "xx:xx:xx" refers to the last six digits of the MAC address (in hexadeci- mal). Select KONICA MINOLTA from the Printer Model pop-up menu. Print Center Settings (Mac OS X 10.2)
Page 36 Select KONICA MINOLTA mc7450 PPD in the Model Name list. Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. Print Center Settings (Mac OS X 10.2)
Page 37: Ip Printing Setting
IP Printing Setting Connect the printer to an Ethernet network. Open Print Center, which can be accessed by clicking Startup Disk, then Applications, then Utilities. Click Add in the Printer List. Select IP Printing from the pop-up menu. Print Center Settings (Mac OS X 10.2)
Page 38 Enter the IP address for the printer in the Printer's Address text box. Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Model Name list. Print Center Settings (Mac OS X 10.2)
Page 39: Ipp Setting
Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. IPP Setting Connect the printer to an Ethernet network. Open Print Center, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 40 Select Advanced from the pop-up menu. Select Internet Printing Protocol (http) from the Device pop-up menu. Enter the name for the printer in the Device Name text box. Print Center Settings (Mac OS X 10.2)
Page 41 In the Device URI text box, enter "http://<IP address>/ipp". Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Name list. Print Center Settings (Mac OS X 10.2)
Page 42: Specifying Port 9100
Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. Specifying Port 9100 Connect the printer to an Ethernet network. Open Print Center, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 43 Select Advanced from the pop-up menu. Select AppSocket/HP JetDirect from the Device pop-up menu. Enter the name for the printer in the Device Name text box. Print Center Settings (Mac OS X 10.2)
Page 44 In the Device URI text box, enter "socket://<IP address>". Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Name list. Print Center Settings (Mac OS X 10.2)
Page 45 Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. Print Center Settings (Mac OS X 10.2)
Page 46: Printer Setup Utility Settings (Mac Os X 10.3)
Printer Setup Utility Settings (Mac OS X 10.3) When Using a USB Connection Use a USB cable to connect the printer to your computer. Check that the printer is turned on, and then restart the computer. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 47 Check that KONICA MINOLTA mc7450 PPD is selected in the Printer Model list. Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60.
Page 48: When Using A Network Connection
When Using a Network Connection The network connection settings can be specified IP printing Setting (IPP, LPD or Socket). AppleTalk Setting Connect the printer to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities. Click Add in the Printer List.
Page 49 "XXXXXX" refers to the last six digits of the MAC address (in hexadec- imal). Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Model Name list. Click Add. The new printer appears in the Printer List screen.
Page 50: Rendezvous Setting
Disk, then Applications, then Utilities. Click Add in the Printer List. Select Rendezvous from the pop-up menu. Select KONICA MINOLTA magicolor 7450(xx:xx:xx) in the Name list. "xx:xx:xx" refers to the last six digits of the MAC address (in hexadeci- mal).
Page 51: Ip Printing Setting
Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Model Name list. Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options”...
Page 52 Click Add in the Printer List. Select IP Printing from the pop-up menu. Select desired print protocol from the Printer Type pop-up menu. - For an LPD setup, select LPD/LPR. - For an IPP setup, select Internet Printing Protocol. - For a port 9100 setup, select Socket/HP Jet Direct. Printer Setup Utility Settings (Mac OS X 10.3)
Page 53 Enter the IP address for the machine in the Printer Address text box. Select KONICA MINOLTA from the Printer Model pop-up menu. Select KONICA MINOLTA mc7450 PPD in the Model Name list. Printer Setup Utility Settings (Mac OS X 10.3)
Page 54 Click Add. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options” on page 60. Printer Setup Utility Settings (Mac OS X 10.3)
Page 55: Printer Setup Utility Settings (Mac Os X 10.4)
Printer Setup Utility Settings (Mac OS X 10.4) When Using a USB Connection Use a USB cable to connect the printer to your computer and check that the printer is turned on. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 56 Select magicolor 7450 in the Printer Browser. If magicolor 7450 does not appear, check that the printer is turned on and the USB cable is connected, and then restart the computer. Check that KONICA MINOLTA mc7450 PPD is selected in the Printer Using list. Click Add.
Page 57: When Using A Network Connection
When Using a Network Connection The network connection settings can be specified in one of several ways: Bonjour Setting, AppleTalk setting, IP printing setting (IPP, LPD or Socket). Bonjour Setting Connect the printer to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities.
Page 58 Select KONICA MINOLTA magicolor 7450(xx:xx:xx) in the Printer Browser. "xx:xx:xx" refers to the last six digits of the MAC address (in hexadeci- mal). Check that KONICA MINOLTA mc7450 PPD is selected in the Print Using list. Click Add. Printer Setup Utility Settings (Mac OS X 10.4)
Page 59 Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit and Duplex Unit according to your printer setup. Click Continue. The new printer appears in the Printer List screen. Printer Setup Utility Settings (Mac OS X 10.4)
Page 60: Appletalk Setting
AppleTalk Setting Connect the printer to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities. In the Printer List, click Add. The detected printer appears in the Printer Browser. Printer Setup Utility Settings (Mac OS X 10.4)
Page 61 Select MC7450-xxxxxx in the Printer Browser. "xxxxxx" refers to the last six digits of the MAC address (in hexadeci- mal). Check that KONICA MINOLTA mc7450 PPD is selected in the Printer Using list. Click Add. The new printer appears in the Printer List screen.
Page 62: Ip Printing Setting
IP Printing Setting Connect the printer to an Ethernet network. Open Printer Setup Utility, which can be accessed by clicking Startup Disk, then Applications, then Utilities. Click Add in the Printer List. Click IP Printer. Printer Setup Utility Settings (Mac OS X 10.4)
Page 63 Select desired print protocol from the Protocol pop-up menu. -For an IPP setup, select Internet Printing Protocol - IPP. -For an LPD setup, select Line Printer Daemon - LPD. -For a port 9100 setup, select HP Jet Direct - Socket. Printer Setup Utility Settings (Mac OS X 10.4)
Page 64 Enter the IP address for the printer in the Address text box. -For an IPP setup, type “ipp” in the Queue text box. Check that KONICA MINOLTA mc7450 PPD is selected in the Printer Using list. Click Add. Printer Setup Utility Settings (Mac OS X 10.4)
Page 65 Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit and Duplex Unit according to your printer setup, and then click Continue. The new printer appears in the Printer List screen. Printer Setup Utility Settings (Mac OS X 10.4)
Page 66: Printer Settings (Mac Os X 10.5/10.6)
Printer Settings (Mac OS X 10.5/10.6) When Using a USB Connection Use a USB cable to connect the printer to your computer. Select System Preferences from the Apple menu. Click Print & Fax. In the Print & Fax, click + button. Printer Settings (Mac OS X 10.5/10.6)
Page 67 The detected printer appears in the Printer Browser. Select KONICA MINOLTA magicolor 7450 in the Printer Name list. Printer Settings (Mac OS X 10.5/10.6)
Page 68 If KONICA MINOLTA magicolor 7450 does not appear, check that the printer is turned on and the USB cable is connected, and then restart the computer. Check that KONICA MINOLTA mc7450 PPD is selected in the Print Using list. Click Add.
Page 69 Click Continue. The new printer appears in the Print & Fax screen. Printer Settings (Mac OS X 10.5/10.6)
Page 70: When Using A Network Connection
When Using a Network Connection The network connection settings can be specified in one of three ways: Bon- jour Setting, AppleTalk setting and IP printing setting (IPP, LPD or Socket). Bonjour Setting Connect the machine to an Ethernet network. Select System Preference from the Apple menu. Click Print &...
Page 71 The detected printer appears in the Printer Browser. Select KONICA MINOLTA magicolor 7450(xx:xx:xx) in the Printer Name list. “xx:xx:xx” refers to the last six digits of the MAC address (in hexadeci- mal). Printer Settings (Mac OS X 10.5/10.6)
Page 72 Check that KONICA MINOLTA mc7450 PPD is selected in the Print Using list. Click Add. Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit, and Duplex Unit according to your printer setup. Click Continue. The new printer appears in the Print & Fax screen.
Page 73: Appletalk Setting
AppleTalk Setting Connect the machine to an Ethernet network. Select System Preference from the Apple menu. Click Print & Fax. In the Print & Fax, click + button. The detected printer appears in the Printer Browser. Printer Settings (Mac OS X 10.5/10.6)
Page 74 Select MC7450-xxxxxx in the Printer Name list. "xxxxxx" refers to the last six digits of the MAC address (in hexa- decimal). Check that KONICA MINOLTA mc7450 PPD is selected in the Print Using list. Printer Settings (Mac OS X 10.5/10.6)
Page 75 Click Add. Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit, and Duplex Unit according to your printer setup. Click Continue. The new printer appears in the Printer List screen. If any options are installed, select them. For details, refer to “Selecting Print Options”...
Page 76: Ip Printing Setting
IP Printing Setting Connect the machine to an Ethernet network. Select System Preference from the Apple menu. Click Print & Fax. In the Print & Fax, click + button. Printer Settings (Mac OS X 10.5/10.6)
Page 77 Click IP. Select desired print protocol from the Protocol pop-up menu. - For an IPP setup, select Internet Printing Protocol - IPP. - For an LPD setup, select Line Printer Daemon - LPD. - For a port 9100 setup, select HP Jetdirect - Socket. Printer Settings (Mac OS X 10.5/10.6)
Page 78 Enter the IP address for the machine in the Address text box. - For an IPP setup, type “ipp” in the Queue text box. Check that KONICA MINOLTA mc7450 PPD is selected in the Print Using list. Click Add. Printer Settings (Mac OS X 10.5/10.6)
Page 79 Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit, and Duplex Unit according to your printer setup. Cliclk Continue. The new printer appears in the Print & Fax screen. Printer Settings (Mac OS X 10.5/10.6)
Page 80: Selecting Print Options
Selecting Print Options For Mac OS X 10.2/10.3/10.4 Open Printer Setup Utility (Print Center), which can be accessed by clicking Startup Disk, then Applications, then Utilities. Select this printer in the Printer List, and then select Show Info from the Printers menu.
Page 81 Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit and Duplex Unit pop-up menus according to your printer setup, and then click Apply Changes. Close the Printer Info dialog box. Selecting Print Options...
Page 82: For Mac Os X 10.5/10.6
For Mac OS X 10.5/10.6 Select System Preference from the Apple menu. Click Print & Fax. Select this printer in the Printers List, and then click Options & Sup- plies. Select Driver. Selecting Print Options...
Page 83 Select the appropriate settings in the Printer Memory, Hard Disk, Paper Source Unit, and Duplex Unit according to your printer setup. Click OK. Close the Print & Fax screen. Selecting Print Options...
Page 84: Specifying Page Setup Settings
Specifying Page Setup Settings The following dialog box appears when Page Setup... is selected from the File menu in the application being used. Select Page Setup... from the File menu. The Page Setup dialog box appears. Select this printer in the Format for pop-up menu. You can select the following sections from the Settings pop-up menu.
Page 85: Page Attributes Options
Page Attributes Options The Page Attributes section is used to specify the settings for the paper size, scaling, and print orientation. Paper Size Select the desired paper size from the Paper Size pop-up menu. Orientation Select either a vertical or horizontal page orientation for printouts. Scale If you want to enlarge or reduce the size of the printout, enter the scale ratio here (25-400%)
Page 86: Custom Paper Size Options
Custom Paper Size Options The Custom Page Size section is used to specify the dimensions for a cus- tom page size. Click this button to create a new custom page size. Click this button to delete a custom page size. Duplicate Click this button to duplicate (copy) the settings of an existing custom page size and create a new custom page size based on those settings.
Page 87 Specifying Print Settings (Mac OS X 10.4) The following dialog box appears when Print... is selected from the File menu in the application being used. Select Print... from the File menu. The Print dialog box appears. Select this printer in the Printer pop-up menu. The Print dialog box is used to specify the following print options.
Page 88: Print Dialog Box
Print Dialog Box Section Description Copies & Pages This section contains options for the number of copies to be printed and the range of pages to print. Layout This section contains options for specifying the page layout when printing and the setting for double-sided printing.
Page 89: Common Buttons
Section Description Supply Levels This section provides information for check- ing the amount of service life remaining on each consumable. Summary This is used to check the current settings. No warning message will be displayed if options cannot be used together are selected.
Page 90: Copies & Pages
Copies & Pages The Copies & Pages section is used to specify the number of copies to print and the range of pages to print. Copies This specifies the number of copies to be printed. If the Collated check- box is selected, all pages in the documents are printed as sets of print- outs.
Page 91: Layout
Layout The Layout section is used to specify the page layout when printing and the setting for double-sided printing. Pages per Sheet Specifies the number of pages to be printed on one sheet of paper. For example, if 2 is selected, two pages are printed on one sheet of paper. Layout Direction If you are printing more than one page per sheet, this specifies the direc- tion and order the pages should be arranged on each sheet of paper.
Page 92: Scheduler
To print on both sides of the paper, Duplex Unit must be selected under Installable Options (p. 60). The Long-edged binding check box or Short-edged binding check box can be selected even when the Duplex Unit is not installed. How- ever, in this case, the print job will be cancelled.
Page 93: Paper Handling
Paper Handling The Paper Handling section is used to specify the pages that are to be printed and the order in which the pages are printed. Page Order Automatic: Select this option to print in the original page order of the document. Normal: Select this option to print in the normal page order.
Page 94: Colorsync
ColorSync Color Conversion Allows you to select host-based color matching or printer-based color matching. Quartz Filter Allows you to select Quartz Filter. Cover Page Print Cover Page Allows you to set cover page before or after document. Cover Page Type Allows you to select cover page type.
Page 95: Error Handling
Billing Info Allows you to set billing information printed on cover page. Error Handling PostScript Errors Allows you to select whether or not a report is outputted when a Post- Script error occurs. Tray Switching This feature is not available with this printer. Specifying Print Settings (Mac OS X 10.4)
Page 96: Paper Feed
Paper Feed The Paper Feed section is used to specify the paper feed setting. All pages from All pages in the document are printed using the paper in the specified paper tray. First page from The first page of the document is printed on paper from a paper tray differ- ent from the tray used to print the rest of the document.
Page 97: Color Options
Color Options Quick Color Allows you to select a color preset. When Custom is selected, Advanced Color Options button becomes effective. Brightness Allows you to set Brightness. Color as Grayscale Allows you to set Grayscale color. Color Separation Allows you to set Color Separation. Advanced Color Options Click this button to display the Advanced Color Options pane.
Page 98: Advanced Color Options/Image
Advanced Color Options/Image RGB Source Allows you to select RGB color profiles for images. RGB Intent Allows you to select color intent for RGB images. RGB Gray Treatment Allows you to select RGB gray treatment for images. Destination Profile Allows you to select Destination Profile for images. Halftone Allows you to select halftone for images.
Page 99: Advanced Color Options/Text
In order to start up Download Manager from the Advanced Color Options pane, Download Manager must be copied into the folder at the path Application\Download Manager mc7450. After creating the folder "Download Manager mc7450" in the "Application" folder, copy Download Manager into the created folder. Advanced Color Options/Text RGB Source Allows you to select RGB color profiles for text.
Page 100: Advanced Color Options/Graphics
Manage Profile Click this button to display the Color Profile Management dialog box. From this dialog box, color profiles can be added or deleted to those avail- able as settings for RGB Source, Destination Profile and Simulation Profile of the Advanced Color Options pane. Download Manager Click this button to start up the installed Download Manager.
Page 101 Destination Profile Allows you to select Destination Profile for graphics. Halftone Allows you to select halftone for graphics. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane. Manage Profile Click this button to display the Color Profile Management dialog box. From this dialog box, color profiles can be added or deleted to those avail- able as settings for RGB Source, Destination Profile and Simulation Profile of the Advanced Color Options pane.
Page 102: Advanced Color Options/Simulation
Advanced Color Options/Simulation Simulation Profiles Allows you to select color profiles for simulation. Match Paper Color Allows you to set Match Paper Color. CMYK Gray Treatment Allows you to select Simulation gray treatment. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 103: Printer Features
Printer Features Nearest Size and Scale If no paper tray contains paper of the specified size, the page is automati- cally enlarged or reduced and paper of the most appropriate size is selected. Manually Print on 2nd Side This feature must be set when you set paper already printed on the front side.
Page 104: Supply Levels
Supply Levels The Supply Levels section provides information for checking the amount of service life remaining on each consumable. The Supply Levels section appears when a printer is created on Mac OS X v10.4 with a Bonjour, IPP, LPD, Socket connection. The Supply Levels section may not appear depending on the applica- tion you use.
Page 105: Summary
Summary The Summary is used to check the currently selected print settings. Specifying Print Settings (Mac OS X 10.4)
Page 106: Specifying Print Settings (Mac Os X 10.5/10.6)
Specifying Print Settings (Mac OS X 10.5/ 10.6) The following dialog box appears when Print... is selected from the File menu in the application being used. Select Print... from the File menu. The Print dialog box appears. Select this printer in the Printer pop-up menu. The Print dialog box is used to specify the following print options.
Page 107: Common Buttons
Section Description Scheduler This section contains options for specifying the print timing and priority of jobs. Color Options This section contains options for color print- ing. Printer Features This section contains options for specifying whether or not paper of the nearest size is automatically detected when no paper tray is loaded with paper of the same size as the document and for specifying how the back of...
Page 108: Layout
In order to use the collate function, the optional hard disk kit must be installed. If a collate function is provided with the application, the setting speci- fied from the application is given priority, and the setting specified in the printer driver is ignored. Pages All: Prints all pages in the document.
Page 109: Color Matching
Border This prints a border around the image for each of the pages printed on one sheet of paper when more than one page is printed on one sheet of paper. Two-Sided Select the desired setting for double-sided printing. Off: Double-sided printing is not performed.
Page 110: Paper Handling
Profile Allows you to select ColorSync Profile. Paper Handling The Paper Handling section is used to specify the pages that are to be printed and the order in which the pages are printed. Pages To Print All pages: Select this option to print all pages. Odd Only: Select this option to print only the pages with odd page num- bers.
Page 111: Paper Feed
Reverse: Select this option to print in the reverse page order. Paper Feed The Paper Feed section is used to specify the paper feed setting. All pages from All pages in the document are printed using the paper in the specified paper tray.
Page 112: Cover
Cover Page Print Cover Page Allows you to set cover page before or after document. Cover Page Type Allows you to select cover page type. Billing Info Allows you to set billing information printed on cover page. Specifying Print Settings (Mac OS X 10.5/10.6)
Page 113: Scheduler
Scheduler The Scheduler section is used to specify the timing and priority for printing jobs. Print Document Now: Select this option to begin printing immediately. Specify the time to begin printing. On Hold: Select this option to hold the print job. Priority Select the priority for printing jobs that are being held.
Page 114: Color Options
Color Options Quick Color Allows you to select a color preset. Brightness Allows you to set Brightness. Color as Grayscale Allows you to set Grayscale color. Color Separation Allows you to set Color Separation. Advanced Color Options Click this button to display the Advanced Color Options pane. Specifying Print Settings (Mac OS X 10.5/10.6)
Page 115: Advanced Color Options/Image
Advanced Color Options/Image RGB Source Allows you to select RGB color profiles for images. RGB Intent Allows you to select color intent for RGB images. RGB Gray Treatment Allows you to select RGB gray treatment for images. Destination Profile Allows you to select Destination Profile for images. Halftone Allows you to select halftone for images.
Page 116: Advanced Color Options/Text
Advanced Color Options/Text RGB Source Allows you to select RGB color profiles for text. RGB Intent Allows you to select color intent for RGB text. RGB Gray Treatment Allows you to select RGB gray treatment for text. Destination Profile Allows you to select Destination Profile for text. Halftone Allows you to select halftone for text.
Page 117: Advanced Color Options/Graphics
Advanced Color Options/Graphics RGB Source Allows you to select RGB color profiles for graphics. RGB Intent Allows you to select color intent for RGB graphics. RGB Gray Treatment Allows you to select RGB gray treatment for graphics. Destination Profile Allows you to select Destination Profile for graphics. Halftone Allows you to select halftone for graphics.
Page 118: Advanced Color Options/Simulation
Advanced Color Options/Simulation Simulation Profiles Allows you to select color profiles for simulation. Match Paper Color Allows you to set Match Paper Color. CMYK Gray Treatment Allows you to select Simulation gray treatment. Hide Advanced Options Click this button to hide the Advanced Color Options pane and display the Color Options pane.
Page 119: Printer Features
Printer Features Nearest Size and Scale If no paper tray contains paper of the specified size, the page is automati- cally enlarged or reduced and paper of the most appropriate size is selected. Manually Print on 2nd Side This feature must be set when you set paper already printed on the front side.
Page 120: Supply Levels
Supply Levels The Supply Levels section provides information for checking the amount of service life remaining on each consumable. The Supply Levels section appears when a printer is created on Mac OS X 10.5 and 10.6 with a Bonjour, IPP, LPD, Socket connection. The Supply Levels section may not appear depending on the applica- tion you use.
Page 121: Summary
Summary The Summary is used to check the currently selected print settings. Specifying Print Settings (Mac OS X 10.5/10.6)
Page 122: Specifying The Color Profile
Specifying the Color Profile Use Download Manager to download any color profile to the hard disk or the CompactFlash card of the machine. By adding color profiles to the printer driver, printing can be performed by specifying any color profile. The procedure for specifying the color profile on Mac OS X 10.5 is described below.
Page 123 Click Download, and then select Disk beside Location. Click Browse, and then select the color profile to be downloaded. File names for color profiles should be in the following format: 8 or less ASCII characters + 3 or less ASCII extension characters. Click Download Profile.
Page 124: Specifying Printer Driver Settings
Click OK. Click Exit. Save to the computer the color profile downloaded to the printer. Next, specify the printer driver settings. Specifying Printer Driver Settings Add the color profile to the printer driver. Display the Print dialog box for the application. Select Color Options.
Page 125 Select Custom beside Quick Color, and then click Advanced Color Options. Click Manage Profile. Specifying the Color Profile...
Page 126 From Profile List, select the profile to be added, and then click Add. For an IPP (Internet Printing Protocol), LPD (Line Printer Daemon) or Socket/HP JetDirect (Port 9100) connection, continue with step Specifying the Color Profile...
Page 127 Click Browse, and then select the color profile saved to the computer in the previous section. If necessary, type a description of the profile in the Profile Name box. Click OK. Specifying the Color Profile...
Page 128 Check that the color profile is added to the list and that the check box beside its file name is selected, and then click OK. Select the added color profile before printing. Specifying the Color Profile...
Page 129: Troubleshooting
Troubleshooting Symptom Solution The setting in the saved Depending on the functions selected for the presets are not applied. printer, some preset settings are not saved. Media type error appears. If a media type, such as “Transparency,” is (OS X 10.2 only) specified for Tray 3, Tray 4 or Tray 5, a media type error appears and the printer stops.
Page 130 Symptom Solution While printing from Acrobat If a printing error occurs with Acrobat Reader, Reader, the pages are not print using the Preview application provided correctly collated or the by the operating system. print job is cancelled. When using Mac OS X This is a limitation of the operating system.
Page 131: Operation On Mac Os 9
Operation on Mac OS 9...
Page 132: System Requirements For The Printer Driver
System Requirements for the Printer Driver Before installing the printer driver, make sure that your system meets the fol- lowing system requirements. Computer Apple Macintosh computer with a Pow- erPC G3 or later processor (PowerPC G4 or later is recommended) Connection between computer USB connection and printer...
Page 133: Installing The Printer Driver
Installing the Printer Driver Before proceeding with the installation, be sure to exit all running applications. The procedure for installing the printer driver on Mac OS 9.2 is described below. The following procedure or some steps may be dif- ferent depending on the version of the operating system being used. Complete the installation according to the instructions in the dialog boxes that appear.
Page 134 Click Install. The installer installs the printer driver. Installation starts. After the installation has been completed, click Quit. This completes the installation of the printer driver. Installing the Printer Driver...
Page 135: Selecting The Printer In The Chooser
Selecting the Printer in the Chooser Use the Chooser to use AppleTalk to connect the printer. Use an 10Base-T/100Base-TX/1000Base-T cable to connect the printer to a Ethernet network. Select Chooser from the Apple menu. When using Mac OS X, the Apple menu is available with the icon for the Classic environment in the menu bar.
Page 136 Select the LaserWriter 8 icon from the icons on the left side of the Chooser. The printer name appears in the Select a printer section on the right side of the Chooser. Select the printer. Click Create. Select KONICA MINOLTA mc7450PS en, then click Select. Selecting the Printer in the Chooser...
Page 137 - Korean: KONICA MINOLTA mc7450PS ko - Dutch: KONICA MINOLTA mc7450PS nl - Portuguese: KONICA MINOLTA mc7450PS pt_BR - Simplified Chinese: KONICA MINOLTA mc7450PS zh_CN - Traditional Chinese: KONICA MINOLTA mc7450PS zh_TW Select the options that are installed, and then click OK.
Page 138: Selecting The Printer In The Desktop Printer Utility
Selecting the Printer in the Desktop Printer Utility Use the Desktop Printer Utility to use a USB cable to connect the printer. Use the USB cable to connect the printer and your computer. From Hard Disk, select Desktop Printer Utility. Select LaserWriter 8 from With pop-up menu.
Page 139: Selecting The Printer In The Desktop Printer Utility
Select KONICA MINOLTA mc7450PS en from the list of PPD files. Click Select. Click Change to select the USB Printer. Select magicolor 7450 from the Select a USB Printer list. Selecting the Printer in the Desktop Printer Utility...
Page 140 Click OK. Click Create. Click Save. Specify a printer name in the Save desktop printer as text box, and then click Save. The icon for magicolor 7450 appears on the desktop. In the Classic environment, no icon appears on the desktop. Selecting the Printer in the Desktop Printer Utility...
Page 141: Selecting Print Options
Selecting Print Options Click the printer icon that was created. Select Printing - Change Setup… from the menu bar. Select the option that you want to change in Change under Installable Options, and then change the setting in To. To set the options automatically, click Auto Setup. Click OK.
Page 142: Specifying Page Setup Settings
Specifying Page Setup Settings The Page Setup dialog box appears when Page Setup... is selected from the File menu. Page Attributes Options The Page Attributes section is used to specify the options for the Paper Size, scaling, and page orientation. Paper Select the desired Paper Size from the Paper pop-up menu.
Page 143: Specifying A Custom Paper Size
Specifying a Custom Paper Size You can also specify a paper size that is not listed in the Paper pop-up menu. Select Custom Page Sizes from the pop-up menu, in the Page Setup dialog box. Click New. The following dialog box appears. Paper Size Enter the dimensions of the paper height and width for the custom page size.
Page 144 Enter a name for the custom paper size in the Custom Page Size Name field, enter the dimensions in the Width and Height fields, enter the mar- gins in Margins fields, and then click OK. The default units used for the dimensions for Width, Height and Mar- gins is inches.
Page 145: Specifying Print Settings
Specifying Print Settings The following dialog box appears when Print... is selected from the File menu in the application being used. You can specify the following options from the Print dialog box. Specifying Print Settings...
Page 146: Print Dialog Box Options
Print Dialog Box Options Section Description General This section contains options for the number of copies to be printed, the paper source, and the range of pages to be printed. Background Printing This section contains options for spooling the print data for background or foreground print- ing and the document printing time.
Page 147: Common Buttons
No warning message will be displayed if options that cannot be used together are selected. Common buttons Cancel Click this button to close the Print dialog box without applying any of the settings. Click this button to print using the selected print options. Save Settings Click this button to save configuration changes made in the print dialog.
Page 148: General Options
General Options Copies Allows you to specify how many copies of the print job you want printed. Collated If this item is selected, your print job is collated (one complete copy of the document is printed before the next copy is printed). Left unselected, the printing is uncollated.
Page 149: Background Printing
Background Printing Print in Allows you to choose between printing in foreground and printing in back- ground. Printing in background creates a spool file that is temporarily saved on your computer until the print job is ready to be processed. This allows you to continue working in your applications while the print job is processing.
Page 150: Color Matching
Color Matching Print Color Allows you to choose from the color configurations available on your com- puter. Intent Allows you to specify the color matching configuration or allow for auto- matic configuration. This item is disabled (grayed out) unless ColorSync Color Matching is the selected Print Color setting.
Page 151: Cover Page
Cover Page Print Cover Page Lets you choose whether to print a cover page, and specify Page the placement of the cover page in relation to the remaining pages of the print job. Cover Page Paper Source Allows you to select the paper tray containing the cover Paper Source page media.
Page 152: Font Settings
Font Settings Font Documentation – Annotate Font Keys: Allows you to determine if the font keys are anno- tated. Font Downloading – Preferred Format: Allows you to select the preferred font format. – Always download needed fonts: If selected, fonts should always be downloaded to the printer.
Page 153: Job Logging
Job Logging If there is a PostScript error Allows you to select whether or not a report is outputted when a PostScript error occurs. Job Documentation Allows you to specify generating a job copy in the folder specified as the Job Documentation Folder, and generating a job font log following the completion of the print job.
Page 154: Layout
Layout Pages Per sheet Allows you to set the number of logical pages per physical sheet. Layout direction Lets you identify either left-right or right-left logical page direction on the physical sheet. Border Allows you to select a border to surround each logical page. Print on Both Sides Allows you to configure the print job for duplex printing.
Page 155: Save As File
Save as File Format Select the file format of the output file. PostScript Level Allows you to select from available PostScript levels. Data Format Sends the print job data to the file in either ASCII or Binary format. Font Inclusion Allows you to choose the fonts that are included with the Inclusion print job as it is saved to a file.
Page 156: Watermark
Watermark Text Allows you to select watermark text. In the text box, type in the text to appear in the watermark when Custom is selected. Font Allows you to select watermark font type. Size Allows you to select watermark font size. Color Allows you to select watermark font color.
Page 157: Job Retention
Job Retention Job Retention Select type of job. – Print: The job is printed normally. – Secured Job: Printer dose not print the job without the panel opera- tion. Printer prints the job when you input Security ID correctly. The job is deleted after all copies are printed.
Page 158: Color Options
To use Job Retention feature, the optional Hard Disk must be installed on the printer. In addition, the printer must be set up with the Chooser to use the Hard Disk. For details on selecting the Hard Disk with the Chooser, refer to “Selecting Print Options”...
Page 159: Image Options, Text Options, Graphics Options
Image Options, Text Options, Graphics Options RGB Source Allows you to select RGB color profiles for images, text and graphics. RGB Intent Allows you to select RGB intent for images, text and graphics. RGB Gray Treatment Allows you to select RGB gray treatment for images, text and graphics. Halftone Allows you to select halftone for images, text and graphics.
Page 160: Simulation Options
Simulation Options Simulation Profiles Allows you to select RGB color profiles for simulation. Match Paper Color Allows you to set Match Paper Color. CMYK Gray Treatment Allows you to select CMYK gray treatment. Specifying Print Settings...
Page 161: Printer Features
Printer Features Nearest Size and Scale If no paper tray contains paper of the specified size, the page is automati- cally enlarged or reduced and paper of the most appropriate size is selected. Manually Print on 2nd Side This feature must be set when you set paper already printed on the front side.
Page 162: Checking Print Jobs
Checking Print Jobs To check the progress of print jobs, double-click the magicolor 7450 desktop printer icon. In the Classic environment, Print Monitor automatically starts up, and the icon appears in the Dock. Click the Print Monitor icon to check the status of print jobs. Checking Print Jobs...
Page 163: Troubleshooting
Troubleshooting Symptom Action When printing on both Both sides of paper with a custom size can- sides of paper with a cus- not be printed on. In addition, there are limita- tom size, an error occurs. tions on the media types that can be selected.
Page 164 Troubleshooting...
Page 165 Operation on Linux...
Page 166: System Requirements For The Printer Driver
System Requirements for the Printer Driver Before installing the printer driver, make sure that your system meets the fol- lowing system requirements. Operating systems Red Hat Linux 9.0, SuSE Linux 8.2 Connecting the computer USB connection, Parallel connection, Net- and printer work connection (10Base-T/100Base-TX/ 1000Base-T) More than OS recommendation (128 MB or...
Page 167: Installing Ppd File From The Command Line
Root privileges are required in order to install ppd file. Copy the ppd file from the Printer Driver CD/DVD to the “/usr/share/cups/ model/KONICA MINOLTA/” on the computer. A ppd file for each language is available in the corresponding “Drivers/LinuxPPD/<language>” folder on the CD/DVD. Use the appropriate ppd file for the language.
Page 168: Adding The Printer
Adding the Printer After copying the PPD file, be sure to restart CUPS. Start up the Web browser. Enter the URL “http://localhost:631”, and then click Manage Printers. The CUPS Administration Web page appears. Click Add Printer. A pop-up window appears. Enter the user name and password for using root privi- leges, and then click OK.
Page 169 IP or Printer Hostname>[:port] Example: Using Printer IP - socket:/ /192.168.1.190:9100 Using printer Hostname - socket://Hostname:9100 Hostname may be substituted by IP Address, and Port is optional. Click Continue. Select KONICA MINOLTA, click Continue. Adding the Printer...
Page 170 Select KONICA MINOLTA mc7450 PPD (en), then click Continue. The following message appears. Adding the Printer...
Page 171: Specifying Printer Driver Settings
Specifying Printer Driver Settings Displaying the Settings Page Start up the Web browser. Enter the URL “http://local- host:631”, and then click Manage Printers. Printer on localhost.local- domain window appears. Click Configure Printer. The printer driver settings page appears. Specifying Printer Driver Settings...
Page 172: Printer Driver Settings
Printer Driver Settings Extra Parameters Settings Brightness Specifies the brightness of the image as -15%, -10%, -5%, 0%, +5%, +10%, or +15%. The default setting is 0%. Color Separation Specifies the color separation as Yes or No. The default setting is No. Manually Print on 2nd side Select Yes when you set paper already printed on the front side.
Page 173: Graphics Options
Parameters Settings Paper Source Specifies the paper source as Tray 1, Tray 2, Tray 3, Tray 4, Tray 5, Tray 1 (Manual Feed), or Auto. The default setting is Tray 1. Paper Type Specifies the paper type as Printer Default, Plain Paper, Recycled, Transparency, Transparency 2, Glossy, Label, Thick 1 (91 - 150g/m...
Page 174: Image Options
Image Options Parameters Settings Image Halftone Specifies the halftone for graphics as Line Art, Detail, or Smooth. The default setting is Detail. Image RGB Gray Treat- Specifies the RGB Gray Treatment as Com- ment posite Black, Black and Gray, or Black Only.
Page 175: Simulation
Simulation Parameters Settings CMYK Gray Treatment Specifies simulation gray treatment as Com- posite Black, Black and Gray, or Black Only. The default setting is Composite Black. Match Paper Color Specifies the Match Paper Color. The default setting is No. Simulation Profile Specifies the simulation profile as None, SWOP, Euroscale, Commercial Press, DIC, or TOYO.
Page 176: Banners
Banners Parameters Settings Starting Banner Specifies the starting banner as none, clas- sified, confidential, secret, standard, topsecret, or unclassified. The default setting is none. Ending Banner Specifies the ending banner as none, classi- fied, confidential, secret, standard, topse- cret, or unclassified. The default setting is none.
Page 177: Printing A Document
Printing a Document The contents and available options that appear in the print dialog box may vary depending on the application being used. Example Using LPR Command With applications other than OpenOffice, the following print dialog box appears. Click Properties in the Print dialog box.
Page 178: Example Using Openoffice
Example Using OpenOffice The procedure for printing on Red Hat 9 with OpenOffice 1.0.2 is described below. The following procedure or some steps may be dif- ferent depending on the version of the operating system being used. First, use m7450PX.ppd to add the printer to the system. For details on adding a printer to the system, refer to “Adding the Printer”...
Page 179 Click Import. Click Browse. Driver Installation dialog box appears. In the Path, enter “/usr/ share/cups/model”. In the Selection of drivers list, select KONICA MINOLTA mc7450 OpenOffice PPD, and then click OK. Printing a Document...
Page 180 In the Please select a suit- able driver list, select KONICA MINOLTA mc7450 OpenOffice PPD, and then click Next. Select the command to be displayed in the list, then click Next. Change the printer name. Click Finish. The Printer Administration dialog box appears again.
Page 181 Click Print in the File menu. The Print dialog box appears. Select the name of the printer specified in the OpenOffice printer settings. Click OK. The kprinter Print dialog box appears. Printing a Document...
Page 182: Checking Print Jobs
Checking Print Jobs You can check the status of print jobs from a Web browser. Start up the Web browser. Enter the URL “http://local- host:631”. The CUPS Administration Web page appears. Click Manage Jobs. A list of the currently active print jobs appear.
Page 183: Troubleshooting
Troubleshooting Symptom Action The printer stops because The job may have been sent with a prohibited of a paper size error or a combination of settings (for example, for the paper type error. paper size and media type). Printing is not possible with postcards or overhead projector transparencies if Plain Paper is selected.
Page 184 Troubleshooting...
Page 185: Operation On Netware
Operation on NetWare...
Page 186: Printing With Netware
Printing With NetWare The printer controller supports the following environments. Network Printing in a NetWare Environment NetWare Version Protocol Used Emulation Service Mode NetWare 4.x Bindery/NDS Pserver/Nprinter NetWare 5.x/6 Pserver TCP/IP NDPS(lpr) For Remote Printer Mode With NetWare 4.x Bindery Emulation Before using bindery emulation, check that bindery emulation is compatible with the NetWare server.
Page 187 In Administrator mode of PageScope Web Connection, select Net Ware from the Network tab, and then specify the following settings. – Netware Print: Select Enable. – Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) –...
Page 188: For Print Server Mode With Netware 4.X Bindery Emulation
For Print Server Mode With NetWare 4.x Bindery Emulation Before using bindery emulation, check that bindery emulation is com- patible with the NetWare server. From a client computer, log on with Supervisor permissions to access the NetWare server where the Pserver is registered. Start up Pconsole.
Page 189: For Netware 4.X Remote Printer Mode (Nds)
– Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Mode: Select PServer. – Print Server Name: Specify the print server name created in step 4. – Print Server Password: Specify only when setting from the NetWare server. –...
Page 190 In Administrator mode of PageScope Web Connection, select NetWare from the Network tab, and then specify the following settings. – Netware Print: Select Enable. – Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Mode: Select NPrinter/RPrinter.
Page 191: For Netware 4.X/5.X/6 Print Server Mode (Nds)
For NetWare 4.x/5.x/6 Print Server Mode (NDS) To use the Print Server mode, the IPX protocol must be loaded on the NetWare server. Log on to NetWare as an administrator from a client computer. Start up NWadmin. Select either the organization or organizational unit container that offers the print service, and then click Print Services Quick Setup (non-NDPS) on the Tools menu.
Page 192: For Netware 5.X/6 Novell Distributed Print Service (Ndps)
– Frame Type: Select Auto. (Select the frame type according to the network envi- ronment.) – Mode: Select PServer. – Print Server Name: Specify the print server name created in step – Print Server Password: Specify only when setting from the Net- Ware server.
Page 193: Setting Up A Client (Windows) Settings When Using The Netware Server
In the Gateway Types, select Novell Printer Gateway, and then register In the Configure Novell PDS for Printer Agent window, select (None) for the printer type and Novell Port Handler for the port handler type, and then register the settings. In Connection type, select Remote (LPR on IP), and then register it.
Page 194 Printing With NetWare...
Page 195: Printer Utilities
Printer Utilities...
Page 196: Installing Printer Utilities On Windows
Installing Printer Utilities on Windows You must have administrator privileges in order to install the Printer Management Utilities. Before proceeding with the installation, be sure to exit all running applications. If the User Account Control window appears when installing on Windows Vista/7/Server 2008, click the Continue button or the Yes button.
Page 197: Understanding The Ethernet Configuration Menus
Understanding the Ethernet Configuration Menus...
Page 198: Ethernet Menu
Ethernet Menu Location within the Configuration Menu PROOF/ READY PRINT MENU PRINT MENU PAPER MENU QUALITY MENU CAMERA DIRECT INTERFACE JOB TIMEOUT MENU ETHERNET ENABLE TCP/IP IP ADDRESS SUBNET MASK DEFAULT GATEWAY DHCP/ BOOTP TELNET NETWARE ENABLE SYS DEFAULT APPLETALK ENABLE MENU MAINTENANCE...
Page 199: Accessing The Ethernet Menu
Accessing the Ethernet Menu Use the following series of keystrokes at the printer to access the Ethernet menu options on your printer. This menu provides access to all of the config- urable network items. Press this (until) the message window reads. . . key .
Page 200: Using The Network Menu Options
Using the Network Menu Options If the printer is connected to a network, the following settings should be spec- ified. For details about each setting, contact your network administrator. When manually setting the IP address, Subnet Mask, and Gateway turn off DHCP first. TCP/IP ENABLE Purpose...
Page 201 DEFAULT GATEWAY Purpose Sets the address of the router/gateway if a router/gateway is used on your network and you allow users outside your network environment to print on your printer. Range 0–255 for each xxx triplet Use the Up and Down keys to increase or decrease each number;...
Page 202: Netware
NETWARE ENABLE Purpose Enables or disables NetWare. If YES is selected, NetWare is enabled. If NO is selected, NetWare is disabled. Options Default APPLETALK ENABLE Purpose Enables or disables AppleTalk. If YES is selected, AppleTalk is enabled. If NO is selected, AppleTalk is disabled. Options Default SPEED/DUPLEX...
Page 203: Network Printing
Network Printing...
Page 204: Network Connection
Network Connection Theory To connect your printer in a TCP/IP network environment, you must make sure that the internal network addresses in the printer have been set. In many cases, you have to enter only a unique IP address. However, you may also have to enter a subnet mask and/or a gateway (router) address,...
Page 205: Making The Connection
Making the Connection Ethernet Interface An RJ45 connector can be used as the Ethernet interface for this printer. When connecting your printer to an Ethernet network, the tasks you perform depend on how you plan to set the printer’s IP (Internet Protocol) address. Printers are shipped with a preset IP address, subnet mask, and gateway.
Page 206 When the printer’s message window displays , print a configura- READY tion page to verify that the IP address is set. If the configuration page was printed immediately after the mes- sage READY appeared, the updated IP address information may not be applied.
Page 207: Setting The Address Manually
Setting the Address Manually You may also manually change the printer’s IP address, subnet mask, and gateway by using the following instructions. (See chapter 6, “Understanding the Ethernet Configuration Menus,” for more information.) When manually setting the IP address, turn off DHCP and BOOTP first.
Page 208 Press this (until) the message window reads . . . key . . . ENABLE IP ADDRESS IP ADDRESS 000.000.000.000 Use the keys to move to each of the four number triplets. Use the keys to increase or decrease each number. IP ADDRESS xxx.xxx.xxx.xxx If you don’t want to set the subnet mask or gateway, go to step 5.
Page 209 Press this (until) the message window displays . . . key . . . Use the keys to move to each of the four number triplets. Use the keys to increase or decrease each number. SUBNET MASK xxx.xxx.xxx.xxx If you don’t want to set the gateway, go to step 5. If you want to set the gateway, follow these steps.
Page 210 Save your configuration changes and make the printer ready for printing again. Press this (until) the message window displays . . . key . . . Press the Cancel key 2 times to reboot the printer After rebooting the printer, print a configuration page to verify that the cor- rect IP address, subnet mask, and gateway have been set.
Page 211: Network Printing
Network Printing Network printing terms are described below. AppleTalk Bonjour BOOTP DDNS DHCP HTTP IPX/SPX LPD/LPR NetBEUI SNMP Port9100 SMTP This chapter contains descriptions on the network printing terms and the IPP printing methods. In addition to these protocols, this printer supports EtherTalk. AppleTalk A generic name for the protocol suite developed by Apple Computer for com- puter networking.
Page 212: Bootp
BOOTP BOOTP (Bootstrap Protocol) is an Internet protocol that enables a diskless workstation to discover (1) its own IP address, (2) the IP address of a BOOTP server on the network, and (3) a file that can be loaded into memory to boot the workstation.
Page 213: Ipp
IPP (Internet Printing Protocol) is a protocol for end users’ most common printing situations over the Internet. It allows users to find out about a printer’s capabilities, submit print jobs to a printer, determine the status of the printer or print job, and cancel a previously submitted print job. For more information on using IPP, See “Printing via IPP (Internet Printing Protocol)”...
Page 214: Snmp
Unicast, Multicast, and Broadcast SLP is a unicast and a multicast protocol. This means that messages can be sent to one agent at a time (unicast) or to all agents (that are listening) at the same time (multicast). However, a multicast is not a broadcast. In theory, broadcast messages are “heard”...
Page 215: Printing Via Ipp (Internet Printing Protocol)
Printing via IPP (Internet Printing Protocol) You must have administrator privileges in order to install the printer. If the User Account Control window appears when installing on Windows Vista/7/Server 2008, click the Continue button or the Yes button. With Windows Server 2008 When using Windows Server 2008, settings must be specified in the operat- ing system before the printer driver is installed.
Page 216 The connected printers are detected. Select this printer. [Search Setting]: To search for printers on other networks, click this but- ton. [Update List]: To update the printer information, click this button. Select Internet Printing as the printing method from the pull-down list, and then click Next.
Page 217: Adding An Ipp Port Using Add Printer Wizard - Windows Server 2003/Xp/2000
In the Confirm Installation Settings dialog box, click Install. [Installation Settings]: To change the settings, click this button. Click Finish. This completes the installation of the printer driver. Adding an IPP Port using Add Printer Wizard – Windows Server 2003/XP/2000 For Windows Server 2003/XP: Click start, select Printers and Faxes, and then click Add a Printer.
Page 218 In the second dialog box select the Network Printer (for Windows Server 2003/XP: A network printer, or a printer attached to another com- puter) radio button and then choose Next. Windows Server 2003/XP Windows 2000 In the URL field in the next dialog box enter the printer’s network path- name in one of the following formats and then choose Next: http://ipaddress/ipp http://ipaddress:80/ipp...
Page 219: Adding An Ipp Port Using Add Printer Wizard - Windows Vista/7/Server 2008
Windows Server 2003/XP—Go to step 4. Windows 2000—If you entered a valid path in the previous step, the fol- lowing message displays: “The server on which the KONICA MINOLTA magicolor 7450 printer resides does not have the correct printer driver installed.
Page 220 In the dialog box, click The printer that I want isn’t listed. In the URL field in the next dialog box enter the printer’s network path- name in one of the following formats and then choose Next: http://ipaddress/ipp http://ipaddress:80/ipp http://ipaddress:631/ipp Network Printing...
Page 221 Choose Have Disk, locate the directory on the CD/DVD where the printer driver files are located (for example: Drivers\Windows\color\Driv- ers\Win_x86\PS\english), and then choose Next. Finish installing the printer driver. Network Printing...
Page 222: If The Bit Number Differs Between The Server Operating System And Client Operating System
If the bit number differs between the server operating system and client operating system If the bit number differs between the print server's running operating system and client computer's running operating system while Windows Server 2008 is running on the print server, the additional driver may not be installed cor- rectly on the print server.
Page 223 From the print server (32 bits), map the client computer (64 bits) drive (for example, “C”), specified as a shared drive in step 1, as a network drive (for example, “z”). This setting is available for only PostScript driver. Install on the print server (32 bits) the driver for a 32-bit operating system. Network Printing...
Page 224 Right-click the printer that was installed, and then click the appropriate menu command to display printer properties. Select the Sharing tab, and then select the Share this printer check box. Click Additional Drivers. The Additional Drivers dialog box appears. Under Processor, select the x64 check box, and then click OK. Network Printing...
Page 225 Specify the folder containing the driver for a 64-bit operating system. A dialog box appears, requesting the location of the setup information file. Click Browse, and then select the setup information file (ntprint.inf) on the client computer mapped as a network drive. This setting is available for only PostScript driver.
Page 226: Troubleshooting
Troubleshooting Symptom Action SMB printing cannot be Follow the procedure described below to performed well. re-install the printer on a local computer. 1. Delete the printer icon from the printer folder. 2. Delete the printer driver and SMB port from the system. 3.
Page 227: Using Pagescope Web Connection
Using PageScope Web Connection...
Page 228: About Pagescope Web Connection
About PageScope Web Connection This chapter provides information on PageScope Web Connection, an HTTP (HyperText Transfer Proto- col)-based web page that resides in your printer and that you can access using your Web browser. This page gives you instant access to printer status and the most frequently used printer configuration options.
Page 229: When Connecting With Windows Server 2008
You cannot access PageScope Web Connection using a local (USB or Parallel) connection. When connecting with Windows Server 2008 When PageScope Web Connection is started on a computer running Win- dows Server 2008, only the System tab may appear, and the Job, Print and Network tabs may not.
Page 230: Setting Up The Printer Web
Setting Up the Printer Web Page Setting up the printer web page to run on your network involves two basic steps: Determining the name or address of your printer Setting up the “no proxy” preferences in your browser software Determining the Printer Name The printer web page can be accessed in two ways: The printer names can also be determined via WINS if the network supports it.
Page 231: Internet Explorer (Version 6.0 For Windows)
Our examples represent the IP address of the printer with: xxx.xxx.xxx.xxx. Always enter your printer's IP address without lead- ing zeros. For example, 192.168.001.002 should be entered as 192.168.1.2. Internet Explorer (version 6.0 for Windows) Start Internet Explorer. From the Tools menu choose Internet Options.
Page 232: Netscape Navigator (Version 7.1)
Netscape Navigator (version 7.1) Start Netscape Navigator. From the Edit menu choose Preferences. Select the Advanced/Proxies directory from the left pane of the dialog box. Select the Manual Proxy Configuration radio button. In the No Proxy for: text box, type a comma after the last entry, and then type the printer name or the IP address of your printer.
Page 233: Understanding The Pagescope Web Connection Window
The illustration below identifies the navigation and configuration areas of the windows that you see in PageScope Web Connection windows. Links to main Printer name Link to Current status topics KONICA MINOLTA web site Version information Access to Administrator Mode Display...
Page 234: Current Status
Current Status The current status of the printer is displayed at the top of all PageScope Web Connection windows. The icon displays the type of status being displayed. Icon Status Description Examples Ready The printer is online READY and either ready to WARMING UP print or printing.
Page 235: User Mode
User Mode You automatically enter User Mode whenever you enter PageScope Web Connection. In User Mode you can view configuration settings but not change them. Administrator Mode In order to change any configuration settings through PageScope Web Con- nection, you must first enter Administrator Mode: Choose the Login button.
Page 236: Viewing Printer Status
Viewing Printer Status System Page The System page is the starting point for all access to the printer’s internal web pages. On this page you find printer status and current configuration set- tings, printer identification, and links to all other web pages. All of the information displayed on the System page is read only.
Page 237: Summary (Previous Page)
Summary (previous page) The System - Summary window provides the following information. Item Description Printer name/status Shows the name assigned to your printer, and dis- plays the current status of the printer—just as it’s displayed on the printer’s control panel message window.
Page 238: Device Information
Device Information The System - Device Information window provides the following informa- tion. Item Description System Version Identifies the controller firmware version. Control Panel Identifies the display language for the printer control Language panel. Country Identifies the country specifications of the printer. Administrator Name Identifies the name of the administrator of the printer.
Page 239: Detail
Detail Paper Source The System - Detail - Paper Source window provides the following informa- tion. Item Description Paper Source Identifies the paper feed units Tray 1/2/3/4/5 installed on the printer. Paper Size Indicates the size of paper loaded in a specific tray. Paper Type Indicates the type of paper loaded in a specific tray.
Page 240 Paper Source (Detail) The System - Detail - Paper Source - Detail window provides the following information. Item Description Paper Source Displays the names of the paper trays. Paper Size Displays the paper sizes. Paper Type Displays the paper types. Capacity Displays the maximum capacity for each paper tray.
Page 241 Output Tray The System - Detail - Output Tray window provides the following informa- tion. Item Description Tray Displays the names of the output trays. Paper Displays the status (Ready, Full) of the output trays. Viewing Printer Status...
Page 242 Hard Disk The System - Detail - Hard Disk window provides the following information. Item Description Hard Disk Total Displays the total amount of space on the hard disk. If no hard disk drive is installed, “-” is dis- played. Used Displays the amount of space on the hard disk that is used.
Page 243 Interface Information The System - Detail - Interface Information window provides the following information. Item Description Protocol TCP/IP If Enable is displayed, TCP/IP is enabled. Information If Disable is selected, TCP/IP is disabled. If Enable is displayed, IPP is enabled. If Disable is selected, IPP is disabled.
Page 244 Item Description AppleTalk If Enable is displayed, AppleTalk is enabled. If Disable is displayed, AppleTalk is dis- abled. SMTP If Enable is displayed, SMTP is enabled. If Disable is displayed, SMTP is disabled. SNMP If Enable is displayed, SNMP is enabled. If Disabled is displayed, SNMP is disabled.
Page 245 Consumables Consumables Status Type The System - Details - Consumables window provides the following infor- mation: Item Description Consumables Identifies the type of consumable that is being moni- tored. Status Indicates the remaining life of the consumables Toner Cartridge, Imaging Unit, Transfer Belt, Fuser Unit: Percentage Waste Toner Bottle: Ready, Near Full, or Full Type...
Page 246: Counter
Counter The System - Counter window provides the following information: Item Description Pages Printed Indicates the number of monochrome/color pages printed and the number of normal/double-sided pages printed, respectively. Sheets Printed by Indicates the number of pages printed by paper Paper Size size.
Page 247: Online Assistance
Contact Information Displays the web address for assistance. Product Help URL Displays the web address for assistance. Corporate URL Displays the KONICA MINOLTA web address. Supplies and Displays the web address where you can order Accessories printer supplies and accessories.
Page 248: Job Page
Job Page This page allows you to view the status of current print jobs. Active Job List (shown above) The Job - Active Job List window provides the following information for up to 49 print jobs: Item Description Job Number Displays the print job identification number.
Page 249: Done Job List
Done Job List The Job - Done Job List window provides the following information for up to 49 print jobs: Item Description Job Number Displays the print job identification number. Each print job that the printer receives is assigned a Number unique identification number.
Page 250 Done Job List (Detail) The Job - Done Job List - Detail window provides the following information for the selected job: Item Description Job Number Displays the print job identification number. Each print job that the printer receives is assigned a Num- ber unique identification number.
Page 251: Print Page
Print Page This page allows you to check the settings for printing when there is no PDL printer driver. Default Settings General Settings (shown above) The Print - Default Settings - General Settings window provides the follow- ing information. Item Description Indicates default language to be selected.
Page 252 Item Description Output Tray Displays the name of the output tray. Copies Indicates the default setting for number of copies to be printed. Paper Size Indicates the default setting for the size of paper. Width Indicates the paper width when Paper Size is set to Custom Size.
Page 253 Paper Source Settings The Print - Default Settings - Paper Source Settings window provides the following information. Item Description Tray1 Paper Size Indicates the setting for the size of paper loaded into Tray 1. Width Indicates the paper width when Paper Size is set to Custom Size.
Page 254 Item Description Tray2 Paper Size Indicates the setting for the size of paper loaded into Tray 2. Width Indicates the paper width when Paper Size is set to Custom Size. Length Indicates the paper width when Paper Size is set to Custom Size. Paper Type Indicates the setting for the type of paper loaded into Tray 2.
Page 255 PCL Settings The Print - Default Settings - PCL Settings window provides the following information. Item Description Font Number Displays the default font in the PCL language. Symbol Set Displays the symbol set used with the PCL lan- guage. Lines Per Page Indicates how many lines are in a page in PCL lan- guage.
Page 256 PS Settings The Print - Default Settings - PS Settings window provides the following information. Item Description Wait Timeout Indicates Postscript timeout. “0” means that no time-out control is effective. PS Protocol Displays the settings for the PS protocol. Print to PS Error Displays whether or not error printing is performed.
Page 257 Print Quality Settings The Print - Default Settings - Print Quality Settings window provides the following information. Item Description Print Quality Set- Color Mode If Color is indicated, the pages are printed tings in full color. If Grayscale is indicated, the pages are printed in black and white.
Page 258 Item Description PCL Setting Contrast Indicates the contrast of the image. Image/Text Identifies the color space for RGB data. Printing (Source) Image/Text Indicates the color intent to be used on Printing (Intent) conversion RGB to CMYK by printer. Image/Text Indicates the method to reproduce RGB Printing (Gray black and gray.
Page 259 Item Description Image/Text/ Indicates how halftones are reproduced. Graphics Print- If Line Art is indicated, halftones are ing (Halftone) reproduced with high precision. If Detail is indicated, halftones are repro- duced with detail. If Smooth is indicated, halftones are reproduced with smoothness. Simulation Indicates the specific ICC simulation pro- (Profile)
Page 260 Camera Direct Settings The Print - Default Settings - Camera Direct Settings window provides the following information. Item Description Camera Direct Print If Enable is indicated, camera direct printing is enabled. If Disable is indicated, camera direct printing is dis- abled.
Page 261: Download Font/Form
Item Description RGB Gray Treatment Indicates the method for reproducing RGB, black and gray in images with camera direct printing. Halftone Indicates how halftones are reproduced with camera direct printing. If Line Art is indicated, halftones are reproduced with high precision. If Detail is indicated, halftones are reproduced with detail.
Page 262 PS Font The Print - Download Font/Form - PS Font page allows you to check the list of PostScript fonts that the printer manages. Item Description Number Displays the control number of the font. Font Name Displays the name of the fonts. Source Displays the location of the fonts.
Page 263 Form Overlay The Print - Download Font/Form - Form Overlay page allows you to check the list of form overlays that the printer manages. Item Description Number Displays the control number of the overlay. File Name Displays the name of the overlays. Source Displays the location of the overlays.
Page 264 Color Profile The Print - Download Font/Form - Color Profile page allows you to check the list of color profiles that the printer manages. Item Description Number Displays the control number of the color profile. File Name Displays the file name of the color profile. Profile Name Displays the name of the color profile.
Page 265: Report Types
Report Types The Print - Report Types window provides the following information. Item Description Configuration Page Prints the printer configuration page. Demo Page Prints the printer demo page. Statistics Page Prints the statistics page such as the number of pages printed. PCL Font Page Prints the PCL font lists.
Page 266: Direct Print
Direct Print The Print - Direct Print page allows you to print a file directly from the printer without starting up the application. The printer must have the optional hard disk kit or the CompactFlash to use the Direct Print parameters described below. The following file formats can be printed using direct printing: PDF, TIF and JPEG.
Page 267: Configuring The Printer
Configuring the Printer In order to make any configuration changes through PageScope Web Con- nection, you must first enter Administrator Mode. See “Administrator Mode” on page 215 for instructions on logging into Administrator Mode. System Page This page allows you to configure several user- and printer-specific items. Date/Time Manual Settings (shown above) The System - Date/Time - Manual Settings window allows you to configure...
Page 268 Item Description Specifies the day for the printer’s internal clock. Configuration Menu Equivalent: SYS DEFAULT MENU - CLOCK - DATE Hour Specifies the hour for the printer’s internal clock. Configuration Menu Equivalent: SYS DEFAULT MENU - CLOCK - TIME Minute Specifies the minute for the printer’s internal clock.
Page 269: Admin Password
Admin Password The System - Admin Password window allows you to configure the follow- ing items: Item Description Current Password Type in the current password. Range: Up to 16 characters Default: [Blank] New Password Sets a new password to enter Administrator Mode. Range: Up to 16 characters Default: [Blank] Passwords can be set to any string of...
Page 270 Item Description Retype New Password Verifies the new password typed in the New Pass- word text box. Range: Up to 16 characters Default: [Blank] If the password typed in three text boxes doesn’t match, the following message displays when you choose the Apply button: “Please retype the correct password.”...
Page 271: Device Information
Device Information The System - Device Information window allows you to configure the follow- ing items: Item Description Administrator Name Specifies the name of the administrator for the printer. Range: Up to 255 characters Default: [Blank] Device Name Specifies the name of the printer. Range: Up to 255 characters Default: [Blank] Device Place...
Page 272 Item Description Do Startup Page Selects whether or not a startup page is printed when the printer is turned on. Choices: On, Off Default: Off Configuration Menu Equivalent: SYS DEFAULT MENU - STARTUP OPTIONS-DO STARTUP PAGE Auto Continue Selects whether or not printing continues if the size or type of paper in the selected paper tray is differ- ent from the size or type of paper for the print job.
Page 273 Item Description Energy Saver Time Specifies the length of time until the machine enters Energy Saver mode. Choices: 15 Minutes, 30 Minutes, 1 Hours, 3 Hours Default: 30 Minutes Configuration Menu Equivalent: SYS DEFAULT MENU - ENERGY SAVER TIME Menu Timeout Specifies the length of time until the status screen is displayed when no operation is performed while a menu or help screen is displayed in the message...
Page 274: Rom Version
ROM Version The System - ROM Version window provides the following information. Item Description Engine ROM Version Displays the ROM version of the printer engine. Controller ROM Ver- Displays the ROM version of the printer controller. sion Boot ROM Version Displays the ROM version of the Boot ROM.
Page 275: Online Assistance
Product Help URL Sets the help web site address for printer assis- tance. Range: Up to 127 characters Default: http://printer.konicaminolta.com Corporate URL Sets the KONICA MINOLTA corporate web site address. Range: Up to 127 characters Default: http://printer.konicaminolta.com Configuring the Printer...
Page 276 Item Description Supplies and Accesso- Sets the web address where you can purchase ries printer supplies and accessories. Range: Up to 127 characters Default: http://www.q-shop.com Contact Phone Specifies the telephone number of the printer Number administrator. Range: Up to 31 characters Default: [Blank] Contact Address Specifies the address of the printer administrator.
Page 277: Maintenance
Maintenance Clear Settings The System - Maintenance - Clear Settings page allows you to reset the printer settings to its factory defaults. Item Description Printer Settings Resets the printer settings to their defaults. Configuration Menu Equivalent: SYS DEFAULT MENU - RESTORE DEFAULTS - RESTORE PRINTER Network Settings Resets the network settings to their defaults.
Page 278 Item Description Clear button When clicked, the message “Is it OK to restore Fac- tory Defaults?” appears. Click OK to automatically restart the printer and return the settings to their default values. Reset Printer The System - Maintenance - Reset Printer page allows you to reset the printer controller.
Page 279: Alert Mail
Alert Mail The System - Alert Mail window allows you to configure the following items: Item Description Alert Mail Email Notice Specifies whether or not a notification is sent by e-mail when a warning occurs in the printer. Choices: Enable, Disable Default: Enable Email Address Specifies the e-mail address where the...
Page 280 Item Description Alert Paper Empty Specifies whether or not a notification is sent when the paper tray runs out of paper. Choices: Enable, Disable Default: Enable Paper Jam Specifies whether or not a notification is sent when a paper misfeed occurs. Choices: Enable, Disable Default: Enable Maintenance...
Page 281 Item Description Apply button Applies the configuration settings for this window. Clear button Resets all configuration settings to previ- ous values. Configuring the Printer...
Page 282: Print Page
Print Page The Print page allows more detailed printer settings to be specified. Local Interface The Print - Local Interface window allows you to configure the following items: Item Description I/O Timeout Specifies the reception timeout (in seconds). Range: 5-300 Default: 15 Configuration Menu Equivalent: INTERFACE MENU - JOB TIMEOUT...
Page 283: Default Settings
Default Settings General Settings The Print - Default Settings - General Settings window allows you to con- figure the following items: Item Description Selects default language to be selected. Choices: Auto, PCL, PS Default: Auto Configuration Menu Equivalent: SYS DEFAULT MENU - EMULATION - DEF.
Page 284 Item Description Paper Source The paper tray that is normally used can be speci- fied. Choices: Tray1, Tray2, Tray3, Tray4, Tray5 Default: Tray2 Configuration Menu Equivalent: PAPER MENU - PAPER SOURCE - DEFAULT TRAY Tray3, Tray4 and Tray5 appear only if an optional lower feeder unit are installed.
Page 285 Item Description Paper Size Specifies the default setting for the size of paper. Choices: Letter, 11x17, Legal, Executive, A3W, A3, A4, A5, A6, B4, B5 (JIS), B6, Government Letter, Statement, Folio, SP Folio, UK Quarto, Foolscap, Government Legal, 16K, 12x18, 11x14, 4x6, D8K, Kai 8, Kai 16, Kai 32, Envelope C5, Envelope C6, Envelope DL, Envelope Monarch, Enve- lope Chou #3, Envelope Chou #4, B5...
Page 286 Item Description Collate If On is selected, all pages in a copy of the docu- ment can be printed before printing the next copy. If Off is selected, all copies of the document are not printed separately. Choices: On, Off Default: Off Configuration Menu Equivalent: PAPER MENU - COLLATE...
Page 287 Paper Source Settings Configuring the Printer...
Page 288 The Print - Default Settings - Paper Source Settings window allows you to configure the following items: Item Description Tray1 Paper Size Specifies the setting for the size of paper loaded into Tray 1. Choices: Any, Letter, Letter-R, 11x17, Legal, Executive, A3W, A3, A4, A4-R, A5, A6, B4, B5 (JIS), B5 (JIS)-R, B6, Government Letter, Statement, Folio, SP Folio, UK...
Page 289 Item Description Width Specifies the paper width when Paper Size is set to Custom Size. Range: 3.55 - 12.25 (inch) / 90 - 311 (mm) Configuration Menu Equivalent: PAPER MENU - PAPER SOURCE - TRAY1 - CUSTOM SIZE - WIDTH Length Specifies the paper length when Paper Size is set to Custom Size.
Page 290 Item Description Tray2 Paper Size Specifies the setting for the size of paper loaded into Tray 2. Choices: Any, Letter, Letter-R, 11x17, Legal, Executive, A3W, A3, A4, A4-R, A5, A6, B4, B5 (JIS), B5 (JIS)-R, B6, Government Letter, Statement, Folio, SP Folio, UK Quarto, Foolscap, Government Legal, 16K, 12x18, 11x14, 4x6, D8K, Kai 8, Kai 16, Kai 32,...
Page 291 Item Description Width Specifies the paper width when Paper Size is set to Custom Size. Range: 3.55 - 12.25 (inch) / 90 - 311 (mm) Configuration Menu Equivalent: PAPER MENU - PAPER SOURCE - TRAY2 - CUSTOM SIZE - WIDTH Appears for Tray 2 only if Size Setting is set to User Select.
Page 292 Item Description Size Settings Specifies whether the paper size for Tray 2 is automatically detected or set by a user. Choices: Auto, User Select Default: Auto Configuration Menu Equivalent: PAPER MENU - PAPER SOURCE - TRAY2 - SIZE SETTING Tray3/4/5 Paper Size Displays the setting for the size of paper loaded into the tray.
Page 293 Item Description Tray Mapping Tray Mapping If On is selected, Tray Mapping Mode is Mode enabled. Paper feed from physical tray allocated in each logical tray. If Off is selected, Tray Mapping Mode is disabled. Choices: On, Off Default: Off Configuration Menu Equivalent: PAPER MENU - PAPER SOURCE - TRAY MAPPING...
Page 294 PCL Settings The Print - Default Settings - PCL Settings window allows you to configure the following items: Item Description Font Number Sets the default font in the PCL language. Range: 0 - 102 Default: 0 Configuration Menu Equivalent: SYS DEFAULT MENU - EMULATION - PCL - FONT SOURCE - FONT NUMBER Symbol Set...
Page 295 Item Description Lines Per Page Selects how many lines are in a page in PCL lan- guage. Range: 5 - 128 Default: 60 Configuration Menu Equivalent: SYS DEFAULT MENU - EMULATION - PCL - LINES PER PAGE Font Point Size Sets the font size in the PCL language.
Page 296 PS Settings The Print - Default Settings - PS Settings window allows you to configure the following items: Item Description Wait Timeout Sets Postscript timeout. “0” means that no time-out control is effective. Range: 0 - 300 (in seconds) Default: 0 Configuration Menu Equivalent: SYS DEFAULT MENU - EMULATION - POSTSCRIPT - WAIT TIMEOUT...
Page 297 Item Description Print to PS Error Displays whether or not error printing is performed. Choices: On, Off Default: Off Configuration Menu Equivalent: SYS DEFAULT MENU - EMULATION - POSTSCRIPT - PS ERROR PAGE Apply button Applies the configuration settings for this window. Clear button Resets all configuration settings to previous values.
Page 298 The Print - Default Settings - Print Quality Settings window allows you to configure the following items: Item Description Print Quality Color Mode If Color is selected, the pages are printed Settings in full color. If Monochrome is selected, the pages are printed in black and white.
Page 299 Item Description Image/Text Specifies the color space for RGB data. Printing Choices: Device Color, sRGB (Source) Default: sRGB Configuration Menu Equivalent: QUALITY MENU - PCL SETTING Image/Text Specifies the color intent to be used on Printing (Intent) conversion RGB to CMYK by printer. Choices: Vivid, Photographic Default: Photographic (Image) Vivid (Text)
Page 300 Item Description Graphics Print- Specifies the color settings for graphics. Choices: Same as Image Settings, Same as Text Settings Default: Same as Image Settings Configuration Menu Equivalent: QUALITY MENU - PCL SETTING PS Setting Image/Text/ Specifies the color space for RGB data. Graphics Print- Choices: Device Color, sRGB, ing (RGB...
Page 301 Item Description Image/Text/ Specifies the ICC destination profile to be Graphics Print- used for printed output. ing (Destina- Default: Auto tion Profile) Configuration Menu Equivalent: QUALITY MENU - PS SETTING Image/Text/ Specifies how halftones are reproduced. Graphics Print- If Line Art is selected, halftones are ing (Halftone) reproduced with high precision.
Page 302 Item Description Simulation Specifies the specific ICC simulation pro- (Profile) file to be used for printed output. Choices: None, SWOP, Euroscale, CommercialPress, TOYO, DIC Default: None Configuration Menu Equivalent: QUALITY MENU - PS PROFILE - SIMULATION Simulation Specifies the simulation intent to be used (Intent) for simulation printing.
Page 303 Item Description Cyan/Magenta/ Specifies the density of the highlight color. Yellow/Black Choices: +3,+2,+1,0,-1,-2,-3 Density (High- Default: 0 light) Configuration Menu Equivalent: QUALITY MENU - CALIBRATION - CMYK DENSITY Cyan/Magenta/ Specifies the density of the middle color. Yellow/Black Choices: +3,+2,+1,0,-1,-2,-3 Density (Mid- Default: 0 dle) Configuration Menu Equivalent:...
Page 304 Camera Direct Settings The Print - Default Settings - Camera Direct Settings window allow you to configure the following items: Item Description Camera Direct Print If Enable is selected, camera direct print- ing is enabled. If Disable is selected, camera direct print- ing is disabled.
Page 305 Item Description Paper Source Specifies the paper tray used at Camera Direct printing. Choices: Tray1, Tray2, Tray3, Tray4, Tray5 Default: Tray2 Configuration Menu Equivalent: CAMERA DIRECT - PAPER SOURCE Tray 3, Tray 4, and Tray 5 appear only if the optional lower Feeder unit is installed.
Page 306 Item Description Contrast Specifies the contrast of the Camera Direct printing. Choices: +15%, +10%, +5%, 0, -5%, -10%, -15% Default: 0 Configuration Menu Equivalent: CAMERA DIRECT - IMAGE QUALITY - CONTRAST RGB Source Specifies the color space for RGB data when Camera Direct printing.
Page 307 Item Description Halftone Specifies how halftones are reproduced when Camera Direct printing. If Line Art is selected, halftones are reproduced with high precision. If Detail is selected, halftones are repro- duced with detail. If Smooth is selected, halftones are reproduced with smoothness. Choices: Line Art, Detail, Smooth Default: Detail Configuration Menu Equivalent:...
Page 308: Download Font/Form
Download Font/Form This page appears only if an optional hard disk kit or a CompactFlash card is installed. PS Font The printer must have the optional hard disk kit and/or memory card to use the PS Font parameters described below. The Print - Download Font/Form - PS Font window allow you to configure the following items: Item...
Page 309 Item Description Delete button Deletes the postScript font file(s) whose check boxes the left end are checked. Form Overlay The printer must have the optional hard disk kit and/or memory card to use the Form Overlay parameters described below. The Print - Download Font/Form - Form Overlay window allow you to con- figure the following items: Item Description...
Page 310 Item Description Delete Form Check box Select the check box of the form overlay Overlay to be deleted, and then click Delete to delete the selected overlay file from the printer. Number Displays the control number of the form overlay. File Name Displays the name of the form overlay file.
Page 311 The Print - Download Font/Form - Color Profile window allow you to con- figure the following items: Item Description Download Color Radio button Specifies the download destination (HDD/ Profile Memory Card) of the color profile. Text box Specifies the file name for the color profile to be downloaded.
Page 312: Network Page
Network Page The Network page allows you to configure network settings. For more infor- mation on these protocols, see chapter 7, “Network Printing.” TCP/IP TCP/IP (shown above) The Network - TCP/IP - TCP/IP window allows you to configure the following items.
Page 313 Item Description Speed Specifies the operating mode and speed for Ethernet. Choices: Auto, 10Base-T(Half), 10Base-T(Full), 100Base-TX(Half), 100Base-TX(Full), 1000Base-T(Full) Default: Auto Configuration Menu Equivalent: INTERFACE MENU - ETHERNET - SPEED/DUPLEX Auto IP Specifies the automatic assigning method for the printer IP address. Choices: DHCP/BOOTP Default: Checked Configuration Menu Equivalent:...
Page 314 Item Description Default Gateway* If a router is used on the network, sets the router’s address. Range: 0–255 for each xxx triplet Default: 0.0.0.0 If the specified router address is outside of the allowable range, the value is not changed, even after the Apply button is clicked.
Page 315 IP Address Filtering The Network - TCP/IP - IP Address Filtering page allows you to specify the IP address and limitations for accessing the printer. The settings described below are not applied to the DNS server and DHCP server. If the range of permitted IP addresses in Access Permission Address overlaps the range of refused IP address in Access Refuse Address, the refuse setting of Access Refuse Address is given pri- ority.
Page 316 Item Description Access Permis- If Enable is selected, the range of IP addresses permitted sion Address access to the printer can be specified. A maximum of five ranges of permitted IP addresses can be specified. In addition, access from an IP address out of the specified range is prohibited.
Page 317 Item Description Range of IP Specify the range of IP addresses refused access to the address refused printer. Type the IP address at the beginning of the range access into the box on the left, and the IP address at the end of the range into the box on the right.
Page 318: Bonjour
Default: Enable Bonjour Name Specify the Bonjour name for the printer. Range: Up to 63 characters Default: KONICA MINOLTA magicolor 7450(xx:xx:xx) “xx:xx:xx” refers to the last six digits of the MAC address (in hexadecimal). Apply button Applies the configuration settings in this page.
Page 319: Netware
NetWare NetWare Configuring the Printer...
Page 320 The Network - NetWare - NetWare window allows you to configure the fol- lowing items: Item Description NetWare NetWare Print Enables or Disables the NetWare print option. Choices: Enable, Disable Default: Enable Configuration Menu Equivalent: INTERFACE MENU - ETHERNET - NETWARE - ENABLE Frame Type Specifies the Frame Type.
Page 321 Item Description Bindery/NDS Specifies the bindery options. Choices: NDS, Bindery/NDS, Bindery Default: NDS Preferred File Sets the Preferred File Server for the Server printer. Range: Up to 47 characters Default: [Blank] Preferred NDS Sets the Preferred NDS Context for the Context Name printer.
Page 322 NetWare Status The Network - NetWare - NetWare Status window allows you to configure the following items: Item Description File Server Identifies current NetWare File Server. Queue Name Identifies current NetWare queue name. Queue Status Identifies current NetWare status. Configuring the Printer...
Page 323: Ipp
The Network - IPP window allows you to configure the following items. For details on IPP, refer to chapter 7, “Network Printing.” In order to apply the set- tings, the printer must be turned off, then on again after the setting is speci- fied.
Page 324 Item Description Printer Name Sets the printer’s name. Range: Up to 127 characters Default: [Blank] Printer Location Sets the printer’s location. Range: Up to 127 characters Default: [Blank] Printer Information Specifies the printer information. Range: Up to 127 characters Default: [Blank] Configuring the Printer...
Page 325 Item Description Printer URI Specifies the printer’s Uniform Resource Identifier (URI), authentication, and security. Range: Non-configurable Defaults: http://<IP_address>/ipp RequestingUserName None http://<IP_address>:80/ipp RequestingUserName None ipp://<IP_address>:80/ipp RequestingUserName None ipp://<IP_address>/ipp RequestingUserName None http://<IP_address>:631/ipp RequestingUserName None ipp://<IP_address>:631/ipp RequestingUserName None https://<IP_address>/ipp RequestingUserName None http://<IP_address>:443/ipp RequestingUserName None https://<IP_address>:443/ipp RequestingUserName...
Page 326 Item Description Operational Print Job If this check box is selected, Print Job is Support enabled. Default: Checked Validate Job If this check box is selected, Validate Job is enabled. Default: Checked Cancel Job If this check box is selected, Cancel Job is enabled.
Page 327: Ftp
Server The Network - FTP - Server window allows you to configure the following items: Item Description FTP Server Enables or Disables the FTP server. Choices: Enable, Disable Default: Enable Apply button Applies the configuration settings for this window. Clear button Resets all configuration settings to previous values.
Page 328: Snmp
SNMP The Network - SNMP window allows you to configure the following items: Item Description SNMP If Enable is selected, SNMP is enabled. Choices: Enable, Disable Default: Enable Apply button Applies the configuration settings for this window. Clear button Resets all configuration settings to previous values. Configuring the Printer...
Page 329: Smb
Print The Network - SMB - Print window allows you to configure the following items: Item Description SMB Print If Enable is selected, SMB Print is enabled. Choices: Enable, Disable Default: Enable NetBIOS Name Sets NetBIOS Name for the printer. Range: Up to 15 characters Default: MC7450-xxxxxx xxxxxx displays six last digits of the MAC...
Page 330: Appletalk
Item Description Work Group Sets Work Group name. Range: Up to 15 characters Default: WORKGROUP Apply button Applies the configuration settings for this window. Clear button Resets all configuration settings to previous values. AppleTalk The Network - AppleTalk window allows you to configure the following items: Item Description...
Page 331: Email
Item Description Printer Name Sets the printer name. Range: Up to 31 characters Default: MC7450-xxxxxx xxxxxx displays six last digits of the MAC address in hexadecimals. Zone Name Sets the Zone Name. Range: Up to 31 characters Default: * Current Zone Name Identifies the current zone name.
Page 332 The Network - Email - Send Email window allows you to configure the fol- lowing items: Item Description Send If Enable is selected, sending Email is enabled. Choices: Enable, Disable Default: Enable SMTP Server Address Specifies the address of the mail transmission server.
Page 333: Ssl/Tls
SSL/TLS SSL/TLS Information The Network - SSL/TLS - SSL/TLS Information page allows you to specify SSL/TLS settings. As a default, SSL/TLS is not installed. Click Setting to create a certifi- cate and specify the SSL settings. Item Description Setting button Displays the SSL/TSL Setting page.
Page 334 SSL/TLS Setting The Network - SSL/TLS - SSL/TLS Setting page allows you to select the fol- lowing SSL/TLS settings that appear. Item Description Create a self-signed Creates a self-signed certificate. Certificate Request a certificate Creates data for requesting that a certificate be issued from a certificate authority.
Page 335 Item Description Mode Using SSL/TLS Specifies the SSL transmission mode. If no certificate is installed, this item does not appear. Next button Click to display the selected page. Cancel button Resets all configuration settings to previous values. Self-signed Certificate Setting Configuring the Printer...
Page 336 The Network - SSL/TLS - Self-signed Certificate Setting page allows you to create a certificate and specify SSL settings. Item Description Common Name Identifies the Common Name for the printer, to be used in creation of an SSL Certificate. It is com- prised of "Printer Host Name.DNS Server".
Page 337 Item Description Encryption Strength Specify the encryption level. Choices: 3DES_168bits, RC4_128bits, DES_56bits or RC4_40bits RC4_128bits, DES_56bits or RC4_40bits DES_56bits or RC4_40bits Default: 3DES_168bits,RC4_128bits, DES_56bits or RC4_40bits Create button Creates the self-signed certificate. A few minutes are needed in order to create the certificate.
Page 338 The Network - SSL/TLS - Request a Certificate page allows you to config- ure the following items: Item Description Common Name Identifies the Common Name for the printer, to be used in creation of an SSL Certificate. It is com- prised of "Printer Host Name.DNS Server".
Page 339 Certificate Request The Network - SSL/TLS - Certificate Request page displays the data that will be submitted to the certificate authority to request that a certificate be issued. Item Description Certificate Request Displays the data that should be submitted to the certificate signing authority.
Page 340 Install a Certificate The Network - SSL/TLS - Install a Certificate page allows you to install the certificate issued by the certificate authority. Item Description Install a Certificate Signed CSR (Certificate Signing Request) should be pasted to this text area. Next button Click to display the Encryption Strength Setting page.
Page 341 Encryption Strength Setting The Network - SSL/TLS - Encryption Strength Setting page allows you to specify the encryption level. Item Description Encryption Strength Specify the encryption level. Choices: 3DES_168bits, RC4_128bits, DES_56bits or RC4_40bits RC4_128bits, DES_56bits or RC4_40bits DES_56bits or RC4_40bits Default: 3DES_168bits,RC4_128bits, DES_56bits or RC4_40bits Create button...
Page 342 Remove a Certificate The Network - SSL/TLS - Remove a Certificate page allows you to delete the installed certificate. Item Description OK button Click to display a confirmation message. Click OK in the confirmation message to delete the certificate. Back button Click to return to the SSL/TLS Setting page.
Page 343 Mode using SSL/TLS The Network - SSL/TLS - Mode using SSL/TLS page allows the SSL trans- mission mode to be specified. Item Description Mode using SSL/TLS Selects the SSL transmission mode. Choice: Disable, Enable Default: Disable. Apply button Click to apply the setting specified beside “Mode using SSL/TLS”.
Page 344: Account Page
Account Page Log Accounting If the optional hard disk drive is installed on the printer, printer account infor- mation can be specified from the Log Accounting page. Job (shown above) The Account - Log Accounting - Job page allows you to save the job infor- mation for the printer as a file.
Page 345 Index BOOTP 181, 192 Account, PageScope Web Connection 324 Log Accounting 324 Certificate request, PageScope Web Active job list, PageScope Web Connection 319 Connection Chooser 115 Print job status 228 Clear settings, PageScope Web Administrator mode, PageScope Web Connection 257 Connection 215 Color profile, PageScope Web Alert mail, PageScope Web...
Page 346 Date/Time, PageScope Web Gateway 181, 185 Connection 247 Manual setting 187 DDNS 192 General settings, PageScope Web Desktop printer utility 118 Connection 231, 263 Details, PageScope Web Connection 219 Done job list 230 Hard disk, PageScope Web Paper source 219 Connection 222 Device information, PageScope Web Host table 210...
Page 347 Using DHCP 185 Network menu Linux Overview 178 Adding the printer 148 Network printing 191 Checking print jobs 162 Network setting 178 PPD file, installing 147 Network, PageScope Web Print settings 157 Connection 292 Printer driver settings 151 AppleTalk 310 System requirements 146 Bonjour 298 Troubleshooting 163...
Page 348 Color profile 244, 290 Window 213 Consumables 225 Paper source settings, PageScope Counter 226 Web Connection 233, 267 Current status 214 Paper source, PageScope Web Date/Time 247 Connection 219 Details 219 Password, PageScope Web Device information 218, 251 Connection 249 Direct Print 246 PCL font, PageScope Web Display language 208...
Page 349 IPX/SPX 193 Summary, PageScope Web LPD/LPR 193 Connection NetBEUI 193 Device status 217 SLP 193 System requirements SMB 194 Linux 146 SMTP 194 Mac OS 9 112 SNMP 194 Mac OS X 2 PS font, PageScope Web Connection System, PageScope Web Connection 216, 247 242, 288 PS settings, PageScope Web...
Page 350 Index...

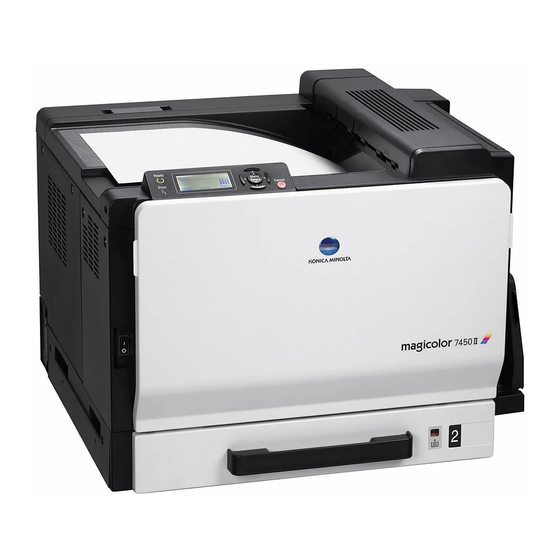

Konica Minolta magicolor 7450 II Reference Manual

1 Operation on Mac os X

System Requirements for the Printer Driver

Installing the Printer Driver

Uninstalling the Printer Driver

Print Center Settings (Mac os X 10.2)

Printer Setup Utility Settings (Mac os X 10.3)

Printer Setup Utility Settings (Mac os X 10.4)

Printer Settings (Mac os X 10.5/10.6)

Selecting Print Options

Specifying Print Settings (Mac os X 10.5/10.6)

Specifying the Color Profile

Troubleshooting

2 Operation on Mac os 9

System Requirements for the Printer Driver

Installing the Printer Driver

Selecting the Printer in the Chooser

Selecting the Printer in the Desktop Printer Utility

Selecting Print Options

Specifying Page Setup Settings

Specifying Print Settings

Checking Print Jobs

Troubleshooting

System Requirements for the Printer Driver

3 Operation on Linux

Installing PPD File from the Command Line

Adding the Printer

Specifying Printer Driver Settings

Printing a Document

Checking Print Jobs

Troubleshooting

4 Operation on Netware

Printing with Netware

5 Printer Utilities

Installing Printer Utilities on Windows

6 Understanding the Ethernet Configuration Menus

Ethernet Menu

7 Network Printing

Network Connection

Network Printing

Troubleshooting

8 Using Pagescope Web Connection

About Pagescope Web Connection

Setting up the Printer Web

Understanding the Pagescope Web Connection Window

Viewing Printer Status

Configuring the Printer

Quick Links

Reference Guide

Troubleshooting

Related Manuals for Konica Minolta magicolor 7450 II

Summary of Contents for Konica Minolta magicolor 7450 II
