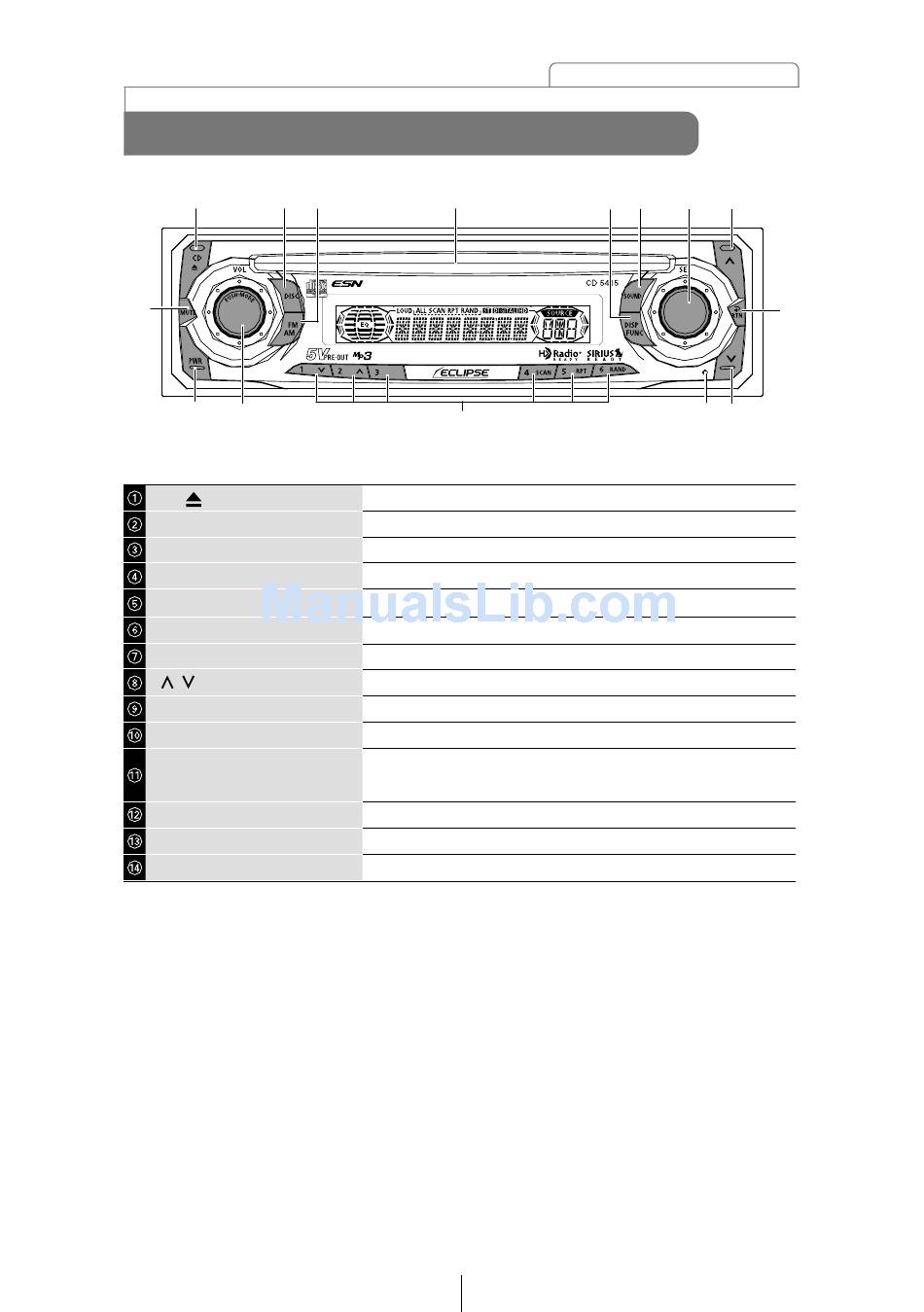

Names of controls and parts

① ②
⑭
⑬ ⑫
[CD (EJECT) ] button
[DISC] button
[FM AM] button
Disc slot
[DISP FUNC] button
[SOUND] button
[SEL] button
[ / ] button
[RTN] button
[RESET] button
Buttons [1] to [6]
[AUDIO CONTROL] button
[PWR] button
[MUTE] button
③ ④
⑪
Ejects compact disc.
Switches between disc modes.
Switches to radio mode and switches radio bands.
Inserts compact discs.
Switches screen display and turns function mode ON/OFF.
Sets the equalizer settings.
Selects radio stations and CD tracks.
Automatically finds radio reception or to fast forward/rewind.
Returns to previous screen.
Resets deck functions to default settings.
Selects radio preset channels and performs disc mode
functions.
Adjusts volume and performs other functions.
Turns deck power ON/OFF.
Mutes or cancels muting.
