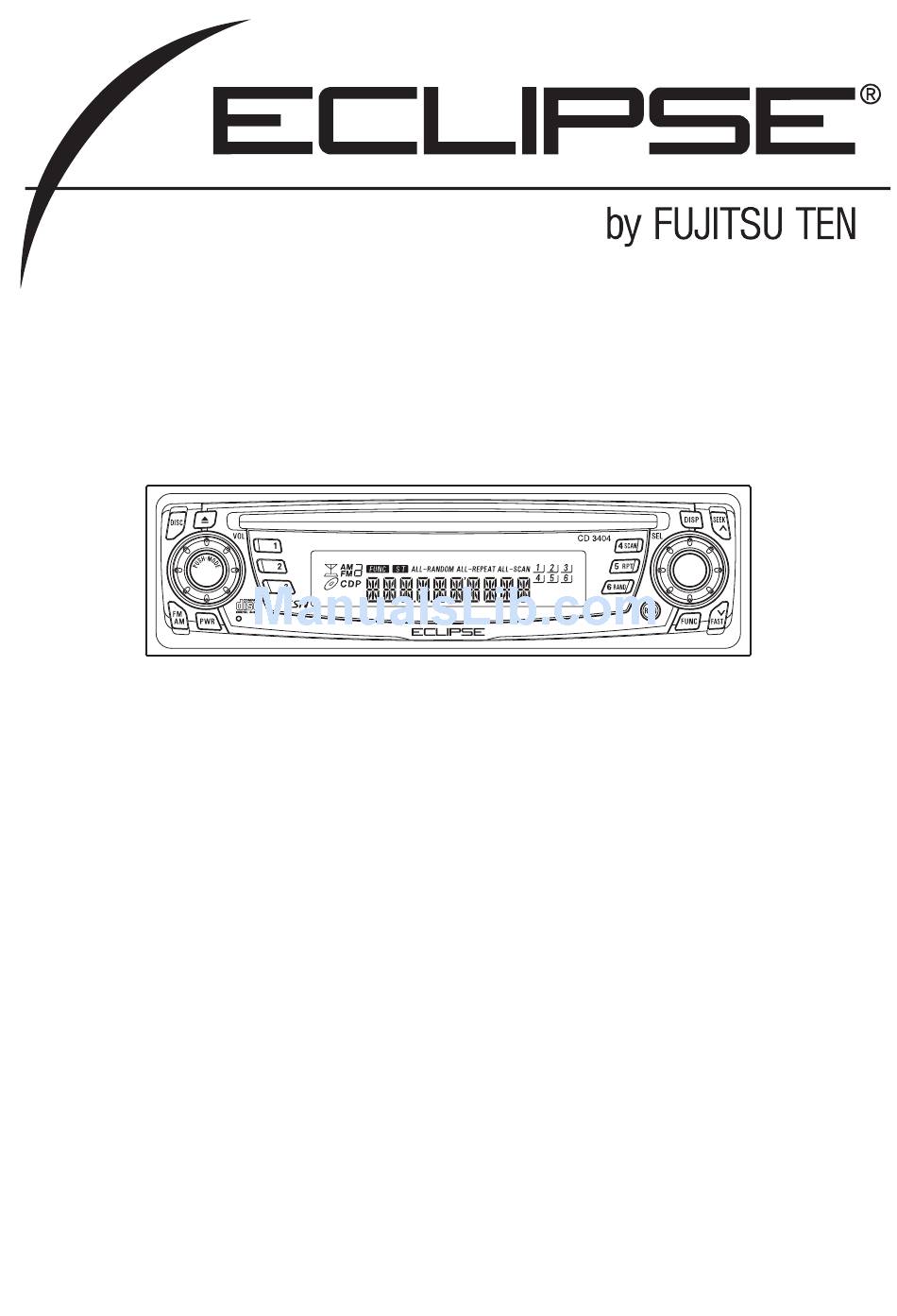

CD3404
MODEL
ESN E3 High-Power CD Receiver
OWNER'S MANUAL
We appreciate your purchase of this receiver.
Please read through this manual for correct operation.
We suggest that after reading it you keep this manual
in a safe place for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Eclipse CD3404

Summary of Contents for Eclipse CD3404

  • Page 1 CD3404 MODEL ESN E3 High-Power CD Receiver OWNER'S MANUAL We appreciate your purchase of this receiver. Please read through this manual for correct operation. We suggest that after reading it you keep this manual in a safe place for future reference.
  • Page 2 CD3404 Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD3404. They show safe and correct ways to handle the product so as to prevent personal injury to you and others and to avoid property damage.
  • Page 3 • Do not place the vinyl storage bag over a person. It may cause a serious accident or death by suffocation. • Do not adjust the controls while driving the car. To adjust the controls, stop the car in a safe location. •...
  • Page 4 • To prevent a short circuit from occurring, disconnect the battery's negative terminal before installing this product. Otherwise, an electric shock or injury may result. • When using an existing nut and/or bolt from the vehicle to ground this product, do not use any that secure parts of the steering or braking systems.
  • Page 5 • Play the audio at a moderate volume level that permits you to hear sounds from outside the car. Driving without being able to hear outside sounds may result in an accident. • Keep foreign objects out of the disc slot. They may cause fire or electrical shock.
  • Page 6 • Avoid installing this product in places where it may get wet, such as near windows, or in places that are moist or dusty. Presence of liquid, moisture or dust inside this product can cause short circuiting, resulting in smoke or fire. •...

  • Page 7: Table Of Contents

    Table of Contents Operating precautions ... 10 Notes on operation ... 10 About compact discs ... 11 About cleaning a CD ... 13 Names of controls and parts ... 14 ESN security operating procedure ... 15 About ESN ... 15 How to operate the ESN (Key CD) security ...
  • Page 8 How to operate the CD player ... 28 Listening to CDs ... 28 Advancing to the next track or returning to the beginning of the track being played ... 29 Fast Forward/Rewind ... 29 Playing the beginning of tracks (SCAN) ... 29 Repeating the same track (REPEAT) ...
  • Page 9 How to use an optional NOB remote control ... 45 Turning the power on/off ... 45 Adjusting the audio volume ... 45 Cutting the volume instantly (muting) ... 45 Switching playback modes ... 46 How to play the tuner ... 46 Selecting the FM/AM band ...

  • Page 10: Operating Precautions

    Operating precautions Operating precautions <Your CD3404 will perform well over a long period of time through correct handling and care.> Notes on operation • For your safety, play only at volume levels that allow outside sounds to be heard. • We recommend using with this player a disc with the logo shown to the left.

  • Page 11: About Compact Discs

    About compact discs • The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback.
  • Page 12 Operating precautions About brand new CDs • You may notice that some brand new discs are rough around the center hole or outside edge. Remove the rough edges with the side of a ballpoint pen, etc. Rough edges may prevent proper loading in the deck.

  • Page 13: About Cleaning A Cd

    About borrowed CDs • Do not use a CD with glue or remnants of adhesive tape or labels. They may cause the CD to get stuck inside or damage the deck. How to remove CDs • When removing the ejected disc, pull it straight out along the slot.

  • Page 14: Names Of Controls And Parts

    Names of controls and parts Names of controls and parts ① ② ③ ⑬ ⑫ ⑪ ⑩ [DISC] button (EJECT) ] button Buttons [1] to [6] Disc slot [DISP] button [SEEK /FAST ] button [SEL] button [FUNC] button [RTN] button [RESET] button [PWR] button [FM AM] button...

  • Page 15: Esn Security Operating Procedure

    ESN security operating procedure ESN security operating procedure About ESN This deck incorporates ESN (ECLIPSE Security Network). The ESN is a security system which disables all deck functions when the power is restored if the deck is stolen from the vehicle. Turning the power of the deck off or switching the vehicle's ignition switch off activates the security feature.

  • Page 16: How To Operate The Esn (Key Cd) Security

    A [SEC] message appears, then in two seconds it will change to [DISC]. The CD3404 is now ready to accept your Key CD in the CD slot. If a CD has already been inserted, a [SEC] message appears, and then the CD is ejected.

  • Page 17: How To Cancel The Key Cd

    A [SEC] message appears, then in two seconds it will change to [DISC]. The CD3404 is now ready to accept your Key CD in the CD slot. If a CD has already been inserted, a [SEC] message appears, and then the CD is ejected.

  • Page 18: How To Change The Key Cd

    When the power is turned on after disconnecting the battery power, a [SEC] message will appear for two seconds. Thereafter, the message changes to [DISC] and the CD3404 is ready to accept your Key CD into the slot. Insert your Key CD into the slot.

  • Page 19: What Happens If An Incorrect Cd Is Inserted

    What happens if an incorrect CD is inserted? After the 5th incorrect attempt, the display reads [HELP] for five seconds. [HELP] will appear for five seconds, after which the serial number will appear. Press button [6], then the [FUNC] button, and hold them for five seconds.

  • Page 20: How To Turn The Security Indicator On/Off

    [ESN] appears on the display, followed by an eight-digit number; this number is your electronic serial number (ESN). You may use this number to identify your Eclipse CD3404 in the event it is recovered after being stolen. Button [4]...

  • Page 21: Basic Operation

    Basic operation [PWR] button This section covers basic operating procedures. For additional details, please refer to the sections on specific functions. Turning the power on and off Turning the power on and off. When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored.

  • Page 22: Listening To A Cd

    Basic operation [DISC] button Listening to a CD Insert a CD into the disc slot, label side up. The CD will start playing. When a CD is already loaded, press the [DISC] button to switch to the CD mode. ATTENTION...

  • Page 23: Listening To The Tuner

    [FM AM] button [AUDIO CONTROL] button Listening to the tuner Press the [FM AM] button. This will turn the tuner on. Press the [FM AM] button to switch to the desired FM or AM bands. Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

  • Page 24: Switching Audio Control Modes

    Basic operation [AUDIO CONTROL] button Switching audio control modes Various audio control modes may be fine-tuned using this procedure. Press the [AUDIO CONTROL] button for less than one second to select the item to be adjusted. Modes will switch in the order shown below each time the button is pressed.

  • Page 25: Bal (Balance) Mode

    [AUDIO CONTROL] button BAL (BALANCE) Mode Adjusts left/right speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes right speakers. Turn to the left: FAD (FADER) Mode Adjusts front/rear speaker balance. Turn the [AUDIO CONTROL] button to the left or right. Turn to the right: Emphasizes front speakers.

  • Page 26: Making Changes With Function Mode

    Basic operation Making changes with Function Mode A variety of settings can be changed. Press the [FUNC] button. The function mode is activated. Turn [SEL] button in either direction to display setting items for selection. Setting items will be displayed in the following order when the [SEL] button is turned to the right.

  • Page 27: Setting The Time

    Setting the Time This receiver uses the 12-hour display notation. Turn [SEL] button to select CLOCK ADJ. Press the [SEL] button. The clock adjustment mode is activated. Turn [SEL] button to display the item to be selected for adjustment. Hours, minutes or exact hour will be switched each time the button is turned.

  • Page 28: How To Operate The Cd Player

    How to operate the CD player How to operate the CD player [DISC] button First press the [DISC] button to switch to the disc mode. It is assumed here that a CD has already been loaded into the unit. Listening to CDs Press the [DISC] button.

  • Page 29: Advancing To The Next Track Or Returning To The Beginning Of The Track Being Played

    Advancing to the next track or returning to the beginning of the track being played Turn the [SEL] button to the left or right. Turn to the right: Advances to the next track. Turn to the left: Fast Forward/Rewind Fast forward or rewind the song currently being played. Press and hold the [SEEK ] or [FAST ] button.

  • Page 30: Repeating The Same Track (Repeat)

    How to operate the CD player Repeating the same track (REPEAT) Press button [5] to repeat the track being played. To cancel, press button [5] again. Playing tracks in random order (RANDOM) Press button [6] to play the tracks in random order. To cancel, press button [6] again.

  • Page 31: Ejecting The Disc

    (EJECT)] button Ejecting the disc Press the [ (EJECT)] button. Disc is ejected. Switching the display Press the [DISP] button. Each time the button is pressed, the following will be displayed in order. Elapsed time ➔ Clock How to operate the CD player [DISP] button...

  • Page 32: How To Operate The Tuner

    How to operate the tuner How to operate the tuner [FM AM] button First, press the [FM AM] button to start tuner operation. There are automatic and manual methods for setting stations in memory. The receiver will accept up to 24 stations in memory: six in AM and 18 in FM (6 each for FM1, FM2 and FM3.) (Initial setting) Tuning to a station Press the [FM AM] button to switch to the desired FM or...

  • Page 33: Entering Stations Into Memory Automatically (The Automatic Preset Mode: Asm)

    [FM AM] button Entering stations into memory automatically (The automatic preset mode: ASM) Press the [FM AM] button to switch to the desired FM or AM bands. Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

  • Page 34: Manually Setting Stations Into Memory

    How to operate the tuner [FM AM] button Manually setting stations into memory This section covers the setting of stations in memory under the numbered buttons. Press the [FM AM] button to switch between FM and AM. Turn the [SEL] button to the right or left to tune to the station to be entered in memory.

  • Page 35: Preset Station Scan

    Buttons [1] to [6] Preset station scan This function enables reception of all the stations in the preset buttons for five seconds each. Press the [SEL] button for less than one second. [P SCAN] will appear at the top of the display, and stations stored under preset buttons [1] through [6] will be played for five seconds each.

  • Page 36: Changing The Reception Sensitivity For Automatic Scanning

    How to operate the tuner Button [1] [FM AM] button Button [3] Changing the reception sensitivity for automatic scanning The deck lets you select the reception sensitivity to be used for automatic scanning of stations. The two sensitivity modes available for this deck are AUTO mode and DX mode.

  • Page 37: Fm Reception Characteristics

    FM reception characteristics In general, FM has much better tonal quality than AM. However, FM and FM stereo reception encounter several characteristic problems not encountered with AM. FM is more difficult to receive than AM in a moving vehicle. The following are explanatory notes on what to expect from FM reception and on how to get satisfactory performance.

  • Page 38: Reception Area Of Fm Broadcasts

    How to operate the tuner Reception area of FM broadcasts A home receiver can catch weak FM stereo signals through the use of a tall, directional or ultra-sensitive antenna. In a moving vehicle, the area for good reception is limited because of varying conditions encountered while driving, including the types and heights of broadcast antenna structures, signal strength, engine noise, etc.

  • Page 39: How To Use An Optional Card Remote Control

    How to use an optional Card remote control Precautions in use of the remote control • Be careful when handling the control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction. •...

  • Page 40: Turning The Power On/Off

    How to use an optional Card remote control Remote-control light receptor Turning the power on/off When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored. Press the [PWR] button. The power turns on or off each time the button is pressed.

  • Page 41: Switching Playback Modes

    Switching playback modes Press the [MODE] button. Press the button to switch modes in the following sequence: Tuner How to play the tuner Select the tuner mode first. Selecting the FM/AM band Press the [BAND] button. Each press will switch tuner modes from FM1 ➔ FM2 ➔ FM3 ➔...

  • Page 42: Selecting A Station (Manually Or Automatically)

    How to use an optional Card remote control Selecting a station (manually or automatically) A short tap of the button will allow manual station tuning. Pressing for more than one second will start automatic tuning. Press the [ ] button: Tunes to higher frequency stations. ] button: Tunes to lower frequency stations.

  • Page 43: Advancing To The Next Track Or Returning To The Beginning Of The Track Being Played

    • TRACK ] buttons Advancing to the next track or returning to the beginning of the track being played Press the [ TRACK•APS ] button: Skips to the next track. ] button: Returns to the beginning of the track being played.

  • Page 44: Replacing The Battery

    How to use an optional Card remote control Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor Warning immediately. Use one CR2025 battery. On the back of the remote control, while pressing the locking knob on the battery slot cover toward your right, pull out the battery carrier with your fingernail.

  • Page 45: How To Use An Optional Nob Remote Control

    How to use an optional NOB remote control Remote-control light receptor Turning the power on/off When the power is turned on, the state used when the power was turned off such as CD and tuner playing is restored. Press the [PWR] button. The power turns on or off each time the button is pressed.

  • Page 46: Switching Playback Modes

    How to use an optional NOB remote control [BAND] button Switching playback modes Press the [MODE] button. Press the button to switch modes in the following sequence: How to play the tuner Select the tuner mode first. Selecting the FM/AM band Press the [BAND] button.

  • Page 47: Selecting A Station (Manually Or Automatically)

    [BAND] button • TUNE SEEK ] buttons Selecting a station (manually or automatically) A short tap of the button will allow manual station tuning. Pressing for more than one second will start automatic tuning. Press the [ ] button: Tunes to higher frequency stations. ] button: Tunes to lower frequency stations.

  • Page 48: Advancing To The Next Track Or Returning To The Beginning Of The Track Being Played

    How to use an optional NOB remote control TRACK ] buttons Advancing to the next track or returning to the beginning of the track being played Press the [ ] button: Skips to the next track. ] button: Returns to the beginning of the track being Hold the [ ] button down to fast forward, or the [ rewind through the track being played.

  • Page 49: Replacing The Battery

    Replacing the battery To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor immediately. Warning Use two AA-size batteries. Remove the back cover of the remote control unit by gently pressing and sliding it in the direction indicated by the arrow.
  • Page 50 How to use an optional NOB remote control •Be extremely careful not to swallow the battery. •The battery life is approximately one year. If the remote control Caution unit does not operate correctly or if the button lamp gets dim, replace the batteries.

  • Page 51: If You Have A Question

    If you have a question: [RESET] button First check the items mentioned below before attempting to troubleshoot problems. If a problem occurs, for instance when the unit does not respond to any button presses, or the display doesn't work correctly, Caution press the [RESET] button using a sharp tool.

  • Page 52: Displayed Information (For Troubleshooting)

    If you have a question: Displayed information (for troubleshooting) The information listed in the chart below is displayed to show the status of the CD player. Refer to the chart for the appropriate action. Information Code Table Information Contents 3 DISCS ARE DIRTY OR DAMAGED 5 CD PLAYER FAILS MECHANICALLY...
  • Page 53 Mode Problem Is the volume control up sufficiently? Is the fader or balance control set far to one side? Dead or weak sound Other probable causes include broken audio-signal wiring or a faulty speaker. Are too many electrical items installed, causing a lack of power? Power does not turn on.
  • Page 54 If you have a question: Mode Problem The disc cannot be inserted. The disc is ejected as soon as it is inserted. Or, the disc cannot be ejected. Sound skips around. Sound is intermittent. Sound is bad in quality. The disc cannot be ejected.

  • Page 55: Specifications

    Specifications < > GENERAL Power Supply Current Drain Dimensions (W x H x D) In-Dash Unit Mass (weight) Usage temperature range Storage temperature range < > FM TUNER Frequency Range USA: Asia/Australia: Usable Sensitivity Frequency Response Stereo Separation < > AM TUNER Frequency Range USA:...

  • Page 56: Before Installation

    Before installation Before installation Note Be sure to disconnect the vehicle battery's negative terminal before installing the receiver. Components Main unit Mounting sleeve Side bracket Rear bracket Bezel Bushing Self-tapping screw (6 x 16 mm) Stud bolt Flat head screw (5 x 8 mm) Hex-head bolt (5 x 20 mm) Hex nut (5 mm) Interconnecting cable...

  • Page 57: Mounting Instruction

    Mounting instruction Mounting the main unit Insert the mounting sleeve into the opening in the vehicle dash board or console box. Use a screwdriver or the like to bend the tabs in the mounting sleeve to secure the mounting sleeve. DASH BOARD OR CONSOLE BOX Attach the side brackets to the main unit using flathead...
  • Page 58 Mounting instruction Mount the stud bolt to the main unit. Insert the main unit into the mounting sleeve until it locks in place. Fasten the rear of the main unit using either method [A] or [B]. Select method [A] or [B] to suit the interior configuration of the vehicle.

  • Page 59: Names Of Lead Wires And Destinations

    Names of lead wires and destinations (refer to Page 61) Caution Never connect the power supply to the speaker leads, otherwise it cause damage to the main unit. Note To prevent unconnected leads from shorting out, insulate them by wrapping their tips with electrical tape. Similarly, insulate the ends of connected leads.

  • Page 60: System

    Mounting instruction System...
  • Page 61 Mounting instruction...
  • Page 62 Mounting instruction...
  • Page 63 M e m o • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 64: How To Contact Customer Service

    How to contact customer service How to contact customer service Should the product require service, please contact your nearest following Eclipse dealer. < > U.S.A/CANADA DIVISION OF FUJITSU TEN CORP. OF AMERICA 19600 SOUTH VERMONT AVENUE, TORRANCE, CA 90502 Phone: (310) 327-2151 <...
  • Page 65 < > KOREA HYUNDAI AUTONET Co., LTD. 1st FL. Namhyoung Bldg, 746-23 Yeoksam-Dong, Kangnam-Ku, Seoul, Korea 135-080 Phone: 02-508-6001 Fax: 02-2-508-6067 Transpectra Co., Ltd. 115-16 nonhyun dong kangnam ku Seoul, Korea. Phone: 02-540-4595 Fax: 02-2-540-4666 < > TAIWAN Sentrek Taiwan, LTD. 1, 9F, Lane 155, Section 3, Peishen RD., Shenkeng, Taipei Hsien, Taiwan, R.O.C.
  • Page 66 M e m o • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...
  • Page 67 IMPORTANT RECORD YOUR “KEY CD” HERE… STORE YOUR “KEY CD” ALONG WITH YOUR OWNER’S MANUAL IN YOUR SOCK DRAWER.
  • Page 68 CUSTOMER NOTICE Please retain this booklet and write in the serial number of your CD3404 for identification. The serial number is labeled or stamped on the chassis. Serial No. FUJITSU TEN LIMITED 090001-14560700 0312MT (Y.TS)
