Ai Tweaker menu

The Ai Tweaker menu items allow you to configure overclocking-related items.
Be careful when changing the settings of the Ai Tweaker menu items. Incorrect field values
can cause the system to malfunction.
The configuration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.

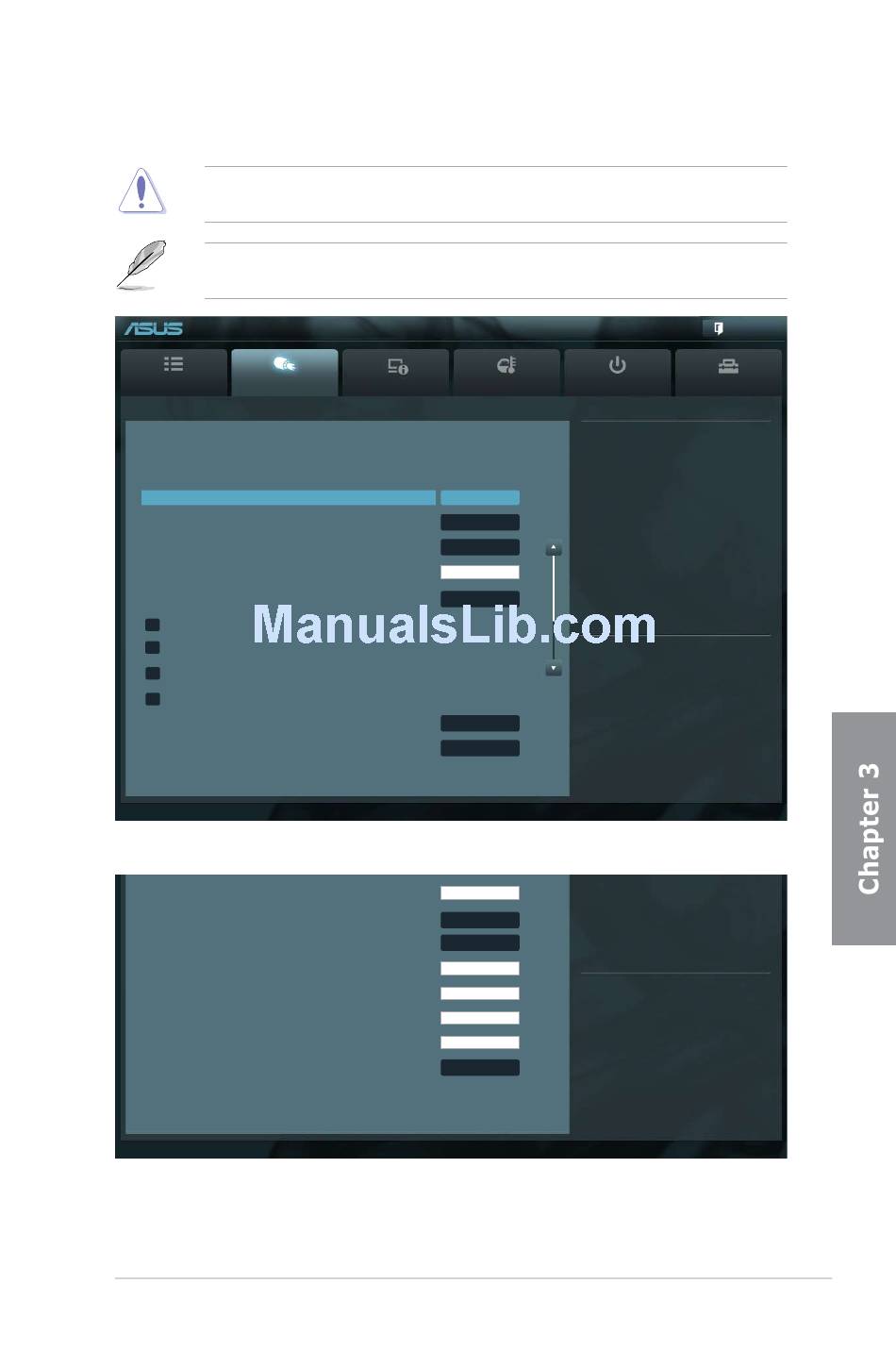

UEFI BIOS Utility - Advanced Mode
Ai Tweaker
Main
Target CPU Turbo-Mode Speed: xxxxMHz
Target DRAM Speed: xxxxMHz
Ai Overclock Tuner
CPU bus speed: DRAM speed ratio mode
Memory Frequency
iGPU Max. Frequency
EPU Power Saving Mode
> GPU Boost
> DRAM Timing Control
> CPU Power Management
> DIGI + VRM
CPU Voltage
Offset Mode Sign
Scroll down to display the following items:
CPU Offset Voltage
iGPU Voltage
iGPU Offset Mode Sign
iGPU Offsest Voltage
DRAM Voltage
VCCSA Voltage
PCH Voltage
CPU PLLVoltage
