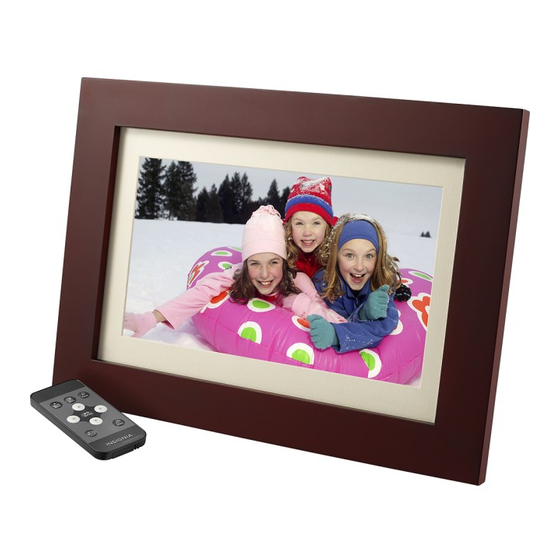

FINAL FOR PRINT NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 1 Friday, July 30, 2010 11:01 AM User Guide 8” and 10” Digital Picture Frames NS-DPF118S/NS-DPF1110W...
6-month limited warranty ..... . .35 Introduction Congratulations on your purchase of a high-quality Insignia product. Your new digital picture frame is designed for reliable and trouble-free performance.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 4 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Safety information Always follow these basic safety precautions when using your digital picture frame. This will reduce the risk of fire, electric shock, and injury. Warnings To reduce the risk of fire or shock hazard, do not expose the frame to rain or moisture and unplug the frame during lightning storms.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 5 Friday, July 30, 2010 11:01 AM Features • Displays digital pictures (JPEG format) and picture slideshows without a computer. • Displays pictures directly from an inserted memory card or USB device (not included) • Bright, clear TFT LCD screen •...
Page 6
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 6 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Side (connectors) Description Memory card slot, supports: • Secure Digital™ (SD) • SDHC™ • MultimediaCard (MMC™) • Memory Stick® • Memory Stick Pro Duo™ (requires an adapter - not included) •...
Page 7
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 7 Friday, July 30, 2010 11:01 AM Back (buttons) You can access most of the frame’s features by using either the buttons on back of the frame or by using the remote control. Selecting files for copying, deleting, or viewing requires the remote control, and the instructions in this guide refer to remote control buttons (except where noted).
Page 8
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 8 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Button Description MENU/ Press to open the Setup menu. Press and hold for two seconds to enter standby mode. Power switch Slide the power switch up to turn on your digital picture frame.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 9 Friday, July 30, 2010 11:01 AM Remote control Button Description MENU Press to display the Setup menu. SLIDE SHOW Press to start a slideshow or toggle the multi-image Display mode. (Up) Press to move the selection up. ENTER Press to select the highlighted option or to pause and resume the slideshow.
Page 10
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 10 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Button Description (Left) PREV Press to move the menu selection up or left, display the previous picture, or select the previous file. (Down) Press to move the menu selection down.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 11 Friday, July 30, 2010 11:01 AM Setting up your frame Setting up the remote control To set up the remote control: • Remove the plastic tab that extends past the bottom edge of the remote control. This tab protects the battery.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 12 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Setting up the frame To set up the frame: Align the keyed stand with the keyed slot in the back of the frame, then turn the stand. Turn the stand counterclockwise 1/4 turn to lock it into place.
Page 13
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 13 Friday, July 30, 2010 11:01 AM Place the frame on a flat, stable surface in landscape orientation. To set the frame up for portrait orientation, turn the stand counterclockwise 90°. www.insigniaproducts.com...
Page 14
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 14 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Place the frame on a flat, stable surface in portrait orientation. Adjust the stand by pulling it out from the frame, to change the viewing angle of the frame. www.insigniaproducts.com...
Page 15
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 15 Friday, July 30, 2010 11:01 AM Plug the AC power adapter into the frame’s DC power connector and into an AC power outlet. Plug the AC adapter into this jack. Slide the power switch to the ON position. The frame automatically turns and starts playing a slideshow of the pictures stored in internal memory.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 16 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Using your frame You can use your digital picture frame to: • Play a slideshow of pictures • Adjust a picture’s view • Change display settings Playing slideshows To play an instant slideshow from a memory...
Page 17
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 17 Friday, July 30, 2010 11:01 AM Press (BACK) repeatedly until the Home menu opens. Press to select a memory device or an existing memory card. Note The option to select a media type or USB device is disabled if there is no media of that type in the corresponding slot or port.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 18 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Copying pictures to internal memory You can copy a single picture, multiple pictures, or all pictures from an inserted memory card or USB device to the frame’s internal memory. Notes...
Page 19
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 19 Friday, July 30, 2010 11:01 AM Press to highlight the memory card or USB device you want to copy from, then press (ENTER/ ). The Thumbnail screen opens. Press to highlight each picture you want to copy, then press (SELECT) to mark it.
Page 20
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 20 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W To copy pictures from your PC to internal memory or connected memory device: Make sure that your computer has been started before you begin. Connect the mini plug of the supplied USB cable to the...
Page 21
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 21 Friday, July 30, 2010 11:01 AM To delete pictures from internal memory: Press (BACK) until the Home screen opens. Press to highlight Internal Memory, then press (ENTER/ ). The Thumbnail screen opens. www.insigniaproducts.com...
Page 22
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 22 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Press / / / to highlight each picture you want to delete, then press (SELECT) to mark it. A check mark appears in the upper-right corner of each marked thumbnail. Mark as many pictures as you want to delete.
Page 23
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 23 Friday, July 30, 2010 11:01 AM Customizing slideshows You can set up a slideshow using either all of the pictures or selected pictures. To set up a slideshow of selected pictures: A slideshow of selected pictures can only be set up by using the remote control.
Page 24
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 24 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Press to highlight the picture you want to include in the slideshow, then press (SELECT). A check mark appears at the upper-right corner of the thumbnail. Repeat until all pictures you want to add to the slideshow are selected.
Page 25
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 25 Friday, July 30, 2010 11:01 AM To rotate a picture based on frame orientation: • While a picture is displayed full screen (not as a thumbnail), use the adjustable stand to set the frame in landscape orientation or turn the stand counter-clockwise by 90°...
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 26 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Setting viewing options You can change all of the viewing options in the Setup menu using the buttons on the top of the frame or on the remote control. You can display the Setup menu at any time by pressing MENU.
Page 27
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 27 Friday, July 30, 2010 11:01 AM Setup options The following table lists and describes Setup menu options: Menu Settings Description option Slideshow 5 Seconds Sets the interval between each interval picture transition in a slideshow. 10 Seconds 30 Seconds 60 Seconds 60 Minutes...
Page 28
Wide (NS-DPF1110W) format, they will have black bars Cinema on the sides of the screen (NS-DPF1110W) (NS-DPF1110W only) with the Normal setting enabled. Selecting one of the other modes will hide the black bars by zooming in on the image and stretching or cropping it.
Page 29
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 29 Friday, July 30, 2010 11:01 AM Menu Settings Description option Power saving Sets the power save option. If the buttons on the frame or 15 Minutes remote control are not used for 30 Minutes the specified time, the frame 1 Hour enters Power Saving (Standby) 2 Hours...
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 30 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Maintaining Cleaning the digital picture frame Clean the outer surface of the digital picture frame with a cleaning cloth. A soft, non-abrasive cloth is recommended. Replacing the remote control battery To replace the remote control battery: Turn the remote control over.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 31 Friday, July 30, 2010 11:01 AM Troubleshooting Problem Solution The frame will not The power adapter is not securely connected to turn on. the picture frame, or the power switch is not on. Check power adapter connections, then switch the power on.
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 32 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W Specifications Screen size 10-inches (NS-DPF1110W) 8-inches (NS-DPF118S) Screen format Widescreen (NS-DPF1110W) Standard (NS-DPF118S) Memory card formats • Secure Digital™ (SD) • SDHC™ • MultimediaCard (MMC™) ® • Memory Stick •...
Page 33
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 33 Friday, July 30, 2010 11:01 AM FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 34
NS-DPF1110W_10-0827_MAN_ENG_V2.fm Page 34 Friday, July 30, 2010 11:01 AM NS-DPF118S/NS-DPF1110W www.insigniaproducts.com...
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
Page 36
To obtain in-home warranty service for a television with a screen 25 inches or larger, call 1-888-BESTBUY. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair person dispatched to your home. Where is the warranty valid? This warranty is valid only to the original purchaser of the product in the United States, Canada, and Mexico.
