INSTALLATION INSTRUCTIONS

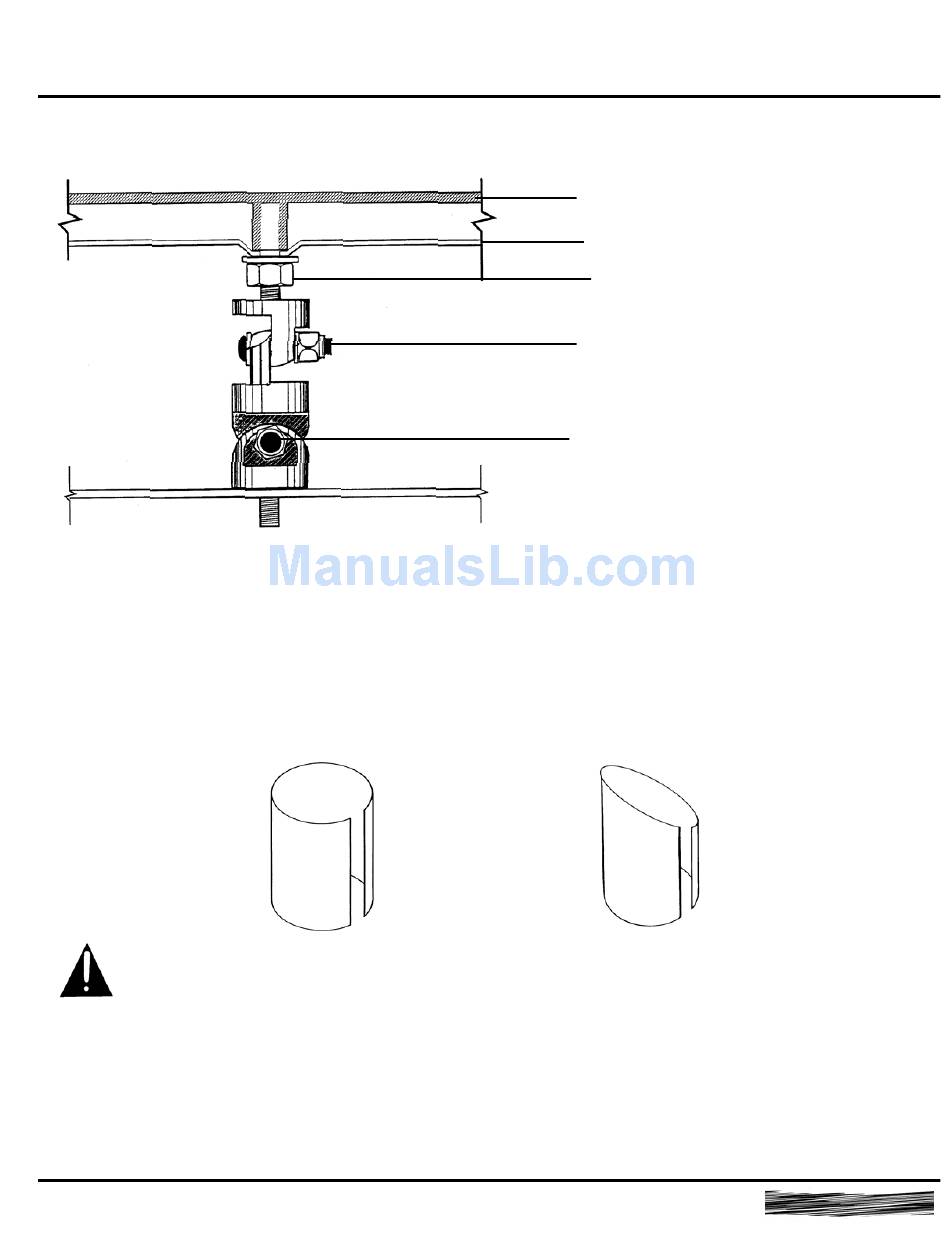

FIGURE 11 DETAIL OF POSITIONING ASSEMBLY

STEP 8 INSTALL THE PLASTIC TRIM COLLAR

8.1 The plastic trim collar may be used as a cosmetic concealment of the positioning adjustment knuckle

assembly and the audio and video signal cables.

8.2 The slit side of the collar enables the installer to spread the collar enough to place it over the adjustment

knuckle. It will curve back by its own spring action to wrap around itself enough to close the gap.

(See Fig. 12)

8.3 If the projector is hung at a sharp angle, you may trim the collar for a better fit. (See Fig. 13)

FIGURE 12

DO NOT RUN THE AC POWER CORD INSIDE THE PLASTIC TRIM COLLAR. ALL

WIRING MUST COMPLY WITH THE NEC AND ALL LOCAL BUILDING, ELECTRIC

AND SAFETY CODES.

NOTE: IN THE EVENT YOU WISH TO USE THE SHARP ADJUSTABLE EXTENSION

ACCESSORY IN CONJUNCTION WITH THE CEILING MOUNTING BRACKET,

PLEASE REFER TO THE INSTALLATION INSTRUCTION MANUAL INCLUDED IN

THE

EXTENSION TUBE PACKAGE.

CEILING BRACKET AN-PHCM20

CEILING PLATE

PLASTIC CEILING PLATE

TRIM COVER

LOCKING NUT AND HORIZONTAL

POSITION ADJUSTMENT

HORIZONTAL TILT ADJUSTMENT

VERTICAL POSITION ADJUSTMENT

FIGURE 13

PAGE 9
