INSTALLATION INSTRUCTIONS

STEP 5 ATTACH THE POSITIONING ASSEMBLY TO THE CEILING PLATE

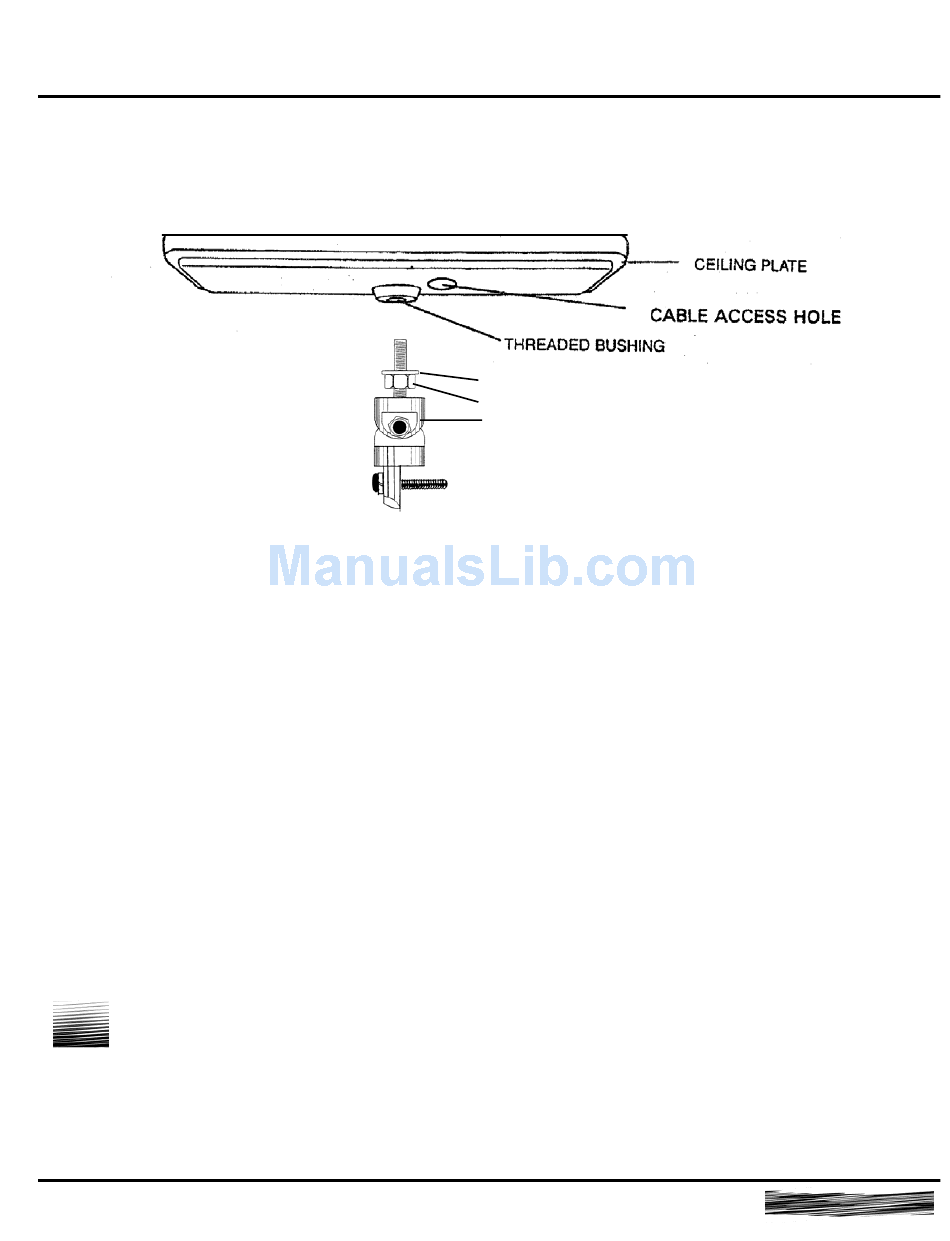

FIGURE 8

IF YOU INTEND TO RUN AUDIO OR VIDEO CABLES THROUGH THE CEILING PLATE

PROCEED WITH STEP 5.1 AND 5.2, OTHERWISE PROCEED TO STEP 5.3:

5.1

Cut opening in the ceiling plate trim cover as indicated on the label inside cover near

the center bushing.

5.2

Thread cables through the plastic trim cover.

5.3

Place the plastic trim cover in position over the ceiling plate and press the Velcro

tabs together.

5.4

After completing step #3, screw the longer shaft with the locking nut and washer

into the center threaded bushing on the ceiling plate as far as it will go. (See Fig. 8)

5.5

Tighten the locking nut against the ceiling plate using a 3/4" open end wrench or an

crescent wrench.

DO NOT RUN THE AC POWER CORD INSIDE THE PLASTIC TRIM COVER.

ALL WIRING MUST COMPLY WITH THE NEC AND ALL LOCAL BUILDING,

ELECTRIC, AND SAFETY CODES.

CEILING BRACKET AN-PHCM20

WASHER

LOCKING NUT

UPPER KNUCKLE

PAGE 7
