INSTALLATION INSTRUCTIONS

STEP 6 HANGING THE PROJECTOR FROM POSITIONING ASSEMBLY
IT IS RECOMMENDED THAT TWO PERSONS SUPPORT THE PROJECTOR
WHEN RAISING IT UP IN ORDER TO HANG IT IN PLACE.

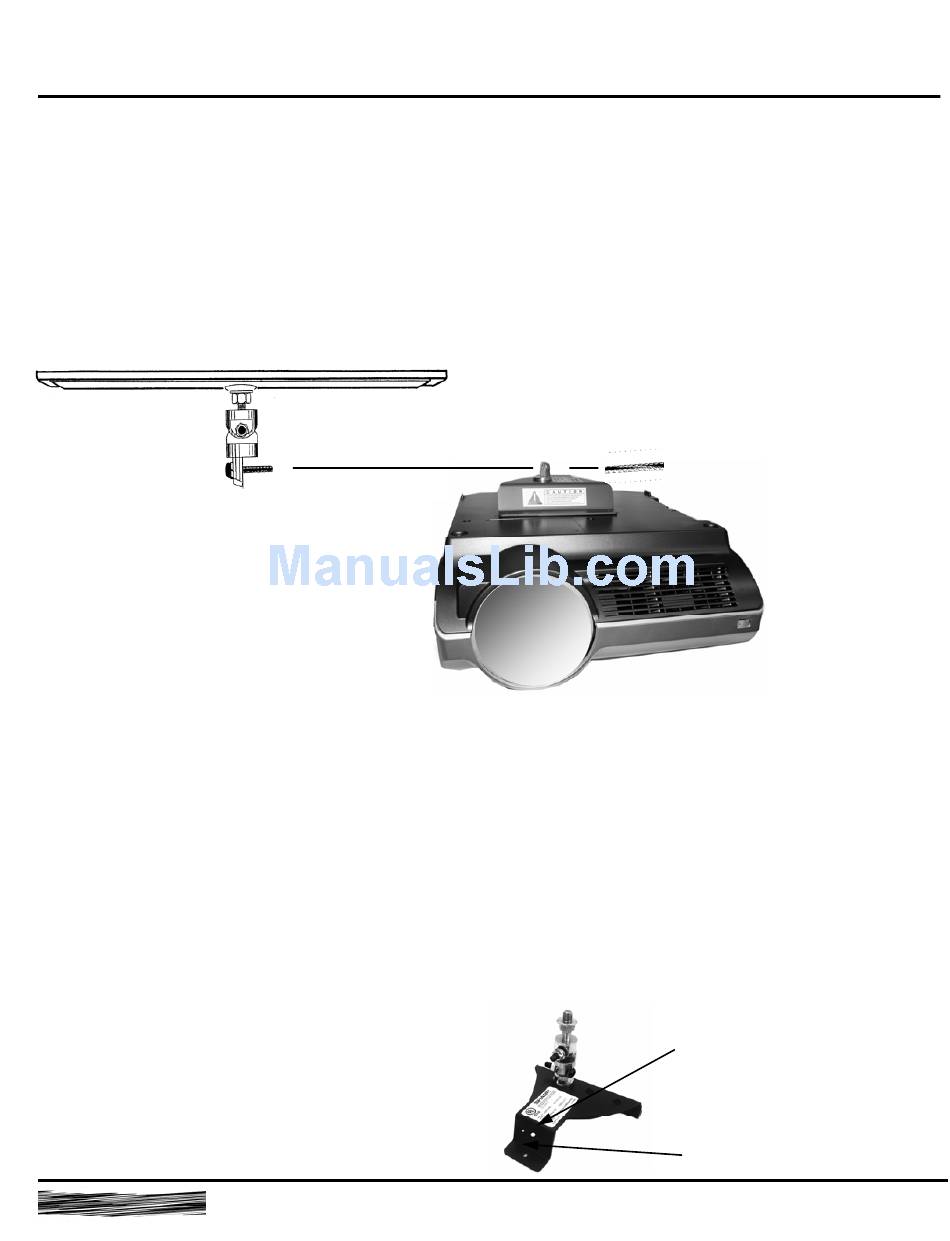

6.1 Raise the projector with the mounting plate attached and slide the fitting (See Fig. 9)
over the support stud on the hanging position.
6.2 Replace the locking nut and split lock washer (removed in step 3.1). Using the 9/16"
run the nut up but do not tighten all the way.
STEP 7 AIM THE PROJECTOR
CAUTION: DO NOT OVER-TIGHTEN THE POSITIONING NUTS. When doing image
positioning alignment, tighten the nuts until the split ring washer flattens out and then only just enough addi-
tional tightening to hold the set position.
7.1 After the projector has been property wired, turn it on and loosen the positioning
assembly adjustment nuts just enough so that you can move the projector fairly easily.
10) DO NOT COMPLETELY LOOSEN THE NUTS.
7.2 Set the Horizontal Centering by loosening the ceiling locking nut, move the projector to center the
image and tighten the nut. (Use 3/4" open end wrench).
7.3 Set the vertical centering and secure the lower positioning adjustment nut.
(See Fig. 10)
7.4 Set the Horizontal tilt and secure the upper positioning adjustment nut. (See Fig. 10)
SECURITY:
The ceiling plate and the projector attachment plate of this
model mounting bracket kit are equipped with
attachment facilities that enable the use of a SHARP Model
AN-CMCSS16 or AN-CMCSS46 theft
prevention security cable optional accessory.
CEILING BRACKET AN-PHCM20
FIGURE 9
PAGE 8
box wrench
(See Fig.
Threaded hole lines up with
center hole in lock base.
Anti-spin hole aligns with
anti-spin pin on lock base.
