3. Changing the belt
Replacement belts are available direct from
Dyson Customer Care ( Tel: 01666 827272 )

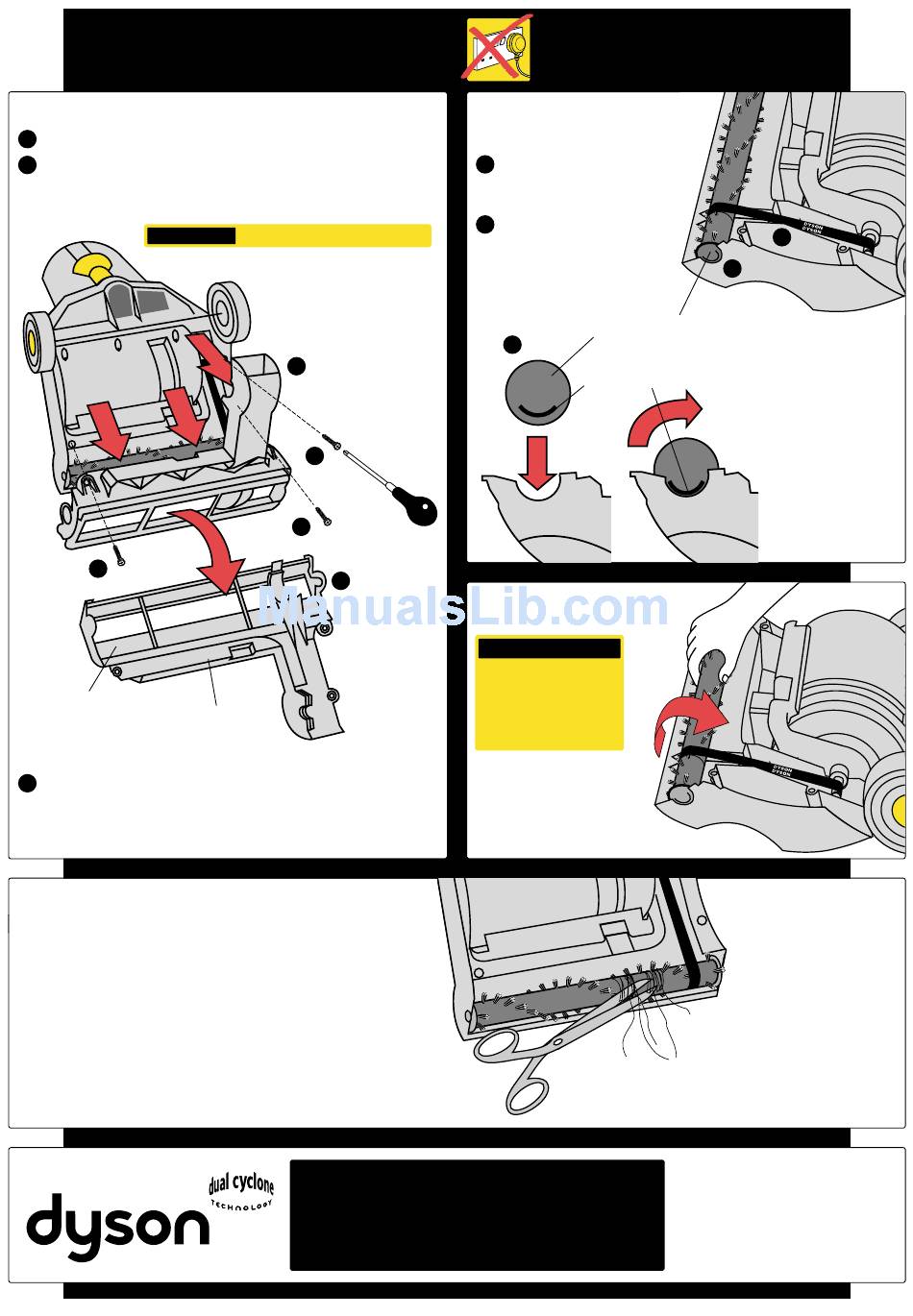

1. Remove soleplate
1
Undo three cross-head screws.
2
Remove soleplate by lifting from the back, and then
remove brush bar.
IMPORTANT
1
Cradle
Soleplate
3
If cradle becomes detached from soleplate, align
circular ends of cradle with corresponding holes of
soleplate and slot into place, ensuring that 'front'
edge of cradle faces the right direction.
Thread removal
After unplugging the cleaner, carefully remove any
entwined cotton, wool or fluff with scissors.
NOTE: Failure to remove these may result in loss of
performance and possible damage to the machine.
Use only genuine Dyson belts.
2
1
1
3
Helpline
Facsimile
Contact for all service assistance
W A R N I N G !
remember to unplug the machine when not
in use and before carrying out maintenance.
2. Line up brush bar
1
Fit belt over motor
shaft and domed
section of brush bar.
2
Pull belt taut and
locate brush bar
in slot.
End cap of brush bar
2
Raised section
3. Centralise belt
VERY IMPORTANT
Rotate brush bar by
hand to centralise
belt before re-fitting
soleplate to machine.
01666 827272
01666 827298
For your own safety please
1
2
With raised section
on end of brush bar
orientated as
shown, locate brush
bar in slot and
rotate end cap
towards back of
machine until it
comes to a stop.
D Y S O N C U S T O M E R C A R E
T E T B U R Y H I L L
M A L M E S B U R Y
W I L T S H I R E
E N G L A N D
S N 1 6 O R P
