To install a microprocessor, complete the following steps:
46
IBM System x3800 Type 8865: User's Guide
1 2
1. Read the safety information that begins on page v and "Installation guidelines"
on page 21.
2. Turn off the server and peripheral devices, and disconnect the power cords.
3. Remove the front cover (tower model only), bezel, and top cover (see
"Removing the front cover, top cover, and bezel" on page 23).
Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see "Handling static-sensitive devices" on page 22.

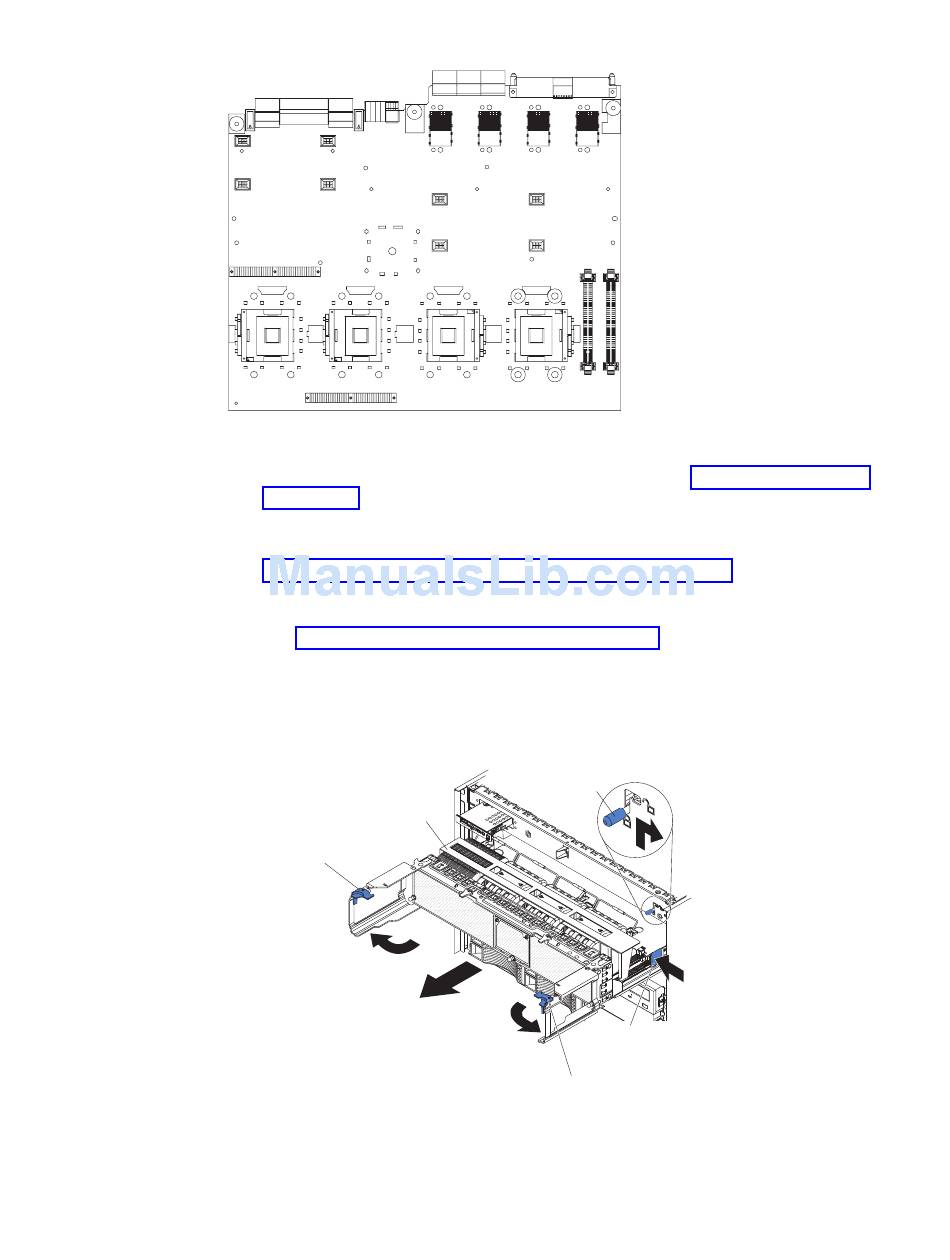

4. Remove the microprocessor tray:
a. Remove the fans from the server.
b. Remove the memory cards from the server.
c. Lift the microprocessor-tray release latch.
Air baffle
Microprocessor-tray
lever
d. Open the microprocessor-tray levers.
e. Pull out the microprocessor-tray until it stops; then, push in on the
microprocessor tray retention latches on each side of the tray and pull the
tray out of the server.
4 3
Microprocessor-tray
release latch
Microprocessor-tray
retention latch
(both sides of tray)
Microprocessor-tray
lever
