4. See the documentation that comes with the adapter for instructions for setting
5. Install the adapter:
28
IBM System x3800 Type 8865: User's Guide

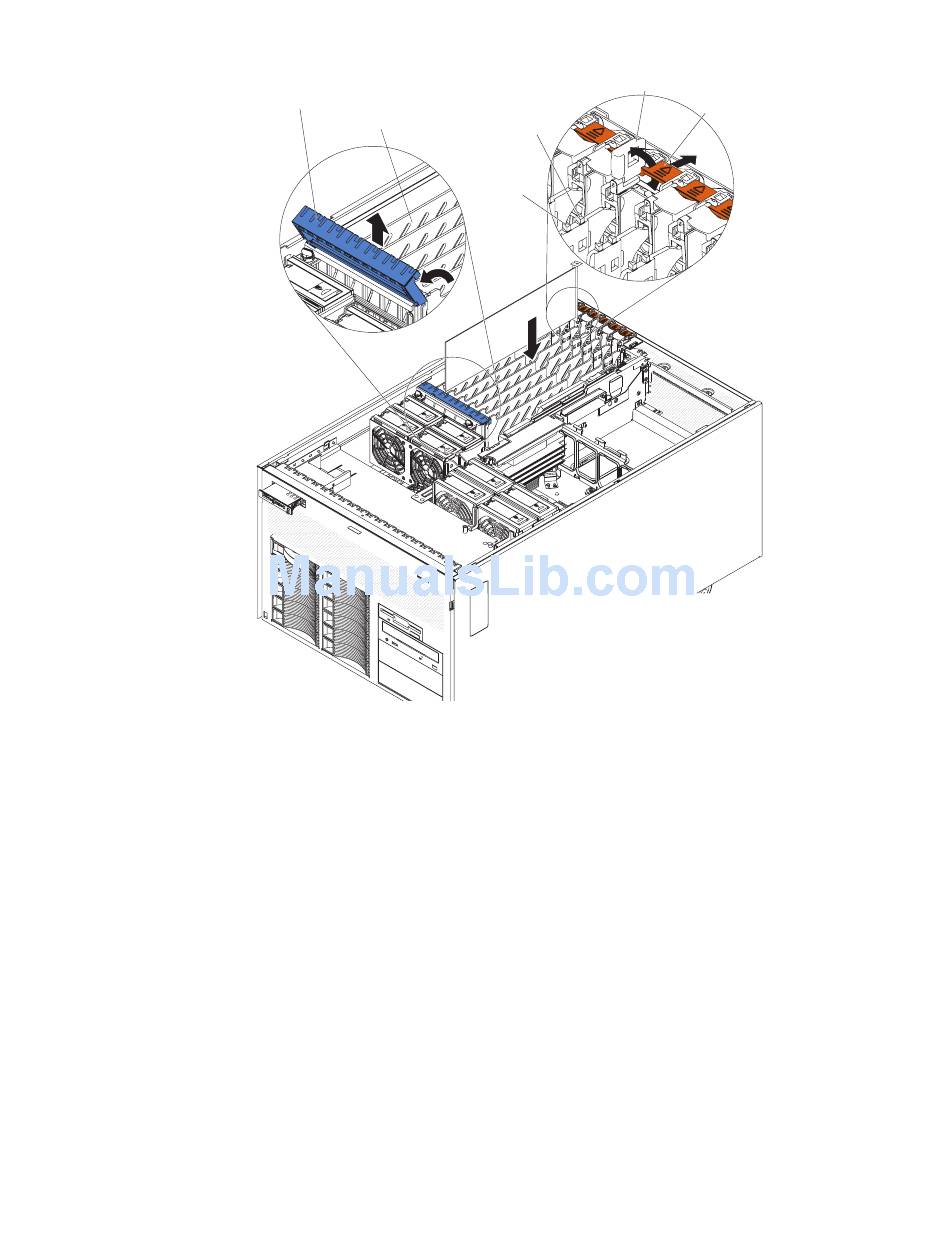

PCI-X retaining bar
PCI-X divider
jumpers or switches and for cabling.
Note: Route adapter cables before you install the adapter.
a. Open the blue PCI-X retaining bar by lifting the front edge.
b. Push the orange adapter retention latch toward the rear of the server and
open the tab. The power LED for the slot turns off if an adapter is installed
in the slot.
c. Remove the expansion-slot cover.
d. Touch the static-protective package that contains the adapter to any
unpainted surface on the outside of the server; then, grasp the adapter by
the top edge or upper corners of the adapter and remove it from the
package.
e. Carefully grasp the adapter by its top edge or upper corners, and align it
with the connector on the PCI-X board.
f. If necessary, remove the adapter guide before installing a full-length adapter.
Tab
Attention
LED
(yellow)
Power
LED
(green)
Adapter-
retention
latch
