Tape drive
end of cable
Notes:
1. For clarity, the media-signal cable and other cables are not shown in the
illustration.
2. The tape drive might come with a round cable, as shown in the illustration, or
a ribbon cable.

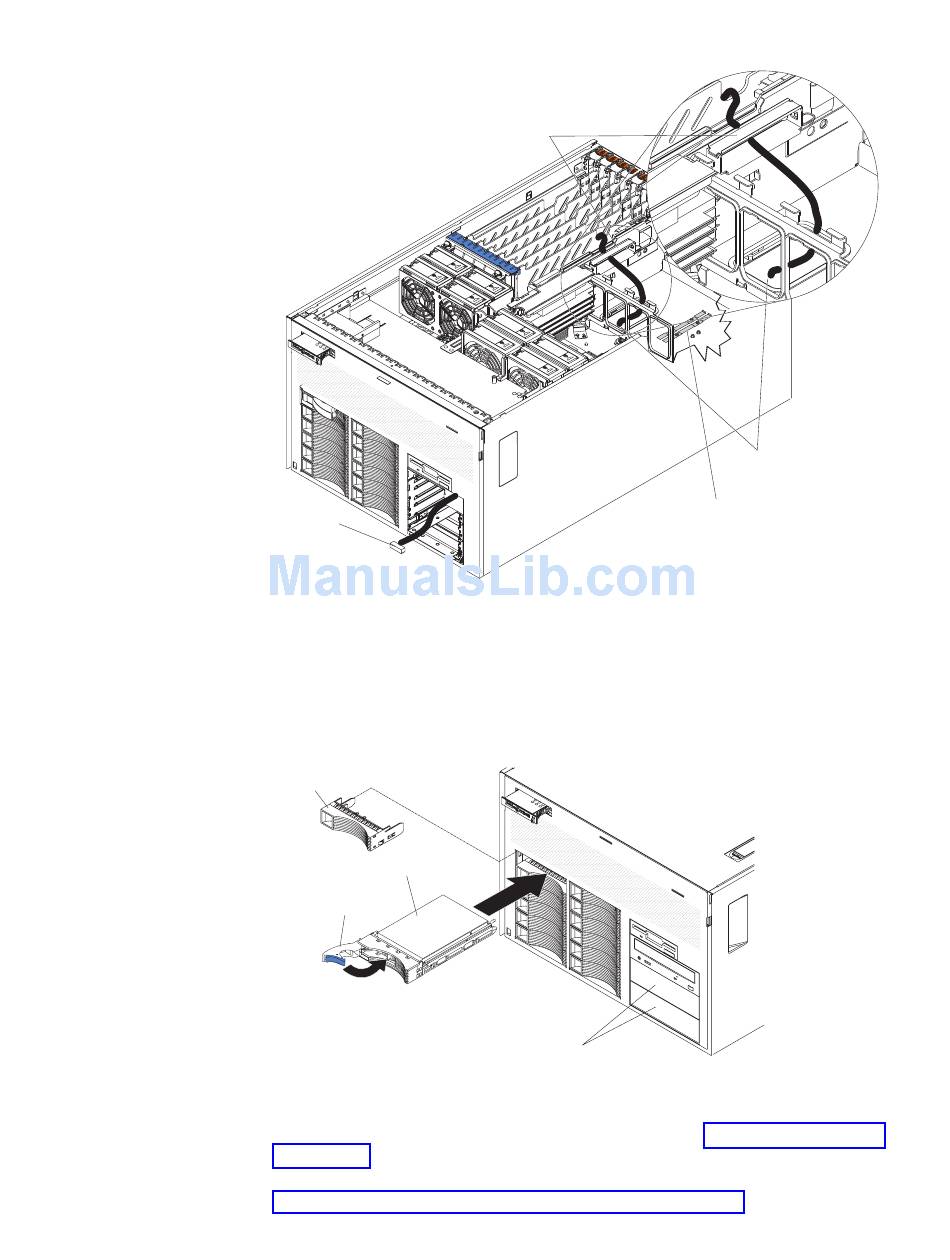

The following illustration shows how to install a hot-swap hard disk drive.
Filler panel
Hard disk drive assembly
Drive handle
(open position)
To install a hot-swap hard disk drive, complete the following steps:
1. Read the safety information that begins on page v, and "Installation guidelines"
on page 21.
2. If you are installing drives in a tower model, remove the front cover (see
"Removing the front cover, top cover, and bezel" on page 23).
Cable retention clip
5.25-inch bays for
supported tape drives
Cable channel
Full-high tape drive
installation hardware
Chapter 2. Installing options
33
