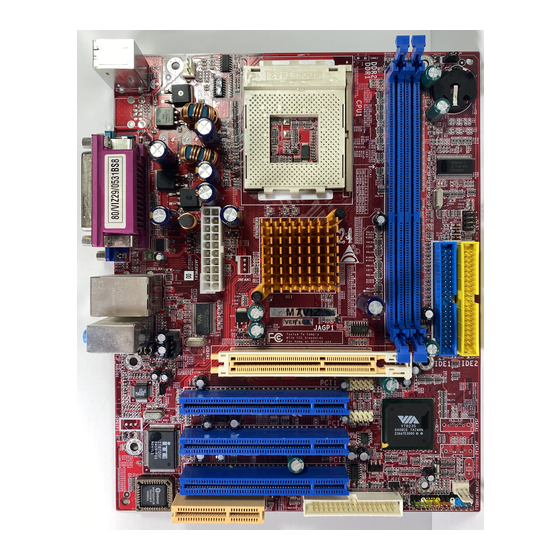

Biostar M7VIZ User Manual
Biostar M7VIZ User Manual

Biostar M7VIZ User Manual

M7viz user's manual
Hide thumbs Also See for M7VIZ:

Advertisement

M
7
V
I
Z
M
7
V
I
Z
M
7
V
I
Z
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are
designed
to
provide
reasonable
protection
against
harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in
a particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied
of
warranties
merchantability or fitness for any purpose. Further the vendor reserves
the right to revise this publication and to make changes to the contents
here of without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without
first obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice
and we will not be responsible for any mistakes found in this user's
manual. All the brand and product names are trademarks of their
respective companies.
i

Advertisement

Table of Contents
loading

Summary of Contents for Biostar M7VIZ

  • Page 1 FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits designed provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 2: Table Of Contents

    Installation der CPU....................16 DDR DIMM Modules: DDR1, DDR2 ................. 17 Installation von DDR-Modul ..................17 Jumpers, Headers, Anschlüsse & Steckplätze............18 FRANÇAIS....................25 Caractéristiques de la M7VIZ.................. 25 Contenu du carton....................26 STUDIOFUN! ..................27 Introduction......................27 Hardware Requirements..................27 Installation Procedure ..................... 27 Booting to StudioFun!.....................
  • Page 3 TROUBLE SHOOTING .................50 PROBLEMLÖSUNG ................51...
  • Page 4: Layout Of M7Viz

    Layout of M7VIZ NOTE: ●represents the first pin.
  • Page 5: Component Index

    Component Index A. ATX Power Connector (JATXPWR1) N. Wake On LAN Header (JWOL1) B. Power Source Selection for Keyboard O. Floppy Disk Connector (FDD1) and Mouse (JKBV1) P. Front Panel Connector (JPANEL1) C. Power Source Selection for USB Q. System FAN Header (JSFAN1) (JUSBV3) R.
  • Page 6: English

    English M7VIZ Features A. Hardware Provides Socket A. ® Supports single AMD Athlon/ Duron Family processor. Front Side Bus at 200/266/333 MHz. Chipset North Bridge: VIA KM400. South Bridge: VIA VT8235CE/ VT8237.(optional) Main Memory Supports up to 2 DDR devices.
  • Page 7: Package Contents

    Supports 6 channels. On Board Peripherals a. Rear side 1 serial port. 1 VGA port. 1 parallel port. (SPP/EPP/ECP mode) Audio ports in vertical position. 1 RJ-45 LAN jack. PS/2 mouse and PS/2 keyboard. 4 USB2.0 ports. 1 1394A Firewire ports. (optional) b.
  • Page 8: How To Set Up Jumper

    How to set up Jumper The illustration shows to how set up jumper. When the Jumper cap is placed on pins, the jumper is “close”. If no jumper cap is placed on the pins, the jumper is ”open”. The illustration shows a 3-pin jumper whose pin1and 2 are “close” when jumper cap is placed on these 2 pins.
  • Page 9: Ddr Dimm Modules: Ddr1, Ddr2

    CPU Fan Header: JCFAN1 Assignment Ground +12V JCFAN1 FAN RPM rate Sense System Fan Header: JSFAN1 Assignment Ground JSFAN1 +12V FAN RPM rate Sense DDR DIMM Modules: DDR1, DDR2 DRAM Access Time: 2.5V Unbuffered/ Registered DDR 200 MHz (PC1600)/ DDR 266 MHz (PC2100)/ DDR 333 MHz (PC2700) Type required. DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin) DIMM Socket DDR Module...
  • Page 10: Jumpers, Headers, Connectors & Slots

    Jumpers, Headers, Connectors & Slots Floppy Disk Connector: FDD1 The motherboard provides a standard floppy disk connector that supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This connector supports the provided floppy drive ribbon cables. Hard Disk Connectors: IDE1/ IDE2 The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO Mode 0~5, Bus Master, and Ultra DMA 33/ 66/ 100/ 133 functionality.
  • Page 11: Front Panel Connector: Jpanel1

    Front Panel Connector: JPANEL1 PWR_LED ON/OFF JPANEL1 HLED Assignment Function Assignment Function Speaker Sleep Control Sleep Connector Button Ground Speaker Power LED (+) POWER HDD LED (+) Hard Drive Power LED (+) HDD LED (-) Power LED (-) Ground Reset Power Button Power-on Button...
  • Page 12 Power Source Selection for Keyboard/ Mouse: JKBV1 JKBV1 Assignment Description +5V for keyboard and mouse Pin 1-2 close PS/2 Mouse and PS/2 Keyboard are powered with +5V standby voltage +5V Standby Voltage Pin 2-3 close Note: In order to support the function “power-on the system via keyboard and mouse function, “JKBV1”...
  • Page 13 Clear CMOS Jumper: JCMOS1 JCMOS1 Assignment Normal Operation (default) Pin 1-2 Close Clear CMOS Data Pin 2-3 Close ※ Clear CMOS Procedures: 1. Remove AC power line. 2. Set the jumper to “Pin 2-3 Close”. 3. Wait for five seconds. 4.
  • Page 14 Front Panel Audio Header: JF_AUDIO1 JF_AUDIO1 Assignment Assignment Mic In/ Center Ground Mic Power/ Bass Audio Power Right Line Out/ Speaker Out Right Line Out/ Speaker Out Right Right Reserved Left Line Out/ Speaker Out Left Line Out/ Speaker Out Left Left Right Line In/ Rear Speaker Right Line In/ Rear Speaker Right...
  • Page 15 Front 1394 Header: J1394B1 Assignment Assignment Ground Ground +12V +12V J1394B1 Ground CNR Codec/ Onboard Selection: JCODECSEL1 JCODECSEL1 Assignment Onboard Codec is used (default) Pin 1-2 Close CNR Codec is used Pin 2-3 Close Frequency Selection: JCLK1 100 MHz 133 MHz 166 MHz Open Open...
  • Page 16 Back Panel Connectors JKBMS1 JUSBLAN1 1394 JPRNT1 PS/2 (optional) Mouse Parallel Port Line In Speaker Out Mic In PS/2 COM1 VGA1 Keyboard JCOM1 JVGA1 JAUDIO J1394_USB1 6 Channel Speakers Line In/ Rear Speaker Speaker Out Mic In/ Center & Bass...
  • Page 17: Deutsch

    Deutsch Spezifikationen von M7VIZ A. Hardware Unterstützung für Sockel A. ® Unterstützung für die AMD Athlon/ Duron-Familie Prozessor. FSB mit 200/266/333 MHz. Chipsatz Northbridge: VIA KM400. Southbridge: VIA VT8235CE/ VT8237.(optional) Hauptspeicher Unterstützung für 2 DDR Geräte. Unterstützung für 200/266/333 MHz (ohne ECC) DDR Geräte.
  • Page 18: Verpackungsinhalt

    Entspricht die Spezifikation von AC’97. Unterstützung für 6-Kanal. Onboard-Peripheriegeräte a. Für Rückwand 1 serielle Schnittstelle. 1 VGA-Schnittstelle. 1 parallele Schnittstelle. (SPP/EPP/ECP-Modus) Audio-Ports. 1 RJ-45 LAN-Buchse (optional) Unterstützung für PS/2-Maus und PS/2-Tastatur. 4 USB 2.0-Ports. 1 1394A-Port. (optional) b. Für Vorderseite 1 Floppy-Port mit Unterstützung für 2 Diskettenlaufwerke.(360KB, 720KB, 1.2MB, 1.44MB und 2.88MB) 2 USB2.0-Ports.
  • Page 19: Einstellung Der Jumper

    I/O-Rückwand für ATX Gehäuse X1 (optional) IEEE 1394 Kable X 1 (optional) Einstellung der Jumper Die Abbildung verdeutlicht, wie Jumper eingestellt werden. Pins werden durch die Jumper-Kappe verdeckt, ist der Jumper ”geschlossen”. Keine Pins werden durch die Jumper-Kappe verdeckt, ist der Jumper “geöffnet”. Die Abbiildung zeigt einen 3-Pin Jumper dessen Pin1 und Pin2 ”geschlossen“...
  • Page 20: Ddr Dimm Modules: Ddr1, Ddr2

    CPU-Lüfter Headers: JCFAN1 Beschreibung Masse +12V JCFAN1 FAN RPM Geschwindigkeit Sensor System-Lüfter Headers: JSFAN1 Beschreibung Masse JSFAN1 +12V FAN RPM Geschwindigkeit Sensor DDR DIMM Modules: DDR1, DDR2 DRAM-Zugriffszeit: 2.5V unbuffered DDR/Registered DDR 200 MHz (PC1600)/ DDR 266 MHz (PC2100)/ DDR 333 MHz (PC2700) Typ erforderlich. DRAM-Typ: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM-Module(184-Pin) DIMM-Sockel DDR-Modul...
  • Page 21: Jumpers, Headers, Anschlüsse & Steckplätze

    Jumpers, Headers, Anschlüsse & Steckplätze Diskettenanschluss: FDD1 Das Motherboard enthält einen standardmäßigen Diskettenanschluss, der 360K-, 720K-, 1.2M-, 1.44M- und 2.88M-Disketten unterstützt. Dieser Anschluss unterstützt die mitgelieferte Bandkabel des Diskettenlaufwerks. Festplattenanschlüsse: IDE1 und IDE2 Das Mainboard hat einen 32-bit Enhanced PCI IDE-Controller, der die Modi PIO0~4, Bus Master sowie die Ultra DMA/33/66/100/133- Funktion zur Verfügung stellt.
  • Page 22 Anschlüsse für die Vorderseite: JPANEL1 PWR_LED ON/OFF JPANEL1 HLED Belegung Funktion Belegung Funktion Schlaf- Kontroll Schlaf- Lautsprecher- Knopf Kein Masse Anschluss Kein Kein Kein Lautsprecher Power LED (+) POWER HDD LED (+) Festplatte Power LED (+) HDD LED (-) Power LED (-) Masse Rückstell- Power-Knopf...
  • Page 23 Auswahl von Stromsmodi für Tastatur/ Maus: JKBV1 JKBV1 Pin-Belegung Beschreibung +5V für Tastatur und Maus Pin 1-2 geschlossen Durch +5V reservierte Spannung für PS/2-Maus und PS/2-Tastatur zum +5V reservierte Erwecken vom System Spannung Pin 2-3 geschlossen Anmerkung: Um die Funktion ─ “Erwecken durch Tastatur/Maus“ ─ zu aktivieren, müssen Pins 2-3 von JKBV1 durch die Jumperkappe verdeckt werden.
  • Page 24 Jumper zum Löschen des CMOS: JCMOS1 JCMOS1 Beschreibung Normale Operation (Default) Pin 1-2 geschlossen CMOS-Daten Löschen Pin 2-3 geschlossen ※ Prozeduren zum Löschen des CMOS: 1. Ausschalten Sie das System. 2. Lassen Sie Pin 2-3 von JCOMS1 geshclossen sein. 3. Bitte warten Sie 15 Sekunden. 4.
  • Page 25 CD-ROM Audio-In Header: JCDIN1 Belegung Eingabe von linken Kanal Masse JCDIN1 Masse Eingabe von rechtenKanal Digital Audio Anschluss: JSPDIF1 Belegung SPDIF_Ausgang JSPDIF1 Masse Audio Header für Vorderseite: JF_AUDIO1 JF_AUDIO1 Belegung Belegung Mikrofon-Eingang Masse Mikrofon-Betriebsspannung Audio-Betriebsspannung Audio-Signal des rechten Audio-Signal des rechten Kanals zur Vorderseite Kanals zur Vorderseite Reservieret für spät.
  • Page 26 Front USB Header: JUSB2/ (JUSB1=>nur für Southbridge VT8237 Belegung Belegung +5V(geschmelzt) +5V(geschmelzt) USB- USB- USB+ USB+ JUSB1/2 Masse Masse Kein Pin Kein Front 1394 Header: J1394B1 Belegung Belegung Masse Masse +12V +12V J1394B1 Kein Pin Masse Auswahl Onboard/CNR-Codec: JCODECSEL1 JCMOS1 Beschreibung Verwendung von Onboard-Codec (Default)
  • Page 27 Anschlüsse für die Rückwand JUSBLAN2 JKBMS1 JPRNT1 1394 PS/2- (optional) Parallel Maus Line-In Lautsprecher- Ausgang Mikrofon- Ausgang PS/2- COM1 VGA1 Tastatur JAUDIO J1394_USB1 JCOM1 JVGA1 6-Kanal-Lautsprecher Line-In/ Lautsprecher- Laursprecher- Eingang Ausgang Mikrofon-Eingang / Zentrum & Bass...
  • Page 28: Français

    Français Caractéristiques de la M7VIZ A. Matériel Processeur Fournit un support Socket A. ® Prend en charge un unique processeur AMD de la famille Athlon/ Duron. Bus face avant à 200/266/333 MHz. Chipset Pont nord : VIA KM400. Pont sud : VIA VT8235CE/ VT8237.(option) Mémoire principale...
  • Page 29: Contenu Du Carton

    Périphériques intégrés a. Face arrière 1 port série. 1 port VGA. 1 port parallèle. (mode SPP/EPP/ECP) Ports audio en position verticale. 1 prise réseau RJ-45. Souris et clavier PS/2. 4 ports USB2.0. 1 port 1394A Firewire. (option) b. Face avant 1 port pour lecteur de disquettes prend en charge deux lecteurs de disquettes avec 360K, 720K, 1,2M, 1,44M et 2,88 Mo.
  • Page 30: Studiofun

    StudioFun! Introduction StudioFun! is a media-player based on optimized GNU/Linux distribution. It plays DVD, VCD, MP3, Audio CD and various other known file formats. You can take snapshots of video and customize the saved images as screensavers. You can also store the images on USB mass storage devices like flash disks and USB floppy disks.
  • Page 31: Error Messages

    Installation This option will do the basic installation of the distribution. The installation works on pre-installed windows or GNU/Linux distribution. On selecting the ’installation’ option the installer boots and displays a dialog box indicating the space required and waits for a confirmation. Selecting Ok will continue the installation while selecting Cancel will terminate the installation and reboot the machine.
  • Page 32: Booting To Studiofun

    Recovery In case of a MBR corruption, this option should be used. It will automatically probe the hard disk master boot record and find out the installed operating system(s). On success it will re-install the boot loader with correct options in the MBR. Any custom boot loader option specified from other GNU/Linux installations will get over written by the newly probed one.
  • Page 33: Media Control

    After complete boot up, you get to the main Desktop screen. The following section is a complete description of the Desktop application. Desktop This is the main shell of the StudioFun software. It basically comprises of two categories, one is the main "media control" part and the other is the "control panel". Media control The media control part of the Desktop has the following controls: This control will glow whenever a VCD is detected in a DVD/CD-ROM drive.
  • Page 34: Control Panel

    present in the DVD/CD-ROM drive. This control will glow whenever a DVD is detected in a DVD drive. The DVD will be auto-played only when it is put in to the drive when the Desktop (StudioFun! shell) is up and running, otherwise, the control will simply glow to inform the user about a DVD present in the DVD/CD-ROM.
  • Page 35: Select Region

    1. Select Region Clicking this icon will invoke the application for selection DVD region settings. Refer to section 5.2 Select DVD Region application for more details. 2. Screensaver Clicking this icon will invoke the screensaver application. Refer to section 5.3 Screensaver for more details.
  • Page 36: Software Details

    Software Details XINE XINE is a multimedia player. It plays back Audio CD, DVD, and VCD. It also decodes multimedia files like AVI, MOV, WMV, and MP3 from local disk drives. It interprets many of the most common multimedia formats available - and some of the uncommon formats, too. •...
  • Page 37 MPEG-Audio (.mp2, .mp3) WAV (.wav) Video Codecs MPEG 1/2 MPEG 4 (aka OpenDivX) MS MPEG 4 Chapter 5: Software Details 10 Windows Media Video 7 m. Motion JPEG • Remote Control support. Infrared interface User-friendly • Usage of StudioFun! with CelomaChrome skin Select VCD button to play a VCD disc Select DVD button to play a DVD disc Select CDDA button to play a Audio cd...
  • Page 38: Select Region

    m. k. Select menu button to use menu’s while playing DVD l. Select control button to adjust brightness / color Select setup button to modify the settings of the player Select f.scr button to show the video output of the player in full screen mode Select snap button to take a snapshot of the currently playing video...
  • Page 39: Screensaver

    Screensaver Screensaver The xscreensaver daemon waits until the keyboard and mouse have been idle for a period, and then runs a graphics demo chosen at random. The demo is terminated as soon as there is any mouse or keyboard activity. The xscreensaver-demo program is the graphical user interface to xscreensaver.
  • Page 40: Display Settings

    2. Only one Screen Saver: When user chooses this option, screensaver displays only one graphics demo. 3. Blank Screen Only: When user chooses this option, screensaver only blanks the screen instead of displaying the graphics demo. 4. Disable Screen Saver: When user chooses this option, screensaver is disabled. •...
  • Page 41: File Manager

    three resolutions. • 640x480 • 800x600 • 1024x768 The current resolution of the Display will be selected by default. It requires restart of the StudioFun to reflect the changes made. File Manager Overview File manger is an utility to copy files from deferent devices to hard disk and vice versa. User can copy files from devices such as, floppy, cdrom and flashdisk to hard disk.
  • Page 43: Warpspeeder

    WarpSpeeder Introduction [ WarpSpeeder™ ], a new powerful control utility, features three user-friendly functions including Overclock Manager, Overvoltage Manager, and Hardware Monitor. With the Overclock Manager, users can easily adjust the frequency they prefer or they can get the best CPU performance with just one click. The Overvoltage Manager, on the other hand, helps to power up CPU core voltage and Memory voltage.
  • Page 44: Installation

    Installation Execute the setup execution file, and then the following dialog will pop up. Please click “Next” button and follow the default procedure to install. When you see the following dialog in setup procedure, it means setup is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox is checked, the Tray Icon utility and [WarpSpeeder™] utility will be automatically and immediately launched after you click “Finish”...
  • Page 45: Usage

    Usage The following figures are just only for reference, the screen printed in this user manual will change according to your motherboard on hand. [WarpSpeeder™] includes 1 tray icon and 5 panels: 1. Tray Icon: Whenever the Tray Icon utility is launched, it will display a little tray icon on the right side of Windows Taskbar.
  • Page 46 This utility is responsible for conveniently invoking [WarpSpeeder™] Utility. You can use the mouse by clicking the left button in order to invoke [WarpSpeeder™] directly from the little tray icon or you can right-click the little tray icon to pop up a popup menu as following figure.
  • Page 47 3. Voltage Panel Click the Voltage button in Main Panel, the button will be highlighted and the Voltage Panel will slide out to up as the following figure. In this panel, you can decide to increase CPU core voltage and Memory voltage or not. The default setting is “No”.
  • Page 48 4. Overclock Panel Click the Overclock button in Main Panel, the button will be highlighted and the Overclock Panel will slide out to left as the following figure.
  • Page 49 Overclock Panel contains the these features: a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”: provide user the ability to do real-time overclock adjustment. Warning: Manually overclock is potentially dangerous, especially when the overclocking percentage is over 110 %. We strongly recommend you verify every speed you overclock by click the Verify button.
  • Page 50 “Auto-overclock button”: User can click this button and [ WarpSpeeder™ ] will set the best and stable performance and frequency automatically. [ WarpSpeeder™ ] utility will execute a series of testing until system fail. Then system will do fail-safe reboot by using Watchdog function. After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default setting or load the verified best and stable frequency according to the Recovery Dialog’s setting.
  • Page 51 5. Hardware Monitor Panel Click the Hardware Monitor button in Main Panel, the button will be highlighted and the Hardware Monitor panel will slide out to left as the following figure. In this panel, you can get the real-time status information of your system. The information will be refreshed every 1 second.
  • Page 52 Note: Because the overclock, overvoltage, and hardware monitor features are controlled by several separate chipset, [ WarpSpeeder™ ] divide these features to separate panels. If one chipset is not on board, the correlative button in Main panel will be disabled, but will not interfere other panels’ functions.
  • Page 53: Trouble Shooting

    Trouble Shooting PROBABLE SOLUTION No power to the system at all Power light don’t * Make sure power cable is securely plugged in illuminate, fan inside power supply does not turn * Replace cable on. Indicator light on keyboard does not turn on * Contact technical support PROBABLE SOLUTION...
  • Page 54 Problemlösung MÖGLICHE URSACHE LÖSUNG Das System hat keine Spannungsversorgung. * Versichern Sie sich, dass das Stromkabel richtig Die Stromanzeige leuchtet nicht, der Lüfter im angebracht ist Inneren Stromversorgung wird nicht * Ersetzen Sie das Stromkabel eingeschaltet. Tastaturleuchten sind nicht an. * Wenden Sie sich an Ihre Kundendienststelle MÖGLICHE URSACHE LÖSUNG...
  • Page 55 06/20/2003...
