Biostar M7VIQ User Manual

Biostar M7VIQ User Manual

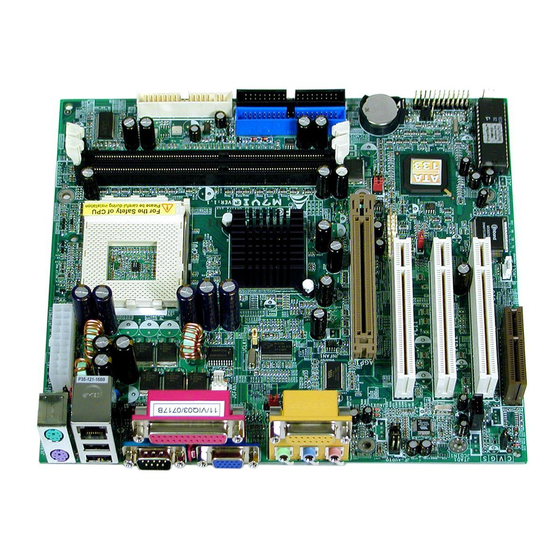

Biostar m7viq motherboard: user guide
Hide thumbs Also See for M7VIQ:

Advertisement

Available languages

Available languages

M
7
V
I
Q
M
7
V
I
Q
M
7
V
I
Q
FCC Statement and Copyright
This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a
particular installation.
The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves the
right to revise this publication and to make changes to the contents here of
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole is not allowed without
first obtaining the vendor's approval in writing.
The content of this user's is subject to be changed without notice and we
will not be responsible for any mistakes found in this user's manual. All the
brand and product names are trademarks of their respective companies.
i

Advertisement

Table of Contents
loading

Summary of Contents for Biostar M7VIQ

  • Page 1 FCC Statement and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 2: Table Of Contents

    ENGLISH... 1 M7VIQ Features ... 1 Package contents ... 1 Layout of M7VIQ ... 2 CPU Installation ... 3 DDR DIMM Modules: DDR1-2 ... 4 Jumpers, Headers, Connectors & Slots ... 5 ESPAÑOL ... 12 Características del M7VIQ ... 12 Contenido del Paquete...
  • Page 3: English

    English M7VIQ Features Use Via KM266/ VT8235 Chipset, W83697HF, LAN Chip (optional). Contains on board I/O facilities, which include one serial port, one VGA port, a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports, a LAN port (optional) and a game port.
  • Page 4: Layout Of M7Viq

    Layout of M7VIQ JKBMS1 JATXPWER1 JKBV1 JUSBV1 JUSBLAN1 JCOM1 JPRNT1 JCFAN1 JVGA1 JSPKR1 JUSBV3 SP-OUT JLIN1 LINE-IN JMIC1 LAN CHIP MIC-IN JAUD GAME Codec JCODECSEL VT8375 (KM 266) JDIMMVOLT PCI1 JUSB2 JUSB3 JUSBV2 VT 8235 PCI2 PCI3 Winbond JWOL1 W83697HF...
  • Page 5: Cpu Installation

    CPU Installation Pull the lever sideways away from the socket then raise the lever up to 90-degree angle. Locate Pin A in the socket and lock for the white dot or cut edge in the CPU. Match Pin A with the white dot/cut edge then insert the CPU.
  • Page 6: Ddr Dimm Modules: Ddr1-2

    DDR DIMM Modules: DDR1-2 DRAM Access Time: 2.5V Unbuffered DDR 200/266 MHz Type required. DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin) DIMM Socket DDR Module Location DDR 1 64MB/128MB/256MB/512MB/1GB DDR 2 64MB/128MB/256MB/512MB/1GB * The list shown above for DRAM configuration is only for reference. How to install a DIMM Module 1.
  • Page 7: Jumpers, Headers, Connectors & Slots

    Peripheral Component Interconnect Slots: PCI1-3 This motherboard is equipped with 3 standard PCI slots. PCI stands for Peripheral Component Interconnect, and it is a bus standard for expansion cards. This PCI slot is designated as 32 bits.
  • Page 8 Power Connectors: JATXPWR1 JATXPWR1 JATXPWR1 (ATX Main Power Conn.) (ATX Main Power Conn.) DIMM Power Selection Connector: JDIMMVOLT JDIMMVOLT (Default ==> 2.5V) It strongly recommended to set DDR DIMM voltage in default setting 2.5V, and it for over voltage function. Wake On LAN Header: WOL1 Ground 5V_SB Wake up...
  • Page 9 Front USB Header: JUSB2/ JUSB3 Pin Assignment Pin Assignment Data (-) Data (+) JUSB1/2 Ground 5V/ 5VSB Selection for USB: JUSBV1/2/3 JUSBV1/2/3 Pin 1-2 on Pin 2-3 on CPU Frequency Selection: JCLK1 On ==> 100MHz Off ==> 133MHz JCLK1 Data (-) Data (+) Ground Assignment...
  • Page 10 5V/ 5VSB Selection for Keyboard: JKBV1 JKBV1 Pin 1-2 on Pin 2-3 on CNR Codec Primary/ Secondary Selection: JCODECSEL J_CODECSEL Pin 1-2 Pin 2-3 CNR Primary Codec. Assignment 5V_SB Assignment On-board Primary Codec (Default).
  • Page 11 Front Panel Connector: JPANEL1 PWR_LED HLED ==> Speaker Conn. HLED ==> Hard Driver LED ==> Reset Button ==> Infrared Conn. ==> Sleep Button PWR_LED ==> Power LED ON/ OFF ==> Power-on Button Audio DJ: JDJ1 JDJ1 Digital Audio Connector: JSPDIF1 (Optional) SPDIF_OUT GND VCC5 JSPDIF1...
  • Page 12 Audio Subsystem: JF_AUDIO/JCDIN1 JF_AUDIO1 (Front Audio Header) (CD-ROM Audio-In Header) Assignment Mic In Mic Power RT Line Out Reserved LFT Line Out Pin 5 and 9 are routed to Front Panel Audio Out. Pin 6 and 10 are routed from Front Panel Audio Out. Front Panel Audio Connector/ Jumper Block Jumper Setting Pin 5 and 6...
  • Page 13: Back Panel Connectors

    Back Panel Connectors RJ45USB1 JKBMS1 JPRNT1 LAN(Optional) PS/2 Mouse Parallel PS/2 COM1 COM1 Keyboard JCOM1 JGAME1_USB1 Game Port/ USB Ports (optional) Speaker Line In Mic VGA1 JVGA1...
  • Page 14: Español

    Español Características del M7VIQ Usa Chipset Via KM266/ VT8235, W83697HF, LAN Chip (opcional). Contiene facilidades I/O integrados en la placa madre en el que incluye un puerto en serie, un puerto paralelo, un puerto de ratón PS/2, un puerto de teclado PS/2, puerto de audio, puertos USB, un puerto LAN (opcional), un puerto de juego, y un puerto para el monitor.
  • Page 15: Disposición Del M7Viq

    Cable USB X 2 (Opcional) Panel Trasero I/O para Caja ATX X 1 (Opcional) Disposición del M7VIQ JKBMS1 J A TXPW ER1 J K BV 1 J U SBV 1 JUSBLAN1 JCOM1 JPRNT1 J CFAN1 JVGA1 JSPKR1 JUSBV3 Salida del...
  • Page 16: Instalación Del Cpu

    Instalación del CPU Tire de la palanca del lado del zócalo, luego levante la palanca hasta un ángulo de 90 grados. Sitúe el contacto A del zócalo y busque el punto blanco o corte el borde en la CPU. Empareje el contacto A con el punto blanco/ corte del borde, luego inserte la CPU.
  • Page 17: Módulos Ddr Dimm: Ddr1-2

    Módulos DDR DIMM: DDR1-2 DRAM Tiempor de Acceso: 2.5V Unbuffered DDR 200/266 MHz Tipo requerido. DRAM Tipo: 64MB/ 128MB/ 256MB/ 512MB/ 1GB Módulo DIMM (184 pin) Localización del Módulo Módulo DDR DIMM DDR 1 64MB/128MB/256MB/512MB/1GB DDR 2 64MB/128MB/256MB/512MB/1GB * La lista de arriba para la configuración DRAM es solamente para referencia.
  • Page 18: Conectores, Cabezales, Puentes Y Ranuras

    Conectores, Cabezales, Puentes y Ranuras Conectores del Disco Duro: IDE1/ IDE2 La placa madre tiene un controlador de 32-bit PCI IDE que proporciona Modo PIO 0~4, Bus Master, y funcionalidad Ultra DMA / 33/ 66/ 100. Tiene dos conectores HDD IDE1 (primario) y IDE2 (secundario). El conector IDE puede conectar a un master y un drive esclavo, así...
  • Page 19 Conectores de Corriente: JATXPWR1 JATXPWR1 JATXPWR1 (ATX Main Power Conn.) (ATX Conector de Corriente Principal.) Conector de Selección de la Corriente DIMM: JDIMMVOLT Pin 1-2 encendido ==> 2.5V Pin 1-2 encendido ==> 2.6V Pin 3-4 encendido ==> 2.7V Pin 3-4 encendido ==> 2.6V JDIMMVOLT JDIMMVOLT Pin 5-6 encendido ==>...
  • Page 20 Puente de Borrar CMOS: JCMOS1 Cabezal Frontal USB: JUSB2/ JUSB3 Contactos Asignacion Contactos Asignacion Data (-) Data (+) Tierra 5V/ 5VSB Selección para USB: JUSBV1/2/3 JUSBV1/ 2/ 3 Contactos 1-2 on Contactos 2-3 on JCMOS1 Asignacion Operacion Normal Contacto (default) 1-2 on Borrar Datos Contacto...
  • Page 21 Selección de Frecuencia del CPU: JCLK1 On ==> 100MHz Off ==> 133MHz JCLK1 5V/ 5VSB Selección para Teclado: JKBV1 JKBV1 Contactos 1-2 on Contactos 2-3 on CNR Codec de Selección Primario/ Secundario: JCODECSEL J_CODECSEL Contacto Codec Primario integrado en la placa madre. Contacto CNR Codec Primario.
  • Page 22 Conector del Panel Frontal: JPANEL1 PWR_LED HLED ==> Conector de Altavoz HLED ==> LED del Disco Duro ==> Boton de Reinicio ==> Conector Infrarojo ==> Boton de Suspension PWR_LED ==> Corriente LED ON/ OFF ==> Boton de Encendido Audio DJ: JDJ1 Contacto1 ==>...
  • Page 23 Subsistema de Audio: JF_AUDIO/JCDIN1 (Cabezal Frontal de Audio) (Cabezal de Entrada de Audio CD-ROM) Contactos Asignacion Entrada del MIC Corriente del MIC RT Salida de Linea Reservado LFT Salida de Linea Contactos 5 y 9 son encaminados a la Salida de Audio del Panel Frontal.
  • Page 24 Conector del Panel Frontal de Audio/ Jumper Block Jumper Setting La senal de salida de linea del Audio Contacto 5 & 6 encamina al conector de la salida de linea Contacto 9 & 10 del Audio ubicado en el panel trasero. La senal de salida de linea del Audio y la senal del entrada del mic estan disponibles No jumpers...
  • Page 25: Trouble Shooting

    Trouble Shooting PROBABLE No power to the system at all Power light don’t illuminate, fan inside power supply does not turn on. Indicator light on keyboard does not turn on PROBABLE System inoperative. Keyboard lights are on, power indicator lights are lit, hard drive is spinning.
  • Page 26: Solución De Problemas

    Solución de Problemas CAUSA PROBABLE No hay corriente en el sistema. La luz de corriente no ilumina, ventilador dentro de la fuente de alimentación apagada. Indicador de luz del teclado apagado. CAUSA PROBABLE Sistema inoperativo. Luz del teclado encendido, luz de indicador de corriente iluminado, disco rígido está...
  • Page 27 12/04/2002...
